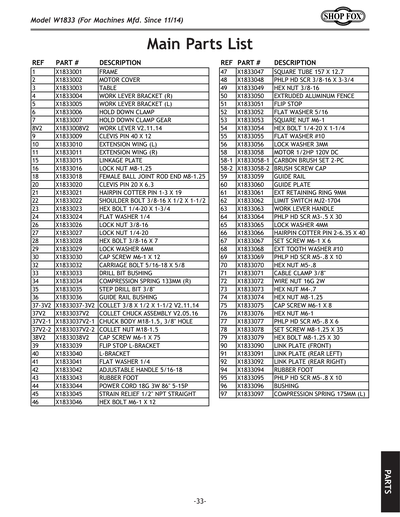

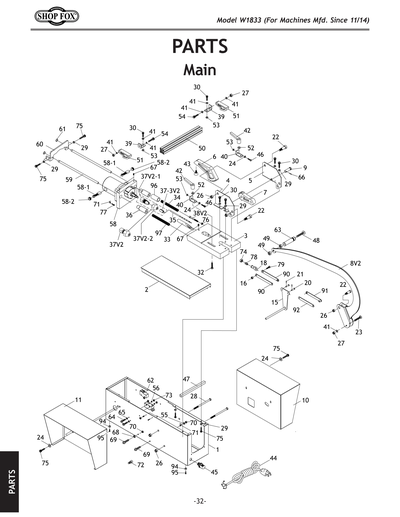

Parts for W1833 Pocket Hole Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FRAME
2
MOTOR COVER
3
TABLE
4
WORK LEVER BRACKET (R)
5
WORK LEVER BRACKET (L)
6
*DISCD*HOLD DOWN CLAMP
Item is no longer available
Price
N/A
7
HOLD DOWN CLAMP GEAR
8
WORK LEVER V1
8V2
WORK LEVER V2.11.14
9
CLEVIS PIN 40 X 12
10
EXTENSION WING (L)
11
EXTENSION WING (R)
12
CLEVIS ROD END M8-1.25 X 35 LH
13
CLEVIS ROD END COUPLER
14
CLEVIS ROD END M8-1.25 X 35 RH
15
LINKAGE PLATE
16
LOCK NUT M8-1.25
Price
N/A
17
SQUARE STANDOFF NUT M8-1.25
18
FEMALE BALL JOINT ROD END M8-1.25
19
CLEVIS ROD END M8-1.25 X 35
20
CLEVIS PIN 20 X 6.3
21
HAIRPIN COTTER PIN 1-3 X 19
22
SHOULDER BOLT 3/8-16 X 1/2 X 1-1/2
23
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
24
Now: PW06
FLAT WASHER 1/4
Price
N/A
25
BUSHING 1/4-20 X 1/4 X 1/2
26
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
27
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
28
HEX BOLT 3/8-16 X 7
29
LOCK WASHER 6MM
Price
N/A
30
CAP SCREW M6-1 X 12
Price
N/A
32
Now: PCB01
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
33
DRILL BIT BUSHING
34
COMPRESSION SPRING 133MM
35
Now: H7320
Stepped Drill Bit for Pocket Hole Machines
Price
N/A
36
GUIDE RAIL BUSHING
37
COLLET CHUCK
37-1
COLLET CHUCK ASSEMBLY
Price
N/A
37-2
COLLET CHUCK ASSEMBLY
Price
N/A
37-3
COLLET CHUCK ASSEMBLY
Price
N/A
37-3V2
COLLET CHUCK ASSEMBLY
Price
N/A
37V2
COLLET CHUCK ASSEMBLY
37V2-1
COLLET CHUCK ASSEMBLY
Price
N/A
37V2-2
COLLET CHUCK ASSEMBLY
Price
N/A
38
CAP SCREW M6-1 X 80
Price
N/A
38V2
CAP SCREW M6-1 X 75
39
FLIP STOP L-BRACKET
40
L-BRACKET
41
Now: PW06
FLAT WASHER 1/4
Price
N/A
42
ADJUSTABLE HANDLE 5/16-18
43
*DISCD*RUBBER FOOT
Item is no longer available
Price
N/A
44
POWER CORD 18G 3W 86" 5-15P
45
STRAIN RELIEF 1/2" NPT STRAIGHT
46
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
47
SQUARE TUBE 157 X 12.7
48
Now: PS82
PHLP HD SCR 3/8-16 X 3
Price
N/A
49
Now: PN08
HEX NUT 3/8-16
Price
N/A
50
EXTRUDED ALUMINUM FENCE
51
FLIP STOP
52
Now: PW07
FLAT WASHER 5/16
Price
N/A
53
SQUARE NUT M6-1
Price
N/A
54
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
55
Now: PW03
FLAT WASHER #10
Price
N/A
56
LOCK WASHER 3MM
Price
N/A
58
*DISCD*MOTOR 1/2HP 120V DC
Item is no longer available
Price
N/A
58-1
FEED MOTOR BRUSH SET
Price
N/A
58-2
BRUSH SCREW CAP
59
GUIDE RAIL
60
GUIDE PLATE
61
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
62
LIMIT SWITCH
Price
N/A
63
WORK LEVER HANDLE
64
Now: PS95M
PHLP HD SCR M3-.5 X 30
Price
N/A
65
LOCK WASHER 4MM
Price
N/A
66
HAIRPIN COTTER PIN 2-6.35 X 40
67
SET SCREW M6-1 X 6
Price
N/A
68
EXT TOOTH WASHER #10
Price
N/A
69
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
70
Now: PN06M
HEX NUT M5-.8
Price
N/A
71
CABLE CLAMP 3/8"
72
WIRE NUT 16G 2W
Price
N/A
73
Now: PN07M
HEX NUT M3-.5
Price
N/A
74
Now: PN03M
HEX NUT M8-1.25
Price
N/A
75
CAP SCREW M6-1 X 8
Price
N/A
76
Now: PN01M
HEX NUT M6-1
Price
N/A
77
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
78
SET SCREW M8-1.25 X 35
Price
N/A
79
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
80

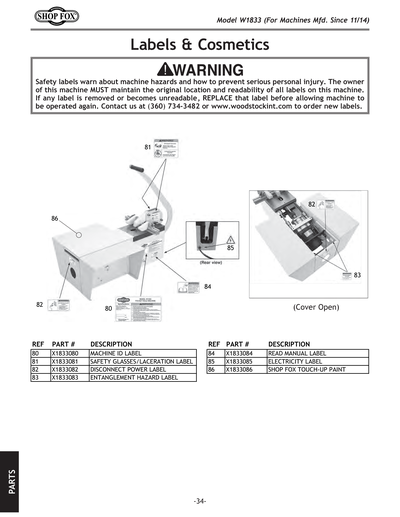

MACHINE ID LABEL
81
SAFETY GLASSES/LACERATION LABEL
82
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
83
ENTANGLEMENT HAZARD LABEL
84
READ MANUAL 2.8W X 1.5H
Price
N/A
85
ELECTRICITY 0.7W X 0.6H
Price
N/A
86
SHOP FOX WHITE M1006
Price
N/A
90
LINK PLATE (FRONT)
91
LINK PLATE (REAR LEFT)
92
LINK PLATE (REAR RIGHT)
94
RUBBER FOOT
95
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
96
BUSHING
97
COMPRESSION SPRING 175MM (L)
MAN
MANUAL W1833 MFD-04.13 V1.09.13
PKG1
BOX FOR W1833
PKG2
STYROFOAM
