Parts for W1834 - 20" Universal Knife Sharpener

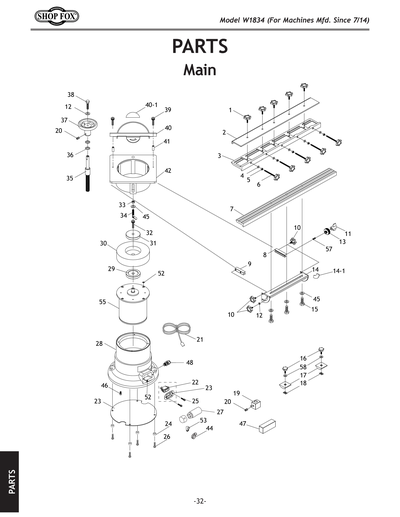

Part Diagram for W1834
Part Diagram for W1834
Part Diagram for W1834
Part Diagram for W1834
Part Diagram for W1834
Part Diagram for W1834

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$2.30
2
Price
$19.85
3
SLIDING BAR
Price
N/A
4
O-RING 6 X 2
Price
N/A
5
X1834005
Now: PN05
HEX NUT 1/4-20
Price
N/A
6
STAR KNOB 1/4-20 X 2-3/4
Price
$2.90
7
Price
$80.50
8
RIGHT PIVOT SUPPORT FLANGE
Price
N/A
9
LEFT PIVOT SUPPORT FLANGE
Price
N/A
10
Price
$2.20
11
PIVOT KNOB
Price
N/A
12
X1834012
Now: PW06
FLAT WASHER 1/4
Price
N/A
13
Price
$5.20
14
PIVOT SUPPORT
Price
N/A
14-1
Price
$4.70
15
X1834015
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
16
STAR KNOB 10-24 X 3/4
Price
N/A
17
STATIONARY CLAMP
Price
N/A
18
STATIONARY CLAMP NUT 10-24
Price
N/A
19
DRESSING TOOL HOLDER
Price
N/A
20
SET SCREW 5/16-18 X 3/8
Price
N/A
21
POWER CORD 18G 3W 82"L 5-15
Price
N/A
22
ON/OFF SWITCH V1
Price
N/A
23
COVER PLATE
Price
N/A
24
RUBBER BASE FOOT
Price
N/A
25
X1834025
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
26
FLANGE SCREW 10-24 X 3/8
Price
N/A
27
S CAPACITOR 10M 250V 1-1/8 X 1-1/2
Price
$17.30
28
Price
$136.80
29
STEEL BOTTOM WHL FLANGE V1
Price
N/A
30
WHEEL TYPE-5 6"D 1-1/2"T 1/2"B 120 GRIT
Price
$55.95
31
***SEE EXT. DESCRIPTION***
Price
N/A
32
CAP SCREW M5-.8 X 15
Price
N/A
33
X1834033
Now: PN02
HEX NUT 5/16-18
Price
N/A
34
TABLE LOCK LEVER
Price
N/A
35
TABLE LEADSCREW 5/8-11 X 3-3/4
Price
$9.30
36
*DISCD*STEEL BALL 3/16"
Price
N/A
37
Price
$15.20
38
X1834038
Now: PB88
HEX BOLT 1/4-20 X 1-3/4
Price
N/A
39
CAP SCREW M5-.8 X 35
Price
N/A
40
STEEL WHEEL GUARD V1
Price
N/A
40-1
Price
$2.75
41
SPACER
Price
N/A
42
Price
$81.55
42V2
GRINDING TABLE V2.07.24
Price
$77.70
42V3
GRINDING TABLE V2.07.24
Price
N/A
44
CAPACITOR CLIP
Price
N/A
45
X1834045
Now: PW07
FLAT WASHER 5/16
Price
N/A
46
WIRE NUT 14-22 AWG
Price
N/A
47
Price
$8.70
48
STRAIN RELIEF 3/8" STRAIGHT LT PLASTIC
Price
$3.55
49

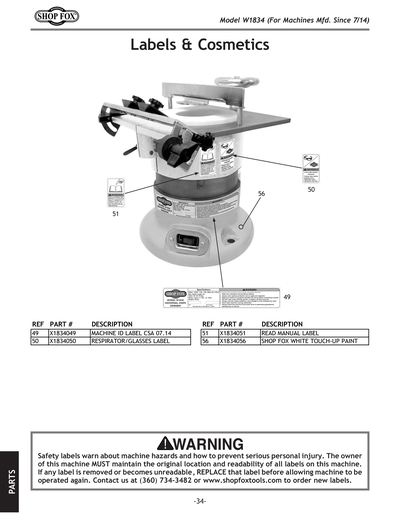

MACHINE ID LABEL CSA 07.14
Price
$16.40
50
Price
$1.60
51
READ MANUAL 1.5W X 2.5H
Price
N/A
52
EXT TOOTH WASHER #10
Price
N/A
53
CORD CLIP ACC-3
Price
N/A
54
X1834054
Now: PW08
FLAT WASHER #8
Price
N/A
55
MOTOR 1/2HP 110V 1-PH
Price
N/A
56
SHOP FOX WHITE M1006
Price
N/A
57
SET SCREW 1/4-24 X 1-1/4
Price
$2.50
58
X1834058
Now: PW18
***USE PW03***
Price
N/A
60
X1834060
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR W1834
Price
$154.85
MANUAL
MANUAL W1834 MFD-07.14+ V1.10.14
Price
$14.65
