Parts for W1835 - Track Saw

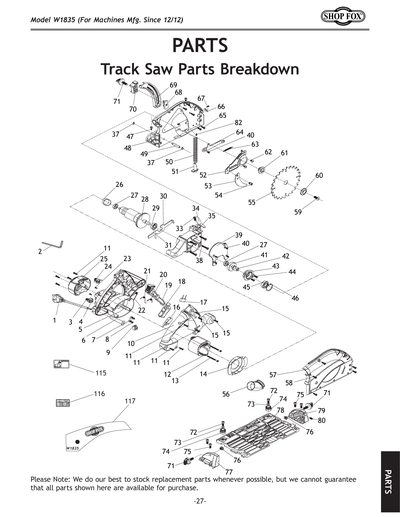

Part Diagram for W1835

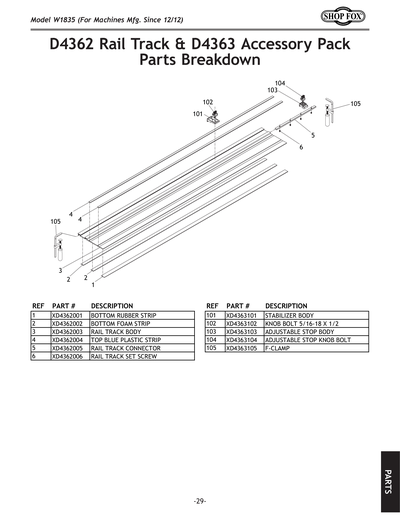

Part Diagram for W1835
Part Diagram for W1835
Part Diagram for W1835
Part Diagram for W1835
Part Diagram for W1835

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

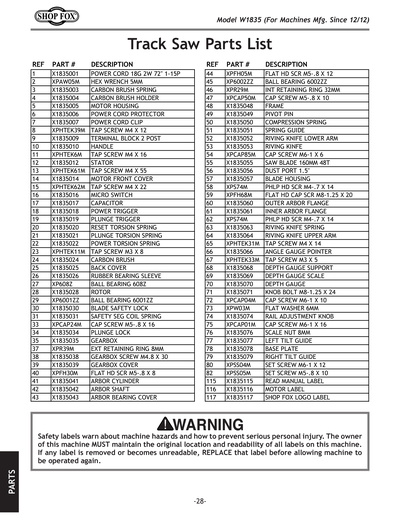

Ref #
Part #
Description
1
*DISCD*POWER CORD 18G 2W 72" 1-15P
Price
$9.75
2
HEX WRENCH 5MM
Price
N/A
3
*DISCD*CARBON BRUSH SPRING
Price
$1.49
4
*DISCD*CARBON BRUSH HOLDER
Price
$2.30
5
*DISCD*MOTOR HOUSING
Item is no longer available
Price
N/A
6
*DISCD*POWER CORD PROTECTOR
Item is no longer available
Price
N/A
7
*DISCD*POWER CORD CLIP
Item is no longer available
Price
N/A
8
TAP SCREW M4 X 12
Price
N/A
9
*DISCD*TERMINAL BLOCK 2 POST
Item is no longer available
Price
N/A
10
*DISCD*HANDLE
Item is no longer available
Price
N/A
11
TAP SCREW M4 X 16
Price
N/A
12
*DISCD*STATOR
Price
$47.40
13
TAP SCREW M4 X 55
Price
N/A
14
*DISCD*MOTOR FRONT COVER
Item is no longer available
Price
N/A
15
TAP SCREW M4 X 22
Price
N/A
16
*DISCD*MICRO SWITCH
Price
$2.00
17
*DISCD*CAPACITOR
Price
$1.49
18
*DISCD*POWER TRIGGER
Price
$1.49
19
*DISCD*PLUNGE TRIGGER
Price
$1.85
20
*DISCD*RESET TORSION SPRING
Item is no longer available
Price
N/A
21
*DISCD*PLUNGE TORSION SPRING
Item is no longer available
Price
N/A
22
*DISCD*POWER TORSION SPRING
Item is no longer available
Price
N/A
23
TAP SCREW M3 X 8
Price
N/A
24
*DISCD*CARBON BRUSH (SET OF 2) V1
Price
$6.65
24V2
*DISCD*CARBON BRUSH (SET OF 2) V2.06.13
Price
$9.75
25
*DISCD*BACK COVER
Item is no longer available
Price
N/A
26
*DISCD*RUBBER BEARING SLEEVE
Price
$1.49
27
BALL BEARING 608Z
Price
N/A
28
*DISCD*ROTOR
Item is no longer available
Price
N/A
29
BALL BEARING 6001ZZ
Price
N/A
30
*DISCD*BLADE SAFETY LOCK
Item is no longer available
Price
N/A
31
*DISCD*SAFETY SEG COIL SPRING
Item is no longer available
Price
N/A
33
CAP SCREW M5-.8 X 16
Price
N/A
34
*DISCD*PLUNGE LOCK
Item is no longer available
Price
N/A
35
*DISCD*GEARBOX
Item is no longer available
Price
N/A
37
EXT RETAINING RING 8MM
Price
N/A
38
*DISCD*GEARBOX SCREW M4.8 X 30
Item is no longer available
Price
N/A
39
*DISCD*GEARBOX COVER
Item is no longer available
Price
N/A
40
FLAT HD SCR M5-.8 X 8
Price
N/A
41
*DISCD*ARBOR CYLINDER W/SHAFT
Item is no longer available
Price
N/A
42
*DISCD*ARBOR CYLINDER W/SHAFT
Price
N/A
43
*DISCD*ARBOR BEARING COVER
Price
$4.90
44
FLAT HD SCR M5-.8 X 12
Price
N/A
45
BALL BEARING 6002ZZ
Price
N/A
46
INT RETAINING RING 32MM
Price
N/A
47
CAP SCREW M5-.8 X 10
Price
N/A
48
*DISCD*FRAME
Item is no longer available
Price
N/A
49
*DISCD*PIVOT PIN
Item is no longer available
Price
N/A
50
*DISCD*COMPRESSION SPRING
Price
$1.49
51
*DISCD*SPRING GUIDE
Price
$1.49
52
*DISCD*RIVING KNIFE LOWER ARM
Item is no longer available
Price
N/A
53
*DISCD*RIVING KINFE
Item is no longer available
Price
N/A
54
CAP SCREW M6-1 X 6
Price
N/A
55
*DISCD*SAW BLADE 160MM 48T
Price
$21.40
56
*DISCD*DUST PORT 1.5"
Item is no longer available
Price
N/A
57
*DISCD*BLADE HOUSING
Item is no longer available
Price
N/A
58
PHLP HD SCR M4-.7 X 14
Price
N/A
59
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
60
*DISCD*OUTER ARBOR FLANGE
Price
$1.49
61
*DISCD*INNER ARBOR FLANGE
Price
$3.65
62
PHLP HD SCR M4-.7 X 14
Price
N/A
63
*DISCD*RIVING KNIFE SPRING
Item is no longer available
Price
N/A
64
*DISCD*RIVING KNIFE UPPER ARM
Item is no longer available
Price
N/A
65
TAP SCREW M4 X 14
Price
N/A
66
*DISCD*ANGLE GAUGE POINTER
Item is no longer available
Price
N/A
67
TAP SCREW M3 X 5
Price
N/A
68
*DISCD*DEPTH GAUGE SUPPORT
Item is no longer available
Price
N/A
69
*DISCD*DEPTH GAUGE SCALE
Item is no longer available
Price
N/A
70
*DISCD*DEPTH GAUGE
Item is no longer available
Price
N/A
71
*DISCD*KNOB BOLT M8-1.25 X 24
Price
$3.60
72
CAP SCREW M6-1 X 10
Price
N/A
73
FLAT WASHER 6MM
Price
N/A
74
*DISCD*RAIL ADJUSTMENT KNOB
Item is no longer available
Price
N/A
75
CAP SCREW M6-1 X 16
Price
N/A
76
*DISCD*SCALE NUT 8MM
Price
$1.49
77
*DISCD*LEFT TILT GUIDE
Price
$4.00
78
*DISCD*BASE PLATE
Price
$79.70
79
*DISCD*RIGHT TILT GUIDE
Price
$3.05
80
SET SCREW M6-1 X 12
Price
N/A
82
SET SCREW M5-.8 X 10
Price
N/A
115
*DISCD*READ MANUAL LABEL
Item is no longer available
Price
N/A
116
*DISCD*MOTOR LABEL
Item is no longer available
Price
N/A
117
*DISCD*SHOP FOX LOGO LABEL
Item is no longer available
Price
N/A
MAN
MANUAL W1835 MFG 12/12 V1.12.12
Item is no longer available
Price
N/A
