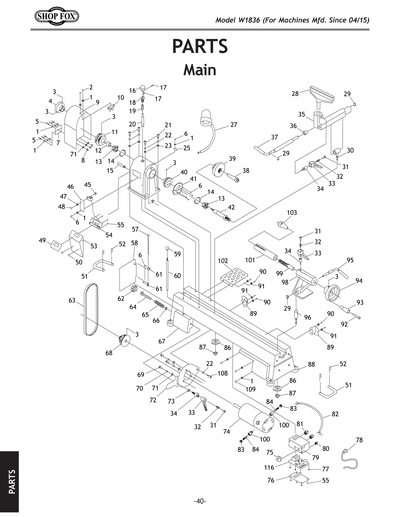

Parts for W1836 12" x 15" Benchtop Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

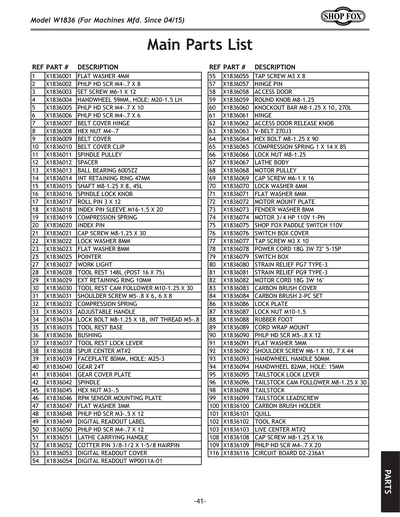

1
Now: PW05M
FLAT WASHER 4MM
Price
N/A
2
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
3
SET SCREW M6-1 X 12
Price
N/A
4
HANDWHEEL 59MM, HOLE: M20-1.5 LH
5
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
6
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
7
BELT COVER HINGE
8
Now: PN04M
HEX NUT M4-.7
Price
N/A
9
BELT COVER
10
BELT COVER CLIP
11
SPINDLE PULLEY
12
SPACER
13
BALL BEARING 6005ZZ
Price
N/A
14
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
15
SHAFT M8-1.25 X 8, 45L
16
SPINDLE LOCK KNOB ASSEMBLY
Price
N/A
16A
SPINDLE LOCK KNOB ASSEMBLY
17
ROLL PIN 3 X 12
Price
N/A
18
SPINDLE LOCK KNOB ASSEMBLY
Price
N/A
19
SPINDLE LOCK KNOB ASSEMBLY
Price
N/A
20
SPINDLE LOCK KNOB ASSEMBLY
Price
N/A
21
CAP SCREW M8-1.25 X 30
Price
N/A
22
LOCK WASHER 8MM
Price
N/A
23
Now: PW01M
FLAT WASHER 8MM
Price
N/A
25
POINTER
27
WORK LIGHT
28
TOOL REST 148L (POST 16 X 75)
29
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
30
TOOL REST CAM FOLLOWER M10-1.25 X 30
33
STEADY REST HANDLE ASSEMBLY
33-1
TAILSTOCK HANDLE ASSEMBLY
35
TOOL REST BASE
36
BUSHING
37
TOOL REST LOCK LEVER
38
SPUR CENTER MT#2
39
FACEPLATE 80MM, HOLE: M25-3
40
GEAR 24T
41
GEAR COVER PLATE
42
SPINDLE
43
HEADSTOCK CASTING
45
Now: PN07M
HEX NUT M3-.5
Price
N/A
46
RPM SENSOR MOUNTING PLATE
47
Now: PW07M
FLAT WASHER 3MM
Price
N/A
48
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
49
DIGITAL READOUT LABEL
50
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
51
LATHE CARRYING HANDLE
52
COTTER PIN 3/8-1/2 X 1-5/8 HAIRPIN
53
DIGITAL READOUT COVER
54
DIGITAL READOUT WP0011A-01
55
TAP SCREW M3 X 8
Price
N/A
57
HINGE PIN
58
ACCESS DOOR
59
ROUND KNOB M8-1.25
60
KNOCKOUT BAR M8-1.25 X 10, 270L
61
HINGE
62
ACCESS DOOR RELEASE KNOB
63
TIMING BELT 26" X 0.25" X 0.4"
64
HEX BOLT M8-1.25 X 90
Price
N/A
65
COMPRESSION SPRING 1 X 14 X 85
66
LOCK NUT M8-1.25
Price
N/A
67
LATHE BODY
68
MOTOR PULLEY
69
CAP SCREW M6-1 X 16
Price
N/A
70
LOCK WASHER 6MM
Price
N/A
71
Now: PW03M
FLAT WASHER 6MM
Price
N/A
72
MOTOR MOUNT PLATE
73
FENDER WASHER 8MM
Price
N/A
74
MOTOR 3/4 HP 110V 1-PH
75
Now: D2751
Paddle Switch 125V/250V
Price
N/A
76
SWITCH BOX COVER
77
TAP SCREW M3 X 10
Price
N/A
78
POWER CORD 18G 3W 72" 5-15P
79
SWITCH BOX
80
STRAIN RELIEF PG7 TYPE-3
81
STRAIN RELIEF PG9 TYPE-3
82
MOTOR CORD 18G 3W 16"
83
CARBON BRUSH COVER
84
CARBON BRUSH 2-PC SET
86
LOCK PLATE
87
LOCK NUT M10-1.5
Price
N/A
88
RUBBER FOOT
89
CORD WRAP MOUNT
90
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
91
Now: PW02M
FLAT WASHER 5MM
Price
N/A
92
SHOULDER SCREW M6-1 X 10, 7 X 44
93
HANDWHEEL HANDLE 50MM
94
HANDWHEEL 82MM, HOLE: 15MM
95
TAILSTOCK LOCK LEVER
96
TAILSTOCK CAM FOLLOWER M8-1.25 X 30
98
TAILSTOCK
99
TAILSTOCK LEADSCREW
100
CARBON BRUSH HOLDER
101
QUILL
102
TOOL RACK
103
LIVE CENTER MT#2
108
CAP SCREW M8-1.25 X 16
Price
N/A
109
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
116
CIRCUIT BOARD V1
Price
N/A
117
POTENTIOMETER B103 WITH VS DIAL
201

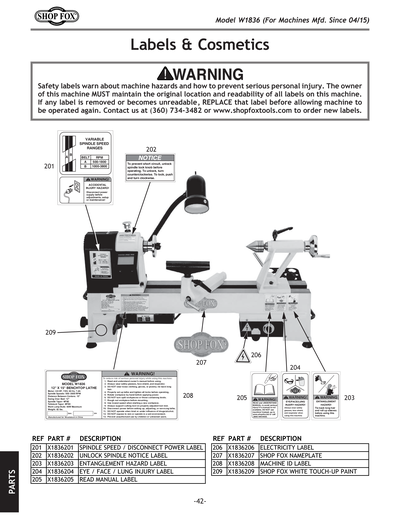

SPINDLE SPEED/DISCONNECT POWER LABEL
202
UNLOCK SPINDLE NOTICE
203
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
204
EYE/FACE/LUNG INJURY LABEL
205
READ MANUAL 1.5W X 2.5H
Price
N/A
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
Now: D3375
Shop Fox Nameplate - Small
Price
N/A
208
MACHINE ID LABEL
209
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1836 MFD-03.15 V1.06.15
PKG1
CARTON FOR W1836
