Parts for W1838 - 2" x 27" Combo Belt/6" Disc Benchtop Sander

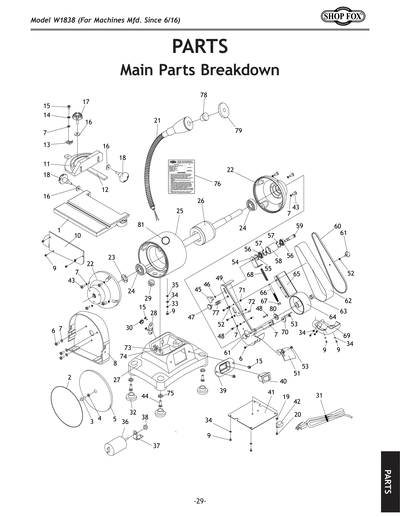

Part Diagram for W1838

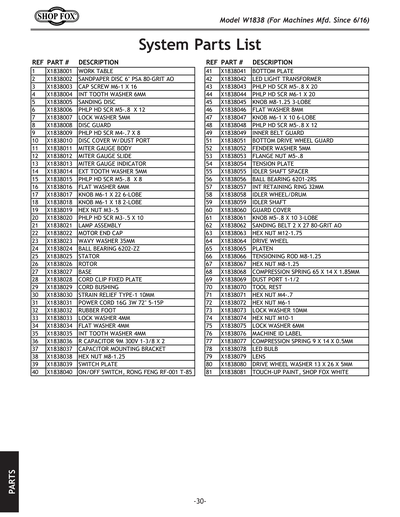

Part Diagram for W1838
Part Diagram for W1838
Part Diagram for W1838

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
WORK TABLE
Price
$21.25
2
SANDPAPER DISC 6" PSA 80-GRIT AO
Price
$1.90
3
CAP SCREW M6-1 X 16
Price
N/A
4
INT TOOTH WASHER 6MM
Price
N/A
5
SANDING DISC
Price
$8.95
5V2
SANDING DISC V2.10.23
Price
$10.45
6
PHLP HD SCR M5-.8 X 12
Price
N/A
7
LOCK WASHER 5MM
Price
N/A
8
DISC GUARD
Price
$13.70
9
PHLP HD SCR M4-.7 X 8
Price
N/A
10
DISC COVER W/DUST PORT
Price
$1.90
11
MITER GAUGE BODY
Price
$2.20
12
MITER GAUGE SLIDE
Price
$2.20
13
MITER GAUGE INDICATOR
Price
$1.90
14
EXT TOOTH WASHER 5MM
Price
N/A
15
PHLP HD SCR M5-.8 X 8
Price
N/A
16
FLAT WASHER 6MM
Price
N/A
17
KNOB M6-1 X 22 6-LOBE
Price
$1.90
18
KNOB M6-1 X 18 2-LOBE
Price
$1.90
19
HEX NUT M3-.5
Price
N/A
20
PHLP HD SCR M3-.5 X 10
Price
N/A
21
LAMP ASSEMBLY
Price
$31.35
22
MOTOR END CAP
Price
$10.85
23
WAVY WASHER 35MM
Price
$1.90
24
BALL BEARING 6202ZZ
Price
N/A
25
STATOR
Price
$51.75
26
***SEE EXT DESC***
Item is no longer available
Price
N/A
26V2
ROTOR V2.10.23
Price
$40.25
27
BASE
Price
$18.70
28
CORD CLIP FIXED PLATE
Price
$1.90
29
CORD BUSHING
Price
$1.90
30
STRAIN RELIEF TYPE-1 10MM
Price
$1.90
31
POWER CORD 16G 3W 72" 5-15P
Price
$8.65
32
RUBBER FOOT
Price
$1.90
33
LOCK WASHER 4MM
Price
N/A
34
FLAT WASHER 4MM
Price
N/A
35
INT TOOTH WASHER 4MM
Price
N/A
36
R CAPACITOR 9M 300V 1-3/8 X 2
Price
$5.10
37
CAPACITOR MOUNTING BRACKET
Price
$1.90
38
HEX NUT M8-1.25
Price
N/A
39
SWITCH PLATE
Price
$1.90
40
ON/OFF SWITCH, RONG FENG RF-001 T-85
Price
$2.20
41
BOTTOM PLATE
Price
$2.90
42
LAMP ASSEMBLY
Price
N/A
43
PHLP HD SCR M5-.8 X 20
Price
N/A
44
PHLP HD SCR M6-1 X 20
Price
N/A
45
KNOB M8-1.25 3-LOBE
Price
$1.90
46
FLAT WASHER 8MM
Price
N/A
47
KNOB M6-1 X 10 6-LOBE
Price
$1.90
48
PHLP HD SCR M5-.8 X 12
Price
N/A
49
INNER BELT GUARD
Price
$10.95
51
BOTTOM DRIVE WHEEL GUARD
Price
$1.90
52
FENDER WASHER 5MM
Price
N/A
53
FLANGE NUT M5-.8
Price
N/A
54
TENSION PLATE
Price
$1.90
55
IDLER SHAFT SPACER
Price
$2.20
56
BALL BEARING 6201-2RS
Price
N/A
57
INT RETAINING RING 32MM
Price
N/A
58
IDLER WHEEL/DRUM
Price
$4.35
59
IDLER SHAFT
Price
$7.95
60
GUARD COVER
Price
$3.25
61
KNOB M5-.8 X 10 3-LOBE
Price
$1.90
62
SANDING BELT 2 X 27 80-GRIT AO
Price
$2.20
63
HEX NUT M12-1.75
Price
N/A
64
DRIVE WHEEL
Price
$11.20
65
PLATEN
Price
$2.60
66
TENSIONING ROD M8-1.25
Price
$1.90
67
HEX NUT M8-1.25
Price
N/A
68
COMPRESSION SPRING 65 X 14 X 1.85MM
Price
$1.90
69
DUST PORT 1-1/2
Price
$1.90
70
TOOL REST RIGHT
Price
N/A
71
HEX NUT M4-.7
Price
N/A
72
HEX NUT M6-1
Price
N/A
73
LOCK WASHER 10MM
Price
N/A
74
HEX NUT M10-1
Price
N/A
75
LOCK WASHER 6MM
Price
N/A
76
MACHINE ID LABEL
Price
$16.40
77
COMPRESSION SPRING 9 X 14 X 0.5MM
Price
$1.90
78
LAMP ASSEMBLY
Price
N/A
79
LAMP ASSEMBLY
Price
N/A
80
DRIVE WHEEL WASHER 13 X 26 X 5MM
Price
$1.90
81
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1838 MFD-05.16 V1.06.16
Price
$14.65
