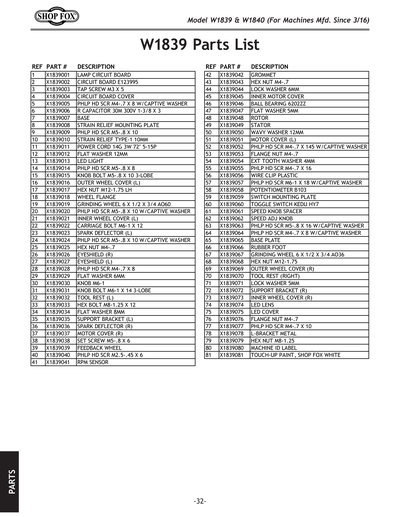

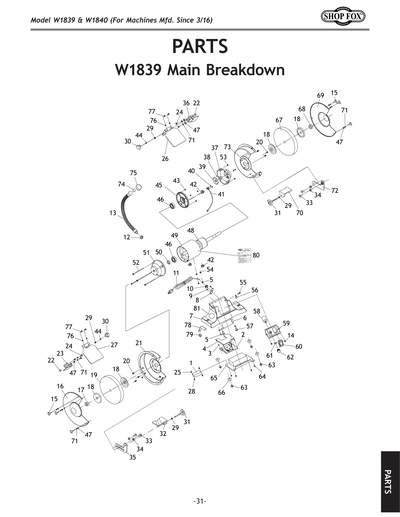

Parts for W1839 6" Variable-Speed Grinder with Work Light

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
LAMP CIRCUIT BOARD
1A
LAMP ASSEMBLY
2
CIRCUIT BOARD E123995 ASSEMBLY
2-1
FUSE 10A 250V 5 X 20MM, GLASS
3
TAP SCREW M3 X 5
Price
N/A
4
CIRCUIT BOARD COVER
5
PHLP HD SCR M4-.7 X 8 W/CAPTIVE WASHER
6
R CAPACITOR 30M 300V 1-3/8 X 3
7
BASE
8
STRAIN RELIEF MOUNTING PLATE
9
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
10
STRAIN RELIEF TYPE-1 10MM
11
POWER CORD 14G 3W 72" 5-15P
12
Now: PW06M
FLAT WASHER 12MM
Price
N/A
13
LED LIGHT
14
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
15
KNOB BOLT M5-.8 X 10 3-LOBE
16
OUTER WHEEL COVER (L)
17
Now: PN16M
HEX NUT M12-1.75 LH
Price
N/A
18
WHEEL FLANGE
19
GRINDING WHEEL 6 X 3/4 X 1/2 AO60N5V
20
PHLP HD SCR M5-.8 X 10 W/CAPTIVE WASHER
21
INNER WHEEL COVER (L)
22
CARRIAGE BOLT M6-1 X 12
Price
N/A
23
SPARK DEFLECTOR (L)
24
PHLP HD SCR M5-.8 X 10 W/CAPTIVE WASHER
Price
N/A
25
Now: PN04M
HEX NUT M4-.7
Price
N/A
26
EYESHIELD (R)
27
EYESHIELD (L)
28
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
29
Now: PW03M
FLAT WASHER 6MM
Price
N/A
30
KNOB M6-1
31
KNOB BOLT M6-1 X 14 3-LOBE
32
TOOL REST (L)
33
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
34
Now: PW01M
FLAT WASHER 8MM
Price
N/A
35
SUPPORT BRACKET (L)
36
SPARK DEFLECTOR (R)
37
MOTOR COVER (R)
38
SET SCREW M5-.8 X 6
Price
N/A
39
FEEDBACK WHEEL
40
PHLP HD SCR M2.5 - .45 X 6
Price
N/A
41
CIRCUIT BOARD E123995 ASSEMBLY
Price
N/A
42
GROMMET
43
Now: PN04M
HEX NUT M4-.7
Price
N/A
44
LOCK WASHER 6MM
Price
N/A
45
INNER MOTOR COVER
46
BALL BEARING 6202ZZ
Price
N/A
47
Now: PW02M
FLAT WASHER 5MM
Price
N/A
48
ROTOR
49
STATOR
50
WAVY WASHER 12MM
Price
N/A
51
MOTOR COVER (L)
52
PHLP HD SCR M4-.7 X 145 W/CAPTIVE WASHER
53
FLANGE NUT M4-.7
Price
N/A
54
EXT TOOTH WASHER 4MM
Price
N/A
55
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
56
WIRE CLIP PLASTIC
57
PHLP HD SCR M6-1 X 18 W/CAPTIVE WASHER
58
CIRCUIT BOARD E123995 ASSEMBLY
Price
N/A
59
SWITCH MOUNTING PLATE
60
TOGGLE SWITCH KEDU HY7
61
CIRCUIT BOARD E123995 ASSEMBLY
Price
N/A
62
SPEED ADJ KNOB
63
PHLP HD SCR M5-.8 X 16 W/CAPTIVE WASHER
64
PHLP HD SCR M4-.7 X 8 W/CAPTIVE WASHER
Price
N/A
65
BASE PLATE
66
RUBBER FOOT
67
GRINDING WHEEL 6 X 3/4 X 1/2 AO36N5V
68
Now: PN09M
HEX NUT M12-1.75
Price
N/A
69
OUTER WHEEL COVER (R)
70
TOOL REST (RIGHT)
71
LOCK WASHER 5MM
Price
N/A
72
SUPPORT BRACKET (R)
73
INNER WHEEL COVER (R)
74
LED LENS AND COVER
75
LAMP ASSEMBLY
Price
N/A
76
FLANGE NUT M4-.7
Price
N/A
77
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
78
L-BRACKET METAL
79
Now: PN03M
HEX NUT M8-1.25
Price
N/A
80
MACHINE ID LABEL
81
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1839/W1840 MFD-05.16 V1.05.16
