Parts for W1842 - 13" Planer/Moulder

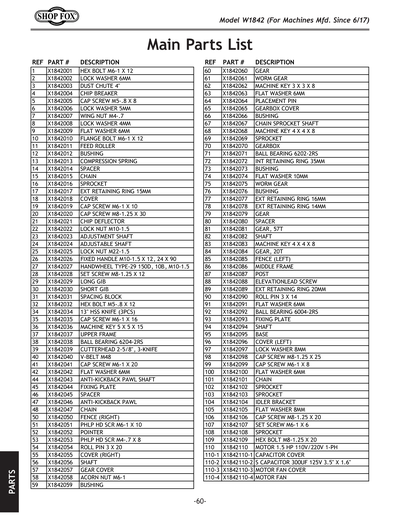

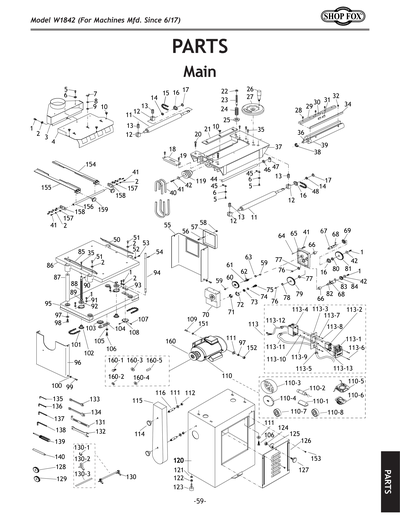

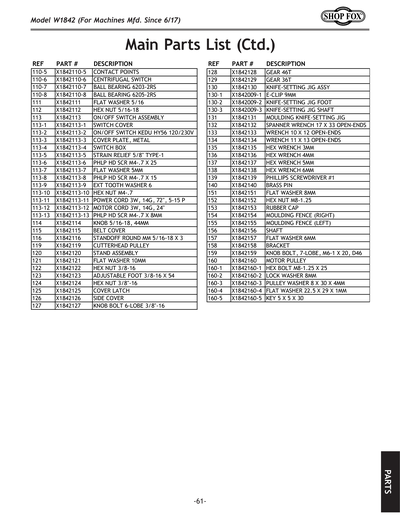

Part Diagram for W1842
Part Diagram for W1842
Part Diagram for W1842
Part Diagram for W1842
Part Diagram for W1842
Part Diagram for W1842
Part Diagram for W1842
Part Diagram for W1842

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEX BOLT M6-1 X 12
Price
N/A
2
LOCK WASHER 6MM
Price
N/A
3
DUST CHUTE 4"
Item is no longer available
Price
N/A
4
CHIP BREAKER
Price
$29.15
5
CAP SCREW M5-.8 X 8
Price
N/A
6
LOCK WASHER 5MM
Price
N/A
7
WING NUT M4-.7
Price
N/A
8
LOCK WASHER 4MM
Price
N/A
9
FLAT WASHER 6MM
Price
N/A
10
FLANGE BOLT M6-1 X 12
Price
N/A
11
ROLLER
Price
N/A
12
BUSHING
Price
N/A
13
HELICAL SPRING 2 X 28
Price
N/A
14
SPACER
Price
N/A
15
CHAIN
Price
N/A
16
KEY SPROCKET
Price
N/A
17
EXT RETAINING RING 15MM
Price
N/A
18
COVER
Price
N/A
19
CAP SCREW M6-1 X 10
Price
N/A
20
CAP SCREW M8-1.25 X 30
Price
N/A
21
CHIP GUARD PLATE
Price
N/A
22
LOCK NUT M10-1.5
Price
N/A
23
ADJUSTMENT SHAFT
Price
N/A
24
ADJUSTABLE SHAFT
Price
N/A
25
LOCK NUT M22-1.5
Price
N/A
26
FIXED HANDLE M10-1.5 X 12, 24 X 90
Item is no longer available
Price
N/A
27
HANDWHEEL TYPE-29 150D, 10B, M10-1.5
Item is no longer available
Price
N/A
28
SET SCREW M8-1.25 X 12
Price
N/A
29
GIB 5.5 IN
Price
N/A
30
GIB 2 IN
Price
N/A
31
PLATE
Price
N/A
32
HEX BOLT M5-.8 X 12
Price
N/A
34
13" x 5/8" x 1/8" HSS Planer Knives for G1037, Set of 3
Price
N/A
35
CAP SCREW M6-1 X 16
Price
N/A
36
KEY 5 X 5 X 15
Price
N/A
37
UPPER FRAME
Item is no longer available
Price
N/A
38
BALL BEARING 6204-2RS
Price
N/A
39
CUTTERHEAD
Price
N/A
40
V-BELT M48
Price
$8.85
41
CAP SCREW M6-1 X 20
Price
N/A
42
FLAT WASHER 6MM
Price
N/A
44
SHAFT
Price
N/A
45
FIXING PLATE
Price
N/A
46
SPACER
Price
N/A
47
ANTI-KICKBACK FINGER
Price
N/A
48
CHAIN #410 X 18
Price
N/A
50
FENCE RIGHT
Price
N/A
51
PHLP HD SCR M6-1 X 10
Price
N/A
52
POINTER
Price
N/A
53
PHLP HD SCR M4-.7 X 8
Price
N/A
54
ROLL PIN 3 X 20
Price
N/A
55
COVER (RIGHT)
Item is no longer available
Price
N/A
56
SHAFT
Price
N/A
57
GEAR COVER
Price
N/A
58
ACORN NUT M6-1
Price
N/A
59
BUSHING
Price
N/A
60
GEAR 58T
Price
N/A
61
GEAR 10T
Price
N/A
62
KEY 3 X 3 X 8
Price
N/A
63
FLAT WASHER 6MM
Price
N/A
64
PIN
Price
N/A
65
GEARBOX COVER
Item is no longer available
Price
N/A
66
BUSHING
Price
N/A
67
CHAIN SPROCKET SHAFT
Price
N/A
68
KEY 4 X 4 X 8
Price
N/A
69
SPROCKET
Price
N/A
70
GEARBOX
Item is no longer available
Price
N/A
71
BALL BEARING 6202-2RS
Price
N/A
72
INT RETAINING RING 35MM
Price
N/A
73
BUSHING
Price
N/A
74
FLAT WASHER 10MM
Price
N/A
75
GEAR 9T
Price
N/A
76
BUSHING
Price
N/A
77
EXT RETAINING RING 16MM
Price
N/A
78
EXT RETAINING RING 14MM
Price
N/A
79
GEAR 72T
Price
N/A
80
SPACER
Price
N/A
81
GEAR 46T
Price
N/A
82
SHAFT
Price
N/A
83
KEY 4 X 4 X 8
Price
N/A
84
GEAR 31T
Price
N/A
85
FENCE LEFT
Price
N/A
86
MIDDLE FRAME
Item is no longer available
Price
N/A
87
POST
Price
N/A
88
ELEVATION SCREW M14-2 X 197
Price
N/A
89
EXT RETAINING RING 20MM
Price
N/A
90
ROLL PIN 3 X 14
Price
N/A
91
FLAT WASHER 6MM
Price
N/A
92
BALL BEARING 6004-2RS
Price
N/A
93
FIXING PLATE
Price
N/A
94
SHAFT
Price
N/A
95
BASE
Item is no longer available
Price
N/A
96
COVER (LEFT)
Item is no longer available
Price
N/A
97
LOCK WASHER 8MM
Price
N/A
98
CAP SCREW M8-1.25 X 25
Price
N/A
99
CAP SCREW M6-1 X 8
Price
N/A
100
FLAT WASHER 6MM
Price
N/A
101
CHAIN
Price
N/A
102
SPROCKET
Price
N/A
103
SPROCKET
Price
N/A
104
IDLER BRACKET
Price
N/A
105
FLAT WASHER 8MM
Price
N/A
106
CAP SCREW M8-1.25 X 20
Price
N/A
107
SET SCREW M6-1 X 6
Price
N/A
108
SPROCKET 10T
Price
N/A
109
HEX BOLT M8-1.25 X 20
Price
N/A
110
MOTOR 1.5 HP 110V/220V 1-PH
Item is no longer available
Price
N/A
110-1
CAPACITOR COVER V2.05.11
Price
N/A
110-2
S CAPACITOR 300M 125V 1-9/16 X 3-7/16 V2
Price
N/A
110-3
FAN COVER V2.05.11
Price
N/A
110-4
FAN COVER V2.05.11
Price
N/A
110-5
CONTACT PLATE
Item is no longer available
Price
N/A
110-6
CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
110-7
BALL BEARING 6203-2RS
Price
N/A
110-8
BALL BEARING 6205RS
Price
N/A
111
X1842111
Now: PW07
FLAT WASHER 5/16
Price
N/A
112
X1842112
Now: PN02
HEX NUT 5/16-18
Price
N/A
113
ON/OFF SWITCH ASSEMBLY
Item is no longer available
Price
N/A
113-1
SWITCH COVER
Price
$5.05
113-10
HEX NUT M4-.7
Price
N/A
113-11
POWER CORD 14G 3W 72" 5-15P
Price
N/A
113-12
MOTOR CORD 3W, 14G, 24"
Item is no longer available
Price
N/A
113-13
PHLP HD SCR M4-.7 X 8
Price
N/A
113-2
ON/OFF SWITCH KEDU HY56 120/230V
Price
$26.40
113-3
SWITCH PLATE
Price
N/A
113-4
SWITCH BOX
Item is no longer available
Price
N/A
113-5
Price
N/A
113-6
PHLP HD SCR M4-.7 X 25
Price
N/A
113-7
FLAT WASHER 5MM
Price
N/A
113-8
PHLP HD SCR M4-.7 X 15
Price
N/A
113-9
EXT TOOTH WASHER 6MM
Price
N/A
114
KNOB
Price
N/A
115
BELT COVER
Item is no longer available
Price
N/A
116
STANDOFF-ROUND DE
Price
N/A
119
PULLEY
Price
N/A
120
STAND ASSEMBLY
Item is no longer available
Price
N/A
121
FLAT WASHER 10MM
Price
N/A
122
X1842122
Now: PN08
HEX NUT 3/8-16
Price
N/A
123
ADJUSTABLE FOOT 3/8-16 X 54
Item is no longer available
Price
N/A
124
X1842124
Now: PN08
HEX NUT 3/8-16
Price
N/A
125
COVER LATCH
Item is no longer available
Price
N/A
126
SIDE COVER
Item is no longer available
Price
N/A
127
KNOB BOLT 6-LOBE 3/8"-16
Item is no longer available
Price
N/A
128
GEAR 57T
Price
N/A
129
GEAR 20T
Price
N/A
130
COMPLETE KNIFE GAUGE ASSY
Price
N/A
130-1
E-CLIP 9MM
Price
N/A
130-2
KNIFE GAUGE 1 OF 2
Price
N/A
130-3
KNIFE GAUGE ROD
Price
N/A
131
L-GAUGE
Price
N/A
132
WRENCH 17 X 32
Price
N/A
133
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
134
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
135
HEX WRENCH 3MM
Price
N/A
136
HEX WRENCH 4MM
Price
N/A
137
HEX WRENCH 5MM
Price
N/A
138
HEX WRENCH 6MM
Price
N/A
139
SCREWDRIVER
Price
N/A
140
DRIFT
Price
N/A
151
FLAT WASHER 8MM
Price
N/A
152
HEX NUT M8-1.25
Price
N/A
153
RUBBER CAP
Item is no longer available
Price
N/A
154
MOULDING FENCE (RIGHT)
Item is no longer available
Price
N/A
155
MOULDING FENCE (LEFT)
Item is no longer available
Price
N/A
156
FENCE GUIDE ROD
Price
N/A
157
FLAT WASHER 6MM
Price
N/A
158
FENCE GUIDE ROD BRACKET
Price
N/A
159
KNOB M6-1 X 20 MALE
Price
N/A
160
PULLEY
Price
N/A
160-1
HEX BOLT M8-1.25 X 25
Price
N/A
160-2
LOCK WASHER 8MM
Price
N/A
160-3
PULLEY WASHER 8 X 30 X 4MM
Item is no longer available
Price
N/A
160-5
KEY 5 X 5 X 30
Price
N/A

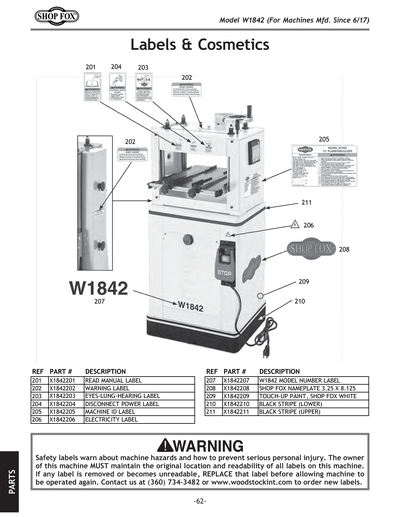

201
READ MANUAL 1.5W X 2.5H
Price
N/A
202
WARNING LABEL
Item is no longer available
Price
N/A
203
EYES-LUNG-HEARING LABEL
Item is no longer available
Price
N/A
204
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
205
MACHINE ID LABEL
Item is no longer available
Price
N/A
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
207
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
208
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
209
SHOP FOX WHITE M1006
Price
N/A
210
BLACK STRIPE (LOWER)
Item is no longer available
Price
N/A
211
BLACK STRIPE (UPPER)
Item is no longer available
Price
N/A
MAN
W1842 MANUAL MFD-09.17 V1.09.17
Item is no longer available
Price
N/A
