Parts for W1843 - Knife Belt Sander/Buffer

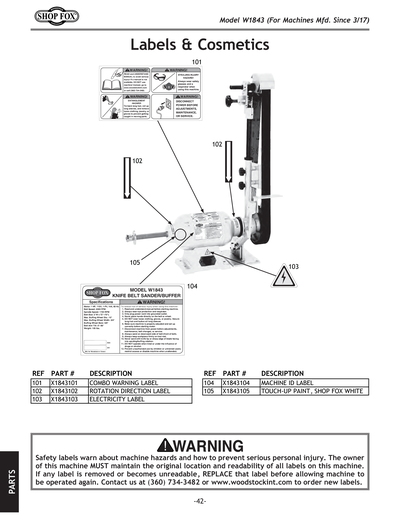

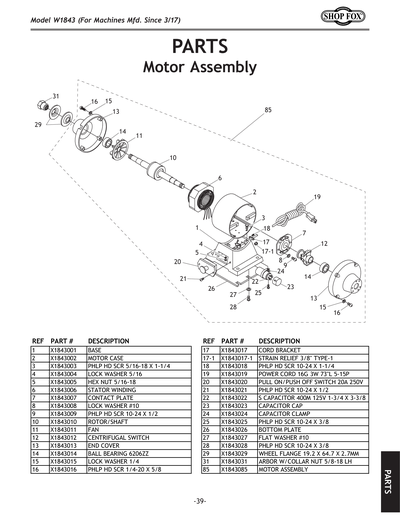

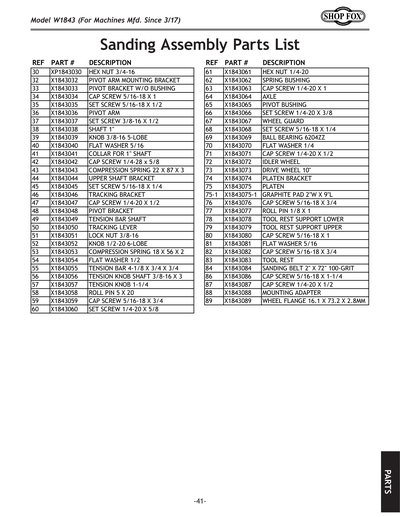

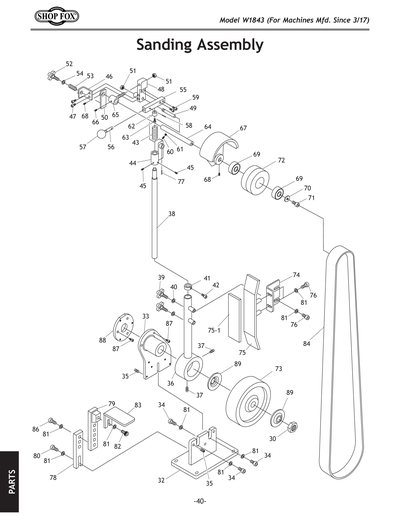

Part Diagram for W1843
Part Diagram for W1843
Part Diagram for W1843
Part Diagram for W1843
Part Diagram for W1843
Part Diagram for W1843
Part Diagram for W1843
Part Diagram for W1843

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$179.75
2
BASE W/ MOTOR CASE
Price
N/A
3
X1843003
Now: PS11
PHLP HD SCR 5/16-18 X 1-1/4
Price
N/A
4
LOCK WASHER 5/16
Price
N/A
5
X1843005
Now: PN02
HEX NUT 5/16-18
Price
N/A
6
STATOR WINDING
Price
N/A
7
CONTACT PLT LG INT PT
Price
N/A
8
LOCK WASHER #10
Price
N/A
9
X1843009
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
10
ROTOR/SHAFT
Price
N/A
11
FAN
Price
N/A
12
CENTRIFUGAL SWITCH
Price
N/A
13
Price
$33.55
14
BALL BEARING 6206ZZ
Price
N/A
15
LOCK WASHER 1/4
Price
N/A
16
X1843016
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
17
CORD CLAMP
Price
N/A
17-1
STRAIN PLATE
Price
N/A
18
X1843018
Now: PS13
PHLP HD SCR 10-24 X 1-1/4
Price
N/A
19
POWER CORD 16G X 3W 73"L
Price
N/A
20
ON/OFF SWITCH
Price
N/A
21
X1843021
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
22
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
23
CAPACITOR COVER
Price
N/A
24
CAPACITOR CLAMP
Price
N/A
25
X1843025
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
26
Price
$1.80
27
X1843027
Now: PW03
FLAT WASHER #10
Price
N/A
28
X1843028
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
29
WHEEL FLANGE 3/4" BORE
Price
N/A
30
X1843030
Now: PN03
HEX NUT 3/4-16
Price
N/A
31
ARBOR NUT 5/8-18 LH
Price
N/A
32
PIVOT ARM MOUNTING BRACKET
Price
$53.15
33
PIVOT BRACKET W/O BUSHING
Price
$107.55
34
CAP SCREW 5/16-18 X 1
Price
N/A
35
SET SCREW 5/16-18 X 1/2
Price
N/A
36
Price
$117.80
37
SET SCREW 3/8-16 X 1/2
Price
N/A
38
Price
$22.10
39
Price
$1.70
40
X1843040
Now: PW07
FLAT WASHER 5/16
Price
N/A
41
COLLAR FOR 1" SHAFT
Price
N/A
42
CAP SCREW 1/4-28 X 5/8
Price
N/A
43
COMPRESSION SPRING D22.3 X 87MM
Price
N/A
44
Price
$10.30
45
SET SCREW 5/16-18 X 1/4
Price
N/A
46
Price
$13.90
47
CAP SCREW 1/4-20 X 1/2
Price
N/A
48
Price
$26.65
49
SHAFT
Price
N/A
50
TRACKING LEVER
Price
N/A
51
LOCK NUT 3/8-16
Price
N/A
52
TRACKING KNOB 1/2-20
Price
N/A
53
COMPRESSION SPRING D18 X 56MM
Price
N/A
54
X1843054
Now: PW01
FLAT WASHER 1/2
Price
N/A
55
TENSION BAR 4-1/8"
Price
N/A
56
TENSION KNOB SHAFT
Price
N/A
57
TENSION KNOB 3/8-16
Price
N/A
58
ROLL PIN 5 X 20
Price
N/A
59
CAP SCREW 5/16-18 X 3/4
Price
N/A
60
SET SCREW 1/4-20 X 5/8
Price
N/A
61
X1843061
Now: PN05
HEX NUT 1/4-20
Price
N/A
62
SPRING BUSHING
Price
N/A
63
CAP SCREW 1/4-20 X 1
Price
N/A
64
AXLE
Price
N/A
65
PIVOT BUSHING
Price
N/A
66
SET SCREW 1/4-20 X 3/8
Price
N/A
67
Price
$10.40
68
SET SCREW 5/16-18 X 1/4
Price
N/A
69
BALL BEARING 6204ZZ
Price
N/A
70
X1843070
Now: PW06
FLAT WASHER 1/4
Price
N/A
71
CAP SCREW 1/4-20 X 1/2
Price
N/A
72
IDLER WHEEL
Price
N/A
73
Price
$173.90
74
Price
$7.60
75
Price
$24.50
75-1
GRAPHITE PAD 2W X 9L IN
Price
N/A
76
CAP SCREW 5/16-18 X 3/4
Price
N/A
77
ROLL PIN 1/8 X 1
Price
N/A
78
TOOL REST SUPPORT LOWER
Price
$21.75
79
TOOL REST SUPPORT UPPER
Price
$16.15
80
CAP SCREW 5/16-18 X 1
Price
N/A
81
X1843081
Now: PW07
FLAT WASHER 5/16
Price
N/A
82
CAP SCREW 5/16-18 X 3/4
Price
N/A
83
Price
$12.55
84
2" x 72" A/O Sanding Belt 100 Grit, 2 Pk.
Price
N/A
85
Price
$654.25
86
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
87
CAP SCREW 1/4-20 X 1/2
Price
N/A
88
MOUNTING ADAPTOR
Price
N/A
89
WHEEL FLANGE 3/4" BORE
Price
N/A
101
Price
$1.55
102
ROTATION DIRECTION LABEL
Price
N/A
103
ELECTRICITY 0.7W X 0.6H
Price
N/A
104
Price
$16.40
105
SHOP FOX WHITE M1006
Price
N/A
BOX2
COMPLETE SANDING ARM ASSEMBLY BOX 2
Price
$894.95
MAN
MANUAL W1843 MFD-03.17 V1.05.17
Price
$14.65
PKG1
Price
$14.60
PKG2
CARTON FOR W1843 BOX 2 OF 2
Price
$17.40
