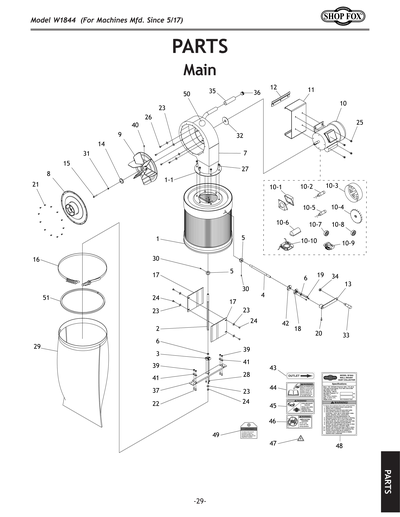

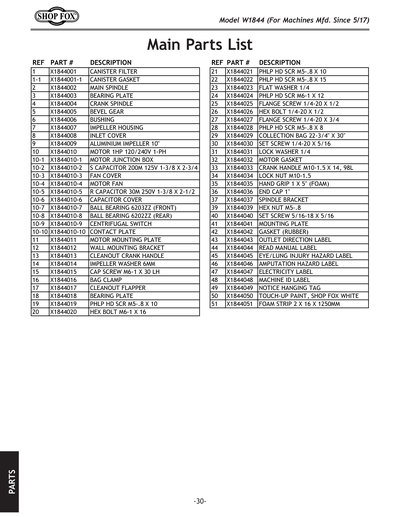

Parts for W1844 1 HP Wall Mount Dust Collector with Canister Filter

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: D4645
Canister Filter for W1826
Price
N/A
1-1
CANISTER GASKET
2
MAIN SPINDLE
Price
N/A
3
BEARING PLATE
Price
N/A
4
CRANK SPINDLE
Price
N/A
5
BEVEL GEAR
6
BUSHING
Price
N/A
7
IMPELLER HOUSING
8
INLET COVER
Price
N/A
9
ALUMINIUM IMPELLER 10"
Price
N/A
10
MOTOR 1HP 120/240V 1-PH
10-1
MOTOR JUNCTION BOX
Price
N/A
10-10
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
N/A
10-2
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
10-3
FAN COVER
Price
N/A
10-4
MOTOR FAN
Price
N/A
10-5
Now: PC30
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
10-6
CAPACITOR COVER
Price
N/A
10-7
BALL BEARING 6203ZZ
Price
N/A
10-8
BALL BEARING 6202ZZ
Price
N/A
10-9
CENTRIFUGAL SWITCH W/CONTACT PLATE
11
MOTOR MOUNTING PLATE
12
WALL MOUNTING BRACKET
Price
N/A
13
CLEANOUT CRANK HANDLE
14
IMPELLER WASHER
Price
N/A
15
CAP SCREW M6-1 X 30LH PRE-COATED
Price
N/A
16
BAG CLAMP
17
PLASTIC FLAP BOARD V2.09.11
Price
N/A
18
BEARING PLATE
19
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
20
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
21
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
22
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
23
Now: PW06
FLAT WASHER 1/4
Price
N/A
24
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
25
Now: PFS21
FLANGE SCREW 1/4-20 X 1/2
Price
N/A
26
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
27
FLANGE SCREW 1/4-20 X 3/4
28
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
29
Now: D4781
Dust Collection Bag for W1844 and W1826
Price
N/A
30
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
31
Now: PLW02
LOCK WASHER 1/4
Price
N/A
32
MOTOR GASKET
Price
N/A
33
CRANK HANDLE M10-1.5 X 14, 98L
Price
N/A
34
LOCK NUT M10-1.5
Price
N/A
35
HANDLE COVER
Price
N/A
36
TUBE CAP 1"
Price
N/A
37
BOTTOM PLATE
Price
N/A
39
Now: PN06M
HEX NUT M5-.8
Price
N/A
40
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
41
MOUNTING PLATE
Price
N/A
42
GASKET (RUBBER)
43
OUTLET DIRECTION LABEL
Price
N/A
44
READ MANUAL 2.8W X 1.5H
Price
N/A
45
EYE/LUNG INJURY HAZARD LABEL
46
AMPUTATION HAZARD LABEL
47
ELECTRICITY 0.7W X 0.6H
Price
N/A
48
MACHINE ID LABEL
49
NOTICE HANGING TAG
50
SHOP FOX WHITE M1006
Price
N/A
51
FOAM STRIP 2 X 16 X 1250MM
BOX2
*** USE BXW184402***
MAN
MANUAL W1844 MFD-06.17 V1.08.17
