Parts for W1845 - 6" x 108" Oscillating Edge Sander

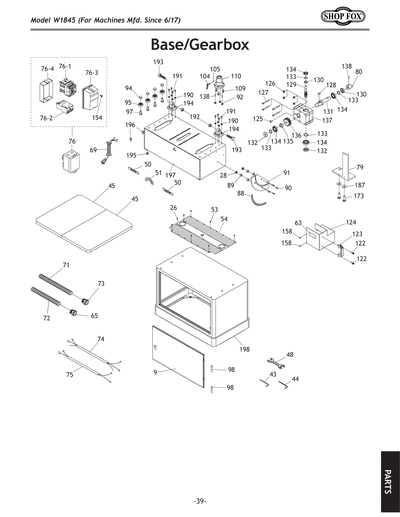

Part Diagram for W1845

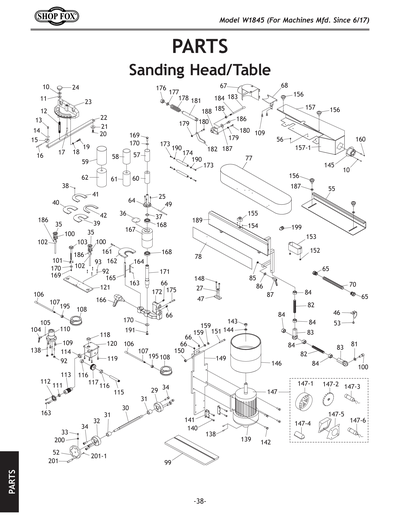

Part Diagram for W1845
Part Diagram for W1845
Part Diagram for W1845
Part Diagram for W1845
Part Diagram for W1845
Part Diagram for W1845
Part Diagram for W1845
Part Diagram for W1845
Part Diagram for W1845

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

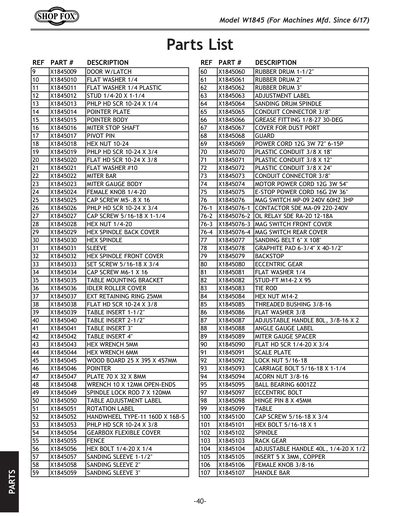

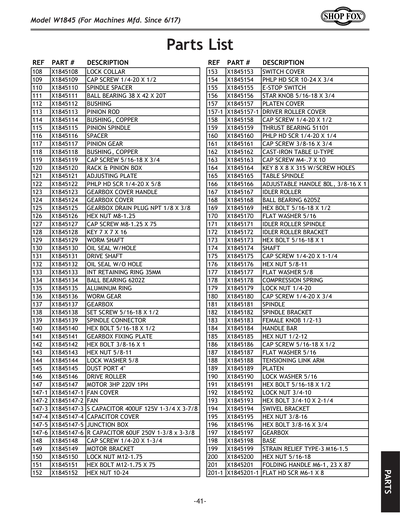

Ref #
Part #
Description
9
DOOR W/LATCH
Price
$66.25
10
X1845010
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
FLAT WASHER 1/4 PLASTIC
Price
N/A
12
STUD M6-1 X 28
Price
N/A
13
X1845013
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
14
POINTER PLATE
Price
N/A
15
POINTER BODY
Price
N/A
16
STOP SHAFT
Price
N/A
17
PIVOT PIN
Price
N/A
18
X1845018
Now: PN07
HEX NUT 10-24
Price
N/A
19
X1845019
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
20
FLAT HD SCR 10-24 X 3/8
Price
N/A
21
X1845021
Now: PW03
FLAT WASHER #10
Price
N/A
22
MITER BAR
Price
N/A
23
MITER GAUGE BODY
Price
N/A
24
FEMALE KNOB 1/4-20
Price
N/A
25
CAP SCREW M5-.8 X 16
Price
N/A
26
X1845026
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
27
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
28
X1845028
Now: PN05
HEX NUT 1/4-20
Price
N/A
29
HEX SPINDLE BACK COVER
Price
N/A
30
HEX SPINDLE
Price
N/A
31
SLEEVE
Price
N/A
32
HEX SPINDLE FRONT COVER
Price
N/A
33
SET SCREW 5/16-18 X 3/4
Price
N/A
34
CAP SCREW M6-1 X 16
Price
N/A
35
TABLE MOUNTING BRACKET
Price
N/A
36
IDLER ROLLER COVER
Price
N/A
37
EXT RETAINING RING 25MM
Price
N/A
38
FLAT HD SCR 10-24 X 3/8
Price
N/A
39
TABLE INSERT 1-1/2"
Price
N/A
40
TABLE INSERT 2"
Price
N/A
41
TABLE INSERT 3"
Price
N/A
42
TABLE INSERT 4"
Price
N/A
43
HEX WRENCH 5MM
Price
N/A
44
HEX WRENCH 6MM
Price
N/A
45
WOOD BOARD 25 X 395 X 457
Price
N/A
46
POINTER
Price
N/A
47
ROLLER PULLER PLATE 70 X 31.7 X 5/16
Price
N/A
48
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
49
ROD
Price
N/A
50
TABLE ADJUSTMENT LABEL
Price
N/A
51
ROTATION LABEL
Price
N/A
52
HANDWHEEL TYPE-31 162D X 17B-S X 23
Price
N/A
53
X1845053
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
54
EXTENDABLE COVER
Price
N/A
55
FENCE
Price
N/A
56
X1845056
Now: PB57
HEX BOLT 1/4-20 X 1/4
Price
N/A
57
SANDING SLEEVE 1-1/2 X 4-1/2" 100-GRIT
Price
N/A
58
SANDING SLEEVE 2 X 4-1/2" 100-GRIT
Price
N/A
59
SANDING SLEEVE 3 X 4-1/2" 100-GRIT
Price
N/A
60
RUBBER DRUM 1-1/2"
Price
N/A
61
RUBBER DRUM 2"
Price
N/A
62
RUBBER DRUM 3"
Price
N/A
63
ADJUSTMENT LABEL
Price
N/A
64
SANDING DRUM SPINDLE
Price
N/A
65
CONDUIT CONNECTOR 1/2 V1
Price
N/A
66
GREASE FITTING 1/8 30-DEG
Price
N/A
67
COVER/DUST PORT
Price
N/A
68
GUARD
Price
N/A
69
POWER CORD
Price
N/A
70
CONDUIT 1/2 PLASTIC V1
Price
N/A
71
CONDUIT 1/2 PLASTIC V1
Price
N/A
72
CONDUIT 3/8 PLASTIC
Price
N/A
73
CONDUIT CONNECTOR 3/8"
Price
N/A
74
MOTOR POWER CORD
Price
N/A
75
BELT DOOR E-STOP CORD 18G 2W 79"
Price
N/A
76
SWITCH V1
Price
N/A
76-1
CONTACTOR SDE MA-09 220-240V
Price
N/A
76-2
ON BUTTON GREEN
Price
N/A
76-3
MAG SWITCH FRONT COVER
Price
N/A
76-4
MAG SWITCH REAR COVER
Price
N/A
77
6" x 108" A/O Sanding Belt 100 Grit
Price
N/A
78
GRAPHITE PAD 6-3/4 X 40-1/2"
Price
N/A
79
BACK STOP
Price
N/A
80
ECCENTRIC BUSHING
Price
N/A
81
X1845081
Now: PW06
FLAT WASHER 1/4
Price
N/A
82
STUD-FT 1-14 X 3-3/4
Price
N/A
83
FEMALE BALL JOINT ROD END M14-2
Price
N/A
84
HEX NUT M14-2
Price
N/A
85
T-SLOT NUT 3/8-16, 20 X 11.8
Price
N/A
86
X1845086
Now: PW02
FLAT WASHER 3/8
Price
N/A
87
ADJUSTABLE HANDLE 3/8-16 X 2, 80MM
Price
N/A
88
ANGLE GAUGE LABEL
Price
N/A
89
SPACER 6.5 X 19 X 12.5
Price
N/A
90
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
91
SCALE PLATE
Price
N/A
92
LOCK NUT 5/16-18
Price
N/A
93
CARRIAGE BOLT 5/16-18 X 1-1/4
Price
N/A
94
X1845094
Now: PN47
ACORN NUT 3/8-16
Price
N/A
95
BALL BEARING 6001ZZ
Price
N/A
97
ECCENTRIC BOLT
Price
N/A
98
HINGE PIN 8 X 45MM
Price
N/A
99
TABLE
Price
N/A
100
CAP SCREW 5/16-18 X 3/4
Price
N/A
101
X1845101
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
102
SPINDLE
Price
N/A
103
RACK GEAR
Price
N/A
104
ADJUSTABLE HANDLE 1/4-20 X 1/2, 80MM
Price
N/A
105
INSERT 5 X 3 COPPER
Price
N/A
106
KNOB 3/8-16, D13/16, TAPERED
Price
N/A
107
HANDLE BAR
Price
N/A
108
LOCK COLLAR
Price
N/A
109
CAP SCREW 1/4-20 X 1/2
Price
N/A
110
SPINDLE SPACER
Price
N/A
111
BALL BEARING 38 X 42 X 20T
Price
N/A
112
PINION COVER
Price
N/A
113
PINION ROD
Price
N/A
114
SPACER 30 X 34 X 12 COPPER
Price
N/A
115
PINION SPINDLE
Price
N/A
116
SPACER 12 X 16 X 11
Price
N/A
117
PINION GEAR
Price
N/A
118
SPACER 25 X 30 X 8 COPPER
Price
N/A
119
CAP SCREW 5/16-18 X 3/4
Price
N/A
120
RACK & PINION BOX
Price
N/A
121
ADJUSTING PLATE
Price
N/A
122
X1845122
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
123
GEARBOX COVER HANDLE
Price
N/A
124
GEAR BOX COVER
Price
N/A
125
SET SCREW 1/8" NPT
Price
N/A
126
HEX NUT M8-1.25
Price
N/A
127
CAP SCREW M8-1.25 X 75
Price
N/A
128
KEY 7 X 7 X 16
Price
N/A
129
WORM SHAFT
Price
N/A
130
OIL SEAL TC15 X 35 X 7
Price
N/A
131
DRIVE SHAFT
Price
N/A
132
OIL SEAL W/O HOLE
Price
N/A
133
INT RETAINING RING 35MM
Price
N/A
134
BALL BEARING 6202Z
Price
N/A
135
SPACER 17 X 25 X 6 ALUMINUM
Price
N/A
136
WORM GEAR
Price
N/A
137
GEARBOX
Price
N/A
138
SET SCREW 5/16-18 X 1/2
Price
N/A
139
SPINDLE CONNECTOR
Price
N/A
140
X1845140
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
141
GEARBOX FIXING PLATE
Price
N/A
142
X1845142
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
143
X1845143
Now: PN04
HEX NUT 5/8-11
Price
N/A
144
LOCK WASHER 5/8
Price
N/A
145
DUST PORT 4"
Price
$3.60
146
DRIVE ROLLER
Price
N/A
147
MOTOR 3HP 220V 1PH
Price
$658.55
147-1
FAN COVER
Price
N/A
147-2
FAN
Price
N/A
147-3
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
147-4
CAPACITOR COVER V2.09.11
Price
N/A
147-5
ELECTRICAL BOX
Price
N/A
147-6
R CAPACITOR 60M 250V 1-3/8 X 3-3/8
Price
N/A
148
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
149
MOTOR BRACKET
Price
$84.40
150
LOCK NUT M12-1.75
Price
N/A
151
HEX BOLT M12-1.75 X 75
Price
N/A
152
X1845152
Now: PN07
HEX NUT 10-24
Price
N/A
153
SWITCH COVER
Price
N/A
154
X1845154
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
155
E-STOP BUTTON AUSPICIOUS BLEPB30-10/C
Price
N/A
156
KNOB BOLT 5/16-18 X 1, 6-LOBE, D1-5/16
Price
N/A
157
PLATEN COVER
Price
$245.05
157-1
DRIVER ROLLER COVER
Price
$54.35
158
CAP SCREW 1/4-20 X 1/2
Price
N/A
159
THRUST BEARING 51101
Price
N/A
160
X1845160
Now: PS09
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
161
CAP SCREW 3/8-16 X 3/4
Price
N/A
162
CAST IRON TABLE U-TYPE
Price
N/A
163
CAP SCREW M4-.7 X 10
Price
N/A
164
KEY 8 X 8 X 315
Price
N/A
165
TABLE SPINDLE
Price
N/A
166
ADJUSTABLE HANDLE 3/8-16 X 1, 80MM
Price
N/A
167
IDLER ROLLER
Price
N/A
168
BALL BEARING 6205Z
Price
N/A
169
X1845169
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
170
X1845170
Now: PW07
FLAT WASHER 5/16
Price
N/A
171
IDLER ROLLER SPINDLE
Price
N/A
172
IDLER ROLLER BRACKET
Price
$88.15
173
X1845173
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
174
SHAFT
Price
N/A
175
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
176
X1845176
Now: PN04
HEX NUT 5/8-11
Price
N/A
177
X1845177
Now: PW14
FLAT WASHER 5/8
Price
N/A
178
COMPRESSION SPRING 4.5 X 30 X 99
Price
N/A
179
LOCK NUT 1/4-20
Price
N/A
180
CAP SCREW 1/4-20 X 3/4
Price
N/A
181
SPINDLE
Price
N/A
182
SPINDLE BRACKET
Price
N/A
183
KNOB 1/2-13, D1, TAPERED
Price
N/A
184
STUD DE-1/2-13 X 9-7/8, 1/2
Price
N/A
185
X1845185
Now: PN06
HEX NUT 1/2-12
Price
N/A
186
CAP SCREW 5/16-18 X 1/2
Price
N/A
187
X1845187
Now: PW07
FLAT WASHER 5/16
Price
N/A
188
TENSIONING LINK ARM
Price
N/A
189
PLATEN
Price
N/A
190
LOCK WASHER 5/16
Price
N/A
191
X1845191
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
192
LOCK NUT 3/4-10
Price
N/A
193
X1845193
Now: PB82
HEX BOLT 3/4-10 X 2-1/4
Price
N/A
194
SWIVEL BRACKET
Price
N/A
195
X1845195
Now: PN08
HEX NUT 3/8-16
Price
N/A
196
X1845196
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
197
GEARBOX
Price
$152.70
198
BASE
Price
N/A
199
STRAIN RELIEF TYPE-3 M16-1.5
Price
N/A
200
X1845200
Now: PN02
HEX NUT 5/16-18
Price
N/A
201
FOLDING HANDLE M6-1, 23 X 87
Price
$3.85
201-1
FLAT HD SCR M6-1 X 8
Price
N/A

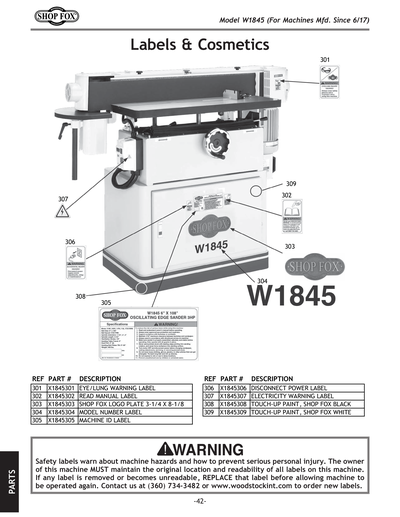

301
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
302
READ MANUAL 2.8W X 1.5H
Price
N/A
303
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
304
MODEL NUMBER LABEL
Price
$1.85
305
MACHINE ID LABEL
Price
$16.40
306
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
307
ELECTRICITY 1.4W X 1.2H
Price
N/A
308
GLOSSY BLACK
Price
N/A
309
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1845 MFD-06.17 V1.09.17
Price
$18.20
