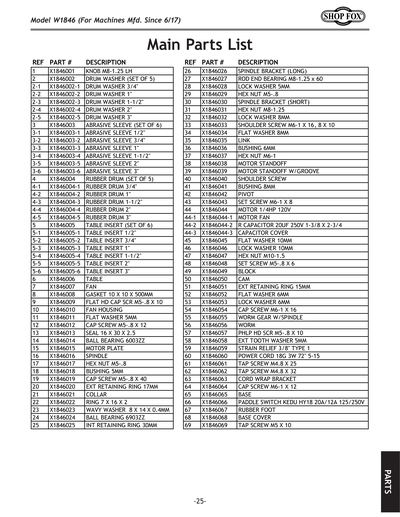

Parts for W1846 - 1/4 HP Benchtop Oscillating Spindle Sander

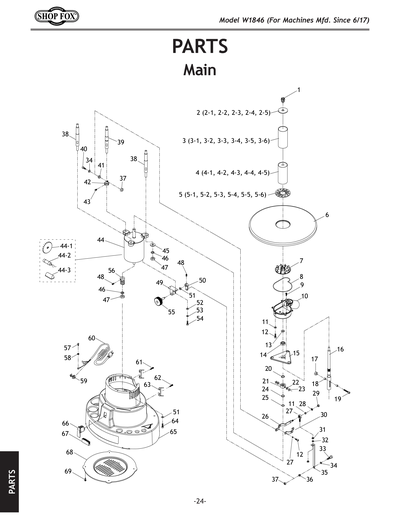

Part Diagram for W1846
Part Diagram for W1846
Part Diagram for W1846
Part Diagram for W1846
Part Diagram for W1846
Part Diagram for W1846

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
KNOB M8-1.25 LH
Price
$5.50
2
DRUM WASHER (SET OF 5)
Price
$6.70
2-1
DRUM WASHER 3/4"
Price
$1.60
2-2
DRUM WASHER 1"
Price
$1.49
2-3
DRUM WASHER 1-1/2"
Price
$1.60
2-4
DRUM WASHER 2"
Price
$1.60
2-5
DRUM WASHER 3"
Price
$2.20
3
ABRASIVE SLEEVE (SET OF 6)
Price
$17.85
3-1
ABRASIVE SLEEVE 1/2"
Price
$1.60
3-2
ABRASIVE SLEEVE 3/4"
Price
$1.85
3-3
ABRASIVE SLEEVE 1"
Price
$2.20
3-4
ABRASIVE SLEEVE 1-1/2"
Price
$3.05
3-5
ABRASIVE SLEEVE 2"
Price
$4.30
3-6
ABRASIVE SLEEVE 3"
Price
$6.05
4
RUBBER DRUM (SET OF 5)
Price
$52.60
4-1
RUBBER DRUM 3/4"
Price
$4.30
4-2
RUBBER DRUM 1"
Price
$4.30
4-3
RUBBER DRUM 1-1/2"
Price
$8.20
4-4
RUBBER DRUM 2"
Price
$12.10
4-5
RUBBER DRUM 3"
Price
$24.15
5
TABLE INSERT (SET OF 6)
Price
$20.30
5-1
TABLE INSERT 1/2"
Price
$3.40
5-2
TABLE INSERT 3/4"
Price
$3.65
5-3
TABLE INSERT 1"
Price
$3.65
5-4
TABLE INSERT 1-1/2"
Price
$3.40
5-5
TABLE INSERT 2"
Price
$3.65
5-6
TABLE INSERT 3"
Price
$3.95
6
CAST IRON TABLE V2.02.18
Price
N/A
6V2
CAST IRON TABLE V2.02.18
Price
$192.95
7
FAN
Price
$2.45
8
GASKET 10 X 10 X 500
Price
N/A
9
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
10
FAN HOUSING
Price
$5.80
11
FLAT WASHER 5MM
Price
N/A
12
CAP SCREW M5-.8 X 12
Price
N/A
13
SEAL 16 X 30 X 2.5
Price
$1.60
14
Bearing - 35mm x 17mm
Price
N/A
15
MOTOR PLATE
Price
$9.70
16
SPINDLE
Price
$22.70
17
HEX NUT M5-.8
Price
N/A
18
BUSHING 5MM
Price
$1.60
19
CAP SCREW M5-.8 X 40
Price
N/A
20
EXT RETAINING RING 17MM
Price
N/A
21
COLLAR
Price
$3.40
22
RING 7 X 16 X 2
Price
$1.60
23
WAVY WASHER 8 X 14 X 0.4MM
Price
$1.60
24
BALL BEARING 6903ZZ
Price
N/A
25
INT RETAINING RING 30MM
Price
N/A
26
SPINDLE BRACKET (LONG)
Price
$6.40
27
ROD END BEARING M8-1.25 X 60
Price
$7.90
28
LOCK WASHER 5MM
Price
N/A
29
HEX NUT M5-.8
Price
N/A
30
SPINDLE BRACKET (SHORT)
Price
$2.75
31
HEX NUT M8-1.25
Price
N/A
32
LOCK WASHER 8MM
Price
N/A
33
SHOULDER SCREW M6-1 X 16, 8 X 10
Price
$1.60
34
FLAT WASHER 8MM
Price
N/A
35
LINK
Price
$4.60
36
BUSHING 6MM
Price
$2.20
37
HEX NUT M6-1
Price
N/A
38
MOTOR STANDOFF
Price
$9.70
39
MOTOR STANDOFF W/GROOVE
Price
$9.70
40
SHOULDER SCREW
Price
$1.60
41
BUSHING 8MM
Price
$2.20
42
PIVOT
Price
$2.75
43
SET SCREW M6-1 X 8
Price
N/A
44
MOTOR 1/4HP 120V
Price
$105.10
44-1
MOTOR FAN
Price
$3.65
44-2
R CAPACITOR 20UF 250V 1-3/8 X 2-3/4
Price
$7.25
44-3
CAPACITOR COVER
Price
$3.65
45
FLAT WASHER 10MM
Price
N/A
46
LOCK WASHER 10MM
Price
N/A
47
HEX NUT M10-1.5
Price
N/A
48
SET SCREW M5-.8 X 6
Price
N/A
49
BLOCK
Price
$1.60
50
CAM
Price
$3.65
51
EXT RETAINING RING 15MM
Price
N/A
52
FLAT WASHER 6MM
Price
N/A
53
LOCK WASHER 6MM
Price
N/A
54
CAP SCREW M6-1 X 16
Price
N/A
55
WORM GEAR W/SPINDLE
Price
$19.95
56
WORM
Price
$6.40
57
PHLP HD SCR M5-.8 X 10
Price
N/A
58
EXT TOOTH WASHER 5MM
Price
N/A
59
STRAIN RELIEF 3/8" TYPE 1
Price
$1.60
60
POWER CORD 18G 3W 72" 5-15
Price
$13.95
61
TAP SCREW M4.8 X 25
Price
$1.60
62
TAP SCREW M4.8 X 32
Price
$1.60
63
CORD WRAP BRACKET
Price
$1.60
64
CAP SCREW M6-1 X 12
Price
N/A
65
BASE
Price
$64.00
66
Paddle Switch 125V/250V
Price
N/A
67
RUBBER FOOT
Price
$1.60
68
BASE COVER
Price
$14.50
69
TAP SCREW M5 X 70
Price
N/A

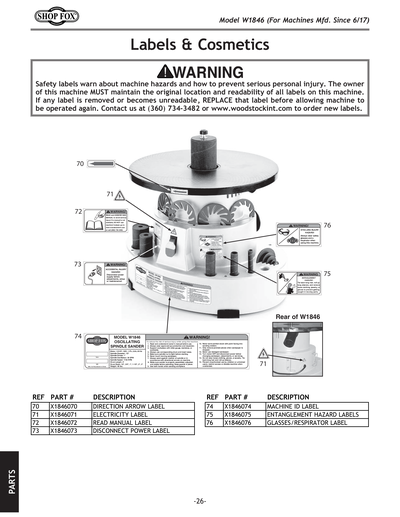

70
DIRECTION ARROW LABEL
Price
$1.05
71
ELECTRICITY 0.7W X 0.6H
Price
N/A
72
READ MANUAL 2.8W X 1.5H
Price
N/A
73
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
74
MACHINE ID LABEL
Price
$16.40
75
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
76
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
MAN
MANUAL W1846 MFD-06.17 V1.09.17
Price
$14.65
