Parts for W1850 - 1" X 42" Belt with 8" Disc Sander

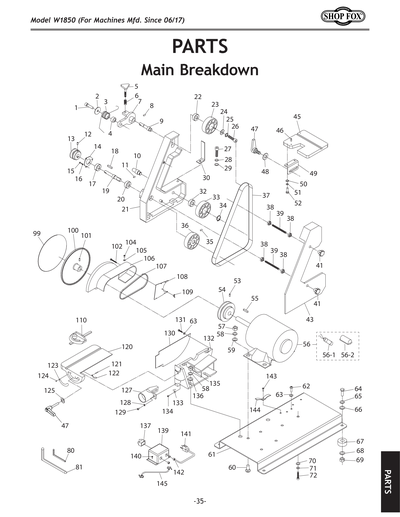

Part Diagram for W1850
Part Diagram for W1850
Part Diagram for W1850
Part Diagram for W1850
Part Diagram for W1850
Part Diagram for W1850

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

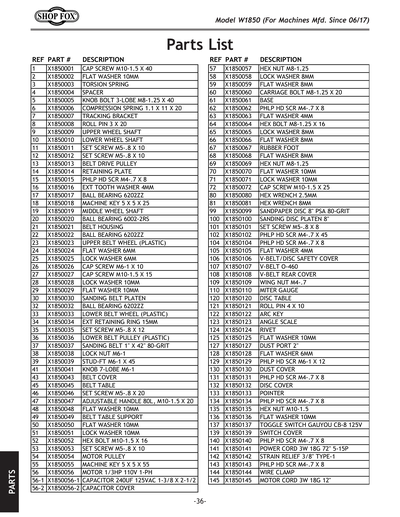

Ref #
Part #
Description
1
CAP SCREW M10-1.5 X 40
Price
N/A
2
FLAT WASHER 10MM
Price
N/A
3
TORSION SPRING
Price
N/A
4
SPACER
Price
N/A
5
TRACKING KNOB
Price
N/A
6
COMPRESSION SPRING
Price
N/A
7
TRACKING BRACKET
Price
N/A
8
ROLL PIN 3 X 20
Price
N/A
9
SHAFT
Price
N/A
10
***USE PH8192010***
Item is no longer available
Price
N/A
11
SET SCREW M5-.8 X 10
Price
N/A
12
SET SCREW M5-.8 X 10
Price
N/A
13
BELT DRIVE PULLEY
Price
N/A
14
RETAINING PLATE
Price
N/A
15
PHLP HD SCR M4-.7 X 8
Price
N/A
16
EXT TOOTH WASHER 4MM
Price
N/A
17
BALL BEARING 6202ZZ
Price
N/A
18
KEY 5 X 5 X 25
Price
N/A
19
SHAFT
Price
N/A
20
BALL BEARING 6002-2RS
Price
N/A
21
Price
$65.85
22
BALL BEARING 6202ZZ
Price
N/A
23
UPPER BELT PULLEY
Price
N/A
24
FLAT WASHER 6MM
Price
N/A
25
LOCK WASHER 6MM
Price
N/A
26
CAP SCREW M6-1 X 10
Price
N/A
27
CAP SCREW M10-1.5 X 15
Price
N/A
28
LOCK WASHER 10MM
Price
N/A
29
FLAT WASHER 10MM
Price
N/A
30
BELT SUPPORT
Price
N/A
32
BALL BEARING 6202ZZ
Price
N/A
33
BELT PULLEY MIDDLE W/BEARING
Price
N/A
34
EXT RETAINING RING 15MM
Price
N/A
35
SET SCREW M5-.8 X 12
Price
N/A
36
BELT PULLEY LOWER
Price
N/A
37
SANDING BELT 1 X 42"
Price
N/A
38
LOCK NUT M6-1
Price
N/A
39
Price
$1.49
41
BELT COVER KNOB
Price
N/A
43
BELT COVER
Price
N/A
45
BELT TABLE
Price
N/A
46
SET SCREW M5-.8 X 20
Price
N/A
47
TABLE LOCK
Price
N/A
48
FLAT WASHER 10MM
Price
N/A
49
BELT TABLE SUPPORT
Price
N/A
50
FLAT WASHER 10MM
Price
N/A
51
LOCK WASHER 10MM
Price
N/A
52
HEX BOLT M10-1.5 X 16
Price
N/A
53
SET SCREW M5-.8 X 10
Price
N/A
54
Price
$13.20
55
KEY 5 X 5 X 55
Price
N/A
56
MOTOR 1/3HP 110V 1-PH
Price
N/A
56-1
S CAPACITOR 240M 125V 1-3/8 X 2-3/8
Price
N/A
56-2
CAPACITOR COVER
Price
N/A
57
HEX NUT M8-1.25
Price
N/A
58
LOCK WASHER 8MM
Price
N/A
59
FLAT WASHER 8MM
Price
N/A
60
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
61
Price
$29.65
62
PHLP HD SCR M4-.7 X 8
Price
N/A
63
FLAT WASHER 4MM
Price
N/A
64
HEX BOLT M8-1.25 X 16
Price
N/A
65
LOCK WASHER 8MM
Price
N/A
66
FLAT WASHER 8MM
Price
N/A
67
RUBBER FOOT
Price
N/A
68
FLAT WASHER 8MM
Price
N/A
69
HEX NUT M8-1.25
Price
N/A
70
FLAT WASHER 10MM
Price
N/A
71
LOCK WASHER 10MM
Price
N/A
72
CAP SCREW M10-1.5 X 25
Price
N/A
80
HEX WRENCH 2.5MM
Price
N/A
81
HEX WRENCH 8MM
Price
N/A
99
SANDING DISC 8"
Price
N/A
100
SANDING DISC PLATE 8"
Price
N/A
101
SET SCREW M5-.8 X 8
Price
N/A
102
PHLP HD SCR M4-.7 X 45
Price
N/A
104
PHLP HD SCR M4-.7 X 8
Price
N/A
105
FLAT WASHER 4MM
Price
N/A
106
V-BELT/DISC SAFETY COVER
Item is no longer available
Price
N/A
107
V-BELT M19 3L190
Price
N/A
108
Price
$2.05
109
WING NUT M4-.7
Price
N/A
110
MITER GAUGE
Price
N/A
120
DISC TABLE
Price
N/A
121
ROLL PIN 4 X 10
Price
N/A
122
ARC KEY
Price
N/A
123
ANGLE SCALE
Price
N/A
124
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
125
FLAT WASHER 10MM
Price
N/A
127
DUST PORT 2"
Price
N/A
128
FLAT WASHER 6MM
Price
N/A
129
PHLP HD SCR M6-1 X 12
Price
N/A
130
Price
$3.35
131
PHLP HD SCR M4-.7 X 8
Price
N/A
132
Price
$26.35
133
POINTER
Price
N/A
134
PHLP HD SCR M4-.7 X 8
Price
N/A
135
HEX NUT M10-1.5
Price
N/A
136
FLAT WASHER 10MM
Price
N/A
137
SWITCH W/SAFETY TAB
Price
N/A
139
SWITCH COVER
Price
N/A
140
PHLP HD SCR M4-.7 X 8
Price
N/A
141
POWER CORD
Price
N/A
142
STRAIN RELIEF TYPE-6 ST
Price
N/A
143
PHLP HD SCR M4-.7 X 8
Price
N/A
144
CLAMP
Price
N/A
145
MACHINE ID LABEL
Price
N/A

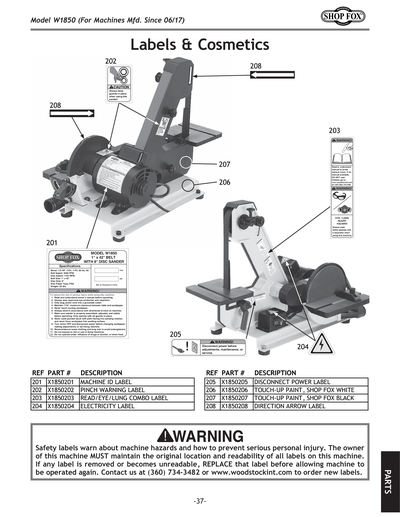

201
Price
$16.40
202
Price
$3.60
203
READ/EYE/LUNG COMBO LABEL
Price
$3.60
204
ELECTRICITY 1.4W X 1.2H
Price
N/A
205
Price
$3.60
206
SHOP FOX WHITE M1006
Price
N/A
207
GLOSSY BLACK
Price
N/A
208
DIRECTION LABEL
Price
N/A
MAN
MANUAL W1850 MFD-06.17 V1.09.17
Price
$17.00
