Parts for W1852 - 22" x 42" Variable-Speed Wood Lathe

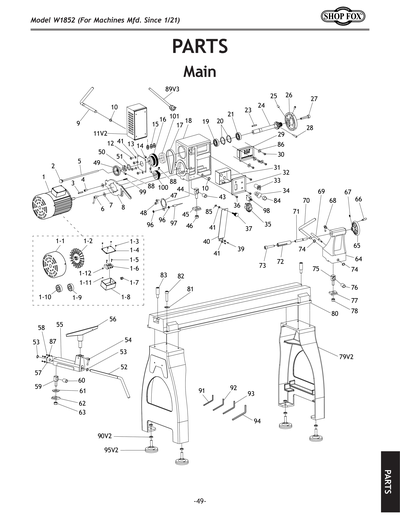

Part Diagram for W1852

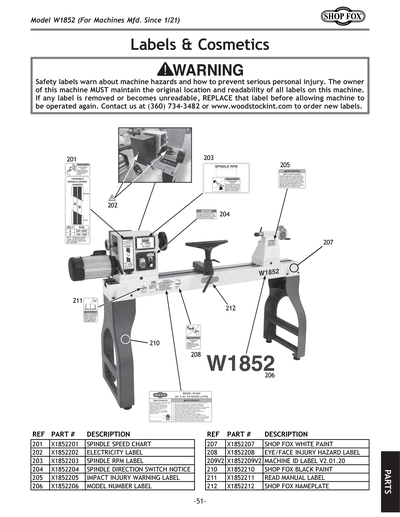

Part Diagram for W1852

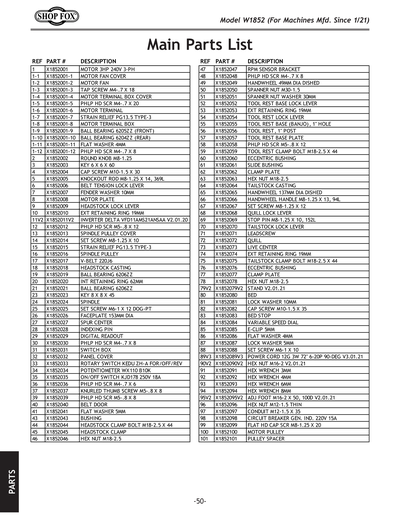

Part Diagram for W1852
Part Diagram for W1852
Part Diagram for W1852
Part Diagram for W1852

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR 3HP 240V 3-PH
Price
N/A
1-1
MOTOR FAN COVER
Price
N/A
1-10
BALL BEARING 6204ZZ
Price
N/A
1-11
FLAT WASHER 4MM
Price
N/A
1-12
PHLP HD SCR M4-.7 X 8
Price
N/A
1-2
MOTOR FAN
Price
N/A
1-3
TAP SCREW M4-.7 X 18
Price
N/A
1-4
MOTOR TERMINAL BOX COVER
Price
N/A
1-5
PHLP HD SCR M4-.7 X 20
Price
N/A
1-6
MOTOR TERMINAL
Price
N/A
1-7
STRAIN RELIEF PG13.5 TYPE-3
Price
N/A
1-8
MOTOR TERMINAL BOX
Price
N/A
1-9
BALL BEARING 6205ZZ
Price
N/A
2
ROUND KNOB M8-1.25
Price
N/A
3
KEY 6 X 6 X 60
Price
N/A
4
CAP SCREW M10-1.5 X 30
Price
N/A
5
KNOCKOUT ROD M8-1.25 X 14, 369L
Price
N/A
6
BELT TENSION LOCK LEVER
Price
N/A
7
FENDER WASHER 10MM
Price
N/A
8
MOTOR PLATE
Price
N/A
9
HEADSTOCK LOCK LEVER
Price
N/A
10
EXT RETAINING RING 19MM
Price
N/A
11
POWER INVERTER DELTA VFD022M21A
Price
$1,406.00
11V2
INVERTER DELTA VFD11AMS21ANSAA V2.05.19
Price
N/A
12
PHLP HD SCR M5-.8 X 12
Price
N/A
13
SPINDLE PULLEY COVER
Price
N/A
14
SET SCREW M8-1.25 X 10
Price
N/A
15
STRAIN RELIEF PG13.5 TYPE-3
Price
N/A
16
SPINDLE PULLEY
Price
$45.35
17
V-BELT 220J6
Price
$32.30
18
HEADSTOCK CASTING
Price
$479.85
19
BALL BEARING 6206ZZ
Price
N/A
20
INT RETAINING RING 62MM
Price
N/A
21
BALL BEARING 6206ZZ
Price
N/A
23
KEY 8 X 8 X 45
Price
N/A
24
SPINDLE
Price
N/A
25
SET SCREW M6-1 X 12 DOG-PT
Price
N/A
26
FACEPLATE 153MM DIA
Price
N/A
27
SPUR CENTER
Price
N/A
28
INDEXING PIN
Price
N/A
29
DIGITAL READOUT
Price
N/A
30
PHLP HD SCR M4-.7 X 8
Price
N/A
31
SWITCH BOX
Price
N/A
32
PANEL COVER
Price
N/A
33
ROTARY SWITCH KEDU ZH-A FOR/OFF/REV
Price
N/A
34
POTENTIOMETER WX1 10 010 10K
Price
N/A
35
ON/OFF SWITCH KJD178 250V 18A
Price
N/A
36
PHLP HD SCR M4-.7 X 6
Price
N/A
37
KNURLED THUMB SCREW M5-.8 X 8
Price
N/A
39
PHLP HD SCR M5-.8 X 8
Price
N/A
40
BELT DOOR
Price
N/A
41
FLAT WASHER 5MM
Price
N/A
43
BUSHING
Price
N/A
44
TOOL REST CLAMP BOLT M18-2.5 X 44
Price
N/A
45
HEADSTOCK CLAMP
Price
N/A
46
HEX NUT M18-2.5
Price
N/A
47
RPM SENSOR BRACKET
Price
N/A
48
PHLP HD SCR M4-.7 X 8
Price
N/A
49
HANDWHEEL 49MM DIA DISHED
Price
N/A
50
SPANNER NUT
Price
N/A
51
SPANNER NUT WASHER 30MM
Price
$1.90
52
TOOL REST BASE LOCK LEVER V2.07.15
Price
N/A
53
EXT RETAINING RING 19MM
Price
N/A
54
ADJUSTABLE HANDLE 65L, M10-1.5 X 18
Price
N/A
55
TOOL REST BASE (BANJO)
Price
$61.70
56
TOOL REST
Price
$58.65
57
TOOL REST BASE PLATE
Price
N/A
58
PHLP HD SCR M5-.8 X 12
Price
N/A
59
TOOL REST CLAMP BOLT M18-2.5 X 44
Price
N/A
60
ECCENTRIC BUSHING
Price
N/A
61
SLIDE BUSHING
Price
$4.10
62
CLAMP PLATE
Price
N/A
63
HEX NUT M18-2.5
Price
N/A
64
TAILSTOCK CASTING
Price
$225.40
65
HANDWHEEL 137MM DIA DISHED
Price
N/A
66
HANDWHEEL HANDLE M8-1.25 X 13, 94L
Price
N/A
67
SET SCREW M8-1.25 X 12
Price
N/A
68
QUILL LOCK LEVER
Price
N/A
69
STOP PIN M8-1.25 X 10, 152L
Price
N/A
70
TAILSTOCK LOCK LEVER
Price
N/A
71
LEADSCREW
Price
N/A
72
QUILL
Price
N/A
73
LIVE CENTER
Price
N/A
74
EXT RETAINING RING 19MM
Price
N/A
75
TOOL REST CLAMP BOLT M18-2.5 X 44
Price
N/A
76
ECCENTRIC BUSHING
Price
N/A
77
CLAMP PLATE
Price
N/A
78
HEX NUT M18-2.5
Price
N/A
79
STAND
Price
$408.65
79V2
STAND V2.01.21
Price
$442.10
80
BED
Price
$1,172.70
81
LOCK WASHER 10MM
Price
N/A
82
CAP SCREW M10-1.5 X 35
Price
N/A
83
BED STOP
Price
N/A
84
VARIABLE SPEED DIAL
Price
N/A
85
E-CLIP 5MM
Price
N/A
86
FLAT WASHER 4MM
Price
N/A
87
LOCK WASHER 5MM
Price
N/A
88
SET SCREW M6-1 X 10
Price
N/A
89
POWER CORD 14G 3W 72" 6-15P
Price
N/A
89V2
POWER CORD 12G 3W 72" 6-20P V2.12.17
Price
N/A
89V3
POWER CORD 12G 3W 72" 6-20P 90-DEG V3
Price
N/A
90
HEX NUT M10-1.5
Price
N/A
91
HEX WRENCH 3MM
Price
N/A
92
HEX WRENCH 4MM
Price
N/A
93
HEX WRENCH 6MM
Price
N/A
94
HEX WRENCH 8MM
Price
N/A
95
ADJ FOOT M10-1.5 X 18, 60D V1
Price
N/A
95V2
ADJ FOOT M16-2 X 50, 100D V2.01.21
Price
N/A
96
HEX NUT M12-1.5 THIN
Price
N/A
97
CONDUIT M12-1.5 X 35
Price
$2.20
98
CIRCUIT BREAKER GEN. IND. 220V 15A
Price
N/A
99
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
100
MOTOR PULLEY
Price
N/A
101
PULLEY SPACER
Price
N/A
201
SPINDLE SPEED CHART
Price
N/A
202
ELECTRICITY 0.7W X 0.6H
Price
N/A
203
SPINDLE RPM LABEL
Price
N/A
204
SPINDLE DIRECTION SWITCH NOTICE
Price
N/A
205
IMPACT INJURY WARNING LABEL
Price
$1.25
206
MODEL NUMBER LABEL
Price
$1.25
207
SHOP FOX WHITE M1006
Price
N/A
208
EYE/FACE INJURY HAZARD LABEL
Price
N/A
209
MACHINE ID LABEL V1
Price
$16.40
209V2
MACHINE ID LABEL V2.01.20
Price
$16.40
210
GLOSSY BLACK
Price
N/A
211
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL W1852 MFD-06.17-12.19 V1.07.17
Price
$14.65
MANV2
MANUAL W1852 MFD-01.20+ V2.01.20
Price
$17.95
MANV3
MANUAL W1852 MFD-01.21+ V3.03.21
Price
$8.25
