Parts for W1855 - 4" x 36" Horizontal/Vertical Belt Sander with 6" Disc

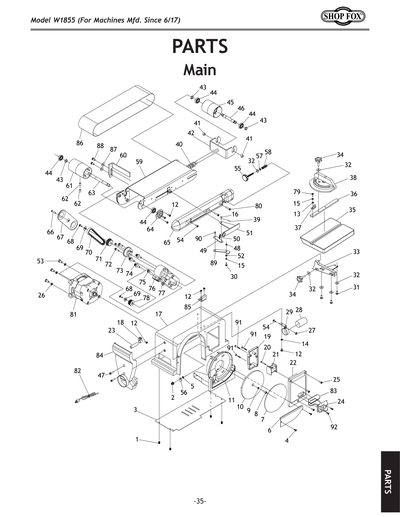

Part Diagram for W1855
Part Diagram for W1855
Part Diagram for W1855
Part Diagram for W1855
Part Diagram for W1855
Part Diagram for W1855

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

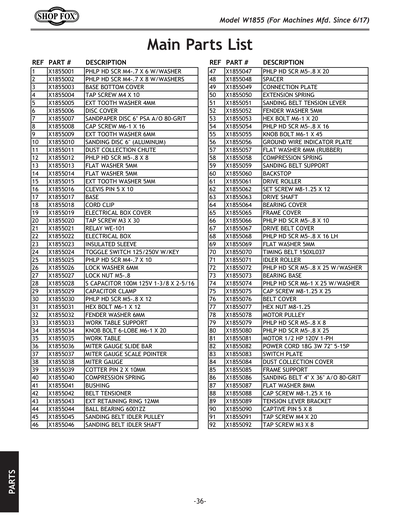

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 6 W/WASHER
Price
N/A
2
PHLP HD SCR M4-.7 X 8 W/WASHERS
Price
N/A
3
BASE BOTTOM COVER
Price
N/A
4
TAP SCREW M4 X 10
Price
N/A
5
EXT TOOTH WASHER 4MM
Price
N/A
6
DISC COVER
Price
N/A
7
SANDPAPER DISC 6" PSA A/O 80-GRIT
Price
N/A
8
CAP SCREW M6-1 X 16
Price
N/A
9
EXT TOOTH WASHER 6MM
Price
N/A
10
SANDING DISC 6" (ALUMINUM)
Price
N/A
11
DUST COLLECTION CHUTE
Price
N/A
12
PHLP HD SCR M5-.8 X 8
Price
N/A
13
FLAT WASHER 5MM
Price
N/A
14
FLAT WASHER 5MM
Price
N/A
15
EXT TOOTH WASHER 5MM
Price
N/A
16
CLEVIS PIN 5 X 10
Price
N/A
17
Price
$55.75
18
CORD CLIP
Price
N/A
19
ELECTRICAL BOX COVER
Price
N/A
20
TAP SCREW M3 X 30
Price
N/A
21
RELAY WE-101
Price
N/A
22
ELECTRICAL BOX
Price
N/A
23
INSULATED SLEEVE
Price
N/A
24
Toggle Safety Switch
Price
N/A
25
PHLP HD SCR M4-.7 X 10
Price
N/A
26
LOCK WASHER 6MM
Price
N/A
27
LOCK NUT M5-.8
Price
N/A
28
S CAPACITOR 100M 125V 1-3/8 X 2-5/16
Price
N/A
29
CAPACITOR CLAMP
Price
N/A
30
PHLP HD SCR M5-.8 X 12
Price
N/A
31
HEX BOLT M6-1 X 12
Price
N/A
32
FENDER WASHER 6MM
Price
N/A
33
Price
$7.20
34
MITER GAUGE KNOB M6-1 X 20
Price
N/A
35
WORK TABLE
Price
N/A
35-1
WORK TABLE SIDES, PLASTIC (2PC)
Price
$1.90
35-2
Price
$1.90
36
MITER GAUGE SLIDE BAR
Price
N/A
37
MITER GAUGE SCALE POINTER
Price
N/A
38
MITER GAUGE
Price
N/A
39
COTTER PIN 2 X 10MM
Price
N/A
40
COMPRESSION SPRING
Price
N/A
41
BUSHING
Price
N/A
42
BELT TENSIONER
Price
N/A
43
EXT RETAINING RING 12MM
Price
N/A
44
BALL BEARING 6001ZZ
Price
N/A
45
SANDING BELT IDLER PULLEY/SHAFT
Price
$13.70
46
SANDING BELT IDLER PULLEY/SHAFT
Price
N/A
47
PHLP HD SCR M5-.8 X 20
Price
N/A
48
SPACER
Price
N/A
49
CONNECTION PLATE
Price
N/A
50
EXTENSION SPRING
Price
N/A
51
SANDING BELT TENSION LEVER
Price
N/A
52
FENDER WASHER 5MM
Price
N/A
53
HEX BOLT M6-1 X 20
Price
N/A
54
PHLP HD SCR M5-.8 X 16
Price
N/A
55
TRACKING CONTROL KNOB M6-1 X 45
Price
N/A
56
GROUND WIRE INDICATOR PLATE
Price
N/A
57
RUBBER WASHER 6MM
Price
N/A
58
COMPRESSION SPRING
Price
N/A
59
Price
$28.10
60
BACKSTOP
Price
N/A
61
DRIVE ROLLER
Price
N/A
62
SET SCREW M8-1.25 X 12
Price
N/A
63
DRIVE SHAFT
Price
N/A
64
BEARING COVER
Price
N/A
65
Price
$3.65
66
PHLP HD SCR M5-.8 X 10
Price
N/A
67
Price
$1.90
68
PHLP HD SCR M5-.8 X 16 LH
Price
N/A
69
FLAT WASHER 5MM
Price
N/A
70
TIMING BELT 150XL037
Price
N/A
71
IDLER ROLLER
Price
N/A
72
PHLP HD SCR M5-.8 X 25 W/WASHER
Price
N/A
73
BEARING BASE
Price
N/A
74
PHLP HD SCR M6-1 X 25 W/WASHER
Price
N/A
75
CAP SCREW M8-1.25 X 25
Price
N/A
76
Price
$13.70
77
HEX NUT M8-1.25
Price
N/A
78
MOTOR PULLEY
Price
N/A
79
PHLP HD SCR M5-.8 X 8
Price
N/A
80
PHLP HD SCR M5-.8 X 25
Price
N/A
81
MOTOR 1/2 HP 120V 1-PH
Price
N/A
82
POWER CORD 18G 3W 72" 5-15P
Price
N/A
83
SWITCH PLATE
Price
N/A
84
Price
$3.65
85
FRAME SUPPORT
Price
N/A
86
SANDING BELT 4 X 36" A/O 80-GRIT
Price
N/A
87
FLAT WASHER 8MM
Price
N/A
88
CAP SCREW M8-1.25 X 16
Price
N/A
89
TENSION LEVER BRACKET
Price
N/A
90
CAPTIVE PIN 5 X 8
Price
N/A
91
TAP SCREW M4 X 20
Price
N/A
92
TAP SCREW M3 X 8
Price
N/A
93

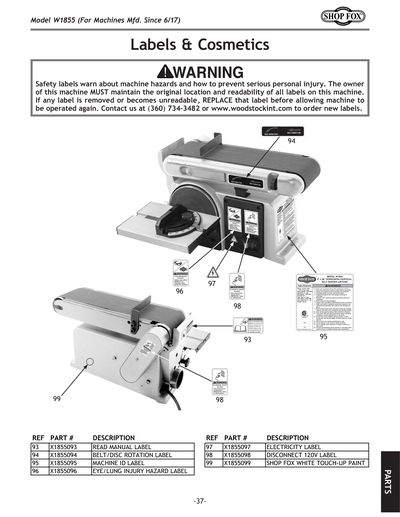

READ MANUAL 2.8W X 1.5H
Price
N/A
94
BELT/DISC ROTATION LABEL
Price
N/A
95
Price
$16.40
96
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
97
ELECTRICITY 0.7W X 0.6H
Price
N/A
98
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
99
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1855 MFD-06.17 V1.07.17
Price
$14.65
