Parts for W1856 - 12" x 18" Variable-Speed Benchtop Wood Lathe

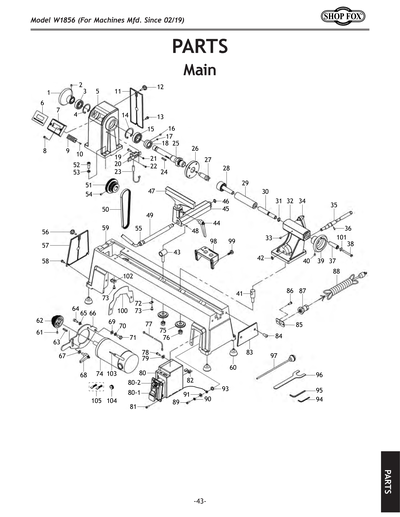

Part Diagram for W1856
Part Diagram for W1856
Part Diagram for W1856
Part Diagram for W1856
Part Diagram for W1856
Part Diagram for W1856

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

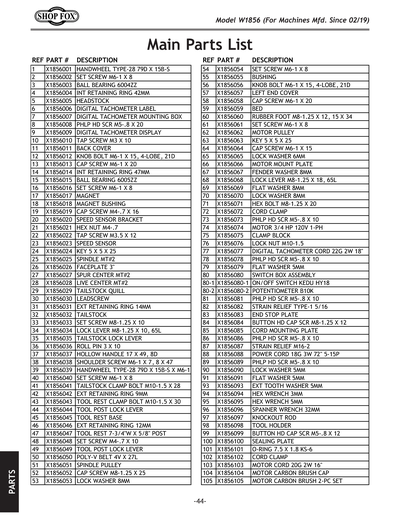

Ref #
Part #
Description
1
HANDWHEEL TYPE-28 79D X 15B-S
Item is no longer available
Price
N/A
2
SET SCREW M6-1 X 8
Price
N/A
3
BALL BEARING 6004ZZ
Price
N/A
4
INT RETAINING RING 42MM
Price
N/A
5
HEADSTOCK
Item is no longer available
Price
N/A
6
DIGITAL TACHOMETER LABEL
Item is no longer available
Price
N/A
7
DIGITAL TACHOMETER MOUNTING BOX
Item is no longer available
Price
N/A
8
PHLP HD SCR M5-.8 X 20
Price
N/A
9
DIGITAL TACHOMETER DISPLAY
Item is no longer available
Price
N/A
10
TAP SCREW M2.9 X 9.5
Item is no longer available
Price
N/A
11
BACK COVER
Item is no longer available
Price
N/A
12
KNOB BOLT M6-1 X 15, 4-LOBE, 21D
Item is no longer available
Price
N/A
13
CAP SCREW M6-1 X 20
Price
N/A
14
INT RETAINING RING 47MM
Price
N/A
15
BALL BEARING 6005ZZ
Price
N/A
16
SET SCREW M6-1 X 8
Price
N/A
17
MAGNET
Item is no longer available
Price
N/A
18
MAGNET BUSHING
Item is no longer available
Price
N/A
19
CAP SCREW M4-.7 X 15
Item is no longer available
Price
N/A
20
SPEED SENSOR BRACKET
Item is no longer available
Price
N/A
21
HEX NUT M4-.7
Price
N/A
22
TAP SCREW M3.5 X 12
Price
N/A
23
SPEED SENSOR
Item is no longer available
Price
N/A
24
KEY 5 X 5 X 25
Price
N/A
25
SPINDLE MT#2
Item is no longer available
Price
N/A
26
FACEPLATE 3"
Price
$24.75
27
SPUR CENTER MT #2
Price
$4.60
28
LIVE CENTER MT #2
Price
$13.80
29
TAILSTOCK QUILL
Item is no longer available
Price
N/A
30
LEADSCREW
Item is no longer available
Price
N/A
31
EXT RETAINING RING 14MM
Price
N/A
32
TAILSTOCK
Item is no longer available
Price
N/A
33
SET SCREW M8-1.25 X 10
Price
N/A
34
LOCK LEVER M8-1.25 X 10, 65L
Item is no longer available
Price
N/A
35
TAILSTOCK LOCK LEVER
Item is no longer available
Price
N/A
36
ROLL PIN 3 X 10
Price
N/A
37
HOLLOW HANDLE 17 X 49, 8D
Item is no longer available
Price
N/A
38
SHOULDER SCREW M6-1 X 7, 8 X 47
Item is no longer available
Price
N/A
39
HANDWHEEL TYPE-28 79D X 15B-S X M6-1
Item is no longer available
Price
N/A
40
SET SCREW M6-1 X 8
Price
N/A
41
TAILSTOCK CLAMP BOLT M10-1.5 X 28
Item is no longer available
Price
N/A
42
EXT RETAINING RING 9MM
Price
N/A
43
TOOL REST CLAMP BOLT M10-1.5 X 30
Item is no longer available
Price
N/A
44
TOOL POST LOCK LEVER
Price
$5.75
45
TOOL REST BASE
Price
$24.75
46
EXT RETAINING RING 12MM
Price
N/A
47
TOOL REST 7-3/4"W X 5/8" POST
Price
$18.15
48
SET SCREW M4-.7 X 10
Price
N/A
49
TOOL POST LOCK LEVER
Item is no longer available
Price
N/A
50
V-BELT 4V X 27L RIBBED
Item is no longer available
Price
N/A
51
SPINDLE PULLEY
Item is no longer available
Price
N/A
52
CAP SCREW M8-1.25 X 25
Price
N/A
53
LOCK WASHER 8MM
Price
N/A
54
SET SCREW M6-1 X 8
Price
N/A
55
BUSHING
Item is no longer available
Price
N/A
56
KNOB BOLT M6-1 X 15, 4-LOBE, 21D
Price
N/A
57
LEFT END COVER
Item is no longer available
Price
N/A
58
CAP SCREW M6-1 X 20
Price
N/A
59
BED
Item is no longer available
Price
N/A
60
RUBBER FOOT M8-1.25 X 12, 15 X 34
Item is no longer available
Price
N/A
61
SET SCREW M6-1 X 8
Price
N/A
62
MOTOR PULLEY
Item is no longer available
Price
N/A
63
KEY 5 X 5 X 25
Price
N/A
64
CAP SCREW M6-1 X 15
Price
N/A
65
LOCK WASHER 6MM
Price
N/A
66
MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
67
FENDER WASHER 8MM
Price
N/A
68
LOCK LEVER M8-1.25 X 18, 65L
Item is no longer available
Price
N/A
69
FLAT WASHER 8MM
Price
N/A
70
LOCK WASHER 8MM
Price
N/A
71
HEX BOLT M8-1.25 X 20
Price
N/A
72
CORD CLAMP
Item is no longer available
Price
N/A
73
PHLP HD SCR M5-.8 X 10
Price
N/A
74
MOTOR 3/4 HP 120V 1-PH
Price
$247.00
75
CLAMP BLOCK
Price
$4.35
76
LOCK NUT M10-1.5
Price
N/A
77
DIGITAL TACHOMETER CORD 22G 2W 18"
Item is no longer available
Price
N/A
78
PHLP HD SCR M5-.8 X 10
Price
N/A
79
FLAT WASHER 5MM
Price
N/A
80
*DISCD*SWITCH BOX ASSEMBLY
Item is no longer available
Price
N/A
80-1
ON/OFF SWITCH KEDU HY18
Price
$12.10
80-2
POTENTIOMETER B10K
Price
$15.15
81
PHLP HD SCR M5-.8 X 10
Price
N/A
82
STRAIN RELIEF TYPE-1 5/16
Price
$1.49
83
END STOP PLATE
Item is no longer available
Price
N/A
84
BUTTON HD CAP SCR M8-1.25 X 12
Item is no longer available
Price
N/A
85
CORD MOUNTING PLATE
Price
$1.49
86
PHLP HD SCR M5-.8 X 10
Price
N/A
87
STRAIN RELIEF M16-2
Price
$3.45
88
POWER CORD 18G 3W 72" 5-15P
Price
$11.25
89
PHLP HD SCR M5-.8 X 10
Price
N/A
90
LOCK WASHER 5MM
Price
N/A
91
FLAT WASHER 5MM
Price
N/A
93
EXT TOOTH WASHER 5MM
Price
N/A
94
HEX WRENCH 3MM
Price
N/A
95
HEX WRENCH 5MM
Price
N/A
96
SPANNER WRENCH 32MM
Item is no longer available
Price
N/A
97
KNOCKOUT ROD
Item is no longer available
Price
N/A
98
TOOL HOLDER
Item is no longer available
Price
N/A
99
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
100
SEALING PLATE
Item is no longer available
Price
N/A
101
O-RING 7.5 X 1.8 KS-6
Item is no longer available
Price
N/A
102
CORD CLAMP
Item is no longer available
Price
N/A
103
MOTOR CORD 20G 2W 16"
Item is no longer available
Price
N/A
104
MOTOR CARBON BRUSH CAP
Item is no longer available
Price
N/A
105
MOTOR CARBON BRUSH 2-PC SET
Item is no longer available
Price
N/A

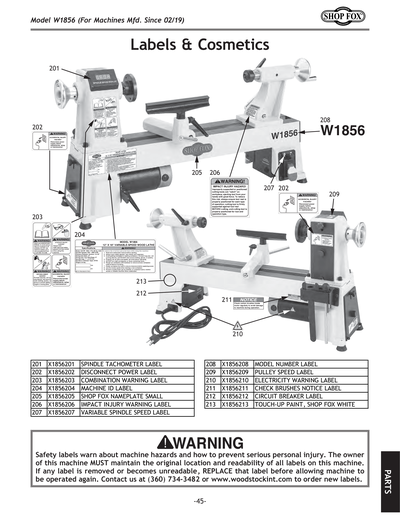

201
SPINDLE TACHOMETER LABEL
Item is no longer available
Price
N/A
202
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
203
COMBINATION WARNING LABEL
Item is no longer available
Price
N/A
204
MACHINE ID LABEL
Item is no longer available
Price
N/A
205
Shop Fox Nameplate - Small
Price
N/A
206
IMPACT INJURY WARNING LABEL
Item is no longer available
Price
N/A
207
VARIABLE SPINDLE SPEED LABEL
Item is no longer available
Price
N/A
208
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
209
PULLEY SPEED LABEL
Item is no longer available
Price
N/A
210
ELECTRICITY 0.7W X 0.6H
Price
N/A
211
CHECK BRUSHES NOTICE LABEL
Item is no longer available
Price
N/A
212
CIRCUIT BREAKER LABEL
Item is no longer available
Price
N/A
213
SHOP FOX WHITE M1006
Price
N/A
MAN
MANUAL W1856 MFD-11.18 V1.02.19
Item is no longer available
Price
N/A
