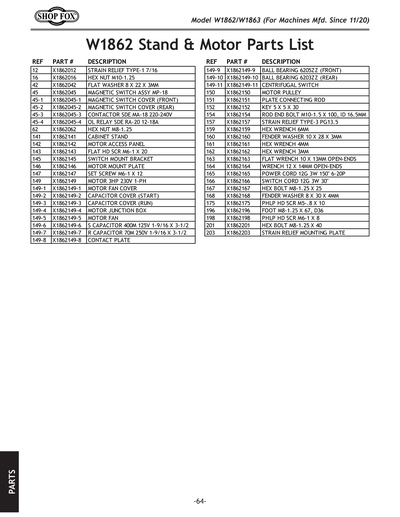

Parts for W1862 - 15" 3 HP Planer

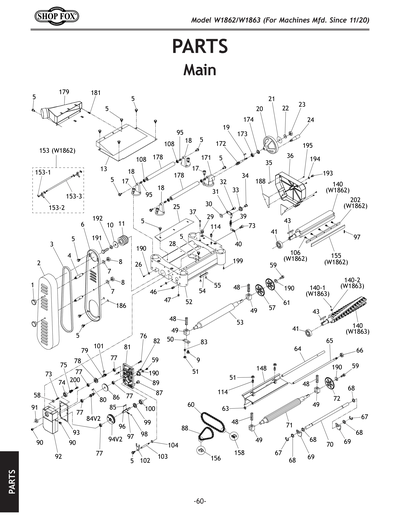

Part Diagram for W1862
Part Diagram for W1862

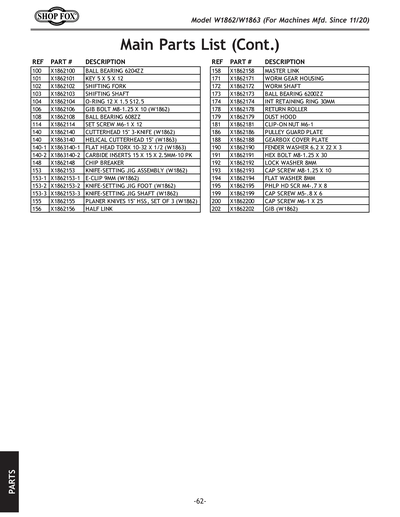

Part Diagram for W1862

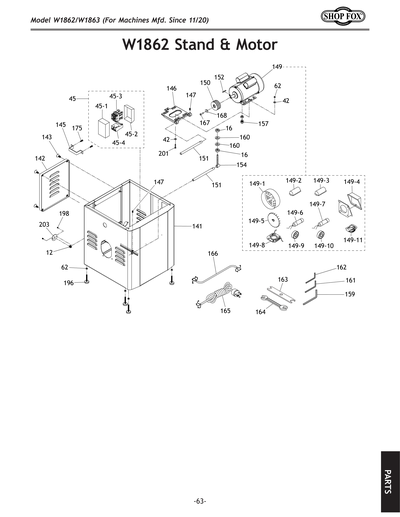

Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862

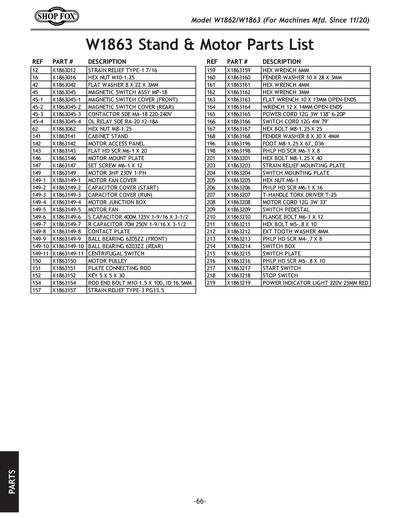

Part Diagram for W1862

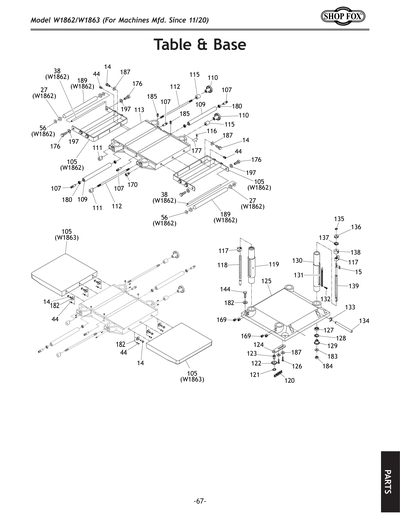

Part Diagram for W1862

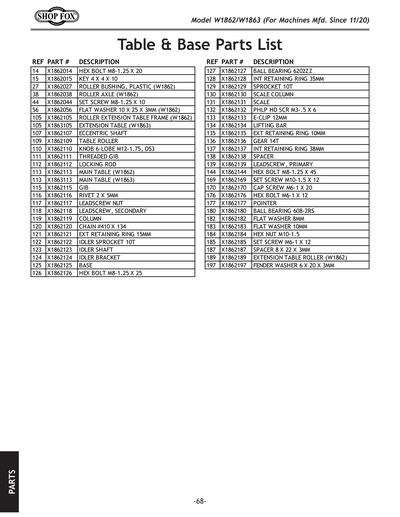

Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862
Part Diagram for W1862

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
MANUAL W1862/W1863 MFD-02.19+ V2.02.19
Item is no longer available
Price
N/A
1
KNOB 5/16-18, D1-3/4, ROUND
Price
$2.55
2
PULLEY/BELT COVER
Price
$41.30
3
V-BELT M58 3L580
Price
N/A
4
STANDOFF-HEX MM 5/16-18 X 3/8, 3
Price
$2.55
5
FLANGE BOLT M6-1 X 12
Price
N/A
6
PULLEY GUARD
Price
$34.10
7
X1862007
Now: PW07
FLAT WASHER 5/16
Price
N/A
8
X1862008
Now: PN02
HEX NUT 5/16-18
Price
N/A
9
HEX BOLT M8-1.25 X 20
Price
N/A
10
FENDER WASHER 8 X 30 X 4MM
Price
$1.60
11
CUTTERHEAD PULLEY
Price
$18.40
12
STRAIN RELIEF TYPE-1 7/16
Price
$1.60
13
UPPER COVER
Price
$76.60
14
HEX BOLT M8-1.25 X 20
Price
N/A
15
KEY 4 X 4 X 10
Price
N/A
16
HEX NUT M10-1.25
Price
N/A
17
CAP SCREW M6-1 X 20
Price
N/A
18
RETURN ROLLER BRACKET
Price
$23.35
19
KEY 4 X 4 X 10
Price
N/A
20
HANDWHEEL TYPE-3 151D X 10B-K X 3/8-16
Price
N/A
21
HANDWHEEL DIRECTION LABEL
Price
$1.35
22
FLAT WASHER 10MM
Price
N/A
23
HEX NUT M10-1.25
Price
N/A
24
REVOLVING HANDLE 1 X 3-9/16,3/8-16 X 1/2
Price
$15.50
25
CHIP DEFLECTOR
Price
$3.10
26
HEX BOLT M6-1 X 12
Price
N/A
27
ROLLER BUSHING, PLASTIC
Price
$1.60
28
FLAT SPRING 84 X 46 X 0.6MM
Price
$1.80
29
TENSIONING SET SCREW M22-1.5 X 20
Price
$2.70
30
SPACER 8.2 X 22 X 3MM
Price
$1.60
31
CHAIN TENSIONER
Price
$1.95
32
SHOULDER BOLT M8-1.25 X 14, 4 X 12
Price
$2.20
33
IDLER WHEEL
Price
$2.35
34
IDLER SHAFT
Price
$2.20
35
ROLL PIN 6 X 20
Price
N/A
36
PULLEY COVER V1
Price
N/A
37
CAP SCREW M8-1.25 X 50
Price
N/A
38
ROLLER AXLE
Price
$7.00
39
EXTENSION SPRING 1 X 8.5 X 33
Price
$1.60
40
SPRING BRACKET
Price
$1.60
41
BALL BEARING 6205RS
Price
N/A
42
FLAT WASHER 8 X 22 X 3MM
Price
$1.60
43
KEY 8 X 8 X 36
Price
N/A
44
SET SCREW M8-1.25 X 10
Price
N/A
45
MAGNETIC SWITCH ASSY MP-18
Price
$121.70
45-1
MAGNETIC SWITCH COVER (FRONT)
Price
$18.85
45-2
MAGNETIC SWITCH COVER (REAR)
Price
$4.75
45-3
CONTACTOR SDE MA-18 220-240V
Price
$61.20
45-4
OL RELAY SDE RA-20 12-18A
Price
$37.05
46
SET SCREW M10-1.5 X 12
Price
N/A
47
SET SCREW M8-1.25 X 10
Price
N/A
48
COMPRESSION SPRING 3.5 X 19.7 X 70
Price
$1.90
49
BUSHING BLOCK
Price
$6.25
50
BUSHING BLOCK PLATE
Price
$1.90
51
HEX NUT M6-1
Price
N/A
52
HEAD CASTING
Price
$432.60
53
OUTFEED ROLLER
Price
$74.20
54
DEPTH LIMITER
Price
$1.60
55
FLAT HD SCR M5-.8 X 12
Price
N/A
56
FLAT WASHER 10 X 25 X 3MM
Price
$1.60
57
SPROCKET 31T
Price
$7.95
58
FENDER WASHER 6 X 20 X 3MM
Price
$1.60
59
HEX BOLT M6-1 X 16
Price
N/A
60
CHAIN 06B-1 X 63 (31 LINKS)
Price
$12.45
61
SPROCKET 31T
Price
$9.00
62
HEX NUT M8-1.25
Price
N/A
63
EXT RETAINING RING 12MM
Price
N/A
64
CHIP BREAKER ADJUSTMENT ROD
Price
$8.65
65
CHIP BREAKER PIVOT ROD
Price
$6.65
66
HEX NUT M12-1.75
Price
N/A
67
E-CLIP 15MM
Price
N/A
68
SPACER
Price
$1.60
69
ANTI-KICKBACK FINGER
Price
$1.60
70
ANTI-KICKBACK SHAFT
Price
$12.45
71
INFEED ROLLER
Price
$99.25
72
SPROCKET 31T
Price
$8.60
73
CAP SCREW M6-1 X 12
Price
N/A
74
BALL BEARING 6204-2NSE
Price
N/A
75
GEAR 16T
Price
$9.60
76
CAP SCREW M6-1 X 25
Price
N/A
77
BALL BEARING 6201ZZ
Price
N/A
78
GEAR 47T
Price
$11.90
79
GEARED SHAFT 18T
Price
$9.15
80
KEY 5 X 5 X 10
Price
N/A
81
GEARBOX COVER
Price
$23.30
82
LOCATING PIN 8 X 7.55 X 7.95
Price
$1.60
83
SET SCREW M6-1 X 16
Price
N/A
84
GEARED SHAFT 22T/18T V1
Price
$12.45
84V2
GEARED SHAFT 28T/18T V2.02.19
Price
$16.40
85
KEY 6 X 6 X 40
Price
N/A
86
GEAR 71T
Price
$14.85
87
KNOB 3/8-16, D1-1/4, BALL
Price
N/A
88
CHAIN 06B-1 X 47 (23 LINKS)
Price
$8.70
89
SPROCKET 12T W/KEY
Price
$2.80
90
OIL PLUG 1/4 NPT X 3/4"
Price
$1.60
91
OIL SEAL 28 X 40 X 8
Price
$1.90
92
GEARBOX
Price
$33.10
93
GASKET
Price
$3.65
94
COMBO GEAR 92T/96T V1
Price
$34.30
94V2
COMBO GEAR 86T/96T V2.02.19
Price
$38.00
95
BEARING SHAFT
Price
$1.80
96
GEAR SHAFT
Price
$10.65
97
COMPRESSION SPRING 0.6 X 5.9 X 16
Price
$1.60
98
STEEL BALL 6MM
Price
N/A
99
OIL SEAL 25 X 47 X 6
Price
$2.20
100
BALL BEARING 6204ZZ
Price
N/A
101
KEY 5 X 5 X 12
Price
N/A
102
SHIFTING FORK
Price
$10.65
103
SHIFTING SHAFT
Price
$3.15
104
O-RING 12 X 1.5 S12.5
Price
N/A
105
ROLLER EXTENSION TABLE FRAME
Price
$20.45
106
GIB BOLT M8-1.25 X 10
Price
$1.60
107
ECCENTRIC SHAFT
Price
$3.15
108
Bearing - 22mm x 8mm
Price
N/A
109
TABLE ROLLER
Price
$20.45
110
KNOB 6-LOBE M12-1.75, D53
Price
$3.65
111
THREADED GIB
Price
$3.65
112
LOCKING ROD
Price
$6.65
113
MAIN TABLE
Price
$289.25
114
SET SCREW M6-1 X 12
Price
N/A
115
GIB
Price
$3.65
116
RIVET 2 X 5MM
Price
$1.60
117
LEADSCREW NUT
Price
$4.75
118
LEADSCREW, SECONDARY
Price
$7.60
119
COLUMN 14-1/2
Price
N/A
120
CHAIN #410 X 134
Price
$12.45
121
EXT RETAINING RING 15MM
Price
N/A
122
IDLER SPROCKET 10T
Price
$2.70
123
IDLER SHAFT
Price
$3.10
124
IDLER BRACKET
Price
$3.65
125
BASE
Price
$217.60
126
HEX BOLT M8-1.25 X 25
Price
N/A
127
BALL BEARING 6202ZZ
Price
N/A
128
INT RETAINING RING 35MM
Price
N/A
129
SPROCKET 10T
Price
$2.70
130
SCALE COLUMN
Price
$59.50
131
SCALE
Price
$1.60
132
PHLP HD SCR M3-.5 X 6
Price
N/A
133
E-CLIP 12MM
Price
N/A
134
LIFTING BAR
Price
$4.75
135
EXT RETAINING RING 10MM
Price
N/A
136
GEAR 14T
Price
$6.65
137
INT RETAINING RING 38MM
Price
N/A
138
SPACER
Price
$3.65
139
LEADSCREW, PRIMARY
Price
$12.45
140
CUTTERHEAD 15" 3-KNIFE
Price
$208.05
141
CABINET STAND
Price
$432.60
142
MOTOR ACCESS PANEL
Price
$20.85
143
FLAT HD SCR M6-1 X 20
Price
N/A
144
HEX BOLT M8-1.25 X 45
Price
N/A
145
SWITCH MOUNT BRACKET
Price
$3.10
146
MOTOR MOUNT PLATE
Price
$30.10
147
SET SCREW M6-1 X 12
Price
N/A
148
CHIP BREAKER
Price
$58.15
149
MOTOR 3HP 230V 1-PH
Price
$553.60
149-1
MOTOR FAN COVER
Price
$15.40
149-10
BALL BEARING 6203ZZ
Price
N/A
149-11
CENTRIFUGAL SWITCH
Price
$9.40
149-2
CAPACITOR COVER (START)
Price
$5.65
149-3
CAPACITOR COVER (RUN)
Price
$7.20
149-4
MOTOR JUNCTION BOX
Price
$12.85
149-5
MOTOR FAN
Price
$5.65
149-6
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
$26.50
149-7
R CAPACITOR 70M 250V 1-9/16 X 3-1/2
Price
$30.10
149-8
CONTACT PLATE
Price
$7.65
149-9
BALL BEARING 6205ZZ
Price
N/A
150
MOTOR PULLEY
Price
$32.05
151
PLATE CONNECTING ROD
Price
$5.05
152
KEY 5 X 5 X 30
Price
N/A
153
KNIFE-SETTING JIG ASSEMBLY
Price
$8.70
153-1
E-CLIP 9MM
Price
N/A
153-2
KNIFE-SETTING JIG FOOT
Price
$2.35
153-3
KNIFE-SETTING JIG SHAFT
Price
$4.10
154
ROD END BOLT M10-1.5 X 100, ID 16.5MM
Price
$3.55
155
15" Planer Knives - Set of 3 for W1692
Price
N/A
157
STRAIN RELIEF TYPE-3 PG13.5
Price
$4.30
159
HEX WRENCH 6MM
Price
N/A
160
FENDER WASHER 10 X 28 X 3MM
Price
$1.60
161
HEX WRENCH 4MM
Price
N/A
162
HEX WRENCH 3MM
Price
N/A
163
FLAT WRENCH 10 X 13MM OPEN-ENDS
Price
$3.15
164
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
165
POWER CORD 12G 3W 150" 6-20P
Price
$40.15
166
SWITCH CORD 12G 3W 30"
Price
$9.60
167
HEX BOLT M8-1.25 X 25
Price
N/A
168
FENDER WASHER 8 X 30 X 4MM
Price
$1.60
169
SET SCREW M10-1.5 X 12
Price
N/A
170
CAP SCREW M6-1 X 20
Price
N/A
171
WORM GEAR HOUSING
Price
$24.30
172
WORM SHAFT
Price
$9.60
173
BALL BEARING 6200ZZ
Price
N/A
174
INT RETAINING RING 30MM
Price
N/A
175
PHLP HD SCR M5-.8 X 10
Price
N/A
176
HEX BOLT M6-1 X 12
Price
N/A
177
POINTER
Price
$1.60
178
RETURN ROLLER
Price
$25.85
179
DUST HOOD
Price
$15.25
180
BALL BEARING 608-2RS
Price
N/A
181
CLIP-ON NUT M6-1
Price
$1.60
182
FLAT WASHER 8MM
Price
N/A
183
FLAT WASHER 10MM
Price
N/A
184
HEX NUT M10-1.5
Price
N/A
185
SET SCREW M6-1 X 12
Price
N/A
186
PULLEY GUARD PLATE
Price
$1.60
187
SPACER 8 X 22 X 3MM
Price
$1.60
188
GEARBOX COVER PLATE
Price
$2.55
189
EXTENSION TABLE ROLLER
Price
$9.60
190
FENDER WASHER 6.2 X 22 X 3
Price
$1.60
191
HEX BOLT M8-1.25 X 30
Price
N/A
192
LOCK WASHER 8MM
Price
N/A
193
CAP SCREW M8-1.25 X 10
Price
N/A
194
FLAT WASHER 8MM
Price
N/A
195
PHLP HD SCR M4-.7 X 8
Price
N/A
196
FOOT M8-1.25 X 67, D36
Price
$2.20
197
FENDER WASHER 6 X 20 X 3MM
Price
$1.60
198
PHLP HD SCR M6-1 X 8
Price
N/A
199
CAP SCREW M5-.8 X 6
Price
N/A
200
CAP SCREW M6-1 X 25
Price
N/A
201
HEX BOLT M8-1.25 X 40
Price
N/A
202
GIB
Price
$9.60
203
STRAIN RELIEF MOUNTING PLATE
Price
$2.55
301

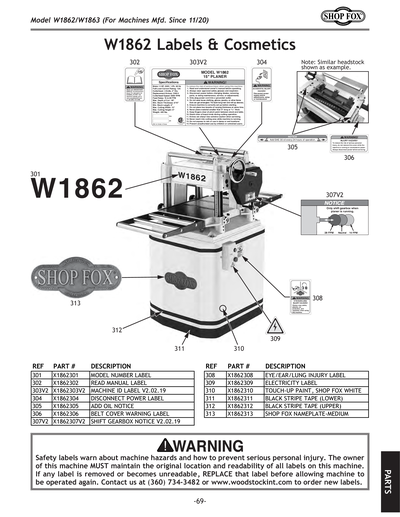

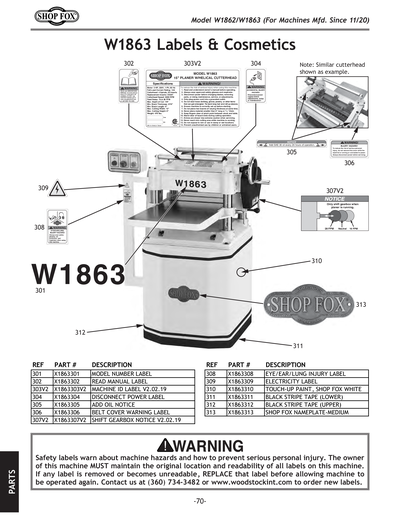

MODEL NUMBER LABEL
Price
$2.50
302
READ MANUAL 2.8W X 1.5H
Price
N/A
303
MACHINE ID LABEL V1
Price
$16.40
303V2
MACHINE ID LABEL V2.02.19
Price
$16.40
304
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
305
ADD OIL NOTICE
Price
$15.65
306
BELT COVER WARNING LABEL
Price
$1.35
307
SHIFT GEARBOX NOTICE V1
Price
$15.65
307V2
SHIFT GEARBOX NOTICE V2.02.19
Price
$1.60
308
EYE/EAR/LUNG INJURY LABEL
Price
$16.40
309
ELECTRICITY 1.4W X 1.2H
Price
N/A
310
SHOP FOX WHITE M1006
Price
N/A
311
BLACK STRIPE TAPE (UPPER & LOWER) 3-PC
Price
$11.95
312
BLACK STRIPE TAPE UPPER 2-PC
Price
$3.55
313
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
MAN
MANUAL W1862/63 MFD-10.18-1.19 V1.12.18
Price
$19.75
MANV2
MANUAL W1862/W1863 MFD-02.19+ V2.02.19
Price
$19.75
MANV3
MANUAL W1862/W1863 MFD-11.20+ V3.04.21
Price
$14.65
