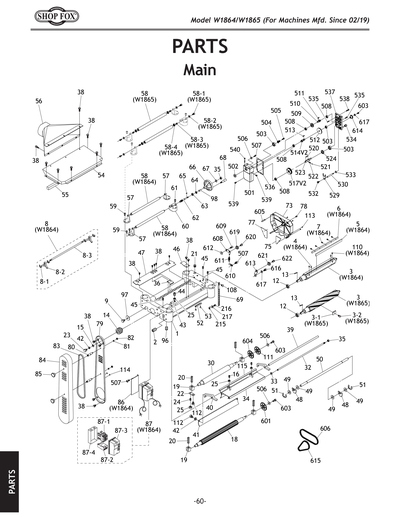

Shop Fox W1865 - 20" 5 HP Planer with Helical Cutterhead

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
PX1865001 PX1865001
HEADSTOCK CASTING
Item is no longer available

PX1865001 Replaced By PX1864001
N/A
View Item
PX1865002 PX1865002 SET SCREW M10-1.5 X 12 $1.00
View Item
PX1865003 PX1865003
SPIRAL CUTTERHEAD 20"
N/A
PX1865003-1 PX1865003-1
***USE D4297***
Item is no longer available

PX1865003-1 Replaced By D4297
N/A
View Item
PX1865003-2 PX1865003-2 FLAT HEAD TORX 10-32 X 1/2 $1.25
View Item
PX1865003A PX1865003A
SPIRAL CUTTERHEAD ASSEMBLY 20"
N/A
PX1865009 PX1865009 HEX BOLT M6-1 X 12 $1.00
View Item
PX1865012 PX1865012 BALL BEARING 6206-2RS $5.50
View Item
PX1865013 PX1865013 KEY 8 X 8 X 36 $1.00
View Item
PX1865014 PX1865014
CUTTERHEAD PULLEY
Item is no longer available

PX1865014 Replaced By PX1864014
N/A
View Item
PX1865015 PX1865015 FENDER WASHER 8MM $1.00
View Item
PX1865016 PX1865016 SET SCREW M6-1 X 12 $1.00
View Item
PX1865017 PX1865017
MOTOR PULLEY
N/A
PX1865018 PX1865018
INFEED ROLLER
Item is no longer available

PX1865018 Replaced By PX1864018
N/A
View Item
PX1865019 PX1865019
BUSHING BLOCK
Item is no longer available

PX1865019 Replaced By PX1864019
N/A
View Item
PX1865020 PX1865020
COMPRESSION SPRING 3.5 X 19.7 X 70
Item is no longer available

PX1865020 Replaced By PX1864020
N/A
View Item
PX1865021 PX1865021
TENSIONING SET SCREW M22-1.5 X 20
Item is no longer available

PX1865021 Replaced By PX1864021
N/A
View Item
PX1865022 PX1865022
BUSHING BLOCK PLATE
Item is no longer available

PX1865022 Replaced By PX1864022
N/A
View Item
PX1865023 PX1865023 HEX BOLT M8-1.25 X 30 $1.00
View Item
PX1865024 PX1865024 SET SCREW M6-1 X 16 $1.00
View Item
PX1865025 PX1865025
HEX NUT M6-1 THIN
Item is no longer available

PX1865025 Replaced By PX1864025
N/A
View Item
PX1865030 PX1865030
OUTFEED ROLLER
Item is no longer available

PX1865030 Replaced By PX1864030
N/A
View Item
PX1865032 PX1865032
CHIP BREAKER PIVOT ROD M12-1.75 X 25
Item is no longer available

PX1865032 Replaced By PX1864032
N/A
View Item
PX1865033 PX1865033 EXT RETAINING RING 12MM $1.00
View Item
PX1865034 PX1865034 CHIP BREAKER $60.00
View Item
PX1865035 PX1865035 HEX NUT M12-1.75 $1.00
View Item
PX1865036 PX1865036
FLAT SPRING 84 X 46 X 0.6MM
Item is no longer available

PX1865036 Replaced By PX1864036
N/A
View Item
PX1865038 PX1865038 FLANGE BOLT M6-1 X 12 $1.75
View Item
PX1865039 PX1865039
CHIPBREAKER ADJUSTMENT ROD
Item is no longer available

PX1865039 Replaced By PX1864039
N/A
View Item
PX1865040 PX1865040
CHIPBREAKER ADJUSTMENT BRACKET
Item is no longer available

PX1865040 Replaced By PX1864040
N/A
View Item
PX1865041 PX1865041
PRESSURE BAR
Item is no longer available

PX1865041 Replaced By PX1864041
N/A
View Item
PX1865042 PX1865042 LOCK WASHER 8MM $1.00
View Item
PX1865043 PX1865043
SHAFT
Item is no longer available

PX1865043 Replaced By PX1864043
N/A
View Item
PX1865044 PX1865044 SET SCREW M6-1 X 20 $1.00
View Item
PX1865045 PX1865045 SET SCREW M6-1 X 16 $1.00
View Item
PX1865046 PX1865046
FLAT SPRING 84 X 46 X 0.6MM
Item is no longer available

PX1865046 Replaced By PX1864046
N/A
View Item
PX1865047 PX1865047
CHIP DEFLECTOR
Item is no longer available

PX1865047 Replaced By PX1864047
N/A
View Item
PX1865048 PX1865048
ANTI-KICKBACK FINGER
Item is no longer available

PX1865048 Replaced By PX1864048
N/A
View Item
PX1865049 PX1865049
SPACER
Item is no longer available

PX1865049 Replaced By PX1864049
N/A
View Item
PX1865050 PX1865050
ANTI-KICKBACK SHAFT
Item is no longer available

PX1865050 Replaced By PX1864050
N/A
View Item
PX1865051 PX1865051 E-CLIP 15MM $1.25
View Item
PX1865052 PX1865052
DEPTH LIMITER
Item is no longer available

PX1865052 Replaced By PX1864052
N/A
View Item
PX1865053 PX1865053 FLAT HD SCR M5-.8 X 12 $1.00
View Item
PX1865054 PX1865054
UPPER COVER
Item is no longer available

PX1865054 Replaced By PX1864054
N/A
View Item
PX1865055 PX1865055
UPPER COVER GASKET
Item is no longer available

PX1865055 Replaced By PX1864055
N/A
View Item
PX1865056 PX1865056
DUST PORT 5"
Item is no longer available

PX1865056 Replaced By PX1864056
N/A
View Item
PX1865057 PX1865057
RETURN ROLLER BRACKET
Item is no longer available

PX1865057 Replaced By PX1864057
N/A
View Item
PX1865058 PX1865058
RETURN ROLLER
N/A
PX1865058-1 PX1865058-1 CAP SCREW M6-1 X 10 $1.00
View Item
PX1865058-2 PX1865058-2 FLAT WASHER 6MM $1.00
View Item
PX1865058-3 PX1865058-3
BEARING SHAFT
N/A
PX1865058-4 PX1865058-4 BALL BEARING 6202ZZ $5.50
View Item
PX1865059 PX1865059 CAP SCREW M6-1 X 16 $1.00
View Item
PX1865060 PX1865060
WORM GEAR HOUSING
Item is no longer available

PX1865060 Replaced By PX1864060
N/A
View Item
PX1865061 PX1865061 CAP SCREW M6-1 X 50 $1.00
View Item
PX1865062 PX1865062
WORM SHAFT
Item is no longer available

PX1865062 Replaced By PX1864062
N/A
View Item
PX1865063 PX1865063 BALL BEARING 6201-2RS $9.50
View Item
PX1865064 PX1865064 INT RETAINING RING 32MM $2.00
View Item
PX1865065 PX1865065 KEY 4 X 4 X 10 $1.00
View Item
PX1865066 PX1865066
HANDWHEEL TYPE-2 200D X 12B-K X 3/8-16
Item is no longer available

PX1865066 Replaced By PX1864066
N/A
View Item
PX1865067 PX1865067 FLAT WASHER 13MM $1.00
View Item
PX1865068 PX1865068
REVOLVING HANDLE 1 X 3-9/16,3/8-16 X 1/2
Item is no longer available

PX1865068 Replaced By PX1864068
N/A
View Item
PX1865069 PX1865069
SCALE
Item is no longer available

PX1865069 Replaced By PX1864069
N/A
View Item
PX1865073 PX1865073
DRIVE CHAIN COVER
Item is no longer available

PX1865073 Replaced By PX1864073
N/A
View Item
PX1865075 PX1865075
GEARBOX COVER PLATE-A
Item is no longer available

PX1865075 Replaced By PX1864075
N/A
View Item
PX1865077 PX1865077
GEARBOX COVER PLATE-B
Item is no longer available

PX1865077 Replaced By PX1864077
N/A
View Item
PX1865078 PX1865078 CAP SCREW M8-1.25 X 10 $1.00
View Item
PX1865079 PX1865079
PULLEY GUARD
Item is no longer available

PX1865079 Replaced By PX1864079
N/A
View Item
PX1865080 PX1865080
STANDOFF-HEX DE
Item is no longer available

PX1865080 Replaced By PX1864080
N/A
View Item
PX1865081 PX1865081 FLAT WASHER 5/16 $1.00
View Item
PX1865082 PX1865082 HEX NUT 5/16-18 $1.00
View Item
PX1865083 PX1865083 V-BELT M58 3L580 $14.50
View Item
PX1865084 PX1865084
PULLEY COVER
Item is no longer available

PX1865084 Replaced By PX1864084
N/A
View Item
PX1865085 PX1865085
KNOB 5/16-18, D1-3/4, ROUND
Item is no longer available

PX1865085 Replaced By PX1864085
N/A
View Item
PX1865087 PX1865087
MAGNETIC SWITCH ASSY SDE MP-30
N/A
PX1865087-1 PX1865087-1
CONTACTOR SDE MA-30 220-240V
N/A
PX1865087-2 PX1865087-2
OL RELAY SDE RA-30 22-34A
N/A
PX1865087-3 PX1865087-3
MAGNETIC SWITCH COVER (FRONT)
N/A
PX1865087-4 PX1865087-4
MAGNETIC SWITCH COVER (REAR)
N/A
PX1865093 PX1865093
MOTOR CORD 10G 3W 57"
Item is no longer available

PX1865093 Replaced By PX1864093
N/A
View Item
PX1865096 PX1865096 SET SCREW M8-1.25 X 12 $1.00
View Item
PX1865097 PX1865097 FENDER WASHER 6MM $1.00
View Item
PX1865098 PX1865098
SLEEVE 13.5 ID X 30 L
Item is no longer available

PX1865098 Replaced By PX1864098
N/A
View Item
PX1865108 PX1865108 PHLP HD SCR M6-1 X 12 $1.00
View Item
PX1865111 PX1865111
SPROCKET 31T
Item is no longer available

PX1865111 Replaced By PX1864111
N/A
View Item
PX1865112 PX1865112
FLANGE BOLT M8-1.25 X 20
Item is no longer available

PX1865112 Replaced By PFB18M
N/A
View Item
PX1865113 PX1865113 PHLP HD SCR M4-.7 X 8 $1.00
View Item
PX1865114 PX1865114
PULLEY GUARD PLATE
Item is no longer available

PX1865114 Replaced By PX1864114
N/A
View Item
PX1865115 PX1865115
CHIP BREAKER GASKET
Item is no longer available

PX1865115 Replaced By PX1864115
N/A
View Item
PX1865116 PX1865116
LOW/HIGH DIRECTION LABEL
Item is no longer available

PX1865116 Replaced By PX1864116
N/A
View Item

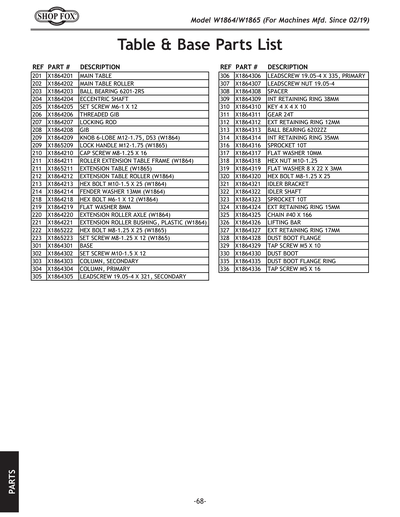

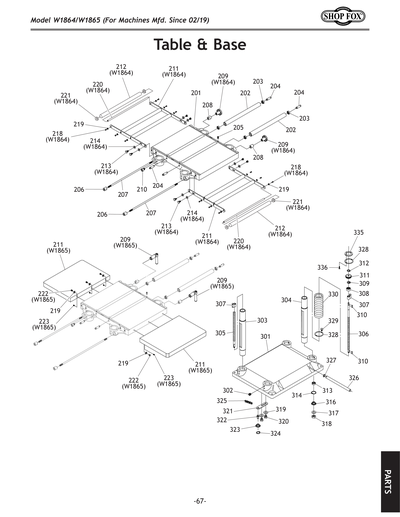

PX1865201 PX1865201
MAIN TABLE
Item is no longer available

PX1865201 Replaced By PX1864201
N/A
View Item
PX1865202 PX1865202
MAIN TABLE ROLLER
Item is no longer available

PX1865202 Replaced By PX1864202
N/A
View Item
PX1865203 PX1865203 BALL BEARING 6201-2RS $9.50
View Item
PX1865204 PX1865204
ECCENTRIC SHAFT
Item is no longer available

PX1865204 Replaced By PX1864204
N/A
View Item
PX1865205 PX1865205 SET SCREW M6-1 X 12 $1.00
View Item
PX1865206 PX1865206
THREADED GIB
Item is no longer available

PX1865206 Replaced By PX1864206
N/A
View Item
PX1865207 PX1865207
LOCKING ROD
Item is no longer available

PX1865207 Replaced By PX1864207
N/A
View Item
PX1865208 PX1865208
GIB
Item is no longer available

PX1865208 Replaced By PX1864208
N/A
View Item
PX1865209 PX1865209
LOCK HANDLE M12-1.75
N/A
PX1865210 PX1865210 CAP SCREW M8-1.25 X 16 $1.00
View Item
PX1865211 PX1865211
EXTENSION WING
N/A
PX1865215 PX1865215
POINTER
Item is no longer available

PX1865215 Replaced By PX1864215
N/A
View Item
PX1865216 PX1865216 CAP SCREW M5-.8 X 10 $1.00
View Item
PX1865217 PX1865217 LOCK WASHER 5MM $1.00
View Item
PX1865219 PX1865219 FLAT WASHER 8MM $1.00
View Item
PX1865222 PX1865222 HEX BOLT M8-1.25 X 25 $1.00
View Item
PX1865223 PX1865223 SET SCREW M8-1.25 X 12 $1.00
View Item
PX1865301 PX1865301
BASE
Item is no longer available

PX1865301 Replaced By PX1864301
N/A
View Item
PX1865302 PX1865302 SET SCREW M10-1.5 X 12 $1.00
View Item
PX1865303 PX1865303
COLUMN (SECONDARY)
Item is no longer available

PX1865303 Replaced By PX1864303
N/A
View Item
PX1865304 PX1865304
COLUMN (PRIMARY)
Item is no longer available

PX1865304 Replaced By PX1864304
N/A
View Item
PX1865305 PX1865305
LEADSCREW 19.05-4 X 321 (SECONDARY)
Item is no longer available

PX1865305 Replaced By PX1864305
N/A
View Item
PX1865306 PX1865306
LEADSCREW 19.05-4 X 335 (PRIMARY)
Item is no longer available

PX1865306 Replaced By PX1864306
N/A
View Item
PX1865307 PX1865307
LEADSCREW NUT 19.05-4
Item is no longer available

PX1865307 Replaced By PX1864307
N/A
View Item
PX1865308 PX1865308
SPACER
Item is no longer available

PX1865308 Replaced By PX1864308
N/A
View Item
PX1865309 PX1865309 INT RETAINING RING 38MM $1.50
View Item
PX1865310 PX1865310 KEY 4 X 4 X 10 $1.00
View Item
PX1865311 PX1865311
GEAR 24T
Item is no longer available

PX1865311 Replaced By PX1864311
N/A
View Item
PX1865312 PX1865312 EXT RETAINING RING 12MM $1.00
View Item
PX1865313 PX1865313 BALL BEARING 6202ZZ $5.50
View Item
PX1865314 PX1865314 INT RETAINING RING 35MM $1.50
View Item
PX1865316 PX1865316
SPROCKET 10T
Item is no longer available

PX1865316 Replaced By PX1864316
N/A
View Item
PX1865317 PX1865317 FLAT WASHER 10MM $1.00
View Item
PX1865318 PX1865318 HEX NUT M10-1.25 $1.00
View Item
PX1865319 PX1865319
FLAT WASHER 8 X 22 X 3MM
Item is no longer available

PX1865319 Replaced By PX1864319
N/A
View Item
PX1865320 PX1865320 HEX BOLT M8-1.25 X 25 $1.00
View Item
PX1865321 PX1865321
IDLER BRACKET
Item is no longer available

PX1865321 Replaced By PX1864321
N/A
View Item
PX1865322 PX1865322
IDLER SHAFT
Item is no longer available

PX1865322 Replaced By PX1864322
N/A
View Item
PX1865323 PX1865323
SPROCKET 10T
Item is no longer available

PX1865323 Replaced By PX1864323
N/A
View Item
PX1865324 PX1865324 EXT RETAINING RING 15MM $1.00
View Item
PX1865325 PX1865325
CHAIN #40 X 166
Item is no longer available

PX1865325 Replaced By PX1864325
N/A
View Item
PX1865326 PX1865326
LIFTING BAR
Item is no longer available

PX1865326 Replaced By PX1864326
N/A
View Item
PX1865327 PX1865327 EXT RETAINING RING 17MM $1.00
View Item
PX1865328 PX1865328
DUST BOOT FLANGE
Item is no longer available

PX1865328 Replaced By PX1864328
N/A
View Item
PX1865329 PX1865329 TAP SCREW M5 X 10 $1.00
View Item
PX1865330 PX1865330
DUST BOOT
Item is no longer available

PX1865330 Replaced By PX1864330
N/A
View Item
PX1865331 PX1865331 HEX BOLT M12-1.75 X 50 $1.00
View Item
PX1865332 PX1865332 FLAT WASHER 12MM $1.00
View Item
PX1865334 PX1865334 HEX NUT M12-1.75 $1.00
View Item
PX1865335 PX1865335
DUST BOOT FLANGE RING
Item is no longer available

PX1865335 Replaced By PX1864335
N/A
View Item
PX1865336 PX1865336
TAP SCREW M5 X 16
Item is no longer available

PX1865336 Replaced By PHTEK19M
N/A
View Item

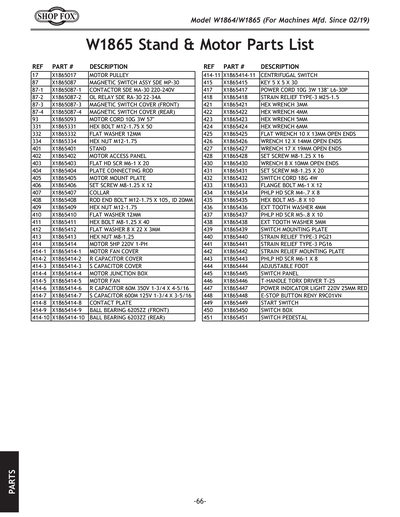

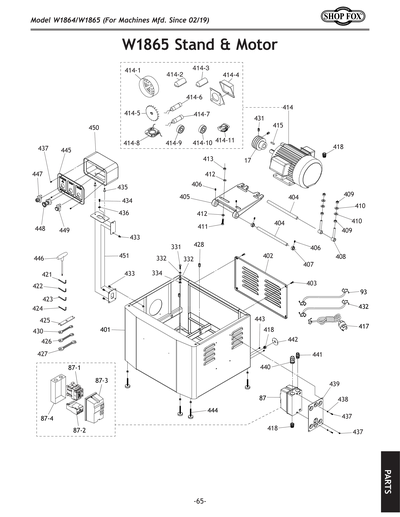

PX1865401 PX1865401
STAND
Item is no longer available

PX1865401 Replaced By PX1864401
N/A
View Item
PX1865402 PX1865402
MOTOR ACCESS PANEL
Item is no longer available

PX1865402 Replaced By PX1864402
N/A
View Item
PX1865403 PX1865403 FLAT HD SCR M6-1 X 20 $1.25
View Item
PX1865404 PX1865404
PLATE CONNECTING ROD
Item is no longer available

PX1865404 Replaced By PX1864404
N/A
View Item
PX1865405 PX1865405
MOTOR MOUNT PLATE
Item is no longer available

PX1865405 Replaced By PX1864405
N/A
View Item
PX1865406 PX1865406 SET SCREW M8-1.25 X 12 $1.00
View Item
PX1865407 PX1865407
COLLAR
Item is no longer available

PX1865407 Replaced By PX1864407
N/A
View Item
PX1865408 PX1865408
ROD END BOLT M12-1.75 X 105, ID 20MM
Item is no longer available

PX1865408 Replaced By PX1864408
N/A
View Item
PX1865409 PX1865409 HEX NUT M12-1.75 $1.00
View Item
PX1865410 PX1865410 FLAT WASHER 12MM $1.00
View Item
PX1865411 PX1865411 HEX BOLT M8-1.25 X 40 $1.00
View Item
PX1865412 PX1865412
FLAT WASHER 8 X 22 X 3MM
Item is no longer available

PX1865412 Replaced By PX1864412
N/A
View Item
PX1865413 PX1865413 HEX NUT M8-1.25 $1.00
View Item
PX1865414 PX1865414
MOTOR 5HP 220V 1-PH
Item is no longer available

PX1865414 Replaced By PX1864414
N/A
View Item
PX1865414-1 PX1865414-1
MOTOR FAN COVER
Item is no longer available

PX1865414-1 Replaced By PX1864414-1
N/A
View Item
PX1865414-10 PX1865414-10 BALL BEARING 6203ZZ $9.50
View Item
PX1865414-11 PX1865414-11
CENTRIFUGAL SWITCH
Item is no longer available

PX1865414-11 Replaced By PX1864414-11
N/A
View Item
PX1865414-2 PX1865414-2
R CAPACITOR COVER
Item is no longer available

PX1865414-2 Replaced By PX1864414-2
N/A
View Item
PX1865414-3 PX1865414-3
S CAPACITOR COVER
Item is no longer available

PX1865414-3 Replaced By PX1864414-3
N/A
View Item
PX1865414-4 PX1865414-4
MOTOR JUNCTION BOX
Item is no longer available

PX1865414-4 Replaced By PX1864414-4
N/A
View Item
PX1865414-5 PX1865414-5
MOTOR FAN
Item is no longer available

PX1865414-5 Replaced By PX1864414-5
N/A
View Item
PX1865414-6 PX1865414-6
R CAPACITOR 60M 350V 1-3/4 X 4-5/16
Item is no longer available

PX1865414-6 Replaced By PX1864414-6
N/A
View Item
PX1865414-7 PX1865414-7 S CAPACITOR 600M 125V 1-3/4 X 3-1/2 $18.00
View Item
PX1865414-8 PX1865414-8
CONTACT PLATE
Item is no longer available

PX1865414-8 Replaced By PX1864414-8
N/A
View Item
PX1865414-9 PX1865414-9 BALL BEARING 6205ZZ $9.50
View Item
PX1865415 PX1865415 KEY 5 X 5 X 30 $1.50
View Item
PX1865417 PX1865417
POWER CORD 10G 3W 138" L6-30P
Item is no longer available

PX1865417 Replaced By PX1864417
N/A
View Item
PX1865418 PX1865418
STRAIN RELIEF TYPE-3 M25-1.5
N/A
PX1865421 PX1865421 HEX WRENCH 3MM $1.00
View Item
PX1865422 PX1865422 HEX WRENCH 4MM $1.50
View Item
PX1865423 PX1865423 HEX WRENCH 5MM $2.00
View Item
PX1865424 PX1865424 HEX WRENCH 6MM $3.00
View Item
PX1865425 PX1865425
FLAT WRENCH 10 X 13MM OPEN-ENDS
Item is no longer available

PX1865425 Replaced By PX1864425
N/A
View Item
PX1865426 PX1865426 WRENCH 12 X 14MM OPEN-ENDS $5.00
View Item
PX1865427 PX1865427 WRENCH 17 X 19MM OPEN-ENDS $6.75
View Item
PX1865428 PX1865428 SET SCREW M8-1.25 X 16 $1.00
View Item
PX1865430 PX1865430 WRENCH 8 X 10MM OPEN-ENDS $2.75
View Item
PX1865431 PX1865431 SET SCREW M8-1.25 X 20 $1.00
View Item
PX1865432 PX1865432
SWITCH CORD 18G 4W
N/A
PX1865433 PX1865433 FLANGE BOLT M6-1 X 12 $1.75
View Item
PX1865434 PX1865434 PHLP HD SCR M4-.7 X 8 $1.00
View Item
PX1865435 PX1865435 HEX BOLT M5-.8 X 10 $1.00
View Item
PX1865436 PX1865436 EXT TOOTH WASHER 4MM $1.00
View Item
PX1865437 PX1865437 PHLP HD SCR M5-.8 X 10 $1.00
View Item
PX1865438 PX1865438 EXT TOOTH WASHER 5MM $1.00
View Item
PX1865439 PX1865439
SWITCH MOUNTING PLATE
N/A
PX1865440 PX1865440
STRAIN RELIEF TYPE-3 PG21
N/A
PX1865441 PX1865441
STRAIN RELIEF TYPE-3 PG16
N/A
PX1865442 PX1865442
STRAIN RELIEF MOUNTING PLATE
N/A
PX1865443 PX1865443 PHLP HD SCR M6-1 X 8 $1.25
View Item
PX1865444 PX1865444
ADJUSTABLE FOOT
Item is no longer available

PX1865444 Replaced By PX1864444
N/A
View Item
PX1865445 PX1865445
SWITCH PANEL
N/A
PX1865446 PX1865446
T-HANDLE TORX DRIVER T-25
Item is no longer available

PX1865446 Replaced By PTDRIV002
N/A
View Item
PX1865447 PX1865447
POWER INDICATOR LIGHT 220V 25MM RED
N/A
PX1865448 PX1865448
E-STOP BUTTON RENY R9C01VN
N/A
PX1865449 PX1865449
START SWITCH
N/A
PX1865450 PX1865450
SWITCH BOX
N/A
PX1865451 PX1865451
SWITCH PEDESTAL
N/A
PX1865501 PX1865501
GEARBOX
Item is no longer available

PX1865501 Replaced By PX1864501
N/A
View Item
PX1865502 PX1865502
OIL SEAL 28 X 40 X 8
Item is no longer available

PX1865502 Replaced By PX1864502
N/A
View Item
PX1865503 PX1865503 BALL BEARING 6204ZZ $9.50
View Item
PX1865504 PX1865504
GEAR 16T
Item is no longer available

PX1865504 Replaced By PX1864504
N/A
View Item
PX1865505 PX1865505 CAP SCREW M6-1 X 25 $1.00
View Item
PX1865506 PX1865506 FENDER WASHER 6MM $1.00
View Item
PX1865507 PX1865507 CAP SCREW M6-1 X 12 $1.00
View Item
PX1865508 PX1865508 BALL BEARING 6201ZZ $9.50
View Item
PX1865509 PX1865509
GEAR 47T
Item is no longer available

PX1865509 Replaced By PX1864509
N/A
View Item
PX1865510 PX1865510
GEARED SHAFT 18T
Item is no longer available

PX1865510 Replaced By PX1864510
N/A
View Item
PX1865511 PX1865511 KEY 5 X 5 X 12 $1.50
View Item
PX1865512 PX1865512
GEAR 71T
Item is no longer available

PX1865512 Replaced By PX1864512
N/A
View Item
PX1865513 PX1865513 KEY 5 X 5 X 10 $1.50
View Item
PX1865514 PX1865514
GEARED SHAFT 22T/18T
Item is no longer available

PX1865514 Replaced By PX1864514
N/A
View Item
PX1865514V2 PX1865514V2
GEARED SHAFT 28T/18T V2.02.19
Item is no longer available

PX1865514V2 Replaced By PX1864514V2
N/A
View Item
PX1865517 PX1865517
COMBO GEAR 92T/96T
Item is no longer available

PX1865517 Replaced By PX1864517
N/A
View Item
PX1865517V2 PX1865517V2
COMBO GEAR 86T/96T V2.02.19
Item is no longer available

PX1865517V2 Replaced By PX1864517V2
N/A
View Item
PX1865520 PX1865520 KEY 6 X 6 X 40 $2.00
View Item
PX1865521 PX1865521 STEEL BALL 6MM $3.00
View Item
PX1865522 PX1865522
COMPRESSION SPRING 0.6 X 5.9 X 16
Item is no longer available

PX1865522 Replaced By PX1864522
N/A
View Item
PX1865523 PX1865523
GEAR SHAFT
Item is no longer available

PX1865523 Replaced By PX1864523
N/A
View Item
PX1865524 PX1865524
OIL SEAL 25 X 47 X 6
Item is no longer available

PX1865524 Replaced By PX1864524
N/A
View Item
PX1865529 PX1865529
SHIFTING FORK
Item is no longer available

PX1865529 Replaced By PX1864529
N/A
View Item
PX1865530 PX1865530
SHIFTING SHAFT
Item is no longer available

PX1865530 Replaced By PX1864530
N/A
View Item
PX1865532 PX1865532 FLANGE BOLT M6-1 X 12 $1.75
View Item
PX1865533 PX1865533 O-RING 12 X 1.5 S12.5 $1.00
View Item
PX1865534 PX1865534
KNOB 3/8-16, D1-1/4, BALL
Item is no longer available

PX1865534 Replaced By PX1864534
N/A
View Item
PX1865535 PX1865535
LOCATING PIN 8 X 7.55 X 7.95
Item is no longer available

PX1865535 Replaced By PX1864535
N/A
View Item
PX1865536 PX1865536
GASKET
Item is no longer available

PX1865536 Replaced By PX1864536
N/A
View Item
PX1865537 PX1865537
GEARBOX COVER
Item is no longer available

PX1865537 Replaced By PX1864537
N/A
View Item
PX1865538 PX1865538 CAP SCREW M6-1 X 25 $1.00
View Item
PX1865539 PX1865539
OIL PLUG 1/4 NPT X 3/4"
Item is no longer available

PX1865539 Replaced By PX1864539
N/A
View Item
PX1865540 PX1865540 CAP SCREW M8-1.25 X 50 $1.00
View Item
PX1865601 PX1865601
SPROCKET 31T
Item is no longer available

PX1865601 Replaced By PX1864601
N/A
View Item
PX1865603 PX1865603 HEX BOLT M6-1 X 16 $1.00
View Item
PX1865604 PX1865604
SPROCKET 31T
Item is no longer available

PX1865604 Replaced By PX1864604
N/A
View Item
PX1865605 PX1865605 ROLL PIN 6 X 20 $1.00
View Item
PX1865606 PX1865606
CHAIN 06B-1 X 67 33 LINKS
Item is no longer available

PX1865606 Replaced By PX1864606
N/A
View Item
PX1865608 PX1865608
CHAIN TENSIONER
Item is no longer available

PX1865608 Replaced By PX1864608
N/A
View Item
PX1865609 PX1865609
SHOULDER BOLT M8-1.25 X 14, 12 X 4
Item is no longer available

PX1865609 Replaced By PX1864609
N/A
View Item
PX1865610 PX1865610
SPRING BRACKET
Item is no longer available

PX1865610 Replaced By PX1864610
N/A
View Item
PX1865611 PX1865611
EXTENSION SPRING 1 X 8.5 X 33
Item is no longer available

PX1865611 Replaced By PX1864611
N/A
View Item
PX1865612 PX1865612 FENDER WASHER 8MM $1.00
View Item
PX1865613 PX1865613
OUTER CHAIN TENSIONER
Item is no longer available

PX1865613 Replaced By PX1864613
N/A
View Item
PX1865614 PX1865614
SPROCKET 12T W/KEY
Item is no longer available

PX1865614 Replaced By PX1864614
N/A
View Item
PX1865615 PX1865615
CHAIN 06B-1 25 LINKS
Item is no longer available

PX1865615 Replaced By PX1864615
N/A
View Item
PX1865616 PX1865616 CAP SCREW M6-1 X 35 $1.00
View Item
PX1865617 PX1865617 FLAT WASHER 6MM $1.00
View Item
PX1865619 PX1865619
CHAIN TENSIONER IDLER WHEEL
Item is no longer available

PX1865619 Replaced By PX1864619
N/A
View Item
PX1865620 PX1865620
CHAIN TENSIONER IDLER SHAFT
Item is no longer available

PX1865620 Replaced By PX1864620
N/A
View Item
PX1865621 PX1865621
OUTER CHAIN TENSIONER IDLER WHEEL
Item is no longer available

PX1865621 Replaced By PX1864621
N/A
View Item
PX1865622 PX1865622
OUTER CHAIN TENSIONER IDLER SHAFT
Item is no longer available

PX1865622 Replaced By PX1864622
N/A
View Item

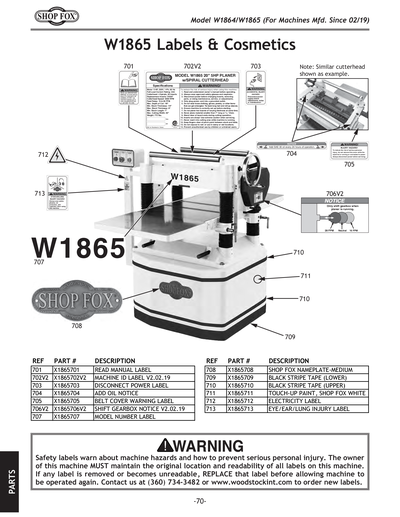

PX1865701 PX1865701 READ MANUAL 2.8W X 1.5H $2.50
View Item
PX1865702 PX1865702
MACHINE ID LABEL
N/A
PX1865702V2 PX1865702V2
MACHINE ID LABEL V2.02.19
N/A
PX1865703 PX1865703 DISCONNECT 110V 1.5W X 2.5H $2.50
View Item
PX1865704 PX1865704
ADD OIL NOTICE
Item is no longer available

PX1865704 Replaced By PX1862305
N/A
View Item
PX1865705 PX1865705
BELT COVER WARNING LABEL
Item is no longer available

PX1865705 Replaced By PX1862306
N/A
View Item
PX1865706 PX1865706
SHIFT GEARBOX NOTICE V1
Item is no longer available

PX1865706 Replaced By PX1862307
N/A
View Item
PX1865706V2 PX1865706V2
SHIFT GEARBOX NOTICE V2.02.19
Item is no longer available

PX1865706V2 Replaced By PX1862307V2
N/A
View Item
PX1865707 PX1865707
MODEL NUMBER LABEL
N/A
PX1865708 PX1865708
***USE D3376***
Item is no longer available

PX1865708 Replaced By D3376
N/A
View Item
PX1865709 PX1865709
BLACK STRIPE TAPE (UPPER & LOWER) 3-PC
Item is no longer available

PX1865709 Replaced By PX1862311
N/A
View Item
PX1865710 PX1865710
BLACK STRIPE TAPE UPPER 2-PC
Item is no longer available

PX1865710 Replaced By PX1862312
N/A
View Item
PX1865711 PX1865711
SHOP FOX WHITE M1007
N/A
PX1865712 PX1865712 ELECTRICITY 1.4W X 1.2H $2.50
View Item
PX1865713 PX1865713
EYE/EAR/LUNG INJURY LABEL
Item is no longer available

PX1865713 Replaced By PX1862308
N/A
View Item
PX1865MAN PX1865MAN
MANUAL W1864-65 MFD-11.18-01.19 V1.12.18
Item is no longer available

PX1865MAN Replaced By PX1864MAN
N/A
View Item
PX1865MANV2 PX1865MANV2
MANUAL W1864-65 MFD-02.19-06.19 V2.02.19
Item is no longer available

PX1865MANV2 Replaced By PX1864MANV2
N/A
View Item
PX1865MANV3 PX1865MANV3
MANUAL W1864-65 MFD-07.19+ V3.07.19
Item is no longer available

PX1865MANV3 Replaced By PX1864MANV3
N/A
View Item
Ref # Part # Description Price Qty
