Parts for W1866 24" x 36" Bowl Turning Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

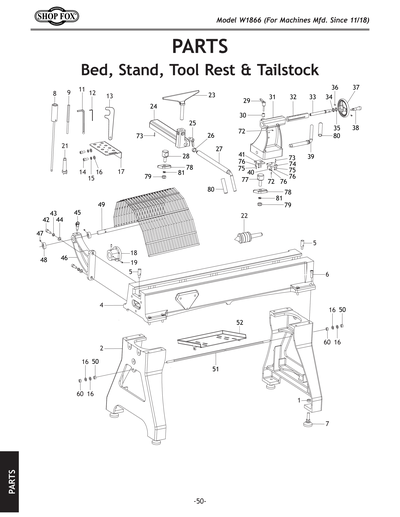

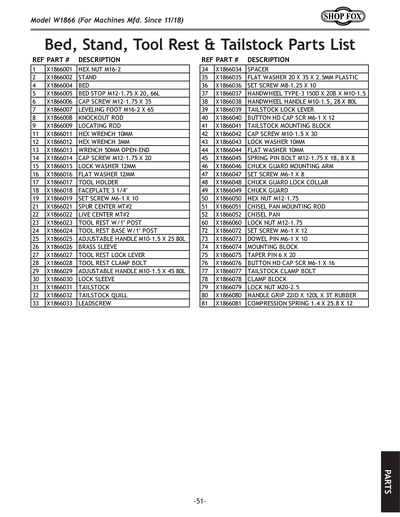

1
Now: PN13M
HEX NUT M16-2
Price
N/A
2
*DISCD*STAND
Item is no longer available
Price
N/A
4
*DISCD*BED
Item is no longer available
Price
N/A
5
*DISCD*BED STOP M12-1.75 X 20, 66L
Item is no longer available
Price
N/A
6
CAP SCREW M12-1.75 X 35
Price
N/A
7
*DISCD*LEVELING FOOT M16-2 X 65
Item is no longer available
Price
N/A
8
*DISCD*KNOCKOUT ROD
Item is no longer available
Price
N/A
9
*DISCD*LOCATING ROD
Item is no longer available
Price
N/A
11
HEX WRENCH 10MM
Price
N/A
12
HEX WRENCH 3MM
Price
N/A
13
*DISCD*WRENCH 50MM OPEN-END
Item is no longer available
Price
N/A
14
CAP SCREW M12-1.75 X 20
Price
N/A
15
LOCK WASHER 12MM
Price
N/A
16
Now: PW06M
FLAT WASHER 12MM
Price
N/A
17
*DISCD*TOOL HOLDER
Item is no longer available
Price
N/A
18
*DISCD*FACEPLATE 3"
Item is no longer available
Price
N/A
19
SET SCREW M6-1 X 10
Price
N/A
21
*DISCD*SPUR CENTER MT#2
Item is no longer available
Price
N/A
22
*DISCD*LIVE CENTER MT#2
Item is no longer available
Price
N/A
23
*DISCD*TOOL REST
Item is no longer available
Price
N/A
24
*DISCD*TOOL REST BASE
Item is no longer available
Price
N/A
25
*DISCD*ADJUSTABLE HNDLE M10-1.5 X 25 80L
Item is no longer available
Price
N/A
26
*DISCD*BRASS SLEEVE
Item is no longer available
Price
N/A
27
*DISCD*TOOL REST LOCK LEVER
Item is no longer available
Price
N/A
28
*DISCD*TOOL REST CLAMP BOLT
Item is no longer available
Price
N/A
29
*DISCD*ADJUSTABLE HNDLE M10-1.5 X 45 80L
Item is no longer available
Price
N/A
30
*DISCD*LOCK SLEEVE
Item is no longer available
Price
N/A
31
*DISCD*TAILSTOCK
Item is no longer available
Price
N/A
32
*DISCD*TAILSTOCK QUILL
Item is no longer available
Price
N/A
33
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
34
*DISCD*SPACER
Item is no longer available
Price
N/A
35
*DISCD*FLAT WASHER 20 X 35 X 2.5MM PLSTC
Item is no longer available
Price
N/A
36
SET SCREW M8-1.25 X 10
Price
N/A
37
*DISCD*HNDWHL TYPE3 150D X 20B X M10-1.5
Item is no longer available
Price
N/A
38
*DISCD*HANDWHEEL HNDLE M10-1.5, 28 X 80L
Item is no longer available
Price
N/A
39
*DISCD*TAILSTOCK LOCK LEVER
Item is no longer available
Price
N/A
40
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
41
*DISCD*TAILSTOCK MOUNTING BLOCK
Item is no longer available
Price
N/A
42
CAP SCREW M10-1.5 X 30
Price
N/A
43
LOCK WASHER 10MM
Price
N/A
44
Now: PW04M
FLAT WASHER 10MM
Price
N/A
45
*DISCD*SPRG PIN BLT M12-1.75 X 18, 8 X 8
Item is no longer available
Price
N/A
46
*DISCD*CHUCK GUARD MOUNTING ARM
Item is no longer available
Price
N/A
47
SET SCREW M6-1 X 8
Price
N/A
48
*DISCD*CHUCK GUARD LOCK COLLAR
Item is no longer available
Price
N/A
49
*DISCD*CHUCK GUARD
Item is no longer available
Price
N/A
50
Now: PN09M
HEX NUT M12-1.75
Price
N/A
51
*DISCD*CHISEL PAN MOUNTING ROD
Item is no longer available
Price
N/A
52
*DISCD*CHISEL PAN
Item is no longer available
Price
N/A
60
LOCK NUT M12-1.75
Price
N/A
72
SET SCREW M6-1 X 12
Price
N/A
73
*DISCD*DOWEL PIN M6-1 X 10
Item is no longer available
Price
N/A
74
*DISCD*MOUNTING BLOCK
Item is no longer available
Price
N/A
75
*DISCD*TAPER PIN 6 X 20
Item is no longer available
Price
N/A
76
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
77
*DISCD*TAILSTOCK CLAMP BOLT
Item is no longer available
Price
N/A
78
*DISCD*CLAMP BLOCK
Item is no longer available
Price
N/A
79
*DISCD*LOCK NUT M20-2.5
Item is no longer available
Price
N/A
80
*DISCD*HNDLE GRP 22ID X 120L X 3T RUBBER
Item is no longer available
Price
N/A
81
*DISCD*COMPRESION SPRING 1.4 X 25.8 X 12
Item is no longer available
Price
N/A

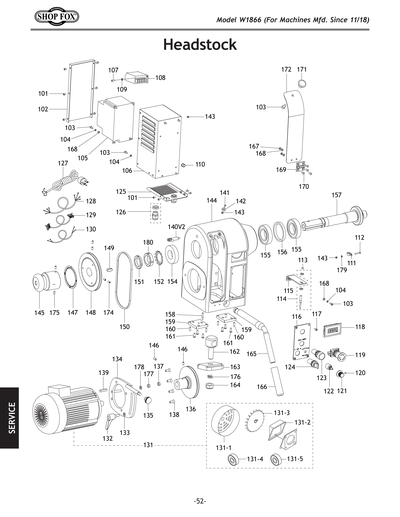

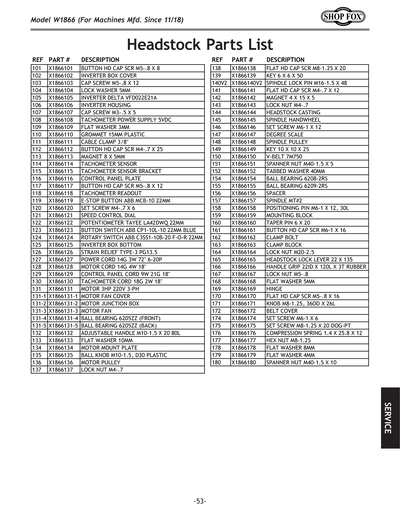

101
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
102
*DISCD*INVERTER BOX COVER
Item is no longer available
Price
N/A
103
CAP SCREW M5-.8 X 12
Price
N/A
104
LOCK WASHER 5MM
Price
N/A
105
*DISCD*INVERTER DELTA VFD022E21A
Item is no longer available
Price
N/A
106
*DISCD*INVERTER HOUSING
Item is no longer available
Price
N/A
107
CAP SCREW M3-.5 X 5
Price
N/A
108
*DISCD*TACHOMETER POWER SUPPLY 5VDC
Item is no longer available
Price
N/A
109
Now: PW07M
FLAT WASHER 3MM
Price
N/A
110
*DISCD*GROMMET 15MM PLASTIC
Item is no longer available
Price
N/A
111
*DISCD*CABLE CLAMP 3/8"
Item is no longer available
Price
N/A
112
BUTTON HD CAP SCR M4-.7 X 25
Price
N/A
113
*DISCD*MAGNET 8 X 5MM
Item is no longer available
Price
N/A
114
*DISCD*TACHOMETER SENSOR
Item is no longer available
Price
N/A
115
*DISCD*TACHOMETER SENSOR BRACKET
Item is no longer available
Price
N/A
116
*DISCD*CONTROL PANEL PLATE
Item is no longer available
Price
N/A
117
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
118
*DISCD*TACHOMETER READOUT
Item is no longer available
Price
N/A
119
*DISCD*E-STOP BUTTON ABB MCB-10 22MM
Item is no longer available
Price
N/A
120
SET SCREW M4-.7 X 6
Price
N/A
121
*DISCD*SPEED CONTROL DIAL
Item is no longer available
Price
N/A
122
*DISCD*POTENTIOMETER TAYEE LA42DWQ 22MM
Item is no longer available
Price
N/A
123
*DISCD*BUTON SWTCH ABB CP1-10L-10 22MM
Item is no longer available
Price
N/A
124
*DISCD*ROTRY SWTCH ABB C3SS110B-20 F-O-R
Item is no longer available
Price
N/A
125
*DISCD*INVERTER BOX BOTTOM
Item is no longer available
Price
N/A
126
*DISCD*STRAIN RELIEF TYPE-3 PG13.5
Item is no longer available
Price
N/A
127
*DISCD*POWER CORD 12G 3W 72" 6-20P
Item is no longer available
Price
N/A
128
*DISCD*MOTOR CORD 12G 4W 18"
Item is no longer available
Price
N/A
129
*DISCD*CONTROL PANEL CORD 9W 21G 18"
Item is no longer available
Price
N/A
130
*DISCD*TACHOMETER CORD 18G 2W 18"
Item is no longer available
Price
N/A
131
*DISCD*MOTOR 3HP 220V 3-PH
Item is no longer available
Price
N/A
131-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
131-2
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
131-3
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
131-4
BALL BEARING 6205ZZ
Price
N/A
131-5
BALL BEARING 6205ZZ
Price
N/A
132
*DISCD*ADJUSTABLE HNDLE M10-1.5 X 20 80L
Item is no longer available
Price
N/A
133
Now: PW04M
FLAT WASHER 10MM
Price
N/A
134
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
135
*DISCD*BALL KNOB M10-1.5, D30 PLASTIC
Item is no longer available
Price
N/A
136
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
137
LOCK NUT M4-.7
Price
N/A
138
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
139
Now: PK44M
KEY 6 X 6 X 50
Price
N/A
140
*DISCD*SPINDLE LOCK PIN M16-1.5 X 48 V2.
Price
N/A
141
FLAT HD CAP SCR M4-.7 X 12
Price
N/A
142
*DISCD*MAGNET 4 X 15 X 5
Item is no longer available
Price
N/A
143
LOCK NUT M4-.7
Price
N/A
144
*DISCD*HEADSTOCK CASTING
Item is no longer available
Price
N/A
145
*DISCD*SPINDLE HANDWHEEL
Item is no longer available
Price
N/A
146
SET SCREW M6-1 X 12
Price
N/A
147
*DISCD*DEGREE SCALE
Item is no longer available
Price
N/A
148
*DISCD*SPINDLE PULLEY
Item is no longer available
Price
N/A
149
Now: PK90M
KEY 10 X 10 X 25
Price
N/A
150
*DISCD*V-BELT 7M750
Item is no longer available
Price
N/A
151
*DISCD*SPANNER NUT M40-1.5 X 5
Item is no longer available
Price
N/A
152
*DISCD*TABBED WASHER 40MM
Item is no longer available
Price
N/A
154
BALL BEARING 6208-2RS
Price
N/A
155
BALL BEARING 6209-2RS
Price
N/A
156
*DISCD*SPACER
Item is no longer available
Price
N/A
157
*DISCD*SPINDLE MT#2
Item is no longer available
Price
N/A
158
*DISCD*POSITIONING PIN M6-1 X 12, 30L
Item is no longer available
Price
N/A
159
*DISCD*MOUNTING BLOCK
Item is no longer available
Price
N/A
160
*DISCD*TAPER PIN 6 X 20
Item is no longer available
Price
N/A
161
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
162
*DISCD*CLAMP BOLT
Item is no longer available
Price
N/A
163
*DISCD*CLAMP BLOCK
Item is no longer available
Price
N/A
164
*DISCD*LOCK NUT M20-2.5
Item is no longer available
Price
N/A
165
*DISCD*HEADSTOCK LOCK LEVER 22 X 135
Item is no longer available
Price
N/A
166
*DISCD*HNDLE GRP 22ID X 120L X 3T RUBBER
Price
N/A
167
LOCK NUT M5-.8
Price
N/A
168
Now: PW02M
FLAT WASHER 5MM
Price
N/A
169
*DISCD*HINGE
Item is no longer available
Price
N/A
170
FLAT HD CAP SCR M5-.8 X 16
Price
N/A
171
*DISCD*KNOB M8-1.25, 36OD X 26L
Item is no longer available
Price
N/A
172
*DISCD*BELT COVER
Item is no longer available
Price
N/A
174
SET SCREW M6-1 X 6
Price
N/A
175
SET SCREW M8-1.25 X 20 DOG-PT
Price
N/A
176
*DISCD*COMPRESION SPRING 1.4 X 25.8 X 12
Item is no longer available
Price
N/A
177
Now: PN03M
HEX NUT M8-1.25
Price
N/A
178
Now: PW01M
FLAT WASHER 8MM
Price
N/A
179
Now: PW05M
FLAT WASHER 4MM
Price
N/A
180
*DISCD*SPANNER NUT M40-1.5 X 10
Item is no longer available
Price
N/A

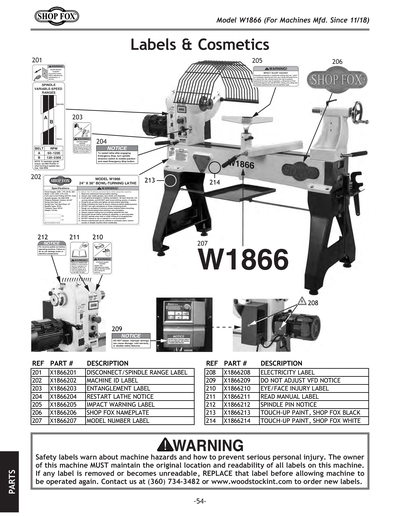

201
*DISCD*DISCONNECT/SPINDLE RANGE LABEL
Item is no longer available
Price
N/A
202
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
203
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
204
*DISCD*RESTART LATHE NOTICE
Item is no longer available
Price
N/A
205
*DISCD*IMPACT WARNING LABEL
Item is no longer available
Price
N/A
206
Now: D3377
Nameplate - Large
Price
N/A
207
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
208
ELECTRICITY 0.7W X 0.6H
Price
N/A
209
*DISCD*DO NOT ADJUST VFD NOTICE
Item is no longer available
Price
N/A
210
*DISCD*EYE/FACE INJURY LABEL
Item is no longer available
Price
N/A
211
READ MANUAL 1.5W X 2.5H
Price
N/A
212
*DISCD*SPINDLE PIN NOTICE
Item is no longer available
Price
N/A
213
*DISCD*SHOP FOX BLACK
Item is no longer available
Price
N/A
214
*DISCD*SHOP FOX WHITE
Item is no longer available
Price
N/A
MAN
MANUAL W1866 MFD-11.18+ V1.02.19
Item is no longer available
Price
N/A
