Parts for W1869 - 3 HP Portable Cyclone Dust Collector

Part Diagram for W1869

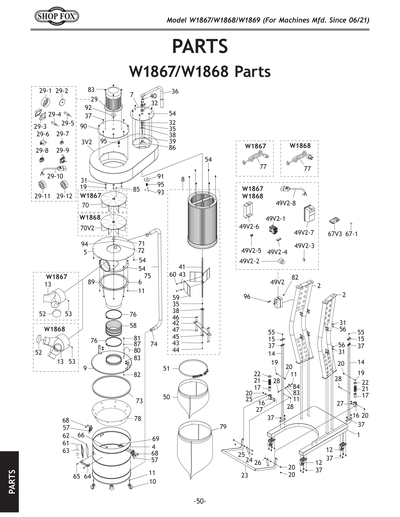

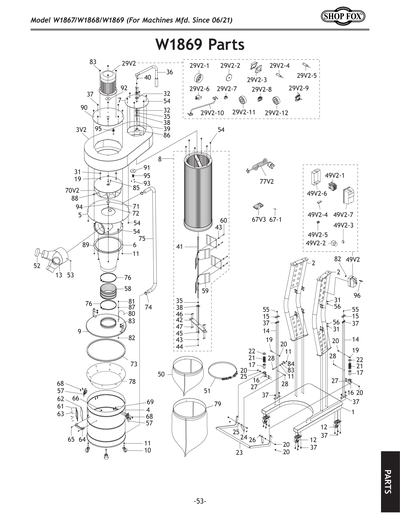

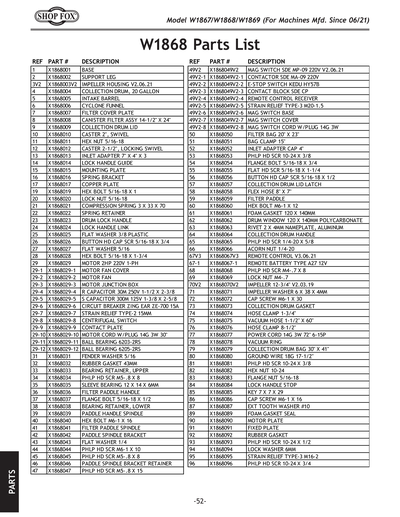

Part Diagram for W1869

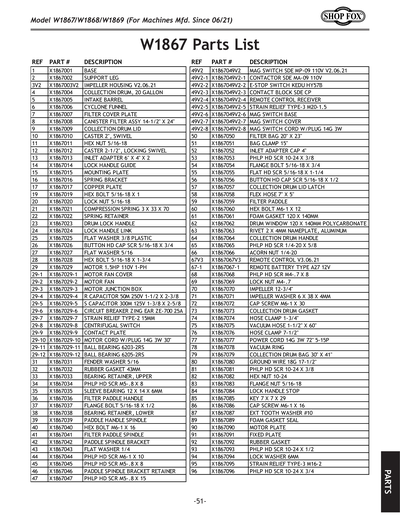

Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869
Part Diagram for W1869

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

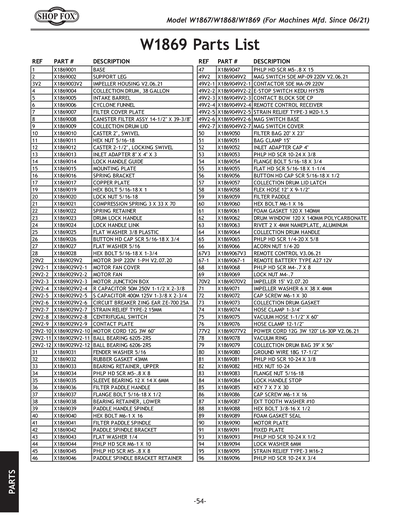

Ref #
Part #
Description
1
BASE
Price
$641.40
2
SUPPORT LEG
Price
$257.95
3
IMPELLER HOUSING
Price
$1,055.90
3V2
IMPELLER HOUSING V2.06.21
Price
$564.25
4
COLLECTION DRUM, 38 GALLON
Price
$911.65
5
INTAKE BARREL
Price
$340.45
6
CYCLONE FUNNEL
Price
$166.15
7
FILTER COVER PLATE
Price
N/A
8
Replacement Filter for G0862
Price
N/A
9
COLLECTION DRUM LID
Price
$131.90
10
CASTER 2", SWIVEL
Price
N/A
11
X1869011
Now: PN02
HEX NUT 5/16-18
Price
N/A
12
*** USE P0860012***
Price
N/A
13
INLET ADAPTER 8" X 4" X 3
Price
N/A
13V2
INLET ADAPTER 8" X 4" X 3 (PC) V2.01.22
Price
N/A
14
LOCK HANDLE GUIDE
Price
$165.75
15
MOUNTING PLATE
Price
N/A
16
*** USE P0860016***
Price
N/A
17
COPPER PLATE
Price
N/A
19
X1869019
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
20
LOCK NUT 5/16-18
Price
N/A
21
COMPRESSION SPRING 3 X 33 X 70
Price
N/A
22
SPRING RETAINER
Price
N/A
23
DRUM LOCK HANDLE
Price
$99.00
24
LOCK HANDLE LINK
Price
N/A
25
FLAT WASHER 3/8 PLASTIC
Price
N/A
26
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
27
X1869027
Now: PW07
FLAT WASHER 5/16
Price
N/A
28
X1869028
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
29
MOTOR 3HP 220V 1-PH V2.07.20
Price
N/A
29-1
MOTOR FAN COVER
Price
$25.05
29-10
MOTOR CORD W/PLUG 12G 3W 30"
Price
$22.50
29-11
BALL BEARING 6205-2RS
Price
N/A
29-12
BALL BEARING 6206-2RS
Price
N/A
29-2
MOTOR FAN
Price
N/A
29-3
MOTOR JUNCTION BOX
Price
$34.80
29-4
R CAPACITOR 50M 250V 1-1/2 X 2-3/8
Price
N/A
29-5
S CAPACITOR 400M 125V 1-3/8 X 2-3/4
Price
N/A
29-6
CIRCUIT BREAKER ZING EAR ZE-700 50A
Price
$12.45
29-7
STRAIN RELIEF TYPE-2 15MM
Price
N/A
29-8
CENTRIFUGAL SWITCH
Price
$20.30
29-9
CONTACT PLATE
Price
N/A
29V2
MOTOR 3HP 220V 1-PH V2.07.20
Price
$730.30
29V2-1
MOTOR FAN COVER
Price
N/A
29V2-10
MOTOR CORD 12G 3W 60"
Price
$37.20
29V2-2
MOTOR FAN
Price
N/A
29V2-3
MOTOR JUNCTION BOX
Price
N/A
29V2-5
S CAPACITOR 400M 125V 1-3/8 X 2-3/4
Price
N/A
29V2-6
CIRCUIT BREAKER ZING EAR ZE-700 25A
Price
N/A
29V2-7
STRAIN RELIEF TYPE-2 15MM
Price
N/A
29V2-8
CENTRIFUGAL SWITCH
Price
N/A
29V2-9
CONTACT PLATE
Price
N/A
31
FENDER WASHER 5/16
Price
N/A
32
RUBBER GASKET 43MM
Price
N/A
33
BEARING RETAINER, UPPER
Price
N/A
34
PHLP HD SCR M5-.8 X 8
Price
N/A
35
SLEEVE BEARING 12 X 14 X 6MM
Price
N/A
36
***USE P0860036***
Price
N/A
37
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
38
BEARING RETAINER, LOWER
Price
N/A
39
PADDLE HANDLE SPINDLE
Price
N/A
40
HEX BOLT M6-1 X 16
Price
N/A
41
FILTER PADDLE SPINDLE
Price
N/A
42
PADDLE SPINDLE BRACKET
Price
N/A
43
X1869043
Now: PW06
FLAT WASHER 1/4
Price
N/A
44
PHLP HD SCR M6-1 X 10
Price
N/A
45
PHLP HD SCR M5-.8 X 8
Price
N/A
46
PADDLE SPINDLE BRACKET RETAINER
Price
N/A
47
PHLP HD SCR M5-.8 X 15
Price
N/A
49
MAG SWITCH NHD MS1-18D 220V
Price
$115.35
49-1
CONTACTOR NHD C-18D10 220V
Price
$88.55
49-2
*DISCD*E-STOP SWITCH NHD NPB22-H
Price
N/A
49-3
CONTACT BLOCK NHD CB-01
Price
N/A
49-4
REMOTE CONTROL RECEIVER V1
Price
$133.15
49-4V2
REMOTE CONTROL RECEIVER
Price
N/A
49-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49-6
MAG SWITCH BASE
Price
$24.80
49-7
MAG SWITCH COVER
Price
N/A
49-8
PHLP HD SCR 10-24 X 3/4
Price
N/A
49-9
HEX NUT 10-24
Price
N/A
49V2
MAG SWITCH SDE MP-09 220V V3.05.21
Price
N/A
49V2-1
CONTACTOR SDE MA-09 220V
Price
N/A
49V2-2
E-STOP SWITCH KEDU HY57B
Price
N/A
49V2-3
CONTACT BLOCK SDE CP
Price
N/A
49V2-4
REMOTE CONTROL RECEIVER
Price
N/A
49V2-5
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
49V2-6
MAG SWITCH BASE
Price
$15.15
49V2-7
MAG SWITCH COVER
Price
$15.15
50
Filter Bag 20" x 23"
Price
N/A
51
BAG CLAMP 15"
Price
N/A
52
INLET ADAPTER CAP 4"
Price
N/A
53
X1869053
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
54
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
55
FLAT HD SCR 5/16-18 X 1-1/4
Price
N/A
56
BUTTON HD CAP SCR 5/16-18 X 1/2
Price
N/A
57
COLLECTION DRUM LID LATCH
Price
N/A
58
FLEX HOSE 12" X 9-1/2"
Price
$61.70
59
FILTER PADDLE
Price
N/A
60
HEX BOLT M6-1 X 16
Price
N/A
61
FOAM GASKET 120 X 140MM
Price
N/A
62
DRUM WINDOW 120 X 140MM POLYCARBONATE
Price
N/A
63
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
Price
N/A
64
COLLECTION DRUM HANDLE
Price
N/A
65
X1869065
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
66
ACORN NUT 1/4-20
Price
N/A
67
*DISCD*REMOTE CONTROL V1
Item is no longer available
Price
N/A
67-1
REMOTE BATTERY TYPE A27 12V
Price
N/A
67V2
***USE P0860067V2***
Price
N/A
67V3
REMOTE CONTROL V3.06.21
Price
N/A
68
PHLP HD SCR M4-.7 X 8
Price
N/A
69
LOCK NUT M4-.7
Price
N/A
70
IMPELLER 15" V2.07.20
Price
N/A
70V2
IMPELLER 15" V2.07.20
Price
$350.30
71
IMPELLER WASHER 6 X 38 X 4MM
Price
N/A
72
CAP SCREW M6-1 X 30
Price
N/A
73
COLLECTION DRUM GASKET
Price
$37.45
74
HOSE CLAMP 1-3/4"
Price
N/A
75
***USE P0860075***
Price
N/A
76
HOSE CLAMP 8-1/2"
Price
N/A
77
POWER CORD 12G 3W 72" 6-20P
Price
$27.20
77V2
POWER CORD 12G 3W 120" L6-30P V2.06.21
Price
$78.85
78
VACUUM RING
Price
$64.15
79
Collection Bag 39" x 56"
Price
N/A
80
GROUND WIRE 18G 17-1/2"
Price
N/A
81
X1869081
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
82
X1869082
Now: PN07
HEX NUT 10-24
Price
N/A
83
FLANGE NUT 5/16-18
Price
N/A
84
LOCK HANDLE STOP
Price
N/A
85
KEY 7 X 7 X 30
Price
N/A
86
CAP SCREW M6-1 X 16
Price
N/A
87
EXT TOOTH WASHER #10
Price
N/A
88
X1869088
Now: PB34
HEX BOLT 3/8-16 X 1/2
Price
N/A
89
FOAM GASKET 1560 X 35 X 3MM
Price
N/A
90
MOTOR PLATE
Price
$97.55
91
FIXED PLATE
Price
$5.15
95
STRAIN RELIEF TYPE-3 M16-2
Price
N/A

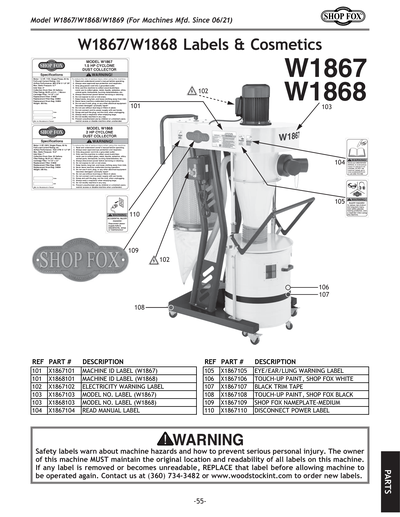

101
MACHINE ID LABEL V2.06.21
Price
N/A
101V2
MACHINE ID LABEL V2.06.21
Price
$1.85
102

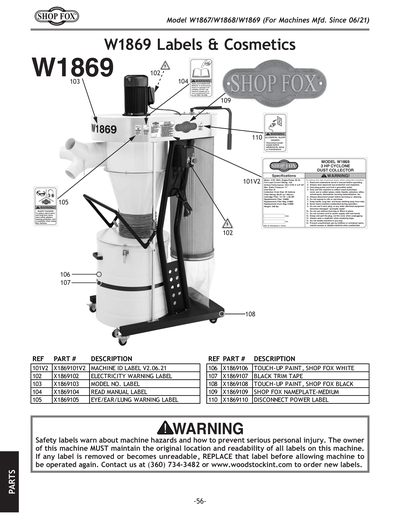

ELECTRICITY 0.7W X 0.6H
Price
N/A
103
MODEL NO. LABEL
Price
$7.95
104
READ MANUAL 2.8W X 1.5H
Price
N/A
105
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
106
SHOP FOX WHITE M1006
Price
N/A
107
BLACK TRIM TAPE
Price
$6.80
108
GLOSSY BLACK
Price
N/A
109
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
110
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
BOX2
COMPLETE STAND BOX 2
Price
$338.75
MAN
MANUAL W1867-69 MFD-11.18-05.20 V1.01.19
Price
N/A
MANV3
MANUAL W1867-69 MFD-06.21+ V3.06.21
Price
N/A
