Parts for W1870 - 18" Variable-Speed Scroll Saw with LED and Rotary Tool Kit

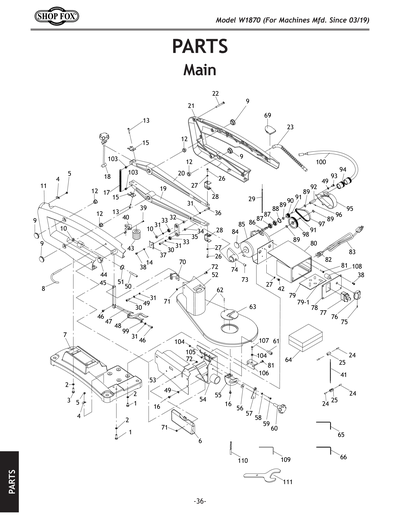

Part Diagram for W1870
Part Diagram for W1870
Part Diagram for W1870
Part Diagram for W1870
Part Diagram for W1870
Part Diagram for W1870

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

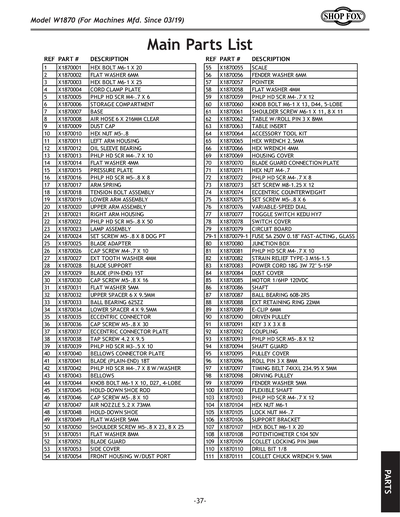

Ref #
Part #
Description
1
HEX BOLT M6-1 X 20
Price
N/A
2
FLAT WASHER 6MM
Price
N/A
3
HEX BOLT M6-1 X 25
Price
N/A
4
CORD CLAMP PLATE
Price
$1.90
5
PHLP HD SCR M4-.7 X 6
Price
N/A
6
STORAGE COMPARTMENT
Price
$2.90
7
BASE
Price
$66.50
8
AIR HOSE 6 X 216MM CLEAR
Price
$1.90
9
DUST CAP
Price
$1.90
10
HEX NUT M5-.8
Price
N/A
11
ARM HOUSING ASSEMBLY
Price
N/A
11A
ARM HOUSING ASSEMBLY
Price
$98.90
12
OIL SLEEVE BEARING
Price
$1.90
13
PHLP HD SCR M4-.7 X 10
Price
N/A
14
FLAT WASHER 4MM
Price
N/A
15
PRESSURE PLATE
Price
$1.90
16
PHLP HD SCR M5-.8 X 8
Price
N/A
17
ARM SPRING
Price
$1.90
18
TENSION BOLT ASSEMBLY
Price
$6.15
19
LOWER ARM ASSEMBLY
Price
$26.25
20
UPPER ARM ASSEMBLY
Price
$26.25
21
ARM HOUSING ASSEMBLY
Price
N/A
22
PHLP HD SCR M5-.8 X 50
Price
N/A
23
LAMP ASSEMBLY
Price
$4.95
24
SET SCREW M5-.8 X 8 DOG-PT
Price
N/A
25
BLADE ADAPTER
Price
$1.90
26
CAP SCREW M4-.7 X 10
Price
N/A
27
EXT TOOTH WASHER 4MM
Price
N/A
28
BLADE SUPPORT
Price
$1.90
29
BLADE (PIN-END) 15T
Price
$1.90
30
CAP SCREW M5-.8 X 16
Price
N/A
31
FLAT WASHER 5MM
Price
N/A
32
UPPER SPACER 6 X 9.5MM
Price
$1.90
33
Router Bit Bearing 5/8" x 5mm
Price
N/A
34
LOWER SPACER 4 X 9.5MM
Price
$1.90
35
ECCENTRIC CONNECTOR
Price
$1.90
36
CAP SCREW M5-.8 X 30
Price
N/A
37
ECCENTRIC CONNECTOR PLATE
Price
$1.90
38
TAP SCREW 4.2 X 9.5
Price
$1.90
39
PHLP HD SCR M3-.5 X 10
Price
N/A
40
BELLOWS CONNECTOR PLATE
Price
$1.90
41
BLADE (PLAIN-END) 18T
Price
$1.90
42
PHLP HD SCR M4-.7 X 8 W/WASHER
Price
$1.90
43
BELLOWS
Price
$1.90
44
KNOB BOLT M6-1 X 10, D27, 4-LOBE
Price
$1.90
45
HOLD-DOWN SHOE ROD
Price
$6.15
46
CAP SCREW M5-.8 X 10
Price
N/A
47
AIR NOZZLE 5.2 X 73MM
Price
$1.90
48
HOLD-DOWN SHOE
Price
$2.60
49
FLAT WASHER 5MM
Price
N/A
50
SHOULDER SCREW M5-.8 X 23, 8 X 25
Price
$1.90
51
FLAT WASHER 8MM
Price
N/A
52
BLADE GUARD
Price
$7.95
53
SIDE COVER
Price
$4.00
54
FRONT HOUSING W/DUST PORT
Price
$17.65
55
SCALE
Price
$2.90
56
FENDER WASHER 6MM
Price
N/A
57
POINTER
Price
$1.90
58
FLAT WASHER 4MM
Price
N/A
59
PHLP HD SCR M4-.7 X 12
Price
N/A
60
KNOB BOLT M6-1 X 13, D44, 5-LOBE
Price
$3.25
61
SHOULDER SCREW M6-1 X 11, 8 X 11
Price
$1.90
62
TABLE W/ROLL PIN 3 X 8MM
Price
$106.10
63
TABLE INSERT
Price
$1.90
64
ACCESSORY TOOL KIT
Price
$11.20
65
HEX WRENCH 2.5MM
Price
N/A
66
HEX WRENCH 4MM
Price
N/A
69
HOUSING COVER
Price
$1.90
70
BLADE GUARD CONNECTION PLATE
Price
$1.90
71
HEX NUT M4-.7
Price
N/A
72
PHLP HD SCR M4-.7 X 8
Price
N/A
73
SET SCREW M8-1.25 X 12
Price
N/A
74
ECCENTRIC COUNTERWEIGHT
Price
$3.25
75
SET SCREW M5-.8 X 6
Price
N/A
76
VARIABLE-SPEED DIAL
Price
$1.90
77
TOGGLE SWITCH KEDU HY7
Price
$5.20
78
SWITCH COVER
Price
$1.90
79
CIRCUIT BOARD
Price
$31.65
79-1
FUSE 5A 250V 5 x 20MM FAST-ACTING, GLASS
Price
$1.90
80
JUNCTION BOX
Price
$7.20
81
PHLP HD SCR M4-.7 X 10
Price
N/A
82
STRAIN RELIEF TYPE-3 M16-1.5
Price
$1.90
83
POWER CORD 18G 3W 72" 5-15P
Price
$9.75
84
DUST COVER
Price
$1.90
85
MOTOR 1/6HP 110VDC
Price
$103.50
86
SHAFT
Price
$3.25
87
BALL BEARING 608-OPEN
Price
N/A
88
EXT RETAINING RING 22MM
Price
N/A
89
E-CLIP 6MM
Price
N/A
90
DRIVEN PULLEY
Price
$1.90
91
KEY 3 X 3 X 8
Price
N/A
92
COUPLING
Price
$1.90
93
PHLP HD SCR M5-.8 X 12
Price
N/A
94
SHAFT GUARD
Price
$1.90
95
PULLEY COVER
Price
$1.90
96
ROLL PIN 3 X 8
Price
N/A
97
TIMING BELT 74XXL 234.95 X 5MM
Price
$2.20
98
DRIVING PULLEY
Price
$3.65
99
FENDER WASHER 5MM
Price
N/A
100
FLEXIBLE SHAFT
Price
$16.20
103
PHLP HD SCR M4-.7 X 12
Price
N/A
104
HEX NUT M6-1
Price
N/A
105
LOCK NUT M4-.7
Price
N/A
106
SUPPORT BRACKET
Price
$4.00
107
HEX BOLT M6-1 X 20
Price
N/A
108
POTENTIOMETER C104 50V
Price
$2.60
109
WRENCH SET 2PC
Price
N/A
109A
WRENCH SET 2PC
Price
$1.90
110
DRILL BIT 1/8
Price
$1.90
111
WRENCH SET 2PC
Price
N/A

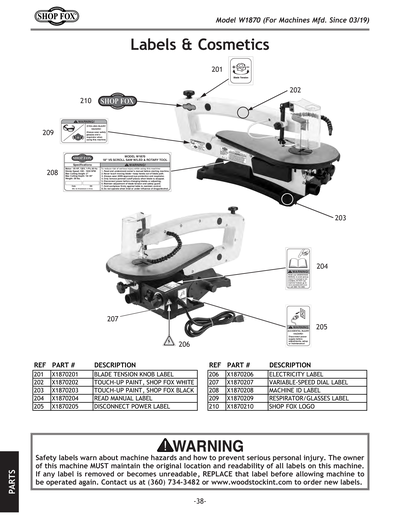

201
BLADE TENSION KNOB LABEL
Price
$1.25
202
SHOP FOX WHITE M1006
Price
N/A
203
GLOSSY BLACK
Price
N/A
204
READ MANUAL 2.8W X 1.5H
Price
N/A
205
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
206
ELECTRICITY 0.7W X 0.6H
Price
N/A
207
VARIABLE-SPEED DIAL LABEL
Price
$1.25
208
MACHINE ID LABEL
Price
$16.40
209
EAR PROTECTION/RESPIRATOR 2.8W X 1.5H
Price
N/A
210
SHOP FOX LOGO
Price
$1.90
MAN
MANUAL W1870 MFD-12.18 V1.02.19
Price
$17.90
PKG1
BOX FOR W1870
Price
$17.65
P
MACHINE ID LABEL V2.09.17
Price
$18.45
