Parts for W1879 - 6" Benchtop Jointer

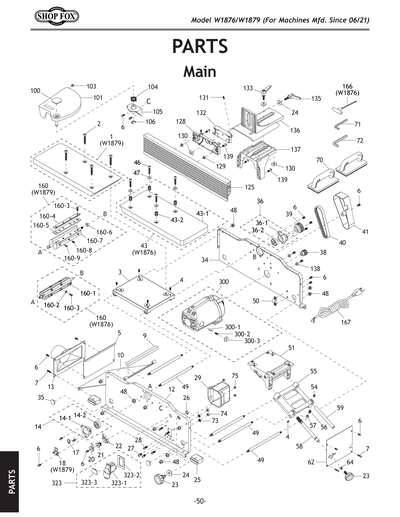

Part Diagram for W1879
Part Diagram for W1879
Part Diagram for W1879
Part Diagram for W1879
Part Diagram for W1879
Part Diagram for W1879

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

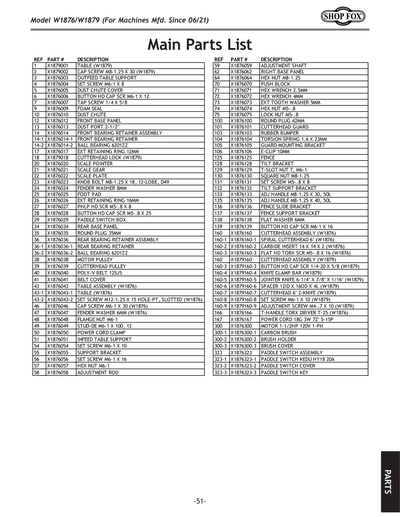

Ref #
Part #
Description
1
TABLE V1
Price
N/A
3
***USE P0945003***
Price
N/A
5
DUST CHUTE COVER
Price
N/A
7
***USE P0945007***
Price
N/A
9
***USE P0945009***
Price
N/A
10
***USE PX1876010***
Price
N/A
12
FRONT BASE PANEL
Price
N/A
13
***USE P0945013***
Price
N/A
14
FRONT BEARING RETAINER ASSEMBLY
Price
N/A
14-1
***USE P0945014***
Price
N/A
18
CUTTERHEAD LOCK
Price
N/A
20
***USE P0945020***
Price
N/A
21
***USE P0945021***
Price
N/A
22
***USE P0945022**
Price
N/A
23
***USE P0945023***
Price
N/A
25
FOOT PAD
Price
N/A
29
***USE P0945029***
Price
N/A
34
REAR BASE PANEL
Price
N/A
35
***USE P0945035***
Price
N/A
36
***USE P0945036***
Price
N/A
36-1
***USE P0945036***
Price
N/A
38
***USE P0945038***
Price
N/A
39
***USE PX1876039***
Price
N/A
40
POLY-V BELT 125J5
Price
N/A
41
BELT COVER
Price
N/A
49
***USE P0945049***
Price
N/A
50
***USE P0945050***
Price
N/A
51
INFEED TABLE SUPPORT V1
Price
N/A
55
SUPPORT BRACKET V1
Price
N/A
56
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
58
***USE P0945058***
Price
N/A
59
***USE P0945059***
Price
N/A
62
RIGHT BASE PANEL V1
Price
N/A
70
Safety Push Block - Small
Price
N/A
100
***USE P0945100***
Price
N/A
101
CUTTERHEAD GUARD
Price
N/A
103
***USE P0945103***
Price
N/A
104
***USE P0945104***
Price
N/A
105
***USE P0945105***
Price
N/A
125
***USE P0945125***
Price
N/A
128
TILT BRACKET
Price
N/A
129
T-SLOT NUT 7, M6-1
Price
N/A
130
SQUARE NUT M8-1.25
Price
N/A
132
TILT SUPPORT BRACKET
Price
N/A
133
ADJ HANDLE M8-1.25 X 30, 50L
Price
N/A
136
***USE P0945136***
Price
N/A
137
FENCE SUPPORT BRACKET
Price
N/A
160
CUTTERHEAD ASSEMBLY
Price
N/A
160-4
KNIFE CLAMP BAR (2PC SET)
Price
N/A
160-5
6-1/4" x 7/8" x 1/16" Jointer Knives for W1879, Set of 2
Price
N/A
160-6
SPACER 12ID X 16OD X 4L
Price
N/A
160-7
CUTTERHEAD 6" 2-KNIFE
Price
N/A
160-9
ADJUSTMENT SCREW M4-.7 X 10
Price
N/A
167
***USE P0945167***
Price
N/A
300
MOTOR 1-1/2HP 120V 1-PH
Price
N/A
300-1
***USE P0945300-1***
Price
N/A
300-2
***USE P0945300-2***
Price
N/A
300-3
***USE P0945300-3***
Price
N/A
323
***USE P0945323***
Price
N/A
323-1
***USE P0945323-1***
Price
N/A
323-2
***USE P0945323-2***
Price
N/A

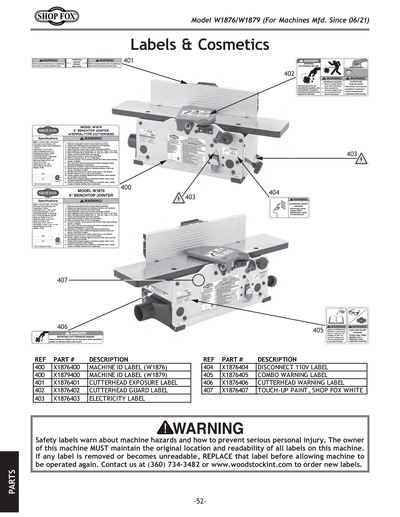

400
MACHINE ID LABEL
Item is no longer available
Price
N/A
401
CUTTERHEAD EXPOSURE LABEL
Price
N/A
402
CUTTERHEAD GUARD LABEL
Price
N/A
403
ELECTRICITY 0.7W X 0.6H
Price
N/A
404
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
405
COMBO WARNING LABEL
Price
N/A
406
CUTTERHEAD WARNING LABEL V2.05.24
Price
N/A
