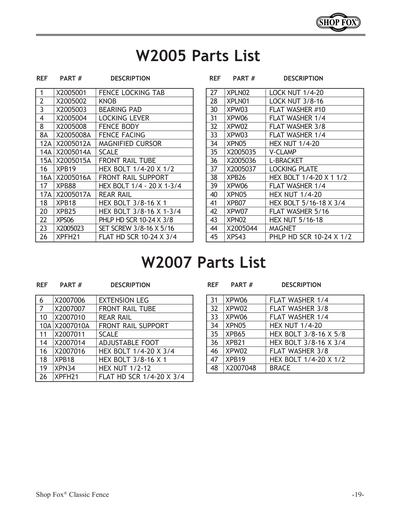

Parts for W2005 - Classic Fence w/ Standard Rails

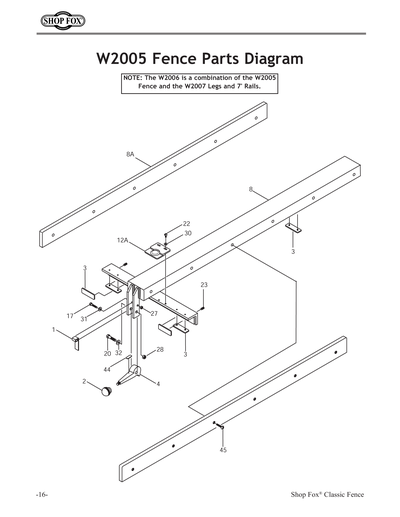

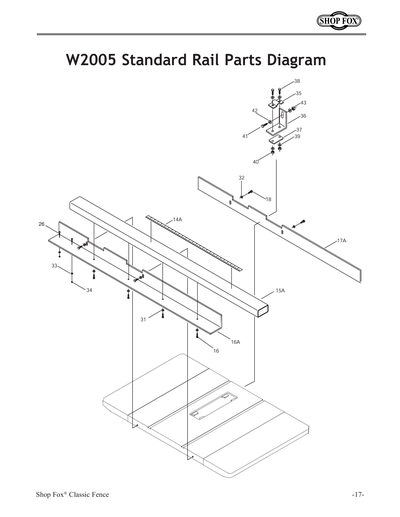

Part Diagram for W2005
Part Diagram for W2005
Part Diagram for W2005
Part Diagram for W2005
Part Diagram for W2005
Part Diagram for W2005

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$8.40
2
KNOB 3/8-16, D1-9/16, TAPERED BALL V2.04.07
Price
N/A
2A
KNOB 3/8-16, D1-9/16, TAPERED BALL V2.04.07
Price
$7.75
3
Price
$4.65
4
Price
$14.70
5
MAGNIFIED CURSOR V2.03.04
Price
N/A
6
Price
$257.20
6A
Price
$33.95
8
Price
$148.55
8-1
Price
$58.70
8A
FENCE FACING
Price
N/A
11
SCALE
Price
N/A
12
*DISCD*HAIRLINE INDICATOR V1.01.00
Item is no longer available
Price
N/A
12A
MAGNIFIED CURSOR V2.03.04
Price
$4.60
13
*DISCD*SPACER
Item is no longer available
Price
N/A
14
Price
$2.25
14-1
SCALE
Price
N/A
14A
Price
$6.65
15A
Price
$69.15
16
X2005016
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
16A
Price
$62.95
17
CAP SCREW 1/4-20 X 1-3/4
Price
N/A
17A
Price
$43.25
18
X2005018
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
18-1
HEX BOLT M10-1.5 X 25
Price
N/A
20
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
21
X2005021
Now: PS33
PHLP HD SCR 4-40 X 1/4
Price
N/A
22
X2005022
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
23
SET SCREW 3/8-16 X 3/8
Price
N/A
24
X2005024
Now: PN24
HEX NUT 4-40
Price
N/A
26
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
27
LOCK NUT 1/4-20
Price
N/A
28
LOCK NUT 3/8-16
Price
N/A
29
X2005029
Now: PW16
FLAT WASHER #6
Price
N/A
30
X2005030
Now: PW03
FLAT WASHER #10
Price
N/A
31
X2005031
Now: PW06
FLAT WASHER 1/4
Price
N/A
32
X2005032
Now: PW02
FLAT WASHER 3/8
Price
N/A
33
X2005033
Now: PW06
FLAT WASHER 1/4
Price
N/A
34
X2005034
Now: PN07
HEX NUT 10-24
Price
N/A
35
Price
$2.50
36
Price
$4.10
37
Price
$3.80
38
X2005038
Now: PB26
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
39
X2005039
Now: PW06
FLAT WASHER 1/4
Price
N/A
40
X2005040
Now: PN05
HEX NUT 1/4-20
Price
N/A
41
X2005041
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
42
X2005042
Now: PW07
FLAT WASHER 5/16
Price
N/A
43
X2005043
Now: PN02
HEX NUT 5/16-18
Price
N/A
44
Price
$3.05
45
X2005045
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
46
Price
$4.60
47
Price
$0.95
48
Price
$0.95
49
Price
$9.80
50
STYROFOAM 3 PC FOR W2005
Price
$39.45
BAG1
BLADE GUARD CLAIM HARDWARE BAG
Price
$14.50
BAG2
RAIL MOUNTING HARDWARE BAG
Price
$10.20
MAN
Price
$15.25
