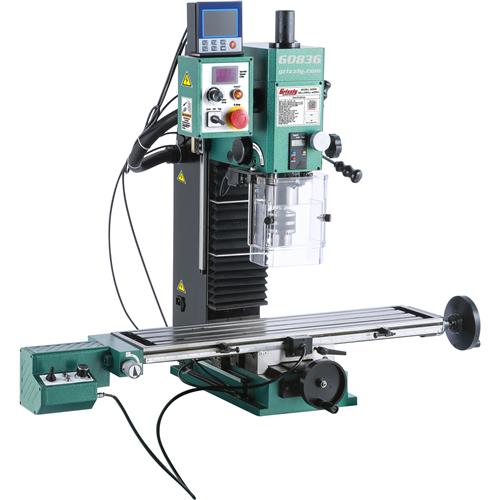

Grizzly G0836 - 6" x 23" 1 HP Variable-Speed Mini Mill with DRO
G0836 6" x 23" 1 HP Variable-Speed Mini Mill with DRO
All the best mini mill features built into one perfect package.
With a variable-speed, hi-torque 1 HP motor and an R-8 spindle, the G0836 6" x 23" 1 HP Variable-Speed Mini Mill with DRO is ready to take some serious cuts.
The G0836 comes fully loaded with variable-speed power feed, 3-axis digital DRO system, and fine-feed depth control with an additional digital DRO for precise and repeatable results.
The 5-1/2" x 23-3/8" table provides ample space for sizable projects and larger vises.
The dovetailed slide allows you to reposition the headstock and change the R-8 tooling without losing your alignment.
Taking the "mini" out of mini mill, while keeping a compact footprint in your shop.
Keep your valuable bench space by putting this on the optional T28099 stand for a free-standing mill.
Like all of the Grizzly Mills, the G0836 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0836 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill drill.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the drill press are available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 Factory
SPECIFICATIONS:
- Motor: 1 HP, 110V, single-phase, 11A
- Spindle travel: 2-3/4"
- Spindle taper: R-8
- Spindle speeds: Variable, 100-2000 RPM
- Max distance spindle-to-table: 12-3/16"
- Max distance spindle-to-column: 8-1/4"
- Collars calibrated: 0.001"
- Table size: 5-1/2" W x 23-5/8" L
- T-Slots: 3 @ 1-3/8" centers, 7/16" W
- Table travel (longitudinal): 15-3/4"
- Table travel (cross): 6-5/16"
- Headstock travel: 8-5/8"
- Drawbar thread size: 7/16-20
- Drawbar length: 10"
- Drilling capacity: 5/8" mild steel
- End milling capacity: 5/8"
- Face milling capacity: 1-3/8"
- Overall dimensions: 39" W x 25" D x 33" H
- Approximate shipping weight: 287 lbs.
FEATURES:
- Variable-speed spindle from 100-2000 RPM
- X-, Y-, Z-Axis DRO
- Spindle depth DRO
- Spindle speed tachometer
- Variable-speed X-axis power feed table
- Coarse and fine spindle downfeed
- Dovetail column with elevation handwheel graduated in 0.0005"
- Forward/reverse spindle control
- Front-mounted E-stop button
