Item #: T28417
Model # L620P

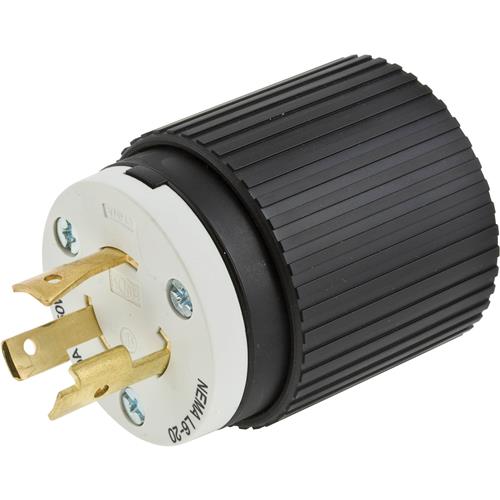

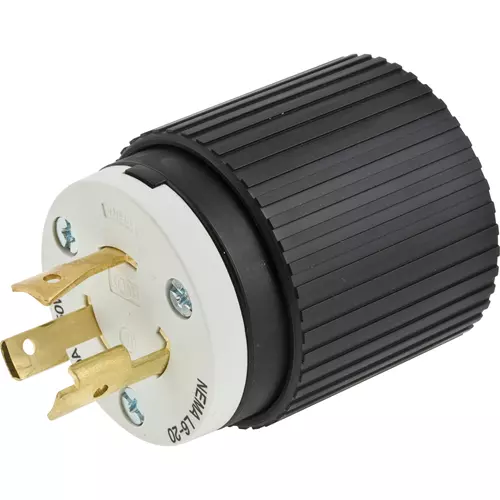

Hubbell L620P - 20 Amp 250V NEMA L6-20 Single Phase Twist Lock Plug

Specifications: Type: Male plug Standard: UL/CSA Voltage rating: 250V Connection: Terminal screw Material: Composite Amperage Rating: 20A Number of Poles: 2 Number of Wires: 3 NEMA Rating: L6-20P Size: Standard Mounting: Cord Mounted Environmental Conditions: Indoor dry unless protected by additional means Application: Power connection Color: Black Features: Visible NEMA ratings Captive assembly screws Super tough nylon body... View More Details
$995
+$000 Freight
+$000  Oversize
Add to Cart
Available to Ship
Add to Cart
Overview
Specifications:
  • Type: Male plug
  • Standard: UL/CSA
  • Voltage rating: 250V
  • Connection: Terminal screw
  • Material: Composite
  • Amperage Rating: 20A
  • Number of Poles: 2
  • Number of Wires: 3
  • NEMA Rating: L6-20P
  • Size: Standard
  • Mounting: Cord Mounted
  • Environmental Conditions: Indoor dry unless protected by additional means
  • Application: Power connection
  • Color: Black
Features:
  • Visible NEMA ratings
  • Captive assembly screws
  • Super tough nylon body
  • Impact modified nylon blade/contact holder
  • Brass contacts/blade
  • Withstands 3500 V per UL498 dielectric voltage
  • 600 VAC or 250 VDC maximum working voltage
  • Certified for current interrupting at full rated current
  • Maximum 30° C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
  • Minimum 4.8 times rated current for 100 cycles overload
  • Terminals identified in accordance with UL 498 (Brass, White, Green)
  • 18 to 8 AWG flexible cord
  • Ratings and NEMA identification are permanently marked on device
Reviews

8 Customer Reviews (4.9 out of 5 stars) : Sign in to write a review

Dennis K
03/27/2019 12:13:34 PM

Bought this because my new shop had receptacles that were L6-30 and needed a compliant plug. These from Grizzly met my objectives and were 40% less in price than the big box stores.

Anonymous Reviewer
20 Amp 250 V NEMA Single Phase Twist Lock Plug 01/20/2019 3:07:47 PM

Works as expected and item price is competitive with local suppliers. Very satisfied.

Douglas J
12/29/2018 4:51:40 PM

Bought this for the 30 inch grizzly horizontal belt sander. They never shipped the sander, so bought a kalamazoo unit. Used this plug on another piece of equipment we needed to adapt. Went together nicely.

Anonymous Reviewer
12/20/2018 12:00:31 AM

No feedback given

Anonymous Reviewer
12/06/2018 3:43:13 AM

No feedback given

Matt A
06/16/2018 5:53:51 AM

No feedback given

Anonymous Reviewer
05/03/2018 3:40:12 PM

No feedback given

Joe F
03/28/2018 2:44:53 PM

No feedback given
