Item: T28110 | Model: AB5-HH
1 Product Video

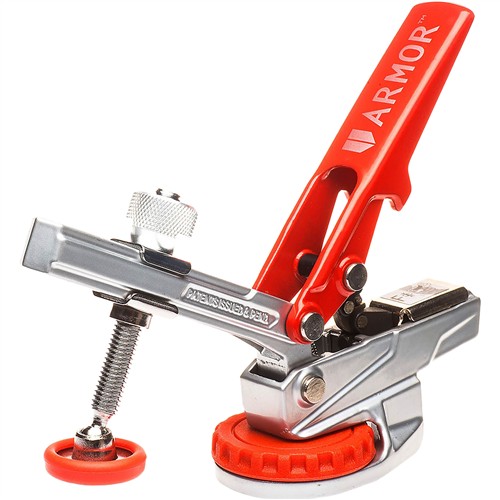

T28110 Auto Adjust Horizontal T-Slot Clamp
The Auto-Adjust Horizontal T-Slot Clamp is fitted with a 5/16" T-Bolt that inserts into a standard 5/16" T-Slot.This versatile clamp has the ability to rotate 360 degrees, allowing for a wide range of clamping applications.
Eliminates the need for constant readjustment and enables the clamp to maintain clamping pressure regardless of material thickness.
Features:
- Adjustable Clamping Pressure: The integrated clamping pressure adjustment screw is used to create a wide range of clamping pressures. Rotate the adjustment screw clockwise to decrease the pressure and counterclockwise to increase it.
- Versatile 5/16" T-Bolt: Inserts into any standard 5/16" T-Slot.
- Pivoting Base: Armor's pivoting base rotates 360 degrees. Automatically adjusts to variations in work piece dimensions while maintaining clamping pressure.
- Large Handle: Horizontal handle for maximum grip and comfort.
- Spindle: Adjusts horizontally and vertically for quick versatile setups.
- Clamping height 2.33", adjustable clamping force 25-150 lb.
Actions for Products including purchasing, availability and wishlist
Product detail tabs
Overview
This versatile clamp has the ability to rotate 360 degrees, allowing for a wide range of clamping applications.
Eliminates the need for constant readjustment and enables the clamp to maintain clamping pressure regardless of material thickness.
T28110 Auto Adjust Horizontal T-Slot Clamp
The Auto-Adjust Horizontal T-Slot Clamp is fitted with a 5/16" T-Bolt that inserts into a standard 5/16" T-Slot.This versatile clamp has the ability to rotate 360 degrees, allowing for a wide range of clamping applications.
Eliminates the need for constant readjustment and enables the clamp to maintain clamping pressure regardless of material thickness.
Features:
- Adjustable Clamping Pressure: The integrated clamping pressure adjustment screw is used to create a wide range of clamping pressures. Rotate the adjustment screw clockwise to decrease the pressure and counterclockwise to increase it.
- Versatile 5/16" T-Bolt: Inserts into any standard 5/16" T-Slot.
- Pivoting Base: Armor's pivoting base rotates 360 degrees. Automatically adjusts to variations in work piece dimensions while maintaining clamping pressure.
- Large Handle: Horizontal handle for maximum grip and comfort.
- Spindle: Adjusts horizontally and vertically for quick versatile setups.
- Clamping height 2.33", adjustable clamping force 25-150 lb.
