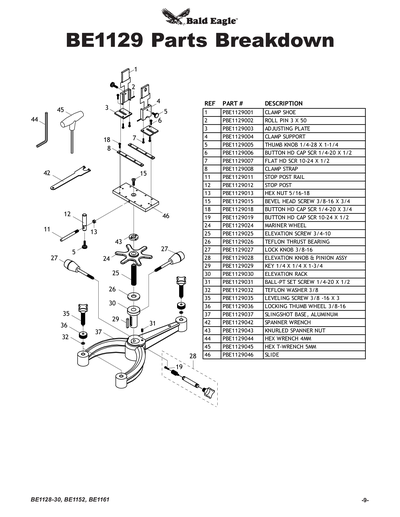

Parts for BE1129 - Aluminum Slingshot Rest, Fixed Cradle

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
BE1129 PBE1129001 CLAMP SHOE $5.00
BE1129 PBE1129002 ROLL PIN 3 X 50 $1.00
BE1129 PBE1129003 ADJUSTING PLATE $11.00
BE1129 PBE1129004 CLAMP SUPPORT $8.25
BE1129 PBE1129005 THUMB KNOB 1/4-28 X 1-1/4 $1.00
BE1129 PBE1129006 BUTTON HD CAP SCR 1/4-20 X 1/2 $1.00
BE1129 PBE1129007 FLAT HD SCR 10-24 X 1/2 $1.00
BE1129 PBE1129008 CLAMP STRAP $3.00
BE1129 PBE1129011 STOP POST RAIL $4.00
BE1129 PBE1129012 STOP POST $4.50
BE1129 PBE1129013 HEX NUT 5/16-18 $1.00
BE1129 PBE1129015 BEVEL HEAD SCREW 3/8-16 X 3/4 $1.00
BE1129 PBE1129018 BUTTON HD CAP SCR 1/4-20 X 1/2 $1.00
BE1129 PBE1129019 BUTTON HD CAP SCR 10-24 X 1/2 $1.00
BE1129 PBE1129024 MARINER WHEEL $10.25
BE1129 PBE1129025 ELEVATION SCREW 3/4-10 $13.25
BE1129 PBE1129026 TEFLON THRUST BEARING $4.50
BE1129 PBE1129027 LOCK KNOB 3/8-16 $3.00
BE1129 PBE1129028 ELEVATION KNOB & PINION ASSY $12.75
BE1129 PBE1129029 KEY 1/4 X 1/4 X 1-3/4 $3.00
BE1129 PBE1129030 ELEVATION RACK $31.25
BE1129 PBE1129031 BALL-PT SET SCREW 1/4-20 X 1/2 $1.50
BE1129 PBE1129032
***USE PBE1004032***
PBE1129032 Replaced By PBE1006032
N/A
BE1129 PBE1129035
LEVELING SCREW 3/8 -16 X 3
N/A
BE1129 PBE1129036 LOCKING THUMB WHEEL 3/8-16 $4.25
BE1129 PBE1129037
ALUMINUM SLINGSHOT BASE
N/A
BE1129 PBE1129042 SPANNER WRENCH $3.75
BE1129 PBE1129043 KNURLED SPANNER NUT $4.00
BE1129 PBE1129044 HEX WRENCH 4MM $1.50
BE1129 PBE1129045 HEX T-WRENCH 5MM $3.50
BE1129 PBE1129046
SLIDE
N/A
BE1129 PBE1129MAN
*DISCD*MANUAL BE1128-61 MFD-10.12 V1.03.
PBE1129MAN Replaced By PBE1128MAN
N/A
BE1129 PXBE1129001 CLAMP SHOE $5.00
BE1129 PXBE1129002 ROLL PIN 3 X 50 $1.00
BE1129 PXBE1129003 ADJUSTING PLATE $11.00
BE1129 PXBE1129004 CLAMP SUPPORT $8.25
BE1129 PXBE1129005 THUMB KNOB 1/4-28 X 1-1/4 $1.00
BE1129 PXBE1129006 BUTTON HD CAP SCR 1/4-20 X 1/2 $1.00
BE1129 PXBE1129007 FLAT HD SCR 10-24 X 1/2 $1.00
BE1129 PXBE1129008 CLAMP STRAP $3.00
BE1129 PXBE1129011 STOP POST RAIL $4.00
BE1129 PXBE1129012 STOP POST $4.50
BE1129 PXBE1129013 HEX NUT 5/16-18 $1.00
BE1129 PXBE1129015 BEVEL HEAD SCREW 3/8-16 X 3/4 $1.00
BE1129 PXBE1129018 BUTTON HD CAP SCR 1/4-20 X 1/2 $1.00
BE1129 PXBE1129019 BUTTON HD CAP SCR 10-24 X 1/2 $1.00
BE1129 PXBE1129024 MARINER WHEEL $10.25
BE1129 PXBE1129025 ELEVATION SCREW 3/4-10 $13.25
BE1129 PXBE1129026 TEFLON THRUST BEARING $4.50
BE1129 PXBE1129027 LOCK KNOB 3/8-16 $3.00
BE1129 PXBE1129028 ELEVATION KNOB & PINION ASSY $12.75
BE1129 PXBE1129029 KEY 1/4 X 1/4 X 1-3/4 $3.00
BE1129 PXBE1129030 ELEVATION RACK $31.25
BE1129 PXBE1129031 BALL-PT SET SCREW 1/4-20 X 1/2 $1.50
BE1129 PXBE1129032 TEFLON WASHER 1/2 $0.50
BE1129 PXBE1129035
LEVELING SCREW 1/2-13 X 3-1/2
PXBE1129035 Replaced By PBE1129035
N/A
BE1129 PXBE1129036 LOCKING THUMB WHEEL 3/8-16 $4.25
BE1129 PXBE1129037
ALUMINUM SLINGSHOT BASE
PXBE1129037 Replaced By PBE1129037
N/A
BE1129 PXBE1129042 SPANNER WRENCH $3.75
BE1129 PXBE1129043 KNURLED SPANNER NUT $4.00
BE1129 PXBE1129044 HEX WRENCH 4MM $1.50
BE1129 PXBE1129045 HEX T-WRENCH 5MM $3.50
BE1129 PXBE1129046
SLIDE
PXBE1129046 Replaced By PBE1129046
N/A
