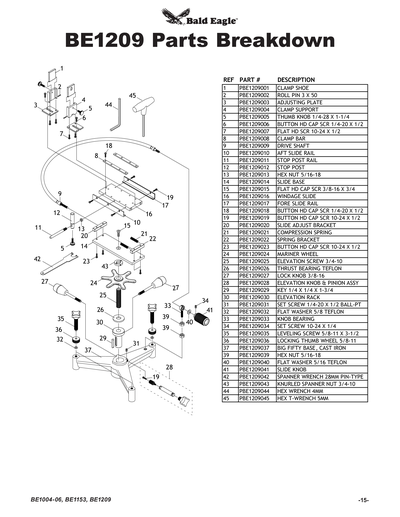

Parts for BE1209 - Big Fifty Rest with Windage - Cast-Iron

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
PBE1209001 PBE1209001
Replaced By PBE1005001
CLAMP SHOE
N/A View Replacement
PBE1209002 PBE1209002
Replaced By PRP100M
ROLL PIN 3 X 50
N/A View Replacement
PBE1209003 PBE1209003
Replaced By PBE1005003
ADJUSTING PLATE
N/A View Replacement
PBE1209004 PBE1209004
Replaced By PBE1005004
CLAMP SUPPORT
N/A View Replacement
PBE1209005 PBE1209005
Replaced By PBE1005005
THUMB KNOB 1/4-28 X 1-1/4
N/A View Replacement
PBE1209006 PBE1209006
Replaced By PBHS20
BUTTON HD CAP SCR 1/4-20 X 1/2
N/A View Replacement
PBE1209007 PBE1209007
Replaced By PFH08
FLAT HD SCR 10-24 X 1/2
N/A View Replacement
PBE1209008 PBE1209008 CLAMP BAR $6.00
PBE1209009 PBE1209009
Replaced By PBE1005009
DRIVE SHAFT
N/A View Replacement
PBE1209010 PBE1209010 AFT SLIFE RAIL $5.50
PBE1209011 PBE1209011
Replaced By PBE1005011
STOP POST RAIL
N/A View Replacement
PBE1209012 PBE1209012
Replaced By PBE1005012
STOP POST
N/A View Replacement
PBE1209013 PBE1209013
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
PBE1209014 PBE1209014 SLIDE BASE $28.50
PBE1209015 PBE1209015
Replaced By PFH42
FLAT HD CAP SCR 3/8-16 X 3/4
N/A View Replacement
PBE1209016 PBE1209016 WINDAGE SLIDE $36.00
PBE1209017 PBE1209017 FORE SLIDE RAIL $5.50
PBE1209018 PBE1209018
Replaced By PBHS20
BUTTON HD CAP SCR 1/4-20 X 1/2
N/A View Replacement
PBE1209019 PBE1209019
Replaced By PBHS25
BUTTON HD CAP SCR 10-24 X 1/2
N/A View Replacement
PBE1209020 PBE1209020
Replaced By PBE1005020
SLIDE ADJUST BRACKET
N/A View Replacement
PBE1209021 PBE1209021
Replaced By PBE1005021
COMPRESSION SPRING
N/A View Replacement
PBE1209022 PBE1209022
Replaced By PBE1005022
SPRING BRACKET
N/A View Replacement
PBE1209023 PBE1209023
Replaced By PBHS25
BUTTON HD CAP SCR 10-24 X 1/2
N/A View Replacement
PBE1209024 PBE1209024
Replaced By PBE1005024
MARINER WHEEL
N/A View Replacement
PBE1209025 PBE1209025
Replaced By PBE1005025
ELEVATION SCREW 3/4-10
N/A View Replacement
PBE1209026 PBE1209026
Replaced By PBE1005026
TEFLON THRUST BEARING
N/A View Replacement
PBE1209027 PBE1209027
Replaced By PBE1005027
LOCK KNOB 3/8-16
N/A View Replacement
PBE1209028 PBE1209028
Replaced By PBE1005028
ELEVATION KNOB & PINION ASSY
N/A View Replacement
PBE1209029 PBE1209029
Replaced By PK18
KEY 1/4 X 1/4 X 1-3/4
N/A View Replacement
PBE1209030 PBE1209030
Replaced By PBE1005030
ELEVATION RACK
N/A View Replacement
PBE1209031 PBE1209031
Replaced By PBE1005031
BALL-PT SET SCREW 1/4-20 X 1/2
N/A View Replacement
PBE1209032 PBE1209032
Replaced By PW14
FLAT WASHER 5/8
N/A View Replacement
PBE1209033 PBE1209033
*DISCD*CLAMP SHOE
Item is no longer available
N/A
PBE1209034 PBE1209034
Replaced By PSS29
SET SCREW 10-24 X 1/4
N/A View Replacement
PBE1209035 PBE1209035 LEVELING SCREW 5/8-11 X 3-1/2 $5.25
PBE1209036 PBE1209036
Replaced By PBE1161036
LOCKING THUMB WHEEL 5/8-11
N/A View Replacement
PBE1209037 PBE1209037 BIG FIFTY BASE, CAST IRON $87.00
PBE1209039 PBE1209039
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
PBE1209040 PBE1209040
Replaced By PBE1005040
TEFLON WASHER 5/16
N/A View Replacement
PBE1209041 PBE1209041
Replaced By PBE1153041
SLIDE KNOB
N/A View Replacement
PBE1209042 PBE1209042
Replaced By PBE1005042
SPANNER WRENCH
N/A View Replacement
PBE1209043 PBE1209043
Replaced By PBE1005043
KNURLED SPANNER NUT
N/A View Replacement
PBE1209044 PBE1209044
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
PBE1209045 PBE1209045
Replaced By PBE1004045
HEX T-WRENCH 5MM
N/A View Replacement
PBE1209MAN PBE1209MAN
Replaced By PBE1004MAN
MANUAL BE1004-06, BE1153, BE1209 MFD-10,11 V1.05.15
N/A View Replacement
