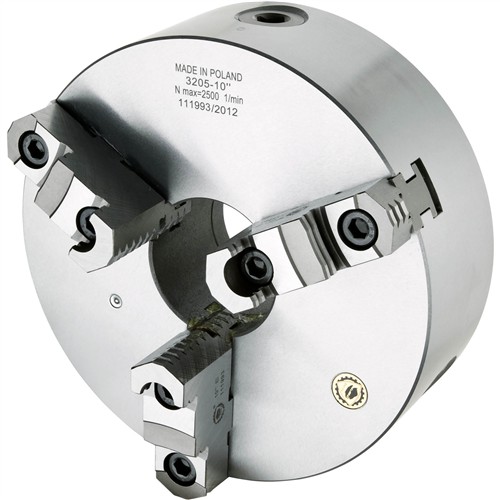

T10395 Bison 10" Plain Back 3-Jaw Self-Centering Scroll Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This plain back 3-jaw chuck is made with a cast-iron body, 2-piece, hardened jaws, and come complete with a chuck wrench.

Check out the Bison back plates for mounting to your lathe.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 10"
• Mount: Plain back
• Maximum speed: 2000 RPM
• Jaw type: 2-Piece jaws
• Jaw style: Hard 2-piece jaws
• Number of jaws: 3
• Adapter mounting bolt thread: M12x1.75
• Adapter mounting bolt length: 1.18"
• Adapter mounting bolt quantity: 6
• Precision class: Standard accuracy chuck
• Body material: Cast iron
• Hole diameter D: 2.9921"
• F: 8.8189"
• E: 7.874"
• C: 0.1969"
• H: 3.347"
• h: 2.087"
• h1: 1.339"
• Clamping range d1 (min-max): 0.197"–4.65"
• Clamping range d2 (min-max): 3.39–7.76"
• Clamping range d3 (min-max): 6.30"–9.84"
• Clamping range d4 (min-max): 2.28"–6.50"
• Clamping range d5 (min-max): 4.92–9.25"
• Approximate shipping weight: 56 lbs.
