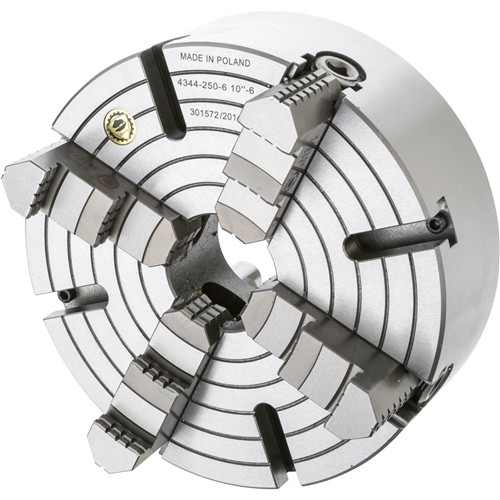

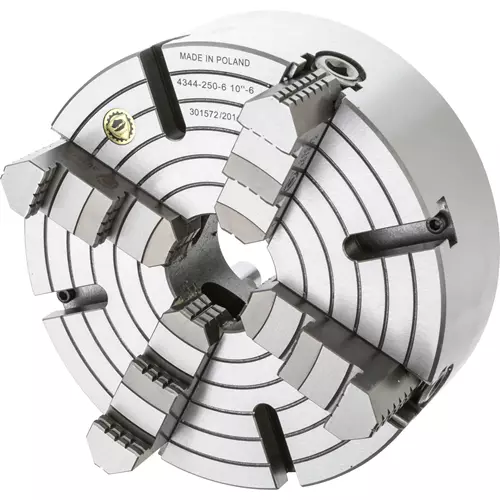

T10409 Bison 10" D1-6 4-Jaw Independent Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This D1-6 camlock 4-jaw chuck is made with a cast-iron body, hard solid reversible jaws, and come complete with a chuck wrench.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 10"
• Mount: D1-6
• Jaw type: Solid jaws
• Jaw style: Hard solid reversible jaws
• Number of jaws: 4
• Bolt quantity: 6
• Camlock stud diameter: 7/8"
• Precision class: Standard accuracy chuck
• Body material: Cast iron
• Hole diameter D: 2.5591"
• B: 5.252"
• G: 4.188
• C: 0.629"
• H: 3.346"
• d1 minimum: 0.394"
• d2 maximum: 9.843"
• d3: 2.559"
• Approximate shipping weight: 61 lbs.
