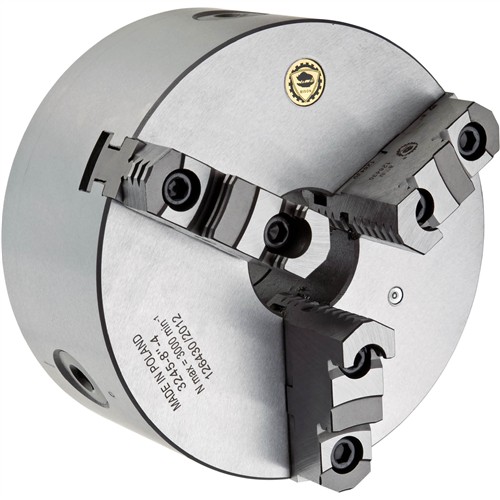

T10405 Bison 12" D1-8 3-Jaw Self-Centering Scroll Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This D1-8 camlock 3-jaw chuck is made with a cast-iron body, 2-piece, hardened jaws, and come complete with a chuck wrench.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 12"
• Mount: D1-8
• Maximum speed: 1500 RPM
• Jaw type: 2-Piece jaws
• Jaw style: Hard 2-piece jaws
• Number of jaws: 3
• Bolt thread: M20x1.5
• Bolt quantity: 6
• Camlock stud diameter: 1"
• Precision class: Standard accuracy chuck
• Body material: Cast iron
• Hole diameter D: 4.0551"
• B: 6.7480"
• G: 5.5007"
• C: 0.7087"
• H: 4.6338"
• h: 2.244"
• Clamping range d1 (min-max): 0.394"–5.16"
• Clamping range d2 (min-max): 4.06"–8.90"
• Clamping range d3 (min-max): 7.48"–12.40"
• Clamping range d4 (min-max): 2.56"–7.17"
• Clamping range d5 (min-max): 5.71"–10.43
• Approximate shipping weight: 131 lbs.
