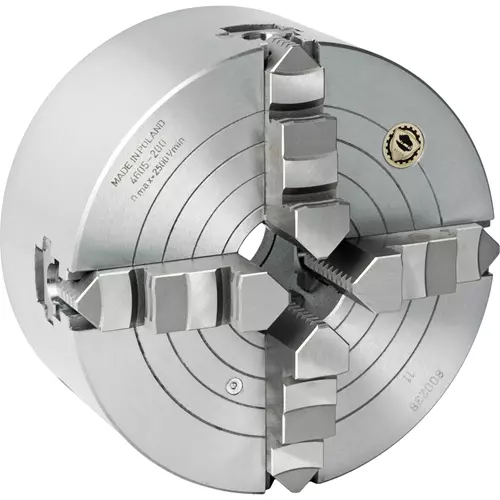

T25338 5" 4-Jaw Plain Back Independent Chuck

We are proud to offer Bison Lathe chucks.

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This is a 5" combination chuck utilizing a combination of a scroll mechanism and independent jaw screws. The plain back mounted 4-jaw chuck has a cast-iron body for durability and hard solid reversable jaws.

This chuck requires a backplate for installation.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 8"
• Mount: Plain back
• Maximum speed: 3200 RPM
• Jaw type: Solid
• Jaw style: Hard reversable jaws
• Number of jaws: 4
• M bolt thread: M8
• Precision class: Standard Accuracy Chuck
• Body material: Cast iron
• Hole diameter D: 1.30"
• B: 4.252"
• C: 3.7402"
• D: 1.2598"
• E min: 0.118"
• E max: 4.72"
• H: 3.7402"
• J: 0.1575"
• K: 2.9528"
• Approximate shipping weight: 13 lbs.
