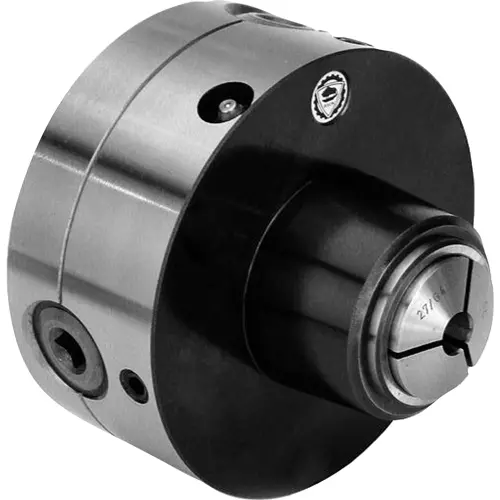

T10414 Bison 5" 1-1/2" x 8 TPI 5-C Collet Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This 5-C collet chuck is made of high-quality steel forgings and has a concentricity of 0.0004" (four ten-thousandths of an inch).

A simple key-operated scroll provides uniform, distortion-free clamping and low collet cycle times.

All 5-C collets from 3/64" to 1-1/8" can be used.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 5"
• Mount: 1-1/2" x 8 TPI
• Maximum speed: 6000 RPM
• Jaw type: 5C collet
• Precision class: Standard accuracy chuck
• Body material: Steel
• Bolt quantity: 3
• A: 4.92"
• Approximate shipping weight: 12 lbs.
