Item: T10413 | Model: 7-862-0511
Image for T10413

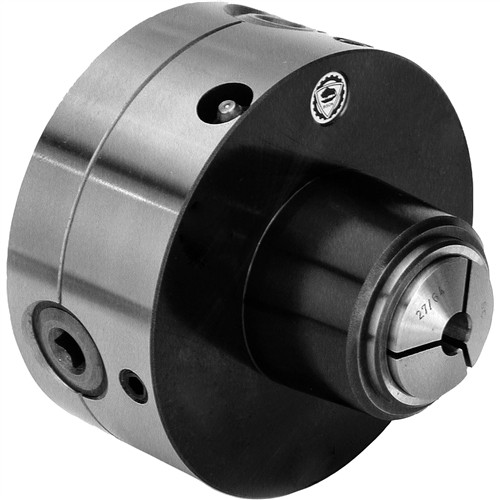

Bison T10413 - 5-C Collet Chuck D1-4

4.3 (4)
5
3
2
1
$1,150.00

T10413 Bison 5" D1-4 5-C Collet Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This 5-C collet chuck is made of high-quality steel forgings and has a concentricity of 0.0004" (four ten-thousandths of an inch).

A simple key-operated scroll provides uniform, distortion-free clamping and low collet cycle times.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Chuck diameter: 5"
  • Mount: D1-4
  • Maximum speed: 6000 RPM
  • Jaw type: 5C collet
  • Precision class: Standard accuracy chuck
  • Body material: Steel
  • Bolt quantity: 3
  • A: 4.92"
  • B: 4.23"
  • D: 2.54"
  • F: 3.25"
  • Approximate shipping weight: 12 lbs.
View More Details
Shipping

Accessories

Image for T10294 7 Piece Indexable Carbide Set 1/2" Item# T10294 $117.95 Add Image for G6706 60 TiN Coated Carbide Insert w/ Chip Breaker - TCMT-32.51 Item# G6706 $16.95 Add Image for H5930 4 Pc. Center Drill Set 60 Deg. Item# H5930 $14.95 Add
Overview Reviews Q & A
Overview

T10413 Bison 5" D1-4 5-C Collet Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This 5-C collet chuck is made of high-quality steel forgings and has a concentricity of 0.0004" (four ten-thousandths of an inch).

A simple key-operated scroll provides uniform, distortion-free clamping and low collet cycle times.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Chuck diameter: 5"
  • Mount: D1-4
  • Maximum speed: 6000 RPM
  • Jaw type: 5C collet
  • Precision class: Standard accuracy chuck
  • Body material: Steel
  • Bolt quantity: 3
  • A: 4.92"
  • B: 4.23"
  • D: 2.54"
  • F: 3.25"
  • Approximate shipping weight: 12 lbs.
