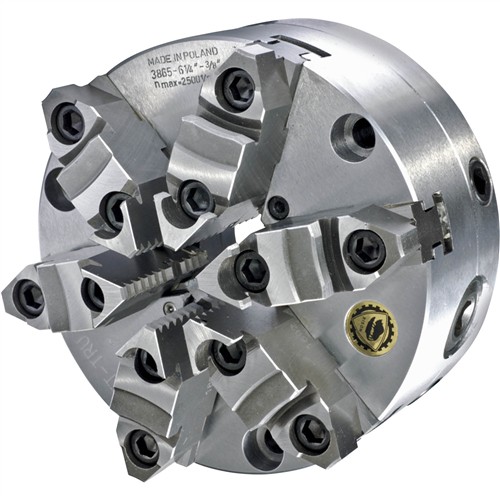

T10420 Bison 6-1/4" 6-Jaw Self-Centering SET-TRU Chuck

We are proud to offer Bison Lathe chucks.

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This is a 6" self-centering chuck with fine adjustment offering 0.0004" concentricity. The plain back mounted 6-jaw chuck has forged steel bodies for durability.

Achieve maximum grip with minimal distortion with this 6-jaw chuck with 2-piece, hardened jaws.

This chuck requires a backplate for installation.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 8"
• Mount: Plain back
• Maximum speed: 3200 RPM
• Jaw type: 2-Piece jaws
• Jaw style: Hard 2-piece jaws
• Number of jaws: 6
• M bolt thread: M10x1.5
• M bolt quantity: 3
• N bolt thread: M18x1
• N bolt quantity: 4
• Precision class: Precision Chuck with Fine Adjustment
• Body material: Steel
• Hole diameter D: 1.654"
• F: 5.5118"
• E: 3.385"
• H: 2.677"
• h: 1.71"
• C: 0.67"
• Approximate shipping weight: 25 lbs.

Compatible Bison Backplates:

• T10426 6-1/4" D1-4 Backplate for SET-TRU
