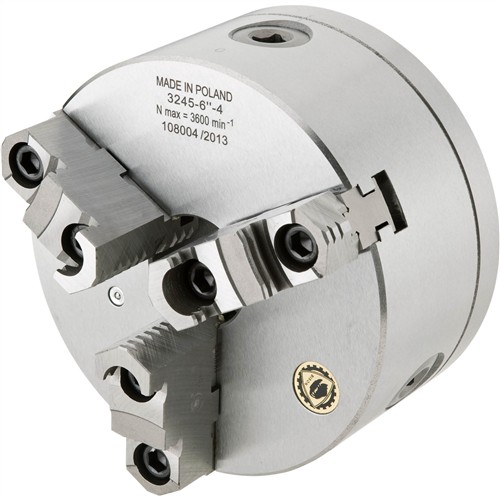

T10397 Bison 6" D1-4 3-Jaw Self-Centering Scroll Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

This D1-4 camlock direct mount 3-jaw chuck is made with a cast-iron body, 2-piece, hardened jaws, and come complete with a chuck wrench.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 6"
• Mount: D1-4
• Maximum speed: 3000 RPM
• Jaw type: 2-Piece jaws
• Jaw style: Hard 2-piece jaws
• Number of jaws: 3
• Bolt thread: M10x1
• Bolt quantity: 3
• Camlock stud diameter: 5/8"
• Precision class: Standard accuracy chuck
• Body material: Cast iron
• Hole diameter D: 1.6535"
• B: 3.2520"
• G: 1.6535"
• C: 0.5118"
• H: 3.2087"
• h: 1.693"
• Clamping range d1 (min-max): 0.118"–2.52"
• Clamping range d2 (min-max): 2.44"–4.76"
• Clamping range d3 (min-max): 4.53"–6.30"
• Clamping range d4 (min-max): 1.65"–3.81"
• Clamping range d5 (min-max): 3.46"–5.75
• Approximate shipping weight: 25 lbs.
