T10406 Bison 8" D1-4 4-Jaw Independent Chuck

Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.

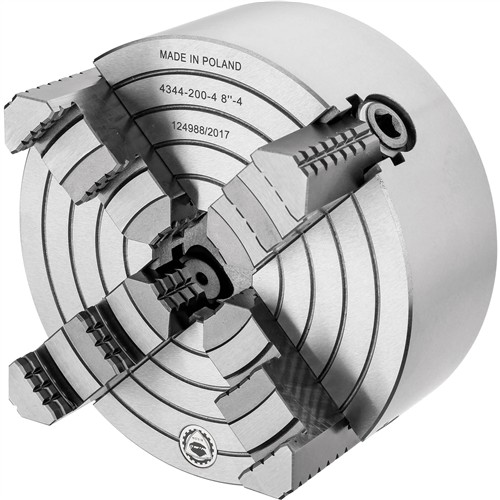

This D1-4 camlock 4-jaw chuck is made with a cast-iron body, hard solid reversible jaws, and come complete with a chuck wrench.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Chuck diameter: 8"
• Mount: D1-4
• Jaw type: Solid jaws
• Jaw style: Hard solid reversible jaws
• Number of jaws: 4
• Bolt thread: M10x1
• Bolt quantity: 3
• Camlock stud diameter: 5/8"
• Precision class: Standard accuracy chuck
• Body material: Cast iron
• Hole diameter D: 1.9685"
• B: 3.2520"
• G: 2.5005"
• C: 0.5118"
• d1 minimum: 0.394"
• d2 maximum: 7.874"
• d3: 1.772"
• Approximate shipping weight: 37 lbs.
