Item: T10407 | Model: 7-853-0835
3 Product Photos
$1,165.00

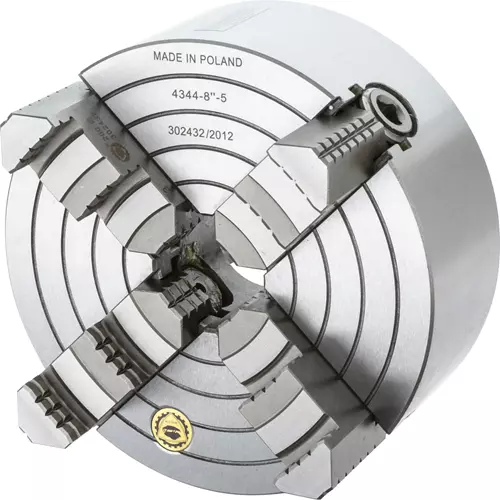

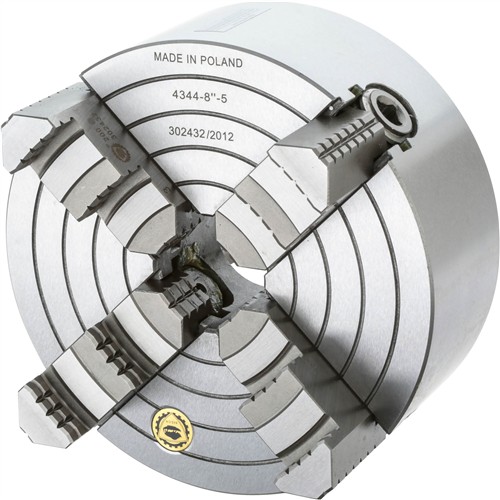

T10407 Bison 8" D1-5 4-Jaw Independent Chuck
Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.
This D1-5 camlock 4-jaw chuck is made with a cast-iron body, hard solid reversible jaws, and come complete with a chuck wrench.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Chuck diameter: 8"
- Mount: D1-5
- Jaw type: Solid jaws
- Jaw style: Hard solid reversible jaws
- Number of jaws: 4
- Bolt thread: M12x1
- Bolt quantity: 6
- Camlock stud diameter: 3/4"
- Precision class: Standard accuracy chuck
- Body material: Cast iron
- Hole diameter D: 1.9685"
- B: 4.126"
- G: 3.250"
- C: 0.590"
- H: 3.149"
- d1 minimum: 0.394"
- d2 maximum: 7.874"
- d3: 1.772"
- Approximate shipping weight: 37 lbs.
Shipping
Accessories
Overview
T10407 Bison 8" D1-5 4-Jaw Independent Chuck
Bison lathe chucks deliver precision and accuracy you can count on, making them a trusted choice for professionals.
This D1-5 camlock 4-jaw chuck is made with a cast-iron body, hard solid reversible jaws, and come complete with a chuck wrench.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Chuck diameter: 8"
- Mount: D1-5
- Jaw type: Solid jaws
- Jaw style: Hard solid reversible jaws
- Number of jaws: 4
- Bolt thread: M12x1
- Bolt quantity: 6
- Camlock stud diameter: 3/4"
- Precision class: Standard accuracy chuck
- Body material: Cast iron
- Hole diameter D: 1.9685"
- B: 4.126"
- G: 3.250"
- C: 0.590"
- H: 3.149"
- d1 minimum: 0.394"
- d2 maximum: 7.874"
- d3: 1.772"
- Approximate shipping weight: 37 lbs.
