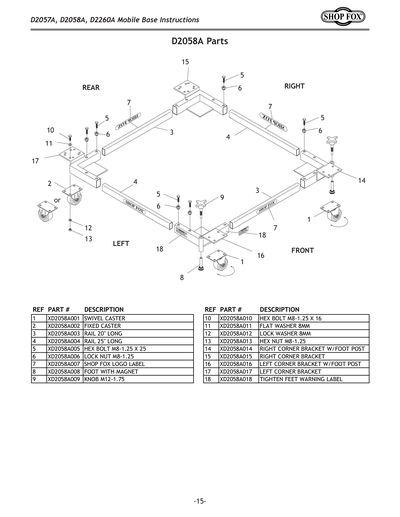

Parts for D2058A Super Heavy-Duty Mobile Base

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

PXD2058A001
Now: D4175
Cast-Iron Swivel Caster for D2058A
Price
N/A
PXD2058A002
Now: D4176
Cast-Iron Fixed Caster for D2058A
Price
N/A
P
RAIL 20" LONG
P
RAIL 25" LONG
PXD2058A005
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
PXD2058A006
LOCK NUT M8-1.25
Price
N/A
PXD2058A007
SHOP FOX LOGO
Price
N/A
PXD2058A008
FOOT W/MAGNET
Price
N/A
PXD2058A009
KNOB M12-1.75
Price
N/A
PXD2058A010
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
PXD2058A011
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXD2058A012
LOCK WASHER 8MM
Price
N/A
PXD2058A013
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
RIGHT CORNER BRACKET W/POST
P
RIGHT CORNER BRACKET
P
LEFT CORNER BRACKET W/FOOT POST
P
LEFT CORNER BRACKET
P
TIGHTEN FEET WARNING LABEL
P
BOLT BAG
P
CARTON FOR D2058A
P
BOX FOR D2058A
P
MANUAL FOR D2058A 05/09
