Parts for D2273 - Single Roller Stand

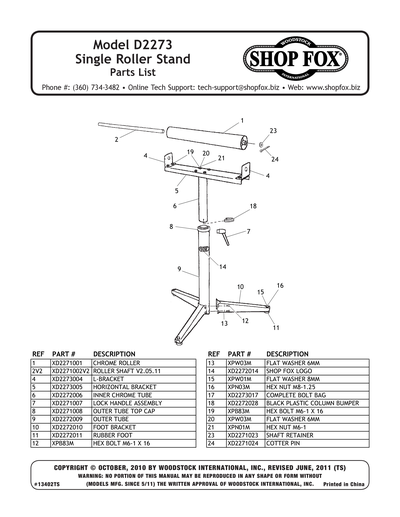

Part Diagram for D2273
Part Diagram for D2273

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PXD2273001
CHROME ROLLER
Price
N/A
PXD2273002
*DISCD*ROLLER SHAFT W/O HOLE V1
Price
N/A
PXD2273002V2
ROLLER SHAFT W/HOLES V2.05.11
Price
N/A
PXD2273003
*DISCD*PLASTIC CAP V1
Price
N/A
P
Price
$1.90
P
Price
$8.65
P
Price
$5.45
PXD2273007
LOCK HANDLE ASSEMBLY
Price
N/A
PXD2273008
OUTER TUBE TOP CAP
Price
N/A
PXD2273009
OUTER TUBE
Price
N/A
PXD2273010
FOOT BRACKET
Price
N/A
PXD2273011
RUBBER FOOT
Price
N/A
PXD2273012
HEX BOLT M6-1 X 16
Price
N/A
PXD2273013
FLAT WASHER 6MM
Price
N/A
PXD2273014
SHOP FOX LOGO
Price
N/A
PXD2273015
FLAT WASHER 8MM
Price
N/A
PXD2273016
HEX NUT M8-1.25
Price
N/A
P
Price
$1.90
PXD2273018
BLACK PLASTIC COLUMN BUMPER
Price
N/A
PXD2273019
HEX BOLT M6-1 X 16
Price
N/A
PXD2273020
FLAT WASHER 6MM
Price
N/A
PXD2273021
HEX NUT M6-1
Price
N/A
PXD2273023
SHAFT RETAINER
Price
N/A
PXD2273024
COTTER PIN 2 X 33MM STANDARD
Price
N/A
P
Price
$2.90
P
Price
$14.65
P
MANUAL FOR D2273 MFG 5/11 6/11
Price
$14.65
