Parts for D4328 - Quick Release Vise, 9"

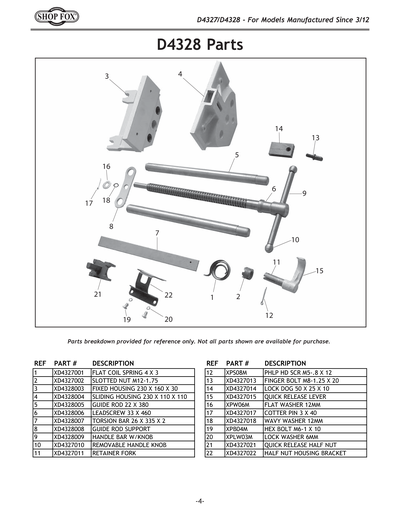

Part Diagram for D4328
Part Diagram for D4328

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PXD4328001
FLAT COIL SPRING 4 X 3
Price
N/A
PXD4328002
*DISCD*SLOTTED NUT M12-1.75
Price
N/A
P
*DISCD*FIXED HOUSING 230 X 160 X 30
Price
$50.00
P
SLIDING HOUSING 230 X 110 X 110
Price
$45.35
P
Price
$11.90
P
*DISCD*LEADSCREW 33 X 460
Price
$19.15
P
*DISCD*TORSION BAR 26 X 335 X 2
Price
$3.25
P
Price
$3.65
P
*DISCD*HANDLE BAR W/KNOB
Price
$7.25
PXD4328010
REMOVABLE HANDLE KNOB
Price
N/A
PXD4328011
QUICK RELEASE LEVER W/ RETAINER FORK
Price
N/A
PXD4328012
PHLP HD SCR M5-.8 X 12
Price
N/A
PXD4328013
FINGER BOLT M8-1.25 X 20
Price
N/A
PXD4328014
LOCK DOG 50 X 25 X 10
Price
N/A
PXD4328015
QUICK RELEASE LEVER W/ RETAINER FORK
Price
N/A
PXD4328016
FLAT WASHER 12MM
Price
N/A
PXD4328017
COTTER PIN 3 X 40
Price
N/A
PXD4328018
WAVY WASHER 12MM
Price
N/A
PXD4328019
HEX BOLT M6-1 X 10
Price
N/A
PXD4328020
LOCK WASHER 6MM
Price
N/A
PXD4328021
*DISCD*QUICK RELEASE HALF NUT
Price
N/A
PXD4328022
HALF NUT HOUSING BRACKET
Price
N/A
P
Price
$7.95
