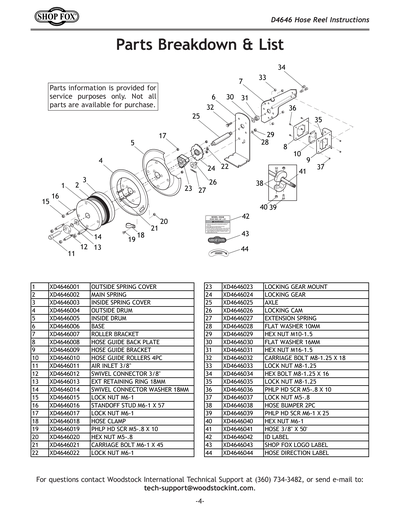

Parts for D4646 3/8" x 50' Retractable Hose Reel

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
OUTSIDE SPRING COVER
P
MAIN SPRING
P
INSIDE SPRING COVER
P
OUTSIDE DRUM
P
INSIDE DRUM
PXD4646006
BASE
Price
N/A
P
ROLLER BRACKET
P
HOSE GUIDE BACK PLATE
P
HOSE GUIDE BRACKET
P
HOSE GUIDE ROLLERS 4PC
PXD4646011
AIR INLET 3/8"
Price
N/A
PXD4646012
SWIVEL CONNECTOR 3/8"
Price
N/A
P
SWIVEL CONNECTOR WASHER 18MM
P
STANDOFF STUD M6-1 X 57
P
HOSE CLAMP
P
LOCKING GEAR MOUNT
P
LOCKING GEAR
P
AXLE
P
LOCKING CAM
P
EXTENSION SPRING
P
HOSE BUMPER 2PC
PXD4646041
HOSE 3/8" X 50'
Price
N/A
P
ID LABEL
P
SHOP FOX LOGO LABEL
P
HOSE DIRECTION LABEL
P
MANUAL MFD-09.17 V1.09.17
