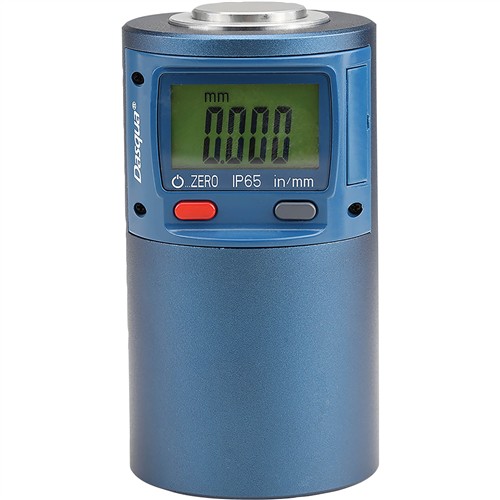

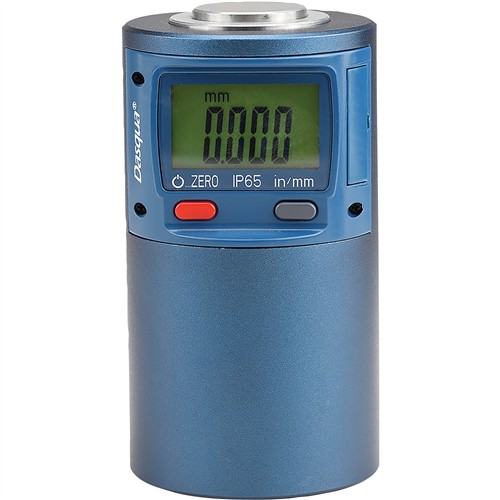

Dasqua T33206 4" Electronic Z-Axis Setter
The 100mm height is ideal for larger machines where extra height is required.
This Z-Axis setting device features a plastic body and LCD screen and is rated to IP65.
It features an indicator light to inform the user that absolute zero is reached. It can achieve a repeatability of 3 microns and is accurate to ± 0.002 mm.
A built in magnetic base allows the tool setter to be secured to a steel machining bed or fixture.
This Z-Axis Setter comes in a high-quality fitted aluminum protective case.
It is not designed to be wired directly into your CNC controller. It operates independently as a tool position indication device for manual setting offsets in your system.
Dasqua takes responsibility for of all its products by providing a 2-year warranty.
Parts found to be defective may be replaced or repaired by Dasqua.
Contact Dasqua regarding warranties on their products and technical support.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Resolution: .0005"/0.01mm
- Graduation: 0.001mm/0.0005"
- Height of spring mounted contact face: 52.5mm
- Diameter: 55mm
- Overall height: 100mm
- Approximate shipping weight: 2 lbs.
FEATURES:
- Easy to set "0" point with LCD screen
- Positioning accuracy & repeatability is 0.001"/0.01mm
- Magnetic base
- Supplied in a fitted metal case
- Includes 1 SR44 battery
