Parts for G0442 - 5 HP Cyclone Dust Collector

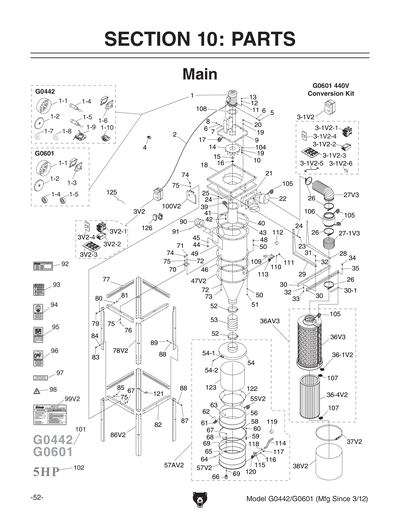

Part Diagram for G0442
Part Diagram for G0442
Part Diagram for G0442
Part Diagram for G0442
Part Diagram for G0442
Part Diagram for G0442

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

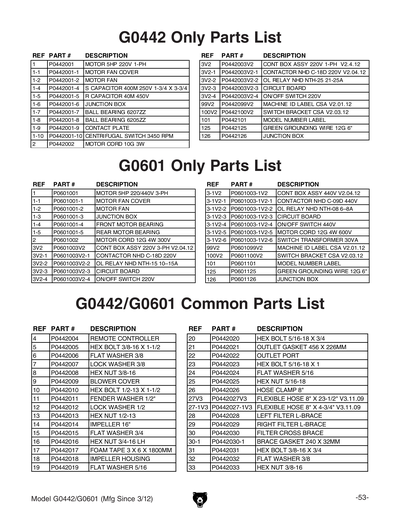

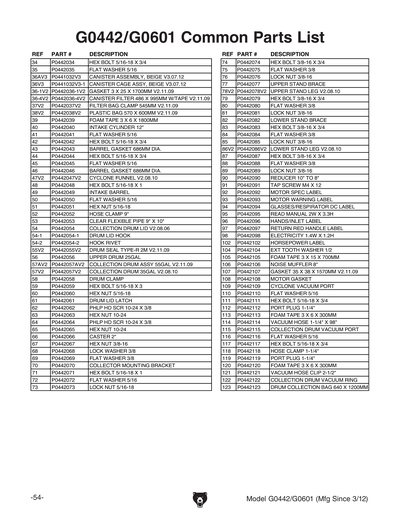

Ref #
Part #
Description
1
MOTOR 5HP 220V 1-PH
Price
$1,435.80
1-1
MOTOR FAN COVER
Price
$18.15
1-10
CENT SWITCH 3/4-3450
Price
N/A
1-2
MOTOR FAN
Price
$21.75
1-4
S CAPACITOR 400M 250V 1-3/4 X 3-3/4
Price
N/A
1-5
R CAPACITOR 40M 450V 2-1/4 X 4-1/2
Price
N/A
1-6
JUNCTION BOX
Price
$35.65
1-7
BALL BEARING 6207ZZ
Price
N/A
1-8
BALL BEARING 6205ZZ
Price
N/A
1-9
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
2
MOTOR CORD 10G 3W
Price
$129.00
3
CONTROL BOX ASSY 220V 1-PH CSA V2.04.12
Price
N/A
3V2
CONTROL BOX ASSY 220V 1-PH CSA V2.04.12
Price
$250.00
3V2-1
CONTACTOR NHD C-18D 220V V2.04.12
Price
$92.80
3V2-2
OL RELAY NHD NTH-25 21-25A
Price
$70.85
3V2-3
CIRCUIT BOARD 220V W/TRANSFORMER
Price
$101.45
3V2-4
ON/OFF SWITCH 220V
Price
$7.25
4
REMOTE CONTROLLER
Price
N/A
5
P0442005
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
5A
FOAM TAPE 10 X 50MM X 2M V2.06.05
Price
N/A
6
P0442006
Now: PW02
FLAT WASHER 3/8
Price
N/A
7
LOCK WASHER 3/8
Price
N/A
8
P0442008
Now: PN08
HEX NUT 3/8-16
Price
N/A
9
BLOWER COVER
Price
$217.35
10
P0442010
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
11
FENDER WASHER 1/2
Price
N/A
12
LOCK WASHER 1/2
Price
N/A
13
P0442013
Now: PN13
HEX NUT 1/2-13
Price
N/A
14
IMPELLER 16"
Price
$336.90
15
P0442015
Now: PW13
FLAT WASHER 3/4
Price
N/A
16
HEX NUT 3/4-16 LH
Price
N/A
17
FOAM TAPE 3 X 6 X 1800MM
Price
N/A
18
IMPELLER HOUSING
Price
$898.40
19
P0442019
Now: PW07
FLAT WASHER 5/16
Price
N/A
20
P0442020
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
21
OUTLET GASKET 456 X 226MM
Price
$6.00
22
OUTLET PORT
Price
$218.90
23
P0442023
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
24
P0442024
Now: PW07
FLAT WASHER 5/16
Price
N/A
25
P0442025
Now: PN02
HEX NUT 5/16-18
Price
N/A
26
HOSE CLAMP 8"
Price
N/A
27
FLEXIBLE PIPE GRAY 8"X1000MM V1.02.05
Price
$79.70
27-1V3
FLEXIBLE HOSE 8" X 4-3/4" V3.11.09
Price
$23.60
27A
GREY FLEX PIPE ASSY V2.04.08
Price
$62.25
27A-1
GREY FLEX PIPE 8" X 60MM V2.04.08
Price
$50.15
27A-2
GREY FLEX PIPE 8" X 120MM V2.04.08
Price
$12.10
27V3
FLEXIBLE HOSE 8" X 23-1/2" V3.11.09
Price
$58.00
28
LEFT FILTER L-BRACE
Price
$82.30
29
RIGHT FILTER L-BRACE
Price
$72.45
30
FILTER CROSS BRACE
Price
$65.25
30-1
BRACE GASKET 240 X 32MM
Price
$9.60
31
P0442031
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
32
P0442032
Now: PW02
FLAT WASHER 3/8
Price
N/A
32-1
FOAM TAPE 3 X 25 X 1600MM V1.02.05
Price
N/A
33
P0442033
Now: PN08
HEX NUT 3/8-16
Price
N/A
34
P0442034
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
35
P0442035
Now: PW07
FLAT WASHER 5/16
Price
N/A
36
Detachable Cartridge Filter for G0442 & G0601
Price
N/A
36-1
FOAM TAPE 3 X 25 X 1600MM V1.02.05
Price
$27.05
36-1V2
GASKET 3 X 25 X 1700MM V2.11.09
Price
N/A
36-2
FOAM TAPE 3 X 25 X 1600MM V1.02.05
Price
N/A
36-3
PIN
Price
$1.60
36-4V2
486mm Canister Filter with Foam Tape
Price
N/A
36A
BRUSH UPGRADE KIT V1.02.05
Price
$402.10
36A-1
WIRE/CORD W/HANDLES
Price
$43.50
36AV2
Canister Assembly for G0441
Price
N/A
36AV3
CANISTER ASSEMBLY (BEIGE) V3.07.12
Price
N/A
36B
COMPLETE CANISTER ASSY BOX 3/BOX 4
Price
$796.95
36V2
GREEN CANISTER CAGE ASSY V2.11.09
Price
N/A
36V3
CANISTER CAGE ASSY (BEIGE) V3.07.12
Price
N/A
37
BAG CLAMP 510MM V1.06.05
Price
N/A
37V2
BAG CLAMP 545MM V2.11.09
Price
N/A
38
Collection Bag for G0441, 510mm x 600mm
Price
N/A
38V2
Collection Bag 570 x 600mm
Price
N/A
39
FOAM TAPE 3 X 6 X 1800MM
Price
N/A
40
INTAKE CYLINDER 12"
Price
$144.90
41
P0442041
Now: PW07
FLAT WASHER 5/16
Price
N/A
42
P0442042
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
43
BARREL GASKET 686MM DIA.
Price
$12.75
44
P0442044
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
P0442045
Now: PW07
FLAT WASHER 5/16
Price
N/A
46
BARREL GASKET 686MM DIA.
Price
N/A
47
CYCLONE FUNNEL V1.02.05
Price
$520.75
47V2
CYCLONE FUNNEL V2.08.10
Price
$641.20
47V3
CYCLONE FUNNEL V3.07.20
Price
$717.30
48
P0442048
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
49
INTAKE BARREL
Price
$741.75
49V2
INTAKE BARREL V2.07.20
Price
$597.75
50
P0442050
Now: PW07
FLAT WASHER 5/16
Price
N/A
51
P0442051
Now: PN02
HEX NUT 5/16-18
Price
N/A
52
HOSE CLAMP 9"
Price
N/A
53
CLEAR FLEX PIPE 9" X 260MM
Price
N/A
54
COLLECTION DRUM LID V2.08.06
Price
N/A
54-1
DRUM LID HOOK
Price
N/A
54-2
RIVET 4 X 7MM BLIND, STEEL
Price
N/A
54V2
COLLECTION DRUM LID V2.07.20
Price
$152.15
55
*DISCD*DRUM LID GASKET 5 X 50MM V1.02.05
Item is no longer available
Price
N/A
55V2
DRUM SEAL TYPE-R 2M V2.11.09
Price
$30.30
56
UPPER DRUM 25GAL V1
Price
N/A
56V2
UPPER DRUM 25GAL V2.07.20
Price
$184.75
57
COLLECTION DRUM 35GAL V1.02.05
Price
N/A
57AV2
COLLCTON DRUM ASSY 55GAL V2.11.09
Price
N/A
57AV3
COLLECTION DRUM ASSY 55GAL V3.07.20
Price
$742.65
57V2
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
57V2A
COLLCTON DRUM ASSY 55GAL V2.11.09
Price
N/A
58
DRUM CLAMP
Price
N/A
59
P0442059
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
60
P0442060
Now: PN02
HEX NUT 5/16-18
Price
N/A
61
DRUM LID LATCH
Price
$28.80
62
P0442062
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
63
P0442063
Now: PN07
HEX NUT 10-24
Price
N/A
64
P0442064
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
65
P0442065
Now: PN07
HEX NUT 10-24
Price
N/A
66
CASTER 2"
Price
N/A
67
P0442067
Now: PN08
HEX NUT 3/8-16
Price
N/A
68
LOCK WASHER 3/8
Price
N/A
69
P0442069
Now: PW02
FLAT WASHER 3/8
Price
N/A
70
COLLECTOR MOUNTING BRACKET V1
Price
$27.20
70V2
COLLECTOR MOUNTING BRACKET V2.07.20
Price
$18.15
71
P0442071
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
72
P0442072
Now: PW07
FLAT WASHER 5/16
Price
N/A
73
LOCK NUT 5/16-18
Price
N/A
74
P0442074
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
75
P0442075
Now: PW02
FLAT WASHER 3/8
Price
N/A
76
LOCK NUT 3/8-16
Price
N/A
77
UPPER STAND BRACE
Price
N/A
77A
COMPLETE STAND ASSY BOX 2
Price
$568.75
77V2
UPPER STAND BRACE V2.07.20
Price
$36.25
78
UPPER STAND LEG V1.02.05
Price
$39.60
78V2
UPPER STAND LEG V2.08.10
Price
$68.85
78V3
UPPER STAND LEG V3.07.20
Price
$72.45
79
P0442079
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
80
P0442080
Now: PW02
FLAT WASHER 3/8
Price
N/A
81
LOCK NUT 3/8-16
Price
N/A
82
*DISCD*STAND BRACE LOWER V1
Price
N/A
82V2
LOWER STAND BRACE V2.07.20
Price
$25.40
83
P0442083
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
84
P0442084
Now: PW02
FLAT WASHER 3/8
Price
N/A
85
LOCK NUT 3/8-16
Price
N/A
86
LOWER STAND LEG V1.02.05
Price
$61.60
86V2
LOWER STAND LEG V2.08.10
Price
$76.10
86V3
LOWER STAND LEG V3.07.20
Price
$54.35
87
P0442087
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
88
P0442088
Now: PW02
FLAT WASHER 3/8
Price
N/A
89
LOCK NUT 3/8-16
Price
N/A
90
REDUCER 10" TO 8"
Price
$86.95
91
TAP SCREW M4 X 12
Price
N/A
92
MOTOR SPEC LABEL
Price
$3.35
93
MOTOR WARNING LABEL
Price
$2.40
94
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
95
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
96
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
97
RETURN RED HANDLE LABEL
Price
$2.40
98
ELECTRICITY 1.4W X 1.2H
Price
N/A
99
MACHINE ID LABEL V1
Price
$16.40
99V2
MACHINE ID LABEL CSA V2.01.12
Price
$16.40
100
*DISCD*STAND SWITCH BRACKET V1
Price
$19.00
100V2
STAND SWITCH BRACKET CSA V2.03.12
Price
$30.20
101
MODEL NUMBER LABEL
Price
$23.10
102
HORSEPOWER LABEL
Price
$17.25
103
POWER CORD 10AWG X 3C X 10'
Price
$41.70
104
EXT TOOTH WASHER 1/2
Price
N/A
105
FOAM TAPE 3 X 15 X 700MM
Price
N/A
106
NOISE MUFFLER 8"
Price
N/A
107
GASKET 35 X 38 X 1570MM V2.11.09
Price
N/A
107V2
GASKET 20 X 35 X 1460MM V2.07.11
Price
$17.25
108
MOTOR GASKET
Price
$7.85
109
CYCLONE VACUUM TUBE
Price
N/A
110
P0442110
Now: PW07
FLAT WASHER 5/16
Price
N/A
111
P0442111
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
112
TUBE PLUG 1-1/4"
Price
N/A
113
FOAM TAPE 3 X 6 X 300MM
Price
N/A
114
VACUUM HOSE 1-1/4" X 98"
Price
N/A
115
COLLECTION DRUM VACUUM TUBE
Price
N/A
116
P0442116
Now: PW07
FLAT WASHER 5/16
Price
N/A
117
P0442117
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
118
HOSE CLAMP 1-1/4"
Price
N/A
119
TUBE PLUG 1-1/4"
Price
N/A
120
FOAM TAPE 3 X 6 X 300MM
Price
N/A
121
VACUUM HOSE CLIP 2-1/2"
Price
$1.90
122
COLLECTION DRUM VACUUM RING
Price
N/A
123
DRUM COLLECTION BAG 640 X 1200MM
Price
N/A
124
GREEN GROUNDING WIRE 12G 6"
Price
N/A
125
GREEN GROUNDING WIRE 12G 6"
Price
$2.45
126
JUNCTION BOX
Price
$14.25
127
HEX BOLT 3/8-16 X 11
Price
$7.25
128
CYCLONE FUNNEL ADAPTER
Price
$83.35
129
P0442129
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
130
DRUM LID CONNECTING PLATE
Price
$6.75
131
COLLECTION LID HANDLE
Price
$65.25
132
DRUM LID SPRING
Price
$20.35
133
DRUM WINDOW
Price
$6.05
134
RIVET
Price
$1.60
135
P0442135
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
136
P0442136
Now: PN40
ACORN NUT 5/16-18
Price
N/A
137
COLLECTION DRUM HANDLE PLASTIC
Price
$5.15
138
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
139
HANDLE HOOK
Price
$16.00
140
HANDLE HOOK BRACKET
Price
$9.10
141
FENDER WASHER 5/16
Price
N/A
142
FLAT WASHER 3/8 THIN
Price
$1.60
143
DUST COLLECTORS NOTICE 2.5W X 2.5H
Price
N/A
144
NOTICE COLLECTION DRUM
Price
$3.05
145
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
146
GRIZZLY.COM LABEL
Price
$2.35
147
STRAIN RELIEF M20-1.5
Price
$6.50
148
STRAIN RELIEF M20-1.5
Price
N/A
149
STRAIN RELIEF M20-1.5
Price
N/A
150
STRAIN RELIEF M20-1.5
Price
N/A
151
STRAIN RELIEF M20-1.5
Price
N/A
152
CONTROL BOX CORD 10G 3W 650MM
Price
$32.30
153
GREY PUTTY REF G0504
Price
N/A
154
N/S GRIZZLY GREEN G1023S
Price
N/A
201
FLAT HD SCR M4-.7 X 12
Price
N/A
202
INLET ADAPTER 8", CANISTER FILTER
Price
$39.75
203
FLANGE NUT 1/4-20
Price
N/A
204
P0442204
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
205
P0442205
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
206
P0442206
Now: PW07
FLAT WASHER 5/16
Price
N/A
207
P0442207
Now: PW07
FLAT WASHER 5/16
Price
N/A
208
CANISTER FILTER CAGE 500 X 1018MM
Price
$154.70
209
PULLEY COVER
Price
$26.15
210
LOCK NUT M6-1
Price
N/A
211
CAP SCREW M6-1 X 50
Price
$2.20
212
FLAT HD SCR M4-.7 X 12
Price
N/A
213
P0442213
Now: PN07
HEX NUT 10-24
Price
N/A
214
BUSHING 6.4 X 9.5 X 6.9L
Price
$2.85
215
WIRE ROPE PULLEY
Price
$9.50
216
BALL BEARING 626ZZ
Price
N/A
217
PULLY COVER PLATE
Price
$8.70
218
P0442218
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
219
WIRE ROPE GUIDE BLOCK
Price
$4.05
220
PHLP HD SCR M4-.7 X 10
Price
N/A
221
PHLP HD SCR M4-.7 X 10
Price
N/A
222
HANDLE
Price
$20.05
223
HANDLE COVER, BLACK
Price
$4.70
224
HANDLE COVER, RED
Price
$4.70
227
FILTER BRUSH
Price
$71.80
228
SET SCREW M5-.8 X 10
Price
N/A
229
FILTER BRUSH SHAFT 16 X 16 X 1005MM
Price
$27.80
230
CANISTER FILTER CAGE BASE
Price
$81.55
231
BRUSH SHAFT SUPPORT BRACKET
Price
$30.30
232
HEX BOLT M6-1 X 25
Price
N/A
233
LOCK NUT M6-1
Price
N/A
234
P0442234
Now: PN02
HEX NUT 5/16-18
Price
N/A
235
WIRE ROPE 2 X 39500MM
Price
$5.50
236
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
238
SLIDING WHEEL COVER GASKET
Price
$2.70
400
BRUSH UPGRADE KIT V1.02.05
Price
N/A
MANUAL
MAN FOR G0442/G0601 MFD-11/09-7/10 V1.
Price
$14.65
MANV2
MAN G0442/G0601 MFD-8/10-12/11 V2.08.10
Price
$19.50
MANV3
MAN G0442/G0601 MFD 03/12-06/20 V3.10.13
Price
$20.25
MANV4
MANUAL G0442/G0601 MFD-07.20+ V4.06.25
Price
$21.95
