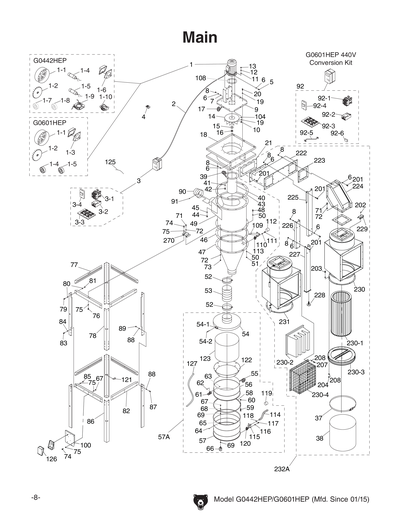

Parts for G0442HEP 5 HP Dual-Filtration HEPA Cyclone Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOTOR 5HP 220V 1-PH
Price
N/A
1-1
MOTOR FAN COVER
Price
N/A
1-10
CENT SWITCH 3/4-3450
Price
N/A
1-2
MOTOR FAN
Price
N/A
1-4
S CAPACITOR 400M 250V 1-3/4 X 3-3/4
Price
N/A
1-5
R CAPACITOR 40M 450V 2-1/4 X 4-1/2
Price
N/A
1-6
JUNCTION BOX
Price
N/A
1-7
BALL BEARING 6207ZZ
Price
N/A
1-8
BALL BEARING 6205ZZ
Price
N/A
1-9
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
2
MOTOR CORD 10G 3W
Price
N/A
3
CONTROL BOX ASSY 220V 1-PH CSA V2.04.12
Price
N/A
3-1
CONTACTOR NHD C-18D 220V V2.04.12
Price
N/A
3-2
OL RELAY NHD NTH-25 21-25A
Price
N/A
3-3
CIRCUIT BOARD 220V W/TRANSFORMER
Price
N/A
3-4
***USE P0440003V3-4***
Price
N/A
4
REMOTE CONTROLLER
Price
N/A
5
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
6
Now: PW02
FLAT WASHER 3/8
Price
N/A
7
Now: PLW04
LOCK WASHER 3/8
Price
N/A
8
Now: PN08
HEX NUT 3/8-16
Price
N/A
9
BLOWER COVER
Price
N/A
10
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
11
Now: PWF04
FENDER WASHER 1/2
Price
N/A
12
Now: PLW07
LOCK WASHER 1/2
Price
N/A
13
Now: PN13
HEX NUT 1/2-13
Price
N/A
14
IMPELLER 16"
Price
N/A
15
Now: PW13
FLAT WASHER 3/4
Price
N/A
16
HEX NUT 3/4-16 LH
Price
N/A
17
FOAM TAPE 3 X 6 X 1800MM
Price
N/A
18
IMPELLER HOUSING
Price
N/A
19
Now: PW07
FLAT WASHER 5/16
Price
N/A
20
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
21
OUTLET GASKET 456 X 226MM
37
BAG CLAMP 545MM V2.11.09
Price
N/A
38
Collection Bag 570 x 600mm
Price
N/A
39
FOAM TAPE 3 X 6 X 1800MM
Price
N/A
40
INTAKE CYLINDER 12"
Price
N/A
41
Now: PW07
FLAT WASHER 5/16
Price
N/A
42
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
43
BARREL GASKET 686MM DIA.
Price
N/A
44
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
45
Now: PW07
FLAT WASHER 5/16
Price
N/A
46
BARREL GASKET 686MM DIA.
Price
N/A
47
CYCLONE FUNNEL V2.08.10
Price
N/A
47V2
CYCLONE FUNNEL V3.07.20
Price
N/A
48
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
49
INTAKE BARREL
Price
N/A
49V2
INTAKE BARREL V2.07.20
Price
N/A
50
Now: PW07
FLAT WASHER 5/16
Price
N/A
51
Now: PN02
HEX NUT 5/16-18
Price
N/A
52
HOSE CLAMP 9"
Price
N/A
53
CLEAR FLEX PIPE 9" X 260MM
Price
N/A
54
COLLECTION DRUM LID V2.08.06
Price
N/A
54-1
DRUM LID HOOK
Price
N/A
54-2
RIVET 4 X 7MM BLIND, STEEL
Price
N/A
54V2
COLLECTION DRUM LID V2.07.20
Item is no longer available
Price
N/A
55
DRUM SEAL TYPE-R 2M V2.11.09
Price
N/A
56
UPPER DRUM 25GAL V1
Price
N/A
56V2
UPPER DRUM 25GAL V2.07.20
Item is no longer available
Price
N/A
57
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
57A
COLLCTON DRUM ASSY 55GAL V2.11.09
Price
N/A
57AV2
COLLECTION DRUM ASSY 55GAL V2.07.20
Item is no longer available
Price
N/A
57V2
COLLECTION DRUM 35GAL V2.07.20
Item is no longer available
Price
N/A
58
DRUM CLAMP
Price
N/A
59
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
60
Now: PN02
HEX NUT 5/16-18
Price
N/A
61
DRUM LID LATCH
Price
N/A
62
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
63
Now: PN07
HEX NUT 10-24
Price
N/A
64
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
65
Now: PN07
HEX NUT 10-24
Price
N/A
66
CASTER 2"
Price
N/A
67
Now: PN08
HEX NUT 3/8-16
Price
N/A
68
Now: PLW04
LOCK WASHER 3/8
Price
N/A
69
Now: PW02
FLAT WASHER 3/8
Price
N/A
71
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
72
Now: PW07
FLAT WASHER 5/16
Price
N/A
73
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
74
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
75
Now: PW02
FLAT WASHER 3/8
Price
N/A
76
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
77
UPPER STAND BRACE
Price
N/A
77V2
UPPER STAND BRACE V2.07.20
Item is no longer available
Price
N/A
78
UPPER STAND LEG V2.08.10
Price
N/A
78V2
UPPER STAND LEG V3.07.20
Price
N/A
79
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
80
Now: PW02
FLAT WASHER 3/8
Price
N/A
81
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
82
LOWER BRACKET BRACE V2.03.12
Price
N/A
82V2
LOWER BRACKET BRACE V2.7.20
Item is no longer available
Price
N/A
83
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
84
Now: PW02
FLAT WASHER 3/8
Price
N/A
85
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
86
LOWER STAND LEG V2.08.10
Price
N/A
86V2
LOWER STAND LEG V3.07.20
Price
N/A
87
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
88
Now: PW02
FLAT WASHER 3/8
Price
N/A
89
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
90
REDUCER 10" TO 8"
Price
N/A
91
TAP SCREW M4 X 12
Price
N/A
100
STAND SWITCH BRACKET CSA V2.03.12
Price
N/A
100V2
STAND SWITCH BRACKET CSA V2.07.20
104
EXT TOOTH WASHER 1/2
Price
N/A
108
***USE P0637006-1***
Price
N/A
109
CYCLONE VACUUM TUBE
Price
N/A
110
Now: PW07
FLAT WASHER 5/16
Price
N/A
111
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
112
TUBE PLUG 1-1/4"
Price
N/A
113
FOAM TAPE 3 X 6 X 300MM
Price
N/A
114
VACUUM HOSE 1-1/4" X 98"
Price
N/A
115
COLLECTION DRUM VACUUM TUBE
Price
N/A
116
Now: PW07
FLAT WASHER 5/16
Price
N/A
117
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
118
HOSE CLAMP 1-1/4"
Price
N/A
119
TUBE PLUG 1-1/4"
Price
N/A
120
FOAM TAPE 3 X 6 X 300MM
Price
N/A
121
VACUUM HOSE CLIP 2-1/2"
Price
N/A
122
COLLECTION DRUM VACUUM RING
Price
N/A
123
DRUM COLLECTION BAG 640 X 1200MM
Price
N/A
125
GREEN GROUNDING WIRE 12G 6"
Price
N/A
126
JUNCTION BOX
Price
N/A
127
DRUM LID PVC RUBBER SEAL 2M
Price
N/A
128
CYCLONE FUNNEL ADAPTER
Price
N/A
129
HEX BOLT 3/8-16 X 11
Price
N/A
130
DRUM LID CONNECTING PLATE
Price
N/A
131
COLLECTION LID HANDLE
Price
N/A
132
DRUM LID SPRING
Price
N/A
133
***USE P0441099***
Price
N/A
134
***USE P0441115***
Price
N/A
135
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
136
Now: PN40
ACORN NUT 5/16-18
Price
N/A
137
COLLECTION DRUM HANDLE PLASTIC
Price
N/A
138
Now: PCB05
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
139
HANDLE HOOK
Price
N/A
140
HANDLE HOOK BRACKET
Price
N/A
141
Now: PWF01
FENDER WASHER 5/16
Price
N/A
142
FLAT WASHER 3/8 THIN
Price
N/A
143
PRESSURE GAUGE W/MOUNTING BRACKET
144
AIR HOSE
145
STRAIN RELIEF TYPE-3 M16-2
Item is no longer available
Price
N/A
146
PRESSURE GAUGE W/MOUNTING BRACKET
Price
N/A
147
PRESSURE GAUGE W/MOUNTING BRACKET
Price
N/A
148
Now: PN07M
HEX NUT M3-.5
Price
N/A
201
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
202
TAP SCREW M4 X 12
Price
N/A
203
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
204
Now: PN05
HEX NUT 1/4-20
Price
N/A
207
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
208
Now: PW06
FLAT WASHER 1/4
Price
N/A
222
OUTLET V1
222V2
OUTLET V2.07.20
Item is no longer available
Price
N/A
223
FILTER ADAPTER GASKET
224
FILTER ADAPTER
225
HEPA SUPPORT LEG (TOP)
226
HEPA SUPPORT LEG (MIDDLE)
227
HEPA SUPPORT LEG (BOTTOM)
228
ADJUSTABLE ANCHOR M16
Item is no longer available
Price
N/A
229
PULL WIRE RAIL COVER
Item is no longer available
Price
N/A
230
HEPA FILTER BODY (RIGHT)
230-1
HEPA FILTER OUTER
230-2
HEPA Filter for G0441
Price
N/A
230-3
HEPA FILTER BOTTOM PLATE
230-4
HEPA FILTER CAGE 595 X 595
230-5
FILTER BRUSH
231
HEPA FILTER BODY (LEFT)
232A
HEPA Filter Kit for G0442 Dust Collector
Price
N/A
232AV2
HEPA FILTER KIT V2.07.20
Item is no longer available
Price
N/A
270
COLLECTOR MOUNTING BRACKET V1
270V2
COLLECTOR MOUNTING BRACKET V2.07.20
Item is no longer available
Price
N/A
301

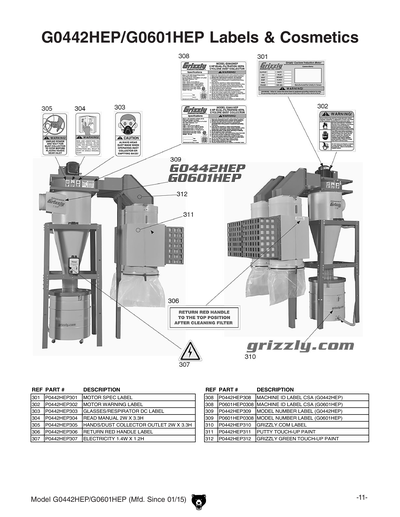

MOTOR SPEC LABEL
Item is no longer available
Price
N/A
302
MOTOR WARNING LABEL
Item is no longer available
Price
N/A
303
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
304
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
305
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
306
RETURN RED HANDLE LABEL
Item is no longer available
Price
N/A
307
ELECTRICITY 1.4W X 1.2H
Price
N/A
308
MACHINE ID LABEL CSA (G0442HEP)
Item is no longer available
Price
N/A
309
MODEL NUMBER LABEL (G0442HEP)
Item is no longer available
Price
N/A
310
GRIZZLY.COM LABEL
Item is no longer available
Price
N/A
311
GREY PUTTY REF G0504
Price
N/A
312
N/S GRIZZLY GREEN G1023S
Price
N/A
BOX2
COMPLETE BOX 2 OF 5 FOR G0442HEP
Item is no longer available
Price
N/A
MANUAL
MAN FOR G0442/G0601 MFD-11/09-7/10 V1.
Price
N/A
