Parts for G0443HEP - 1-1/2 HP Dual-Filtration HEPA Cyclone Dust Collector

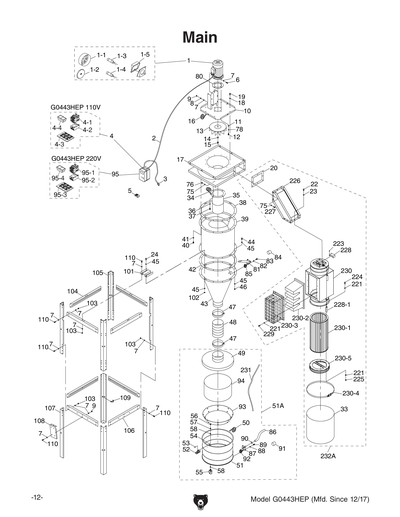

Part Diagram for G0443HEP
Part Diagram for G0443HEP
Part Diagram for G0443HEP
Part Diagram for G0443HEP
Part Diagram for G0443HEP
Part Diagram for G0443HEP

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

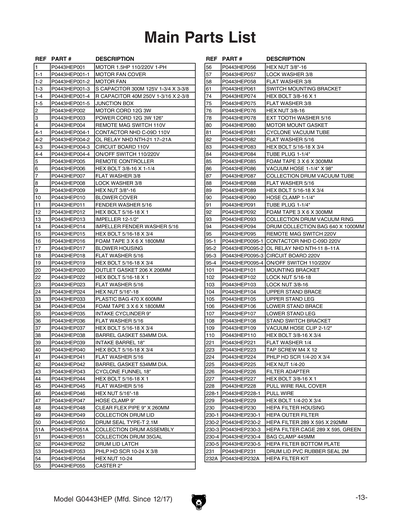

Ref #
Part #
Description
1
MOTOR 1.5HP 110V/220V 1-PH
Price
N/A
1-1
MOTOR FAN COVER
Price
N/A
1-2
MOTOR FAN
Price
N/A
1-3
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
1-4
R CAPACITOR 40M 250V 1-3/16 X 2-3/8
Price
N/A
1-5
JUNCTION BOX
Price
N/A
2
MOTOR CORD 10G 3W
Price
N/A
3
POWER CORD 12AWG 3C 3.2M
Price
N/A
4
REMOTE MAG SWITCH 110V V2.02.06
Price
N/A
4-1
CONTACTOR NHD C-09D 110V
Price
N/A
4-2
OL RELAY NHD NTH-21 17-21A
Price
N/A
4-3
CIRCUIT BOARD 110V
Price
N/A
4-4
ON/OFF SWITCH 110/220V
Price
N/A
5
REMOTE CONTROLLER
Price
N/A
6
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
7
FLAT WASHER 3/8
Price
N/A
8
LOCK WASHER 3/8
Price
N/A
9
HEX NUT 3/8-16
Price
N/A
95-1
CONTACTOR NHD C-09D 220V
Price
N/A
95-2
OL RELAY NHD NTH-11 8-11A
Price
N/A
95-3
CIRCUIT BOARD 220V
Price
N/A
95-4
ON/OFF SWITCH 110/220V
Price
N/A
10
BLOWER COVER
Price
N/A
11
FENDER WASHER 5/16
Price
N/A
12
HEX BOLT 5/16-18 X 1
Price
N/A
13
IMPELLER 12-1/2"
Price
N/A
14
IMPELLER FENDER WASHER 5/16
Price
N/A
15
HEX BOLT 5/16-18 X 3/4
Price
N/A
16
FOAM TAPE 3 X 6 X 1800MM
Price
N/A
17
BLOWER HOUSING
Price
N/A
18
FLAT WASHER 5/16
Price
N/A
19
HEX BOLT 5/16-18 X 3/4
Price
N/A
20
OUTLET GASKET 206 X 206MM
Price
N/A
22
HEX BOLT 5/16-18 X 1
Price
N/A
23
FLAT WASHER 5/16
Price
N/A
24
HEX NUT 5/16-18
Price
N/A
33
PLASTIC BAG 470 X 600MM V2.11.09
Price
N/A
34
FOAM TAPE 3 X 6 X 1800MM
Price
N/A
35
INTAKE CYCLINDER 9"
Price
N/A
36
FLAT WASHER 5/16
Price
N/A
37
HEX BOLT 5/16-18 X 3/4
Price
N/A
38
BARREL GASKET 534MM DIA.
Price
N/A
39
INTAKE BARREL 18"
Price
N/A
40
HEX BOLT 5/16-18 X 3/4
Price
N/A
41
FLAT WASHER 5/16
Price
N/A
42
BARREL GASKET 534MM DIA.
Price
N/A
43
CYCLONE FUNNEL 18" V2.08.10
Price
N/A
44
HEX BOLT 5/16-18 X 1
Price
N/A
45
FLAT WASHER 5/16
Price
N/A
46
HEX NUT 5/16-18
Price
N/A
47
HOSE CLAMP 9"
Price
N/A
48
CLEAR FLEX PIPE 9" X 260MM
Price
N/A
49
COLLECTION DRUM LID V2.08.06
Price
N/A
50
DRUM SEAL TYPE-T 2.1M V2.11.09
Price
N/A
51
COLLECTION DRUM 35GAL V2.08.10
Price
N/A
51A
COLLECTION DRUM ASSEMBLY V1
Price
N/A
52
DRUM LID LATCH
Price
N/A
53
PHLP HD SCR 10-24 X 3/8
Price
N/A
54
HEX NUT 10-24
Price
N/A
55
CASTER 2"
Price
N/A
56
HEX NUT 3/8-16
Price
N/A
57
LOCK WASHER 3/8
Price
N/A
58
FLAT WASHER 3/8
Price
N/A
61
SWITCH MOUNTING BRACKET
Price
N/A
74
HEX BOLT 3/8-16 X 1
Price
N/A
75
FLAT WASHER 3/8
Price
N/A
76
HEX NUT 3/8-16
Price
N/A
78
EXT TOOTH WASHER 5/16
Price
N/A
80
MOTOR MOUNT GASKET
Price
N/A
81
CYCLONE VACUUM TUBE
Price
N/A
82
FLAT WASHER 5/16
Price
N/A
83
HEX BOLT 5/16-18 X 3/4
Price
N/A
84
TUBE PLUG 1-1/4"
Price
N/A
85
FOAM TAPE 3 X 6 X 300MM
Price
N/A
86
VACUUM HOSE 1-1/4" X 98"
Price
N/A
87
COLLECTION DRUM VACUUM TUBE
Price
N/A
88
FLAT WASHER 5/16
Price
N/A
89
HEX BOLT 5/16-18 X 3/4
Price
N/A
90
HOSE CLAMP 1-1/4"
Price
N/A
91
TUBE PLUG 1-1/4"
Price
N/A
92
FOAM TAPE 3 X 6 X 300MM
Price
N/A
93
COLLECTION DRUM VACUUM RING
Price
N/A
94
DRUM COLLECTION BAG 640 X 1000MM
Price
N/A
95
REMOTE MAG SWITCH 220V V2.02.06
Price
N/A
101
MOUNTING BRACKET V1
Price
N/A
102
LOCK NUT 5/16-18
Price
N/A
103
LOCK NUT 3/8-16
Price
N/A
104
UPPER STAND BRACE
Price
N/A
105
UPPER STAND LEG V2.07.10
Price
N/A
106
LOWER BRACKET BRACE V2.03.12
Price
N/A
107
LOWER STAND LEG V2.07.10
Price
N/A
108
STAND SWITCH BRACKET V2.03.12
Price
N/A
109
VACUUM HOSE CLIP 2-1/2"
Price
N/A
110
HEX BOLT 3/8-16 X 3/4
Price
N/A
221
FLAT WASHER 1/4
Price
N/A
223
TAP SCREW M4 X 12
Price
N/A
224
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
225
HEX NUT 1/4-20
Price
N/A
226
Price
$307.95
227
HEX BOLT 3/8-16 X 1
Price
N/A
228
PULL WIRE RAIL COVER
Price
N/A
228-1
PULL WIRE
Price
N/A
229
HEX BOLT 1/4-20 X 3/4
Price
N/A
230
HEPA FILTER HOUSING
Item is no longer available
Price
N/A
230-1
HEPA OUTER FILTER
Price
N/A
230-2
HEPA Filter for G0703/P, G0443, G0440
Price
N/A
230-3
HEPA FILTER CAGE 289 X 595, GREEN
Price
N/A
230-4
BAG CLAMP 445MM V2.11.09
Price
N/A
230-5
HEPA FILTER BOTTOM PLATE
Price
N/A
231
DRUM LID PVC RUBBER SEAL 2M
Price
N/A
232A
HEPA Filter Kit for G0443 Dust Collector
Price
N/A

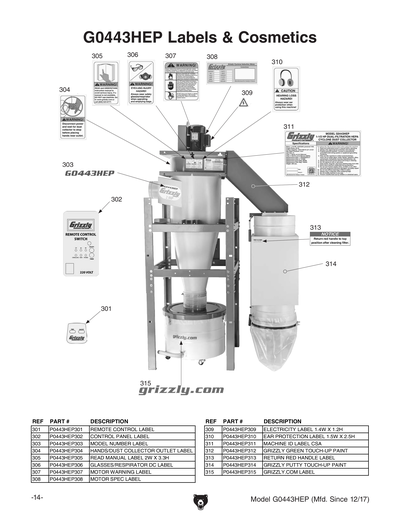

301
REMOTE CONTROL LABEL
Item is no longer available
Price
N/A
302
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
303
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
304
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
305
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
306
GLASSES/RESPIRATOR DC 2W X 3.3H
Price
N/A
307
MOTOR WARNING LABEL
Item is no longer available
Price
N/A
308
MOTOR SPEC LABEL
Price
N/A
309
ELECTRICITY 1.4W X 1.2H
Price
N/A
310
EAR PROTECTION 1.5W X 2.5H
Price
N/A
311
MACHINE ID LABEL CSA
Item is no longer available
Price
N/A
312
N/S GRIZZLY GREEN G1023S
Price
N/A
313
RETURN RED HANDLE LABEL
Item is no longer available
Price
N/A
314
GREY PUTTY REF G0504
Price
N/A
315
GRIZZLY.COM LABEL
Item is no longer available
Price
N/A
