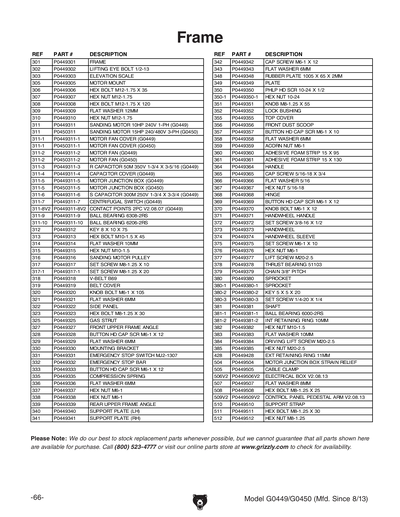

Parts for G0450 - 37" 15 HP 3-Phase Drum Sander

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

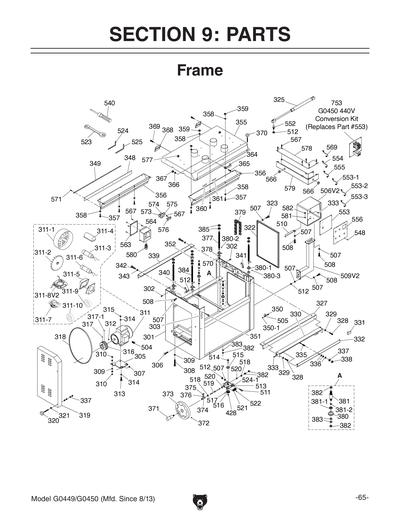

1 P0450001
Replaced By P0449001
*DISCD*MAIN FRAME
N/A View Replacement
2 P0450002
Replaced By P0449002
*DISCD*LIFT RING
N/A View Replacement
3 P0450003
Replaced By P0449003
*DISCD*SCALE
N/A View Replacement
5 P0450005
Replaced By P0449005
*DISCD*MOTOR BASE
N/A View Replacement
6 P0450006
Replaced By PB75M
HEX BOLT M12-1.75 X 35
N/A View Replacement
8 P0450008
Replaced By PB143M
HEX BOLT M12-1.75 X 120
N/A View Replacement
9 P0450009
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
10 P0450010
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
11 P0450011 *DISCD*MOTOR 15HP $1,098.25
11-1 P0450011-1
*DISCD*MOTOR COVER
Item is no longer available
N/A
11-2 P0450011-2
*DISCD*MOTOR FAN
Item is no longer available
N/A
11-5 P0450011-5
*DISCD*WIRING BOX
Item is no longer available
N/A
12 P0450012
Replaced By PK109M
KEY 7 X 7 X 35
N/A View Replacement
13 P0450013
Replaced By PB116M
HEX BOLT M10-1.5 X 45
N/A View Replacement
14 P0450014
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
15 P0450015
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
16 P0450016
Replaced By P0449016
*DISCD*MAIN MOTOR PULLEY
N/A View Replacement
17 P0450017
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
18 P0450018
Replaced By PVB69
V-BELT B69
N/A View Replacement
19 P0450019
Replaced By P0449019
*DISCD*BELT COVER
N/A View Replacement
20 P0450020
Replaced By PCAP168M
CAP SCREW M6-1 X 90
N/A View Replacement
21 P0450021
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
22 P0450022
Replaced By P0449022
*DISCD*SIDE PANEL
N/A View Replacement
23 P0450023
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
27 P0450027
Replaced By P0449027
*DISCD*FRONT UPPER FRAME ANGLE
N/A View Replacement
28 P0450028
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
29 P0450029
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
30 P0450030
Replaced By P0449030
*DISCD*MOUNTING BRACKET
N/A View Replacement
31 P0450031
Replaced By P0449031
*DISCD*EMERGENCY STOP SWITCH
N/A View Replacement
32 P0450032
Replaced By P0449032
*DISCD*SHUTOFF BAR
N/A View Replacement
33 P0450033
Replaced By PCAP115M
BUTTON HD CAP SCR M6-1 X 16
N/A View Replacement
34 P0450034
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
35 P0450035
Replaced By P0449035
*DISCD*COMPRESSION SPRING
N/A View Replacement
36 P0450036
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
37 P0450037
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
38 P0450038
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
39 P0450039
Replaced By P0449039
*DISCD*REAR UPPER FRAME ANGLE
N/A View Replacement
40 P0450040
Replaced By P0449040
*DISCD*SUPPORT PLATE LEFT
N/A View Replacement
41 P0450041
Replaced By P0449041
*DISCD*SUPPORT PLATE RIGHT
N/A View Replacement
42 P0450042
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
43 P0450043
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
44 P0450044
Replaced By P0449044
*DISCD*DUST GUIDE SUPPORT
N/A View Replacement
45 P0450045
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
46 P0450046
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
47 P0450047
Replaced By P0449047-1
*DISCD*DUST SCOOP CONVERSION KIT
N/A View Replacement
47-1 P0450047-1
Replaced By P0449047-1
*DISCD*DUST SCOOP CONVERSION KIT
N/A View Replacement
48 P0450048
Replaced By P0449048
*DISCD*RUBBER PLATE
N/A View Replacement
49 P0450049
Replaced By P0449049
*DISCD*PLATE
N/A View Replacement
50 P0450050
Replaced By P0449050
*DISCD*RIVET
N/A View Replacement
51 P0450051
Replaced By PB83M
HEX BOLT M6-1 X 16
N/A View Replacement
52 P0450052
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
53 P0450053
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
54 P0450054
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
55 P0450055
Replaced By P0449047-1
*DISCD*DUST SCOOP CONVERSION KIT
N/A View Replacement
56 P0450056
Replaced By P0449047-1
*DISCD*DUST SCOOP CONVERSION KIT
N/A View Replacement
57 P0450057
Replaced By PBHS11M
BUTTON HD CAP SCR M6-1 X 10
N/A View Replacement
58 P0450058
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
59 P0450059
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
60 P0450060
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
64 P0450064
Replaced By P0449064
*DISCD*HANDLE
N/A View Replacement
65 P0450065
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
66 P0450066
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
67 P0450067
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
68 P0450068
Replaced By P0449068
*DISCD*HINGE
N/A View Replacement
69 P0450069
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
70 P0450070
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
71 P0450071
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
72 P0450072
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
73 P0450073
Replaced By P0449073
*DISCD*HAND WHEEL
N/A View Replacement
74 P0450074
Replaced By P0449074
*DISCD*HAND WHEEL SLEEVE
N/A View Replacement
75 P0450075
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
76 P0450076
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
77 P0450077
Replaced By P0449077
*DISCD*LIFT SCREW
N/A View Replacement
78 P0450078
Replaced By P51103
THRUST BEARING 51103
N/A View Replacement
79 P0450079
Replaced By P0449079
*DISCD*CHAIN 3/8 PITCH
N/A View Replacement
80 P0450080
Replaced By P0449080
*DISCD*SPROCKET
N/A View Replacement
81 P0450081
Replaced By PCAP71M
CAP SCREW M10-1.5 X 60
N/A View Replacement
82 P0450082
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
83 P0450083
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
84 P0450084
Replaced By P0449084
*DISCD*DRIVING LIFT SCREW
N/A View Replacement
85 P0450085
Replaced By PN28M
HEX NUT M20-2.5
N/A View Replacement
86 P0450086
Replaced By P0449086
*DISCD*TABLE
N/A View Replacement
87 P0450087
Replaced By P0449087
*DISCD*TABLE SUPPORT
N/A View Replacement
88 P0450088
Replaced By P0449088
*DISCD*TABLE SUPPORT
N/A View Replacement
89 P0450089
Replaced By PN20M
HEX NUT M32-2
N/A View Replacement
90 P0450090
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
91 P0450091
Replaced By P0449091
*DISCD*ROLLER SUPPORT BRACKET
N/A View Replacement
92 P0450092
Replaced By P0449092
*DISCD*ROLLER SUPPORT BRACKET
N/A View Replacement
93 P0450093
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
94 P0450094
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
95 P0450095
Replaced By PB141M
HEX BOLT M12-1.75 X 80
N/A View Replacement
96 P0450096
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
97 P0450097
Replaced By P0449097
*DISCD*PRESSURE ROLLER
N/A View Replacement
98 P0450098
Replaced By P6204-2RS
BALL BEARING 6204-2RS
N/A View Replacement
99 P0450099
Replaced By P0449099
*DISCD*BRACKET
N/A View Replacement
100 P0450100
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
101 P0450101
Replaced By P0449101
*DISCD*ROLLER COVER
N/A View Replacement
102 P0450102
Replaced By P0449102
*DISCD*ROLLER COVER
N/A View Replacement
103 P0450103
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
104 P0450104
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
105 P0450105
Replaced By P0449105
*DISCD*CONVEYOR BELT
N/A View Replacement
106 P0450106
Replaced By P0449106
*DISCD*ROLLER SUPPORT BRACKET
N/A View Replacement
107 P0450107
Replaced By P0449107
*DISCD*POINTER
N/A View Replacement
108 P0450108
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
109 P0450109
Replaced By PB14M
HEX BOLT M10-1.5 X 35
N/A View Replacement
110 P0450110
Replaced By P0449110
*DISCD*ROLLER
N/A View Replacement
111 P0450111
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
112 P0450112
Replaced By P0449112
*DISCD*BEARING UCFL204
N/A View Replacement
113 P0450113
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
114 P0450114
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
115 P0450115
Replaced By P0449115
*DISCD*ROLLER SUPPORT BRACKET
N/A View Replacement
116 P0450116
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
117 P0450117
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
119 P0450119
Replaced By P0449119
*DISCD*SPROCKET
N/A View Replacement
120 P0450120
Replaced By PSS19M
SET SCREW M8-1.25 X 30
N/A View Replacement
121 P0450121
Replaced By P0449121
*DISCD*CHAIN 3/8
N/A View Replacement
122 P0450122
Replaced By P0449122
*DISCD*SPROCKET
N/A View Replacement
123 P0450123
Replaced By PK15M
KEY 5 X 5 X 35
N/A View Replacement
124 P0450124
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
125 P0450125
Replaced By P0449125
*DISCD*GEAR SET
N/A View Replacement
126 P0450126
Replaced By PB20M
HEX BOLT M8-1.25 X 35
N/A View Replacement
127 P0450127
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
128 P0450128
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
129 P0450129
Replaced By P0449129
*DISCD*SHAFT
N/A View Replacement
130 P0450130
Replaced By PSS19M
SET SCREW M8-1.25 X 30
N/A View Replacement
131 P0450131
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
132 P0450132
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
133 P0450133
Replaced By P0449133
*DISCD*COLLAR
N/A View Replacement
134 P0450134
Replaced By P0449134
*DISCD*COMPRESSION SPRING
N/A View Replacement
135 P0450135
Replaced By P0449135
*DISCD*PULLEY
N/A View Replacement
136 P0450136
Replaced By P0449136
*DISCD*V-BELT AX-25
N/A View Replacement
137 P0450137
Replaced By P0449137
*DISCD*PULLEY
N/A View Replacement
138 P0450138
*DISCD*MOTOR 1/3HP 220/440V 6P
Item is no longer available
N/A
138-1 P0450138-1
*DISCD*FAN COVER
Item is no longer available
N/A
138-2 P0450138-2
*DISCD*FAN
Item is no longer available
N/A
138-7 P0450138-7
*DISCD*WIRING BOX
Item is no longer available
N/A
139 P0450139
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
140 P0450140
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
141 P0450141
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
142 P0450142
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
143 P0450143
Replaced By P0449143
*DISCD*SHAFT
N/A View Replacement
144 P0450144
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
145 P0450145
Replaced By P0449145
*DISCD*PULLEY
N/A View Replacement
146 P0450146
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
147 P0450147
Replaced By P0449147
*DISCD*SPECIAL PULLEY BEARING
N/A View Replacement
148 P0450148
Replaced By P0449148
*DISCD*SHAFT
N/A View Replacement
149 P0450149
Replaced By PB142M
HEX BOLT M10-1.5 X 12
N/A View Replacement
150 P0450150
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
151 P0450151
Replaced By P0449151
*DISCD*PULLEY
N/A View Replacement
152 P0450152
Replaced By PR18M
EXT RETAINING RING 17MM
N/A View Replacement
153 P0450153
Replaced By P0449153
*DISCD*SPECIAL PULLEY BEARING
N/A View Replacement
154 P0450154
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
155 P0450155
Replaced By P0449155
*DISCD*SPECIAL NUT
N/A View Replacement
156 P0450156
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
157 P0450157
Replaced By P0449157
*DISCD*KNURLED COLLAR
N/A View Replacement
158 P0450158
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
159 P0450159
Replaced By P0449159
*DISCD*HAND WHEEL
N/A View Replacement
160 P0450160
Replaced By P0449160
*DISCD*BAR
N/A View Replacement
161 P0450161
Replaced By P0449161
*DISCD*SLEEVE
N/A View Replacement
162 P0450162
Replaced By P0449162
*DISCD*BAR
N/A View Replacement
163 P0450163
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
169 P0450169
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
170 P0450170
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
171 P0450171
Replaced By P0449171
*DISCD*COVER
N/A View Replacement
177 P0450177
Replaced By P0449177
*DISCD*INFEED GUARD
N/A View Replacement
178 P0450178
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
179 P0450179
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
180 P0450180
Replaced By P0449180

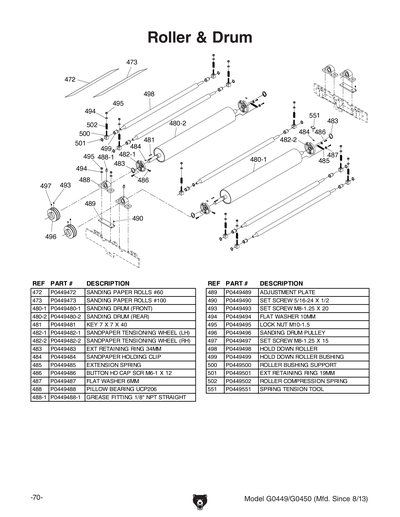

*DISCD*SANDING DRUM 2PC
N/A View Replacement
181 P0450181
Replaced By PK55M
KEY 7 X 7 X 40
N/A View Replacement
182 P0450182
Replaced By P0449182
*DISCD*TENSIONING WHEEL LEFT DOUBLE
N/A View Replacement
183 P0450183
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
184 P0450184
Replaced By P0449184
*DISCD*SANDING PAPER HOLDING CLIP
N/A View Replacement
185 P0450185
Replaced By P0449185
*DISCD*EXTENSION SPRING
N/A View Replacement
186 P0450186
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
187 P0450187
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
188 P0450188
Replaced By P0449188
*DISCD*PILLOW BEARING UCP206
N/A View Replacement
189 P0450189
Replaced By P0449189
*DISCD*WEDGE FOR 2-HEAD
N/A View Replacement
190 P0450190
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
191 P0450191
Replaced By PB73M
HEX BOLT M10-1.5 X 50
N/A View Replacement
192 P0450192
Replaced By PB116M
HEX BOLT M10-1.5 X 45
N/A View Replacement
193 P0450193
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
194 P0450194
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
195 P0450195
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
196 P0450196
Replaced By P0449196
*DISCD*SANDING DRUM PULLEY
N/A View Replacement
197 P0450197
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
198 P0450198
Replaced By P0449198
*DISCD*HOLD DOWN ROLLER
N/A View Replacement
199 P0450199
Replaced By P0449199
*DISCD*HOLD DOWN ROLLER BUSHING
N/A View Replacement
200 P0450200
Replaced By P0449200
*DISCD*ROLLER BUSHING SUPPORT
N/A View Replacement
201 P0450201
Replaced By PR19M
EXT RETAINING RING 28MM
N/A View Replacement
202 P0450202
Replaced By P0449202
*DISCD*HOLD DOWN ROLLER SPRING
N/A View Replacement
203 P0450203
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
204 P0450204
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
205 P0450205
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
206 P0450206
Replaced By P0449206
*DISCD*SWITCH BOX
N/A View Replacement
207 P0450207
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
208 P0450208
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
209 P0450209
Replaced By P0449209
*DISCD*SUPPORT
N/A View Replacement
210 P0450210
Replaced By P0449210
*DISCD*SUPPORT STRAP
N/A View Replacement
212 P0450212
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
213 P0450213
Replaced By P0449213
*DISCD*GEAR BOX
N/A View Replacement
214 P0450214
Replaced By P0449214
*DISCD*CONNECTING SHAFT
N/A View Replacement
215 P0450215
Replaced By P0449215
*DISCD*HOLD DOWN ROLLER BUSHING
N/A View Replacement
216 P0450216
Replaced By P0449216
*DISCD*GEAR
N/A View Replacement
217 P0450217
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
218 P0450218
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
219 P0450219
Replaced By P0449219
*DISCD*WORM GEAR
N/A View Replacement
220 P0450220
Replaced By P0449220
*DISCD*BUSHING
N/A View Replacement
221 P0450221
Replaced By P0449221
*DISCD*GEAR
N/A View Replacement
222 P0450222
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
223 P0450223
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
224 P0450224
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
225 P0450225
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
226 P0450226
Replaced By PLABEL-17A
FEED ONLY ONE 5.3W X 2.8H V2.04.08
N/A View Replacement
227 P0450227
Replaced By PLABEL-16A
SANDER REAR EJECT 5.3W X 2.8H V2.04.08
N/A View Replacement
228 P0450228
Replaced By PLABEL-18
UNPLUG BANDSAW 2W X 3.3H
N/A View Replacement
229 P0450229
Replaced By P0449229

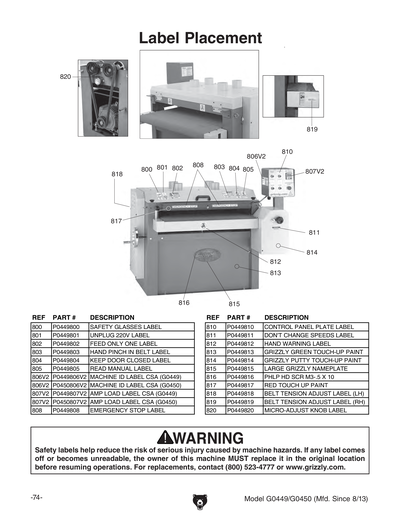

*DISCD*LABEL DON T CHANGE SPEEDS
N/A View Replacement
230 P0450230
Replaced By P0449230
*DISCD*LABEL TENSION AJST LEFT
N/A View Replacement
231 P0450231
Replaced By P0449231
*DISCD*LABEL TENSION AJST RIGHT
N/A View Replacement
232 P0450232
Replaced By PLABEL-12
***USE PLABEL-12A***
N/A View Replacement
233 P0450233
Replaced By P0449233
*DISCD*LABEL EMERGENCY STOP
N/A View Replacement
234 P0450234
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
N/A View Replacement
235 P0450235
Replaced By PLABEL-13
DISCONNECT SANDER 220V 2W X 3.3H
N/A View Replacement
236 P0450236
Replaced By P0449236
*DISCD*MACHINE ID LABEL
N/A View Replacement
237 P0450237
Replaced By P0449237
*DISCD*GRIZZLY LOGO PLATE
N/A View Replacement
238 P0450238
Replaced By P0449238
*DISCD*HAND WARNING
N/A View Replacement
239 P0450239
Replaced By PLABEL-30
CLOSE DOOR LABEL 2 X 3.3
N/A View Replacement
240 P0450240
Replaced By P0449240
*DISCD*PHLP HD SCREWDRIVER
N/A View Replacement
241 P0450241

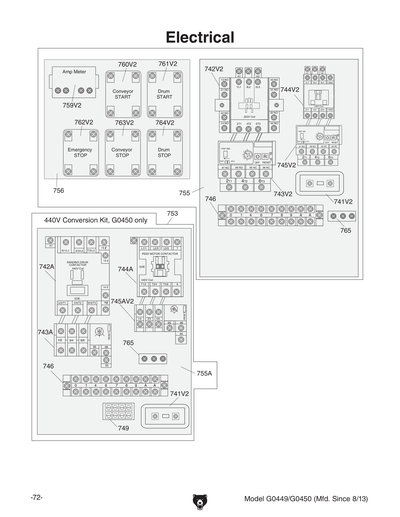

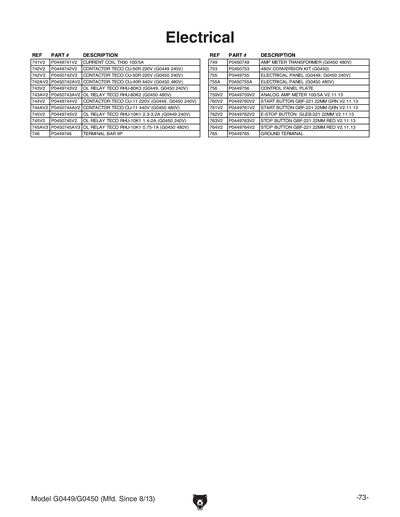

*DISCD*RELAY 220 3PH BTH-60 SDE
Item is no longer available
N/A
241A P0450241A *DISCD*RELAY 440V 3PH NTH-25 NHD $58.25
242 P0450242 *DISCD*RELAY 220 3PH NTH-1.9 SDE $42.50
242A P0450242A *DISCD*RELAY 440 3PH NTH-1.05 NHD $36.50
243 P0450243
*DISCD*CONTACTOR 220V 3PH 60A SDE
Item is no longer available
N/A
243A P0450243A *DISCD*CONTACTOR 440V 3PH 40A NHD $108.50
244 P0450244
*DISCD*CONTACTOR 220V 3PH 25A SDE
Item is no longer available
N/A
244A P0450244A *DISCD*CONTACTOR 440V 3PH 25A NHD $41.00
245 P0450245
Replaced By P0449245
*DISCD*START BUTTON DRUM
N/A View Replacement
246 P0450246
Replaced By P0449246
*DISCD*STOP BUTTON DRUM
N/A View Replacement
247 P0450247
Replaced By P0449247
*DISCD*START BUTTON CONVEYOR
N/A View Replacement
248 P0450248
Replaced By P0449248
*DISCD*STOP BUTTON CONVEYOR
N/A View Replacement
249 P0450249
Replaced By P0449249
*DISCD*AMP METER, DIGITAL
N/A View Replacement
249A P0450249A
*DISCD*AMP METER, DIGITAL 440V
Item is no longer available
N/A
250 P0450250
Replaced By P0449250
*DISCD*E-STOP BUTTON 250V 10A
N/A View Replacement
251 P0450251
Replaced By P0449251
*DISCD*SPRING TENSION TOOL
N/A View Replacement
252 P0450252
Replaced By P0449252
*DISCD*TRANSFORMER 75A/5A
N/A View Replacement
253 P0450253 *DISCD*CONVERSION KIT NHD 440V $375.50
254 P0450254 *DISCD*AMP METER TRANSFORMER $31.25
255 P0450255
*DISCD*ELECTRIC PANEL PLATE 220V
Item is no longer available
N/A
255A P0450255A *DISCD*ELECTRIC PANEL PLATE 420V $44.75
301 P0450301
Replaced By P0449301
FRAME
N/A View Replacement
302 P0450302
Replaced By P0449302
LIFTING EYE BOLT 1/2-13
N/A View Replacement
303 P0450303
Replaced By P0449303
ELEVATION SCALE
N/A View Replacement
305 P0450305
Replaced By P0449305
MOTOR MOUNT
N/A View Replacement
306 P0450306
Replaced By PB75M
HEX BOLT M12-1.75 X 35
N/A View Replacement
307 P0450307
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
308 P0450308
Replaced By PB143M
HEX BOLT M12-1.75 X 120
N/A View Replacement
309 P0450309
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
310 P0450310
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
311 P0450311 SANDING MOTOR 15HP 240/480V 3-PH $820.00
311-1 P0450311-1
MOTOR FAN COVER
N/A
311-10 P0450311-10
Replaced By P6306-2RS
BALL BEARING 6306-2RS
N/A View Replacement
311-2 P0450311-2
MOTOR FAN
N/A
311-3 P0450311-3
Replaced By PC050F
R CAPACITOR 50M 350V 1-3/4 X 3-5/16
N/A View Replacement
311-4 P0450311-4
Replaced By P0449311-4
CAPACITOR COVER
N/A View Replacement
311-5 P0450311-5
MOTOR JUNCTION BOX
N/A
311-6 P0450311-6
Replaced By PC300C
S CAPACITOR 300M 250V 1-3/4 X 3-3/4 SECC
N/A View Replacement
311-7 P0450311-7
Replaced By P0449311-7
CENTRIFUGAL SWITCH
N/A View Replacement
311-9 P0450311-9
Replaced By P6308-2RS
BALL BEARING 6308-2RS
N/A View Replacement
312 P0450312
Replaced By P9962Z1113
KEY 8 X 10 X 75
N/A View Replacement
313 P0450313
Replaced By PB116M
HEX BOLT M10-1.5 X 45
N/A View Replacement
314 P0450314
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
315 P0450315
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
316 P0450316
Replaced By P0449316
SANDING MOTOR PULLEY
N/A View Replacement
317 P0450317
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
317-1 P0450317-1
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
318 P0450318
Replaced By PVB69
V-BELT B69
N/A View Replacement
319 P0450319
Replaced By P0449319
BELT COVER
N/A View Replacement
320 P0450320
Replaced By P0449320
*DISCD*KNOB BOLT M6-1 X 105
N/A View Replacement
321 P0450321
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
322 P0450322
Replaced By P0449322
SIDE PANEL
N/A View Replacement
323 P0450323
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
324 P0450324
Replaced By P0449324
BEVEL GEAR COVER (RH)
N/A View Replacement

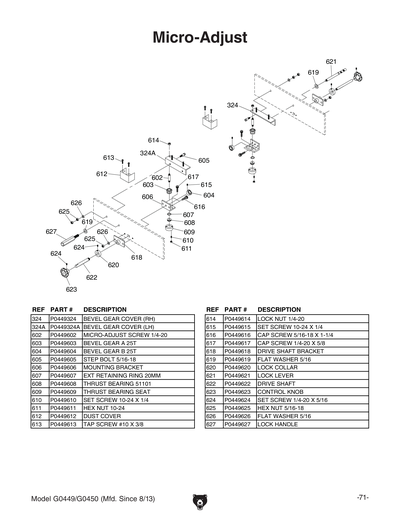

324A P0450324A
Replaced By P0449324A
BEVEL GEAR COVER (LH)
N/A View Replacement
325 P0450325
Replaced By P0449325
GAS STRUT
N/A View Replacement
327 P0450327
Replaced By P0449327
FRONT UPPER FRAME ANGLE
N/A View Replacement
328 P0450328
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
329 P0450329
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
330 P0450330
Replaced By P0449330
MOUNTING BRACKET
N/A View Replacement
331 P0450331
Replaced By P0449331
EMERGENCY STOP SWITCH MJ2-1307 15A/250V
N/A View Replacement
332 P0450332
Replaced By P0449332
EMERGENCY STOP BAR
N/A View Replacement
333 P0450333
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
335 P0450335
Replaced By P0449335
COMPRESSION SPRING
N/A View Replacement
336 P0450336
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
337 P0450337
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
338 P0450338
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
339 P0450339
Replaced By P0449339
REAR UPPER FRAME ANGLE
N/A View Replacement
340 P0450340
Replaced By P0449340
SUPPORT PLATE (LH)
N/A View Replacement
341 P0450341
Replaced By P0449341
SUPPORT PLATE (RH)
N/A View Replacement
342 P0450342
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
343 P0450343
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
348 P0450348
Replaced By P0449348
RUBBER PLATE 1005 X 65 X 2MM
N/A View Replacement
349 P0450349
Replaced By P0449349
PLATE
N/A View Replacement
350 P0450350
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
N/A View Replacement
350-1 P0450350-1
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
351 P0450351
Replaced By P0449351
KNOB M8-1.25 X 55
N/A View Replacement
352 P0450352
Replaced By P0449352
LOCK BUSHING
N/A View Replacement
355 P0450355
Replaced By P0449355
TOP COVER
N/A View Replacement
356 P0450356
Replaced By P0449356
FRONT DUST SCOOP
N/A View Replacement
357 P0450357
Replaced By PBHS11M
BUTTON HD CAP SCR M6-1 X 10
N/A View Replacement
358 P0450358
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
359 P0450359
Replaced By PN35M
ACORN NUT M6-1
N/A View Replacement
360 P0450360
Replaced By P0449360
ADHESIVE FOAM STRIP 15 X 95
N/A View Replacement
361 P0450361
Replaced By P0449361
ADHESIVE FOAM STRIP 15 X 130
N/A View Replacement
364 P0450364
Replaced By P0449364
HANDLE
N/A View Replacement
365 P0450365
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
366 P0450366
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
367 P0450367
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
368 P0450368
Replaced By P0449368
HINGE
N/A View Replacement
369 P0450369
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
370 P0450370
Replaced By P0449370
KNOB BOLT M6-1 X 12
N/A View Replacement
371 P0450371
Replaced By P0449371
HANDWHEEL HANDLE
N/A View Replacement
372 P0450372
Replaced By PSS09
SET SCREW 3/8-16 X 1/2
N/A View Replacement
373 P0450373
Replaced By P0449373
HANDWHEEL
N/A View Replacement
374 P0450374
Replaced By P0449374
HANDWHEEL SLEEVE
N/A View Replacement
375 P0450375
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
376 P0450376
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
377 P0450377
Replaced By P0449377
LIFT SCREW M20-2.5
N/A View Replacement
378 P0450378
Replaced By P51103
THRUST BEARING 51103
N/A View Replacement
379 P0450379
Replaced By P0449379
CHAIN 3/8" PITCH
N/A View Replacement
380 P0450380
Replaced By P0449380
SPROCKET
N/A View Replacement
380-1 P0450380-1
Replaced By P0449380-1
SPROCKET
N/A View Replacement
380-2 P0450380-2
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
380-3 P0450380-3
Replaced By PSS11
SET SCREW 1/4-20 X 1/4
N/A View Replacement
381 P0450381
Replaced By P0449381
SHAFT
N/A View Replacement
381-1 P0450381-1
Replaced By P60002RS
BALL BEARING 6000-2RS
N/A View Replacement
381-2 P0450381-2
Replaced By PR45M
INT RETAINING RING 10MM
N/A View Replacement
382 P0450382
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
383 P0450383
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
384 P0450384
Replaced By P0449384
DRIVING LIFT SCREW M20-2.5
N/A View Replacement
385 P0450385
Replaced By PN28M
HEX NUT M20-2.5
N/A View Replacement

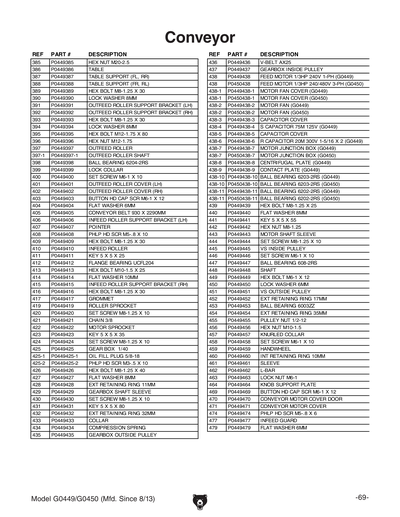

386 P0450386
Replaced By P0449386
TABLE
N/A View Replacement
387 P0450387
Replaced By P0449387
TABLE SUPPORT (FL, RR)
N/A View Replacement
388 P0450388
Replaced By P0449388
TABLE SUPPORT (FR, RL)
N/A View Replacement
389 P0450389
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
390 P0450390
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
391 P0450391
Replaced By P0449391
OUTFEED ROLLER SUPPORT BRACKET (LH)
N/A View Replacement
392 P0450392
Replaced By P0449392
OUTFEED ROLLER SUPPORT BRACKET (RH)
N/A View Replacement
393 P0450393
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
394 P0450394
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
395 P0450395
Replaced By PB141M
HEX BOLT M12-1.75 X 80
N/A View Replacement
396 P0450396
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
397 P0450397
Replaced By P0449397
OUTFEED ROLLER
N/A View Replacement
397-1 P0450397-1
Replaced By P0449397-1
OUTFEED ROLLER SHAFT
N/A View Replacement
398 P0450398
Replaced By P6204-2RS
BALL BEARING 6204-2RS
N/A View Replacement
399 P0450399
Replaced By P0449399
LOCK COLLAR
N/A View Replacement
400 P0450400
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
401 P0450401
Replaced By P0449401
OUTFEED ROLLER COVER (LH)
N/A View Replacement
402 P0450402
Replaced By P0449402
OUTFEED ROLLER COVER (RH)
N/A View Replacement
403 P0450403
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
404 P0450404
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
405 P0450405
Replaced By P0449405

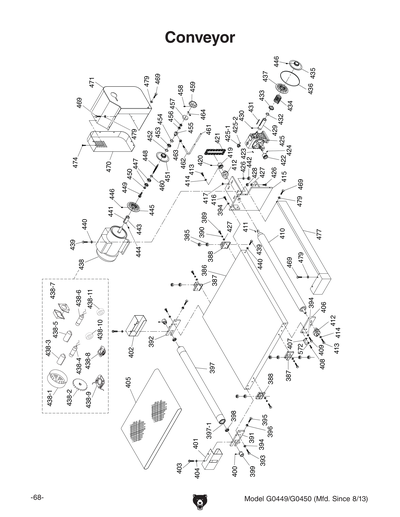

CONVEYOR BELT 930 X 2290MM
N/A View Replacement
406 P0450406
Replaced By P0449406
INFEED ROLLER SUPPORT BRACKET (LH)
N/A View Replacement
407 P0450407
Replaced By P0449407
POINTER
N/A View Replacement
408 P0450408
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
409 P0450409
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
410 P0450410
Replaced By P0449410
INFEED ROLLER
N/A View Replacement
411 P0450411
Replaced By PK23M
KEY 5 X 5 X 25
N/A View Replacement
412 P0450412
Replaced By P0449412
FLANGE BEARING UCFL204
N/A View Replacement
413 P0450413
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
414 P0450414
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
415 P0450415
Replaced By P0449415
INFEED ROLLER SUPPORT BRACKET (RH)
N/A View Replacement
416 P0450416
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
417 P0450417
Replaced By P0449417
GROMMET 15 X 19MM
N/A View Replacement
419 P0450419
Replaced By P0449419
ROLLER SPROCKET
N/A View Replacement
420 P0450420
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
421 P0450421
Replaced By P0449421
CHAIN 3/8
N/A View Replacement
422 P0450422
Replaced By P0449422
MOTOR SPROCKET
N/A View Replacement
423 P0450423
Replaced By PK15M
KEY 5 X 5 X 35
N/A View Replacement
424 P0450424
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
425 P0450425
Replaced By P0449425
GEAR BOX 1/40
N/A View Replacement
425-1 P0450425-1
Replaced By P0449425-1
OIL FILL PLUG 5/8-18
N/A View Replacement
425-2 P0450425-2
Replaced By PS55M
PHLP HD SCR M3-.5 X 10
N/A View Replacement
426 P0450426
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
427 P0450427
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
428 P0450428
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
429 P0450429
Replaced By P0449429
GEARBOX SHAFT SLEEVE
N/A View Replacement
430 P0450430
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
431 P0450431
Replaced By PK17M
KEY 5 X 5 X 80
N/A View Replacement
432 P0450432
Replaced By PR37M
EXT RETAINING RING 32MM
N/A View Replacement
433 P0450433
Replaced By P0449433
COLLAR
N/A View Replacement
434 P0450434
Replaced By P0449434
COMPRESSION SPRING
N/A View Replacement
435 P0450435
Replaced By P0449435
GEARBOX OUTSIDE PULLEY HALF
N/A View Replacement
436 P0450436
Replaced By PVAX25
V-BELT AX25
N/A View Replacement
437 P0450437
Replaced By P0449437
GEARBOX INSIDE PULLEY HALF
N/A View Replacement
438 P0450438 FEED MOTOR 1/3HP 240/480V 3-PH $202.00
438-1 P0450438-1
MOTOR FAN COVER
N/A
438-10 P0450438-10
Replaced By P6203-2RS
BALL BEARING 6203-2RS
N/A View Replacement
438-11 P0450438-11
Replaced By P6202-2RS
BALL BEARING 6202-2RS
N/A View Replacement
438-2 P0450438-2
MOTOR FAN
N/A
438-3 P0450438-3
Replaced By P0449438-3
CAPACITOR COVER
N/A View Replacement
438-4 P0450438-4
Replaced By PC075
N/A View Replacement
438-5 P0450438-5
Replaced By P0449438-5
CAPACITOR COVER
N/A View Replacement
438-6 P0450438-6
Replaced By PC020C
R CAPACITOR 20M 300V 1-5/16 X 2
N/A View Replacement
438-7 P0450438-7
MOTOR JUNCTION BOX
N/A
439 P0450439
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
440 P0450440
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
441 P0450441
Replaced By PK112M
KEY 5 X 5 X 55
N/A View Replacement
442 P0450442
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
443 P0450443
Replaced By P0449443
MOTOR SHAFT SLEEVE
N/A View Replacement
444 P0450444
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
445 P0450445
Replaced By P0449435
GEARBOX OUTSIDE PULLEY HALF
N/A View Replacement
446 P0450446
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
447 P0450447
Replaced By P608-2RS
BALL BEARING 608-2RS
N/A View Replacement
448 P0450448
Replaced By P0449448
SHAFT
N/A View Replacement
449 P0450449
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
450 P0450450
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
451 P0450451
Replaced By P0449451
VS OUTSIDE PULLEY
N/A View Replacement
452 P0450452
Replaced By PR18M
EXT RETAINING RING 17MM
N/A View Replacement
453 P0450453
Replaced By G3850
Bearing - 35mm x 17mm
N/A View Replacement
454 P0450454
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
455 P0450455
Replaced By P0449455
PULLEY NUT 1/2-12
N/A View Replacement
456 P0450456
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
457 P0450457
Replaced By P0449457
KNURLED COLLAR
N/A View Replacement
458 P0450458
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
459 P0450459
Replaced By P0449459
HANDWHEEL
N/A View Replacement
460 P0450460
Replaced By PR45M
INT RETAINING RING 10MM
N/A View Replacement
461 P0450461
Replaced By P0449462A
BAR WITH SLEEVE
N/A View Replacement
462 P0450462
Replaced By P0449462A
BAR WITH SLEEVE
N/A View Replacement
463 P0450463
Replaced By PLN03M
LOCK NUT M6-1
N/A View Replacement
464 P0450464
Replaced By P0449464
KNOB SUPPORT PLATE
N/A View Replacement
469 P0450469
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
470 P0450470
Replaced By P0449470
CONVEYOR MOTOR COVER DOOR
N/A View Replacement
471 P0450471
Replaced By P0449471
CONVEYOR MOTOR COVER
N/A View Replacement
472 P0450472
Replaced By P0449472
SANDING PAPER ROLLS #60
N/A View Replacement
473 P0450473
Replaced By P0449473
SANDING PAPER ROLLS #100
N/A View Replacement
474 P0450474
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
477 P0450477
Replaced By P0449477
INFEED GUARD
N/A View Replacement
479 P0450479
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
480-1 P0450480-1
Replaced By P0449480-1
SANDING DRUM, FRONT (STEEL)
N/A View Replacement
480-2 P0450480-2
Replaced By P0449480-1
SANDING DRUM, FRONT (STEEL)
N/A View Replacement
481 P0450481
Replaced By PK55M
KEY 7 X 7 X 40
N/A View Replacement
482-1 P0450482-1
Replaced By P0449482-1
SANDPAPER TENSIONING WHEEL (LH)
N/A View Replacement
482-2 P0450482-2
Replaced By P0449482-2
SANDPAPER TENSIONING WHEEL (RH)
N/A View Replacement
483 P0450483
Replaced By PR84M
EXT RETAINING RING 34MM
N/A View Replacement
484 P0450484
Replaced By P1066076
CLIP
N/A View Replacement
485 P0450485
Replaced By P0449485
EXTENSION SPRING
N/A View Replacement
486 P0450486
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
486-1 P0450486-1
Replaced By P0449486-1
SANDING DRUM SCREW
N/A View Replacement
487 P0450487
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
488 P0450488
Replaced By P0449488
PILLOW BEARING UCP206
N/A View Replacement
489 P0450489
Replaced By P0449489
ADJUSTMENT PLATE
N/A View Replacement
490 P0450490
Replaced By PSS51
SET SCREW 5/16-24 X 1/2
N/A View Replacement
493 P0450493
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
494 P0450494
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
495 P0450495
Replaced By PLN05M
LOCK NUT M10-1.5
N/A View Replacement
496 P0450496
Replaced By P0449496
SANDING DRUM PULLEY
N/A View Replacement
497 P0450497
Replaced By PSS80M
SET SCREW M8-1.25 X 15
N/A View Replacement
498 P0450498
Replaced By P0449498
HOLD DOWN ROLLER
N/A View Replacement
499 P0450499
Replaced By P0449499
HOLD DOWN ROLLER BUSHING
N/A View Replacement
500 P0450500
Replaced By P0449500
ROLLER BUSHING SUPPORT
N/A View Replacement
501 P0450501
Replaced By PR08M
EXT RETAINING RING 19MM
N/A View Replacement
502 P0450502
Replaced By P0449502
ROLLER COMPRESSION SPRING
N/A View Replacement
503 P0450503
Replaced By P0449503
STRAIN RELIEF M16 TYPE-6 ST
N/A View Replacement
504 P0450504
Replaced By P0449504
STRAIN RELIEF M25 TYPE-6 ST
N/A View Replacement
505 P0450505
Replaced By P0449505
CABLE CLAMP
N/A View Replacement
506 P0450506
Replaced By P0449506
ELECTRICAL BOX V1
N/A View Replacement
506V2 P0450506V2
Replaced By P0449506V2
ELECTRICAL BOX V2.08.13
N/A View Replacement
507 P0450507
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
508 P0450508
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
509 P0450509
Replaced By P0449509
CONTROL PANEL PEDESTAL ARM V1
N/A View Replacement
509V2 P0450509V2
Replaced By P0449509V2
CONTROL PANEL PEDESTAL ARM V2.08.13
N/A View Replacement
510 P0450510
Replaced By P0449510
SUPPORT STRAP
N/A View Replacement
511 P0450511
Replaced By PB26M
HEX BOLT M8-1.25 X 30
N/A View Replacement
512 P0450512
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
513 P0450513
Replaced By P0449513
GEARBOX
N/A View Replacement
514 P0450514
Replaced By P0449514
CONNECTING SHAFT
N/A View Replacement
515 P0450515
Replaced By P0449515
BUSHING
N/A View Replacement
516 P0450516
Replaced By P0449516
GEAR 20T
N/A View Replacement
517 P0450517
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
518 P0450518
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
519 P0450519
Replaced By P0449519
WORM GEAR
N/A View Replacement
520 P0450520
Replaced By P0449520
BUSHING
N/A View Replacement
521 P0450521
Replaced By P0449521
WORM GEAR
N/A View Replacement
522 P0450522
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
523 P0450523
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
524 P0450524
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
524-1 P0450524-1
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
525 P0450525
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
540 P0450540
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
N/A View Replacement
548 P0450548
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
551 P0450551
Replaced By P0449551
SPRING TENSION TOOL
N/A View Replacement
552 P0450552
Replaced By P0449552
GAS STRUT PIVOT SCREW
N/A View Replacement
553 P0450553
Replaced By P0449755
ELECTRICAL PANEL 240V
N/A View Replacement
553-1 P0450553-1
Replaced By P0449553-1
SANDING MOTOR CORD 10G 4W 98"
N/A View Replacement
553-2 P0450553-2
Replaced By P0449553-2
FEED MOTOR CORD 14G 3W 79"
N/A View Replacement
553-3 P0450553-3
Replaced By P0449553-3
CORD 16G 2W 98"
N/A View Replacement
554 P0450554
Replaced By P0449554
CORD 6G 3W 98"
N/A View Replacement
555 P0450555
Replaced By P0449555
GROUND WIRE 8G 1C 2.5" (GREEN)
N/A View Replacement
556 P0450556
Replaced By P0449756
CONTROL PANEL PLATE
N/A View Replacement
563 P0450563
Replaced By P0449563
POWER JUNCTION BOX COVER
N/A View Replacement
564 P0450564
Replaced By P0449564
POWER JUNCTION BOX
N/A View Replacement
566 P0450566
Replaced By P0495X120
GROMMET M11 TYPE-2 SNAP-IN
N/A View Replacement
567 P0450567
Replaced By PFS07M
FLANGE SCREW M5-.8 X 10
N/A View Replacement
569 P0450569
Replaced By P0449569
CORD 6G 3W 86"
N/A View Replacement
570 P0450570
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
571 P0450571
Replaced By PBHS11M
BUTTON HD CAP SCR M6-1 X 10
N/A View Replacement
573 P0450573
Replaced By P0449573
TERMINAL BAR 1P
N/A View Replacement
574 P0450574
Replaced By P0449574
N/A View Replacement
575 P0450575
Replaced By P0449575
TERMINAL BAR LOCKING SEGMENT
N/A View Replacement
576 P0450576
Replaced By P0449576
TERMINAL BAR MOUNT
N/A View Replacement
577 P0450577
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
578 P0450578
Replaced By P0449578
POWER CORD CONDUIT COVER
N/A View Replacement
579 P0450579
Replaced By P0449579
POWER CORD CONDUIT
N/A View Replacement
580 P0450580
Replaced By P0449580
STRAIN RELIEF PGB 29-25 ST PLASTIC
N/A View Replacement
581 P0450581
Replaced By PTLW02
EXT TOOTH WASHER 5/16
N/A View Replacement
582 P0450582
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
602 P0450602
Replaced By P0449602
MICRO-ADJUST SCREW 1/4-20
N/A View Replacement
603 P0450603
Replaced By P0449603
BEVEL GEAR A 25T
N/A View Replacement
604 P0450604
Replaced By P0449604
BEVEL GEAR B 25T
N/A View Replacement
605 P0450605
Replaced By P0449605
STEP BOLT 5/16-18
N/A View Replacement
606 P0450606
Replaced By P0449606
MOUNTING BRACKET
N/A View Replacement
607 P0450607
Replaced By PR09M
EXT RETAINING RING 20MM
N/A View Replacement
608 P0450608
Replaced By P51101
THRUST BEARING 51101
N/A View Replacement
609 P0450609
Replaced By P0449609
THRUST BEARING SEAT
N/A View Replacement
610 P0450610
Replaced By PSS29
SET SCREW 10-24 X 1/4
N/A View Replacement
611 P0450611
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
612 P0450612
Replaced By P0449612
DUST COVER
N/A View Replacement
613 P0450613
Replaced By PHTEK6
TAP SCREW #10 X 3/8
N/A View Replacement
614 P0450614
Replaced By PLN02
LOCK NUT 1/4-20
N/A View Replacement
615 P0450615
Replaced By PSS29
SET SCREW 10-24 X 1/4
N/A View Replacement
616 P0450616
Replaced By PCAP11
CAP SCREW 5/16-18 X 1-1/4
N/A View Replacement
617 P0450617
Replaced By PCAP01
CAP SCREW 1/4-20 X 5/8
N/A View Replacement
618 P0450618
Replaced By P0449618
DRIVE SHAFT BRACKET
N/A View Replacement
619 P0450619
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
620 P0450620
Replaced By P0449620
LOCK COLLAR
N/A View Replacement
621 P0450621
Replaced By P0449621
LOCK LEVER
N/A View Replacement
622 P0450622
Replaced By P0449622
DRIVE SHAFT
N/A View Replacement
623 P0450623
Replaced By P0449623
CONTROL KNOB
N/A View Replacement
624 P0450624
Replaced By PSS04
SET SCREW 1/4-20 X 5/16
N/A View Replacement
625 P0450625
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
626 P0450626
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
627 P0450627
Replaced By P0449627
LOCK HANDLE
N/A View Replacement
628 P0450628
Replaced By PR48M
EXT RETAINING RING 11MM
N/A View Replacement
741 P0450741
Replaced By P0449741
*DISCD*CURRENT COIL TH30 150/5A CT V1
N/A View Replacement
741V2 P0450741V2
Replaced By P0449741V2
CURRENT COIL TH30 100/5A V2.11.12
N/A View Replacement
742 P0450742
Replaced By P0449742
CONTACTOR SDE MA-55 220V V1
N/A View Replacement
742A P0450742A CONTACTOR SDE MA-30 440V V1 $96.00
742AV2 P0450742AV2 CONTACTOR TECO CU-40 440V V3.08.13 $124.00
742V2 P0450742V2
CONTACTOR TECO CU-40 220V V2.10.10
N/A
742V3 P0450742V3 CONTACTOR TECO CU-50 220V V3.08.13 $146.00
743 P0450743
Replaced By P0449743
OL RELAY SDE RA-60 32-50A V1
N/A View Replacement
743A P0450743A OL RELAY SDE RA-30 19-26A V1 $28.75
743AV2 P0450743AV2 OL RELAY TECO RHU-80K2 17-25A 440V V2.08.13 $57.75
743V2 P0450743V2
Replaced By P0449743V2
OL RELAY TECO RHU-80K3 35-47A V2.10.10
N/A View Replacement
744 P0450744
Replaced By P0449744
***USE P0449744V2***
N/A View Replacement
744A P0450744A CONTACTOR SDE MA-09 440V V1 $43.50
744AV2 P0450744AV2 CONTACTOR TECO CU-11 440V V2.08.13 $32.00
744V2 P0450744V2
Replaced By P0449744V2
CONTACTOR TECO CU-11 V2.10.10
N/A View Replacement
745 P0450745 OL RELAY SDE RA-20 0.9-1.5A V1 $25.25
745A P0450745A
Replaced By P0450745AV2
OL RELAY SDE RA-20 0.9-1.5A V2.04.09
N/A View Replacement
745AV2 P0450745AV2
OL RELAY SDE RA-20 0.9-1.5A V2.04.09
N/A
745AV3 P0450745AV3 OL RELAY TECO RHU-10K1 0.75-1A V3.08.13 $36.00
745V2 P0450745V2 OL RELAY TECO RHU-10K 1.4-2A $23.00
746 P0450746
Replaced By P0449746
TERMINAL BAR 10P
N/A View Replacement
747 P0450747 INCOMING POWER TERMINAL BLOCK 60A-3 $8.75
749 P0450749 AMP METER TRANSFORMER $31.00
753 P0450753 440V CONVERSION KIT $444.00
753-1 P0450753-1
COMPLETE ELECTRICAL PLATE 220V
N/A
755 P0450755
Replaced By P0449755
ELECTRICAL PANEL 240V
N/A View Replacement
755A P0450755A
ELECTRICAL PANEL 480V
N/A
756 P0450756
Replaced By P0449756
CONTROL PANEL PLATE
N/A View Replacement
759 P0450759
Replaced By P0449741V2A
CURRENT COIL W/ANALOG AMP METER V2.11.12
N/A View Replacement
759V2 P0450759V2
Replaced By P0449759V2
AMP METER, ANALOG 100/5A V2.11.13
N/A View Replacement
760 P0450760
Replaced By P0449760V2
START BUTTON GBF-221 22MM GRN V2.11.13
N/A View Replacement
760V2 P0450760V2
Replaced By P0449760V2
START BUTTON GBF-221 22MM GRN V2.11.13
N/A View Replacement
761 P0450761
Replaced By P0449761
DRUM START BUTTON 22MM GRN V1
N/A View Replacement
761V2 P0450761V2
Replaced By P0449760V2
START BUTTON GBF-221 22MM GRN V2.11.13
N/A View Replacement
762 P0450762
Replaced By P0449762
E-STOP BUTTON 22MM V1
N/A View Replacement
762V2 P0450762V2
Replaced By P0449762V2
E-STOP BUTTON GLEB-221 22MM V2.11.13
N/A View Replacement
763 P0450763
Replaced By P0449763
CONVEYOR STOP BUTTON 22MM RED V1
N/A View Replacement
763V2 P0450763V2
Replaced By P0449763V2
STOP BUTTON GBF-221 22MM RED V2.11.13
N/A View Replacement
764 P0450764
Replaced By P0449764
DRUM STOP BUTTON 22MM RED V1
N/A View Replacement
764V2 P0450764V2
Replaced By P0449763V2
STOP BUTTON GBF-221 22MM RED V2.11.13
N/A View Replacement
765 P0450765
Replaced By P0449765
GROUND TERMINAL
N/A View Replacement
800 P0450800
Replaced By PLABEL-11A
SAFETY GLASSES 2W X 3.3H V2.04.08
N/A View Replacement
801 P0450801
Replaced By PLABEL-36
DISCONNECT POWER-DOOR 2W X 3.3H
N/A View Replacement
802 P0450802
Replaced By P0449802
FEED ONLY ONE LABEL
N/A View Replacement
803 P0450803
Replaced By PLABEL-22
SANDER BELT PINCH 4W X 2.1H
N/A View Replacement
804 P0450804
Replaced By P0449804
KEEP DOOR CLOSED LABEL
N/A View Replacement
805 P0450805
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
806 P0450806
Replaced By P0449806
MACHINE ID LABEL NON-CSA
N/A View Replacement
806V2 P0450806V2
MACHINE ID LABEL CSA
N/A
807 P0450807
AMP LOAD LABEL V1
N/A
807V2 P0450807V2
AMP LOAD LABEL CSA V2.08.13
N/A
808 P0450808
Replaced By P0449808
EMERGENCY STOP LABEL
N/A View Replacement
810 P0450810
Replaced By P0449810
CONTROL PANEL PLATE LABEL
N/A View Replacement
811 P0450811
Replaced By P0449811
DON'T CHANGE SPEEDS LABEL
N/A View Replacement
812 P0450812
Replaced By P0449812
HAND WARNING LABEL
N/A View Replacement
813 P0450813
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
814 P0450814
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
815 P0450815
Replaced By G8589
Name Plates - Large
N/A View Replacement
816 P0450816
Replaced By PS55M
PHLP HD SCR M3-.5 X 10
N/A View Replacement
817 P0450817
Replaced By PPAINT-16
RED REF TOOL BOXES
N/A View Replacement
818 P0450818
Replaced By P0449818
BELT TENSION ADJUST LABEL (LH)
N/A View Replacement
819 P0450819
Replaced By P0449819
BELT TENSION ADJUST LABEL (RH)
N/A View Replacement
820 P0450820
Replaced By P0449820
MICRO-ADJUST KNOB LABEL
N/A View Replacement
MANUAL P0450MANUAL
Replaced By P0449MANUAL
MANUAL G0449-50 MFD-05.05-02.08 V1.06.05
N/A View Replacement
MANV2 P0450MANV2
Replaced By P0449MANV2
MANUAL G0449-50 MFD-03.08-10.12 V2.05.12
N/A View Replacement
MANV3 P0450MANV3
Replaced By P0449MANV3
MANUAL G0449-50 MFD-11.12-07.13 V3.11.12
N/A View Replacement
MANV4 P0450MANV4
Replaced By P0449MANV4
MANUAL G0449-50 MFD-08.13+ V4.10.13
N/A View Replacement
