Parts for G0451 - 14" 10 HP Sliding Table Saw

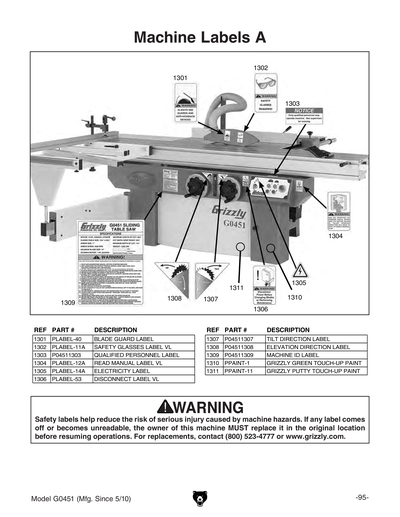

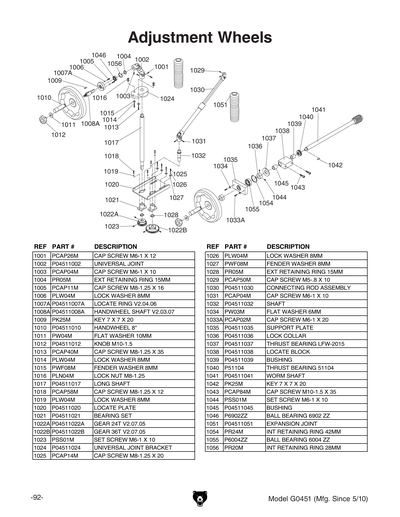

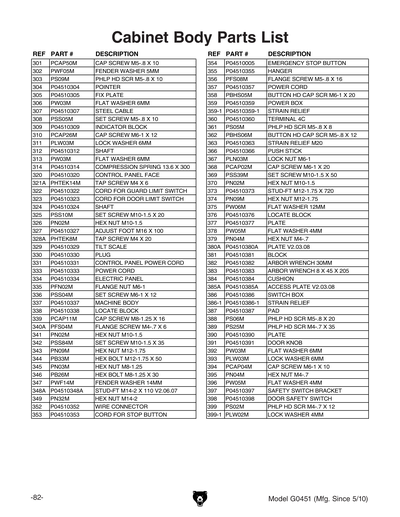

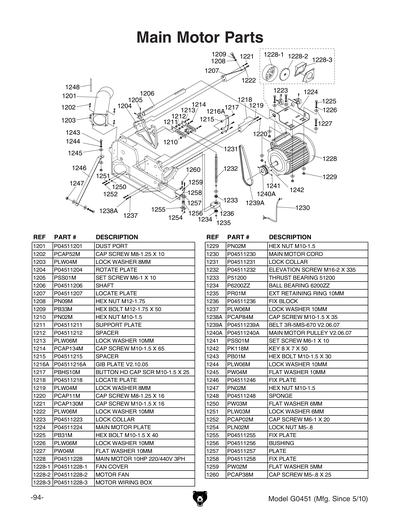

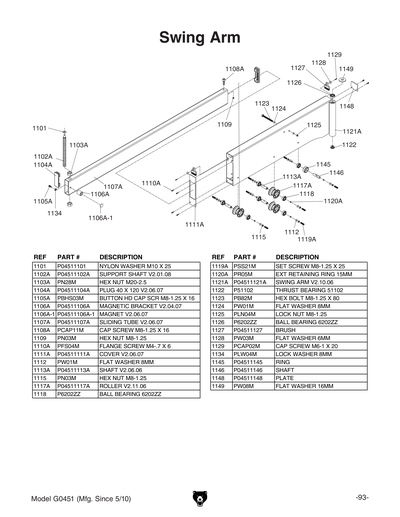

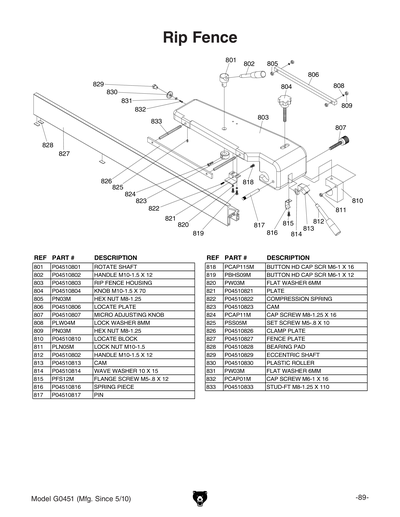

Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451
Part Diagram for G0451

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

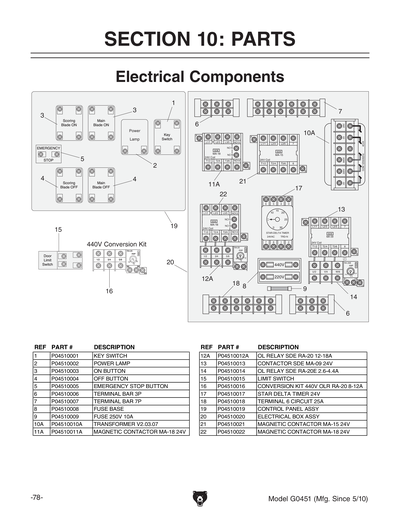

1
*DISCD*KEY SWITCH
Item is no longer available
Price
N/A
2
*DISCD*POWER INDICATOR LIGHT SENO SN22
Item is no longer available
Price
N/A
3
*DISCD*ON BUTTON
Item is no longer available
Price
N/A
4
*DISCD*OFF BUTTON
Item is no longer available
Price
N/A
5
*DISCD*E-STOP BUTTON RENY R9C01VN
Item is no longer available
Price
N/A
6
*DISCD*TERMINAL BAR 3P
Item is no longer available
Price
N/A
7
*DISCD*TERMINAL BAR 7P
Item is no longer available
Price
N/A
8
*DISCD*FUSE BASE
Price
$7.20
9
FUSE 250V 10A
Price
$6.05
10
*DISCD*TRANSFORMER V1.12.04
Item is no longer available
Price
N/A
10A
TRANSFORMER V2.03.07
Item is no longer available
Price
N/A
11
*DISCD*CONTACTOR SDE MA-30 24V
Item is no longer available
Price
N/A
11A
CONTACTOR SDE MA-18 24V
Price
$93.75
12
*DISCD*OL RELAY SDE RA-30 15-30A
Item is no longer available
Price
N/A
12A
OL RELAY SDE RA-20 12-18A
Price
$83.95
13
CONTACTOR SDE MA-09 24V
Price
$47.75
14
OL RELAY SDE RA-20E 2.6-4.4A
Price
$61.05
14A
OL RELAY SDE RA-20E 2.6-4.4A
Price
N/A
16
CONVERSION KIT 440V OLR RA-20 8-
Price
$68.60
17
*DISCD*STAR DELTA TIMER 24V
Item is no longer available
Price
N/A
18
*DISCD*TERMINAL 6 CIRCUIT 25A
Item is no longer available
Price
N/A
19
*DISCD*CONTROL PANEL ASSY
Item is no longer available
Price
N/A
20
*DISCD*ELECTRICAL BOX ASSY
Item is no longer available
Price
N/A
21
MAGNETIC CONTACTOR MA-15 24V
Price
$71.00
22
CONTACTOR SDE MA-18 24V
Price
N/A

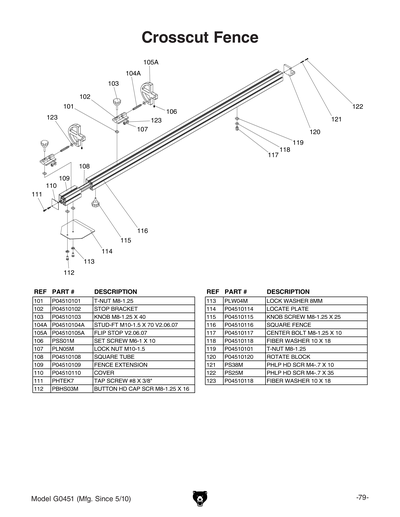

101
*DISCD*T-NUT M8-1.25
Item is no longer available
Price
N/A
102
*DISCD*STOP BRACKET
Price
$25.05
103
*DISCD*KNOB M8-1.25 X 40
Item is no longer available
Price
N/A
104
STUD-FT M10-1.5 X 70 V1
Price
$3.95
104A
*DISCD*STUD-SE M8-1.25 X 30 8 V2.06.07
Price
$6.35
105
*DISCD*FLIP STOP V1
Item is no longer available
Price
N/A
105A
*DISCD*FLIP STOP V2.06.07
Price
$38.25
106
SET SCREW M6-1 X 10
Price
N/A
107
LOCK NUT M10-1.5
Price
N/A
108
*DISCD*SQUARE TUBE
Item is no longer available
Price
N/A
109
*DISCD*FENCE EXTENSION
Item is no longer available
Price
N/A
110
*DISCD*COVER
Item is no longer available
Price
N/A
111
TAP SCREW #8 X 3/8
Price
N/A
112
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
113
LOCK WASHER 8MM
Price
N/A
114
*DISCD*LOCATE PLATE
Item is no longer available
Price
N/A
115
*DISCD*KNOB SCREW M8-1.25 X 25
Item is no longer available
Price
N/A
116
*DISCD*SQUARE FENCE
Item is no longer available
Price
N/A
117
*DISCD*CENTER BOLT M8-1.25 X 10
Item is no longer available
Price
N/A
118
*DISCD*FIBER WASHER 10 X 18
Price
$1.49
119
*DISCD*T-NUT M8-1.25
Price
N/A
120
*DISCD*ROTATE BLOCK
Price
$40.00
121
PHLP HD SCR M4-.7 X 10
Price
N/A
122
PHLP HD SCR M4-.7 X 35
Price
N/A
123
*DISCD*FIBER WASHER 10 X 18
Price
N/A
124
CAP SCREW M8-1.25 X 35
Price
N/A
125
LOCK WASHER 8MM
Price
N/A
126
*DISCD*BLOCK
Item is no longer available
Price
N/A
127
*DISCD*T-NUT M8-1.25
Item is no longer available
Price
N/A
128
SET SCREW M6-1 X 6
Price
N/A
129
*DISCD*T-NUT M8-1.25
Item is no longer available
Price
N/A
201
*DISCD*ROLLER V1.04.05
Item is no longer available
Price
N/A
201A
ROLLER
Price
N/A
202
SET SCREW M6-1 X 10
Price
N/A
203
*DISCD*ECCENTRIC
Item is no longer available
Price
N/A
204
*DISCD*PLUG 80 X 40MM
Item is no longer available
Price
N/A
205
*DISCD*SUPPORT FRAME V1.04.05
Item is no longer available
Price
N/A
206
*DISCD*T-NUT M8-1.25
Price
N/A
207
*DISCD*KNOB W/M8-1.25 X 25 SHOULDER
Item is no longer available
Price
N/A
208
FENDER WASHER 8MM
Price
N/A
209
*DISCD*PLUG 38 X 38MM
Item is no longer available
Price
N/A
210
*DISCD*PLUG 40 X 20MM
Item is no longer available
Price
N/A
211
T-BOLT M8-1.25 X 60 V1
Price
N/A
212
TAP SCREW #8 X 3/8
Price
N/A
213
*DISCD*COVER
Item is no longer available
Price
N/A
214
*DISCD*SQUARE BRACE
Item is no longer available
Price
N/A
215
*DISCD*T-NUT M12-1.75 V1.04.05
Item is no longer available
Price
N/A
216
*DISCD*LOCK HANDLE M12-1.75 X 55
Price
$25.05
217
*DISCD*T-NUT M8-1.25
Price
N/A
218
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
219
LOCK WASHER 6MM
Price
N/A
220
*DISCD*PAD
Item is no longer available
Price
N/A
221
FENDER WASHER 12MM
Price
N/A
222
FENDER WASHER 8MM
Price
N/A
223
*DISCD*KNOB SCREW M8-1.25 X 50
Item is no longer available
Price
N/A
224
SET SCREW M6-1 X 10
Price
N/A
225
CAP SCREW M6-1 X 16
Price
N/A
226
LOCK WASHER 6MM
Price
N/A
227
FLAT WASHER 6MM
Price
N/A
228
*DISCD*SET BLOCK
Item is no longer available
Price
N/A
229
*DISCD*SET PIN 15.87 X 95
Item is no longer available
Price
N/A
230
*DISCD*COMPRESSION SPRING 13 X 30
Item is no longer available
Price
N/A
231
*DISCD*ECCENTRIC BUSHING
Item is no longer available
Price
N/A
232
ROLL PIN 3 X 20
Price
N/A
233
*DISCD*KNOB M8-1.25
Item is no longer available
Price
N/A
234
BALL BEARING 6201ZZ
Price
N/A
235
*DISCD*BUSHING
Price
$1.49
236
INT RETAINING RING 32MM
Price
N/A
237
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
238
FLAT WASHER 18MM
Price
N/A
239
*DISCD*EYE BOLT M8-1.25 X 40
Price
$15.55
240
LOCK WASHER 8MM
Price
N/A
241
HEX NUT M8-1.25
Price
N/A
243
*DISCD*KNOB SCREW M8-1.25 X 50
Price
N/A
245
HEX BOLT M8-1.25 X 30
Price
N/A
301
CAP SCREW M5-.8 X 10
Price
N/A
302
FENDER WASHER 5MM
Price
N/A
303
PHLP HD SCR M5-.8 X 10
Price
N/A
304
*DISCD*POINTER
Item is no longer available
Price
N/A
305
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
306
FLAT WASHER 6MM
Price
N/A
307
*DISCD*STEEL CABLE
Item is no longer available
Price
N/A
308
SET SCREW M5-.8 X 10
Price
N/A
309
*DISCD*INDICATOR BLOCK
Item is no longer available
Price
N/A
310
CAP SCREW M6-1 X 12
Price
N/A
311
LOCK WASHER 6MM
Price
N/A
312
*DISCD*SHAFT
Item is no longer available
Price
N/A
313
FLAT WASHER 6MM
Price
N/A
314
*DISCD*COMPRESSION SPRING 13.6 X 300
Item is no longer available
Price
N/A
320
*DISCD*CONTROL PANEL FACE
Item is no longer available
Price
N/A
321
TAP SCREW #8 X 3/8
Price
N/A
321A
TAP SCREW M4 X 6
Price
N/A
322
*DISCD*CORD FOR GUARD LIMIT SWITCH
Item is no longer available
Price
N/A
323
*DISCD*CORD FOR DOOR LIMIT SWITCH
Item is no longer available
Price
N/A
324
*DISCD*SHAFT
Price
$25.90
325
SET SCREW M10-1.5 X 20
Price
N/A
326
HEX NUT M10-1.5
Price
N/A
327
*DISCD*ADJUST FOOT M16 X 100
Item is no longer available
Price
N/A
328
TAP SCREW #8 X 3/8
Price
N/A
328A
TAP SCREW M4 X 20
Price
N/A
329
*DISCD*TILT SCALE V1
Item is no longer available
Price
N/A
329V2
*DISCD*ADJUST HANDLE V2.05.10
Price
N/A
330
*DISCD*PLUG
Item is no longer available
Price
N/A
331
*DISCD*CONTROL PANEL POWER CORD
Item is no longer available
Price
N/A
332
*DISCD*WIRE CONNECTOR
Item is no longer available
Price
N/A
333
*DISCD*POWER CORD
Item is no longer available
Price
N/A
334
*DISCD*ELECTRIC PANEL
Item is no longer available
Price
N/A
335
FLANGE NUT M6-1
Price
N/A
336
SET SCREW M6-1 X 12
Price
N/A
337
*DISCD*MACHINE BODY
Item is no longer available
Price
N/A
338
*DISCD*LOCATE BLOCK
Item is no longer available
Price
N/A
339
CAP SCREW M8-1.25 X 16
Price
N/A
340
TAP SCREW #8 X 3/8
Price
N/A
340A
FLANGE SCREW M4-.7 X 6
Price
N/A
341
HEX NUT M10-1.5
Price
N/A
342
SET SCREW M10-1.5 X 35
Price
N/A
343
HEX NUT M12-1.75
Price
N/A
344
HEX BOLT M12-1.75 X 50
Price
N/A
345
HEX NUT M8-1.25
Price
N/A
346
HEX BOLT M8-1.25 X 30
Price
N/A
347
FENDER WASHER 14MM
Price
N/A
348
*DISCD*STUD-FT M14-2 X 95 V1.04.05
Item is no longer available
Price
N/A
348A
*DISCD*STUF-FT M14-2 X 110 V2.06.07
Item is no longer available
Price
N/A
349
HEX NUT M14-2
Price
N/A
350
CAP SCREW M6-1 X 30
Price
N/A
351
LOCK WASHER 6MM
Price
N/A
352
*DISCD*WIRE CONNECTOR
Price
$6.35
353
*DISCD*CORD FOR STOP BUTTON
Price
$17.85
354
*DISCD*E-STOP BUTTON RENY R9C01VN
Price
N/A
355
*DISCD*HANGER
Item is no longer available
Price
N/A
356
PHLP HD SCR M5-.8 X 16
Price
N/A
357
*DISCD*POWER CORD
Item is no longer available
Price
N/A
358
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
359
*DISCD*POWER BOX
Item is no longer available
Price
N/A
360
*DISCD*TERMINAL 4C
Item is no longer available
Price
N/A
361
PHLP HD SCR M5-.8 X 8
Price
N/A
362
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
363
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
364
*DISCD*ARBOR WRENCH 24,19MM CLOSED
Price
$19.00
365
*DISCD*ARBOR WRENCH 24,19MM OPEN
Item is no longer available
Price
N/A
366
*DISCD*PUSH STICK
Item is no longer available
Price
N/A
367
LOCK NUT M6-1
Price
N/A
368
CAP SCREW M6-1 X 20
Price
N/A
369
SET SCREW M10-1.5 X 50
Price
N/A
370
HEX NUT M10-1.5
Price
N/A
371
FLANGE SCREW M5-.8 X 10
Price
N/A
372
*DISCD*WIRE CLIP 5/16"
Item is no longer available
Price
N/A
373
*DISCD*STUD-FT M12-1.75 X 720
Item is no longer available
Price
N/A
374
HEX NUT M12-1.75
Price
N/A
375
FLAT WASHER 12MM
Price
N/A
376
*DISCD*LOCATE BLOCK
Item is no longer available
Price
N/A
377
*DISCD*PLATE
Item is no longer available
Price
N/A
378
FLAT WASHER 4MM
Price
N/A
379
HEX NUT M4-.7
Price
N/A
380A
*DISCD*PLATE V2.03.08
Item is no longer available
Price
N/A
381
*DISCD*BLOCK
Item is no longer available
Price
N/A
382
*DISCD*ARBOR WRENCH 30MM
Item is no longer available
Price
N/A
383
*DISCD*ARBOR WRENCH 8 X 45 X 205
Item is no longer available
Price
N/A
384
*DISCD*SPONGE
Item is no longer available
Price
N/A
385A
*DISCD*ACCESS PLATE V2.03.08
Item is no longer available
Price
N/A
386

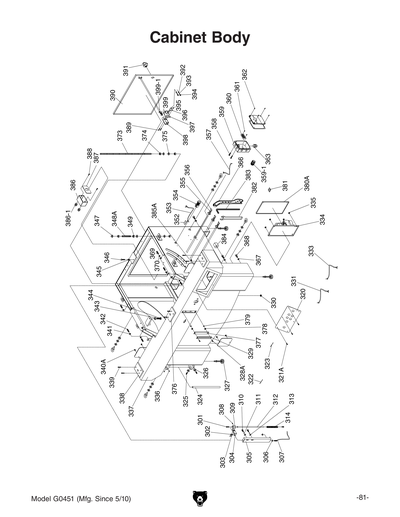

*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
386-1
STRAIN RELIEF M17 TYPE-6 ST
Price
N/A
387
*DISCD*PAD
Item is no longer available
Price
N/A
388
PHLP HD SCR M5-.8 X 20
Price
N/A
389
PHLP HD SCR M4-.7 X 35
Price
N/A
390
*DISCD*PLATE
Item is no longer available
Price
N/A
392
FLAT WASHER 6MM
Price
N/A
393
LOCK WASHER 6MM
Price
N/A
394
CAP SCREW M6-1 X 10
Price
N/A
395
HEX NUT M4-.7
Price
N/A
396
FLAT WASHER 4MM
Price
N/A
397
*DISCD*SAFETY SWITCH BRACKET
Price
$15.25
398
*DISCD*DOOR SAFETY SWITCH
Item is no longer available
Price
N/A
399
PHLP HD SCR M4-.7 X 12
Price
N/A
399-1
LOCK WASHER 4MM
Price
N/A

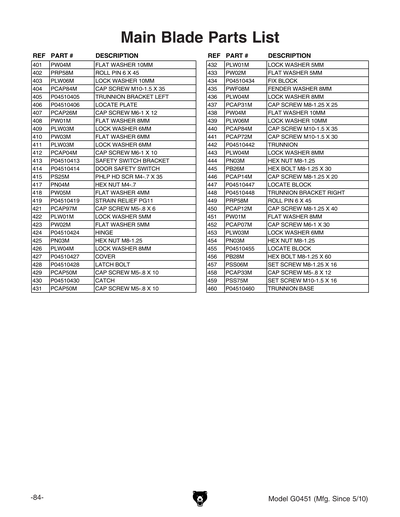

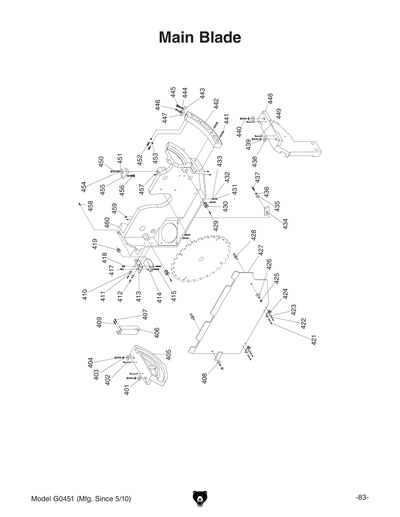

401
FLAT WASHER 10MM
Price
N/A
402
ROLL PIN 6 X 45
Price
N/A
403
LOCK WASHER 10MM
Price
N/A
404
CAP SCREW M10-1.5 X 35
Price
N/A
405
*DISCD*TRUNNION BRACKET LEFT
Item is no longer available
Price
N/A
406
*DISCD*LOCATE PLATE
Item is no longer available
Price
N/A
407
CAP SCREW M6-1 X 12
Price
N/A
408
FLAT WASHER 8MM
Price
N/A
409
LOCK WASHER 6MM
Price
N/A
410
FLAT WASHER 6MM
Price
N/A
411
LOCK WASHER 6MM
Price
N/A
412
CAP SCREW M6-1 X 10
Price
N/A
413
*DISCD*SAFETY SWITCH BRACKET
Item is no longer available
Price
N/A
414
*DISCD*DOOR SAFETY SWITCH
Price
$51.50
415
PHLP HD SCR M4-.7 X 35
Price
N/A
417
HEX NUT M4-.7
Price
N/A
418
FLAT WASHER 4MM
Price
N/A
419
STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
421
CAP SCREW M5-.8 X 6
Price
N/A
422
LOCK WASHER 5MM
Price
N/A
423
FLAT WASHER 5MM
Price
N/A
424
*DISCD*HINGE
Item is no longer available
Price
N/A
425
HEX NUT M8-1.25
Price
N/A
426
LOCK WASHER 8MM
Price
N/A
427
*DISCD*COVER
Item is no longer available
Price
N/A
428
*DISCD*LATCH BOLT
Item is no longer available
Price
N/A
429
CAP SCREW M5-.8 X 10
Price
N/A
430
*DISCD*CATCH
Item is no longer available
Price
N/A
431
CAP SCREW M5-.8 X 10
Price
N/A
432
LOCK WASHER 5MM
Price
N/A
433
FLAT WASHER 5MM
Price
N/A
434
*DISCD*FIX BLOCK
Item is no longer available
Price
N/A
435
FENDER WASHER 8MM
Price
N/A
436
LOCK WASHER 8MM
Price
N/A
437
CAP SCREW M8-1.25 X 25
Price
N/A
438
FLAT WASHER 10MM
Price
N/A
439
LOCK WASHER 10MM
Price
N/A
440
CAP SCREW M10-1.5 X 35
Price
N/A
441
CAP SCREW M10-1.5 X 30
Price
N/A
442
*DISCD*TRUNNION
Item is no longer available
Price
N/A
443
LOCK WASHER 8MM
Price
N/A
444
HEX NUT M8-1.25
Price
N/A
445
HEX BOLT M8-1.25 X 30
Price
N/A
446
CAP SCREW M8-1.25 X 20
Price
N/A
447
*DISCD*LOCATE BLOCK
Price
$6.90
448
*DISCD*TRUNNION BRACKET RIGHT
Item is no longer available
Price
N/A
449
ROLL PIN 6 X 45
Price
N/A
450
CAP SCREW M8-1.25 X 40
Price
N/A
451
FLAT WASHER 8MM
Price
N/A
452
CAP SCREW M6-1 X 30
Price
N/A
453
LOCK WASHER 6MM
Price
N/A
454
HEX NUT M8-1.25
Price
N/A
455
*DISCD*LOCATE BLOCK
Item is no longer available
Price
N/A
456
HEX BOLT M8-1.25 X 60
Price
N/A
457
SET SCREW M8-1.25 X 16
Price
N/A
458
CAP SCREW M5-.8 X 12
Price
N/A
459
SET SCREW M10-1.5 X 16
Price
N/A
460
*DISCD*TRUNNION BASE
Item is no longer available
Price
N/A
500
*DISCD*REPAIR KIT
Item is no longer available
Price
N/A
501

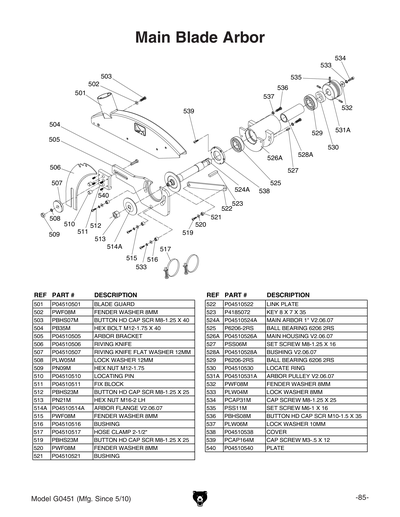

*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
502
FENDER WASHER 8MM
Price
N/A
503
BUTTON HD CAP SCR M8-1.25 X 40
Price
N/A
504
HEX NUT M12-1.75
Price
N/A
505
*DISCD*ARBOR BRACKET
Item is no longer available
Price
N/A
506
*DISCD*RIVING KNIFE
Item is no longer available
Price
N/A
507
*DISCD*RIVING KNIFE FLAT WASHER 12MM
Item is no longer available
Price
N/A
508
LOCK WASHER 12MM
Price
N/A
509
HEX BOLT M12-1.75 X 40
Price
N/A
510
*DISCD*LOCATING PIN
Price
$6.35
511
*DISCD*FIX BLOCK
Item is no longer available
Price
N/A
512
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
513
HEX NUT M16-2 LH
Price
N/A
514
*DISCD*ARBOR FLANGE V1.04.05
Price
$11.80
514A
*DISCD*ARBOR FLANGE V2.06.07
Price
$35.10
515
FENDER WASHER 8MM
Price
N/A
516
*DISCD*BUSHING
Item is no longer available
Price
N/A
517
*DISCD*HOSE CLAMP 2-1/2"
Price
$2.30
519
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
520
FENDER WASHER 8MM
Price
N/A
521
*DISCD*BUSHING
Item is no longer available
Price
N/A
522
*DISCD*LINK PLATE
Item is no longer available
Price
N/A
523
KEY 8 X 7 X 35
Price
N/A
524
*DISCD*MAIN ARBOR 1" V1.04.05
Price
$41.40
524A
*DISCD*MAIN ARBOR 1" V2.06.07
Price
$113.30
525
BALL BEARING 6206-2RS
Price
N/A
526
*DISCD*MAIN HOUSING V1.04.05
Item is no longer available
Price
N/A
526A
*DISCD*MAIN HOUSING V2.06.07
Item is no longer available
Price
N/A
527
SET SCREW M8-1.25 X 16
Price
N/A
528
*DISCD*BUSHING V1.04.05
Item is no longer available
Price
N/A
529
BALL BEARING 6206-2RS
Price
N/A
530
*DISCD*LOCATE RING
Item is no longer available
Price
N/A
531
*DISCD*ARBOR PULLEY V1.04.05
Price
$19.85
531A
*DISCD*ARBOR PULLEY V2.06.07
Item is no longer available
Price
N/A
532
FENDER WASHER 8MM
Price
N/A
533
LOCK WASHER 8MM
Price
N/A
534
CAP SCREW M8-1.25 X 25
Price
N/A
535
SET SCREW M6-1 X 16
Price
N/A
536
BUTTON HD CAP SCR M10-1.5 X 35
Price
N/A
537
LOCK WASHER 10MM
Price
N/A
538
*DISCD*COVER
Item is no longer available
Price
N/A
539
CAP SCREW M3-.5 X 12
Price
N/A
540
*DISCD*PLATE
Item is no longer available
Price
N/A
601
*DISCD*LOCATE PLATE V1
Item is no longer available
Price
N/A

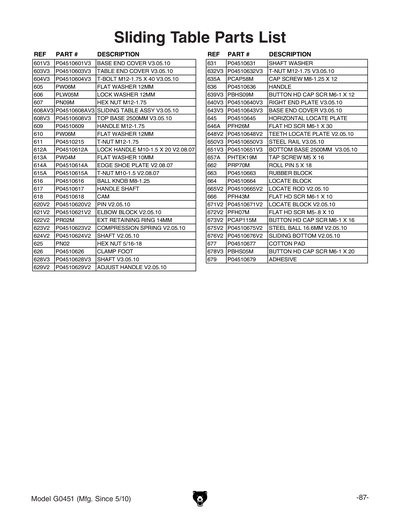

601V3
*DISCD*BASE END COVER V3.05.10
Item is no longer available
Price
N/A
602
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
603
*DISCD*PROTECT PLATE V1.04.05
Item is no longer available
Price
N/A
603V3
*DISCD*TABLE END COVER V3.05.10
Item is no longer available
Price
N/A
604
*DISCD*T-BOLT M12-1.75 X 60 V1.04.05
Price
$6.35
605
FLAT WASHER 1/4
Price
N/A
606
LOCK WASHER 12MM
Price
N/A
607
HEX NUT M12-1.75
Price
N/A
608

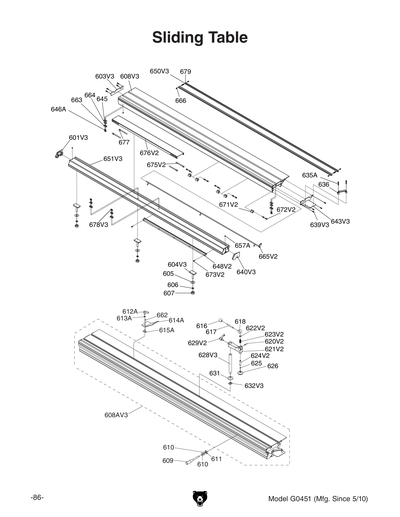

*DISCD*SLIDING TABLE V1.04.05
Item is no longer available
Price
N/A
608A
*DISCD*SLIDING TABLE ASSY V1.04.05
Item is no longer available
Price
N/A
608AV3
*DISCD*SLIDING TABLE ASSY V3.05.10
Item is no longer available
Price
N/A
608B
*DISCD*SLIDING TABLE ASSY V2.08.07
Item is no longer available
Price
N/A
608V3
*DISCD*SLIDING TABLE ASSY V3.05.10
Price
N/A
609
*DISCD*HANDLE M12-1.75
Item is no longer available
Price
N/A
610
FLAT WASHER 12MM
Price
N/A
611
*DISCD*T-NUT M12-1.75 V1.04.05
Price
N/A
612
*DISCD*KNOB M12-1.75 X 20 V1.04.05
Item is no longer available
Price
N/A
612A
*DISCD*LOCK HANDLE M10-1.5 X 20 V2.08.0
Price
$7.80
613
FLAT WASHER 12MM
Price
N/A
613A
FLAT WASHER 10MM
Price
N/A
614
*DISCD*EDGE SHOE PLATE V1.04.05
Item is no longer available
Price
N/A
614A
*DISCD*EDGE SHOE PLATE V2.08.07
Price
$26.20
615
*DISCD*T-NUT M12-1.75 V1.04.05
Price
N/A
615A
*DISCD*T-NUT M10-1.5 V2.08.07
Price
$7.80
616
*DISCD*BALL KNOB M8-1.25
Price
$5.20
617
*DISCD*HANDLE SHAFT
Item is no longer available
Price
N/A
618
*DISCD*CAM
Item is no longer available
Price
N/A
619
*DISCD*CAM BRACKET
Price
$35.65
620
ROLL PIN 6 X 40
Price
N/A
620V2
*DISCD*PIN V2.05.10
Price
$2.90
621
*DISCD*LOCATE BLOCK V1
Price
$79.35
621V2
*DISCD*ELBOW BLOCK V2.05.10
Item is no longer available
Price
N/A
622
EXT RETAINING RING 12MM
Price
N/A
622V2
EXT RETAINING RING 14MM
Price
N/A
623
*DISCD*COMPRESSION SPRING V1
Price
$3.45
623V2
*DISCD*COMPRESSION SPRING V2.05.10
Item is no longer available
Price
N/A
624
*DISCD*SHAFT V1
Price
$3.45
624V2
*DISCD*SHAFT V2.05.10
Item is no longer available
Price
N/A
625
HEX NUT 5/16-18
Price
N/A
626
*DISCD*CLAMP FOOT
Item is no longer available
Price
N/A
627
*DISCD*SHAFT
Price
$14.70
628
*DISCD*HANDLE SHAFT V1.04.05
Item is no longer available
Price
N/A
628V3
*DISCD*SHAFT V3.05.10
Item is no longer available
Price
N/A
629
*DISCD*LOCK HANDLE V1
Price
$10.65
629V2
*DISCD*ADJUST HANDLE V2.05.10
Item is no longer available
Price
N/A
630
*DISCD*BLOCK
Price
$52.90
631
*DISCD*SHAFT WASHER
Price
$13.25
632
*DISCD*T-NUT M12-1.75 V1.04.05
Price
N/A
632A
*DISCD*T-NUT M12-1.75 V2.08.07
Item is no longer available
Price
N/A
632V3
*DISCD*T-NUT M12-1.75 V3.05.10
Item is no longer available
Price
N/A
633
*DISCD*PIN LOCK
Item is no longer available
Price
N/A
634
HEX NUT M16-1.5
Price
N/A
635
CAP SCREW M8-1.25 X 16
Price
N/A
635A
CAP SCREW M8-1.25 X 12
Price
N/A
636
*DISCD*HANDLE
Item is no longer available
Price
N/A
637
LOCK WASHER 8MM
Price
N/A
638
HEX NUT M8-1.25
Price
N/A
639
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
639A
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
639V3
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
640
*DISCD*END PLATE RIGHT V1.04.05
Price
$67.60
640A
*DISCD*RIGHT END PLATE V2.08.07
Item is no longer available
Price
N/A
641
HEX NUT M16-1.5
Price
N/A
642
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
643
*DISCD*COVER V1.04.05
Item is no longer available
Price
N/A
643V3
*DISCD*BASE END COVER V3.05.10
Item is no longer available
Price
N/A
645
*DISCD*HORIZONTAL LOCATE PLATE
Item is no longer available
Price
N/A
646
FLAT HD SCR M6-1 X 12
Price
N/A
646A
FLAT HD SCR M6-1 X 30
Price
N/A
647
*DISCD*VERTICAL LOCATE PLATE
Item is no longer available
Price
N/A
648
*DISCD*ADJUST LOCATE RACK V1.04.05
Item is no longer available
Price
N/A
648V2
*DISCD*ADJUST LOCATE RACK V2.08.07
Item is no longer available
Price
N/A
649
HEX BOLT M6-1 X 12
Price
N/A
649A
FLAT HD SCR M10-1.5 X 20
Price
N/A
650
*DISCD*STEEL RAIL V1.04.05
Item is no longer available
Price
N/A
650V3
*DISCD*STEEL RAIL V3.05.10
Item is no longer available
Price
N/A
651
*DISCD*BOTTOM BASE V1.04.05
Item is no longer available
Price
N/A
651V3
*DISCD*SLIDING TABLE ASSY V3.05.10
Price
N/A
652
*DISCD*BUMPER
Item is no longer available
Price
N/A
653
*DISCD*SLIDING BOTTOM
Item is no longer available
Price
N/A
654
*DISCD*STEEL BALL SLEEVE
Item is no longer available
Price
N/A
655
STEEL BALL 16MM
Price
N/A
656
*DISCD*STEEL BALL 16.2MM
Item is no longer available
Price
N/A
657
CAP SCREW M6-1 X 10
Price
N/A
657A
TAP SCREW M5 X 16
Price
N/A
658
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
659
ROLL PIN 5 X 18
Price
N/A
660
SET SCREW M12-1.75 X 50
Price
N/A
661
SET SCREW M8-1.25 X 50
Price
N/A
662
ROLL PIN 5 X 18
Price
N/A
663
*DISCD*RUBBER BLOCK
Item is no longer available
Price
N/A
664
*DISCD*LOCATE BLOCK
Item is no longer available
Price
N/A
665V2
*DISCD*LOCATE ROD V2.05.10
Item is no longer available
Price
N/A
666
FLAT HD SCR M6-1 X 10
Price
N/A
668
LOCK NUT M10-1.5
Price
N/A
670
SET SCREW M5-.8 X 8
Price
N/A
671
*DISCD*LOCATE BLOCK V1
Item is no longer available
Price
N/A
671V2
*DISCD*LOCATE BLOCK V2.05.10
Item is no longer available
Price
N/A
672
CAP SCREW M8-1.25 X 16
Price
N/A
672V2
FLAT HD SCR M5-.8 X 10
Price
N/A
673
CAP SCREW M6-1 X 10
Price
N/A
673V2
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
674
FLAT WASHER 6MM
Price
N/A
675
STEEL BALL 16MM
Price
N/A
675V2
*DISCD*STEEL BALL 16.6MM V2.05.10
Item is no longer available
Price
N/A
676V2
*DISCD*SLIDING BOTTOM V2.05.10
Item is no longer available
Price
N/A
677
*DISCD*COTTON PAD
Item is no longer available
Price
N/A
678
FLAT HD SCR M6-1 X 16
Price
N/A
678V3
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
679
*DISCD*ADHESIVE
Item is no longer available
Price
N/A

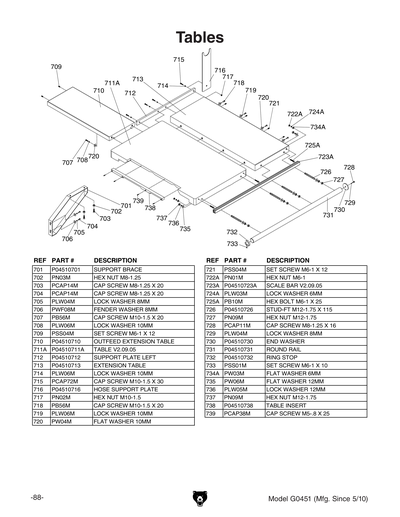

701
*DISCD*SUPPORT BRACE
Item is no longer available
Price
N/A
702
HEX NUT M8-1.25
Price
N/A
703
CAP SCREW M8-1.25 X 20
Price
N/A
704
CAP SCREW M8-1.25 X 20
Price
N/A
705
LOCK WASHER 8MM
Price
N/A
706
FENDER WASHER 8MM
Price
N/A
707
CAP SCREW M3-.5 X 10
Price
N/A
708
LOCK WASHER 10MM
Price
N/A
709
SET SCREW M6-1 X 12
Price
N/A
710
*DISCD*OUTFEED EXTENSION TABLE
Item is no longer available
Price
N/A
711
*DISCD*TABLE V1.04.05
Item is no longer available
Price
N/A
711A
*DISCD*TABLE V2.09.05
Item is no longer available
Price
N/A
712
*DISCD*SUPPORT PLATE LEFT
Item is no longer available
Price
N/A
713
*DISCD*EXTENSION TABLE
Item is no longer available
Price
N/A
714
LOCK WASHER 10MM
Price
N/A
715
CAP SCREW M10-1.5 X 30
Price
N/A
716
*DISCD*HOSE SUPPORT PLATE
Item is no longer available
Price
N/A
717
HEX NUT M10-1.5
Price
N/A
718
CAP SCREW M3-.5 X 10
Price
N/A
719
LOCK WASHER 10MM
Price
N/A
720
FLAT WASHER 10MM
Price
N/A
721
SET SCREW M6-1 X 12
Price
N/A
722
HEX NUT M10-1.5
Price
N/A
722A
HEX NUT M6-1
Price
N/A
723
*DISCD*SCALE BAR V1.04.05
Price
$47.75
723A
*DISCD*SCALE BAR V2.09.05
Item is no longer available
Price
N/A
724
LOCK WASHER 10MM
Price
N/A
724A
LOCK WASHER 6MM
Price
N/A
725
CAP SCREW M3-.5 X 10
Price
N/A
725A
HEX BOLT M6-1 X 25
Price
N/A
726
*DISCD*STUD-FT M12-1.75 X 115
Item is no longer available
Price
N/A
727
HEX NUT M12-1.75
Price
N/A
728
CAP SCREW M8-1.25 X 16
Price
N/A
729
LOCK WASHER 8MM
Price
N/A
730
*DISCD*END WASHER
Price
$8.05
731
*DISCD*ROUND RAIL
Item is no longer available
Price
N/A
732
*DISCD*RING STOP
Item is no longer available
Price
N/A
733
SET SCREW M6-1 X 10
Price
N/A
734
FLAT WASHER 10MM
Price
N/A
734A
FLAT WASHER 6MM
Price
N/A
735
FLAT WASHER 12MM
Price
N/A
736
LOCK WASHER 12MM
Price
N/A
737
HEX NUT M12-1.75
Price
N/A
738
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
739
CAP SCREW M5-.8 X 25
Price
N/A
801
*DISCD*ROTATE SHAFT
Item is no longer available
Price
N/A
802
*DISCD*HANDLE M10-1.5 X 12
Item is no longer available
Price
N/A
803
*DISCD*RIP FENCE HOUSING
Item is no longer available
Price
N/A
804
*DISCD*KNOB M10-1.5 X 70
Item is no longer available
Price
N/A
805
HEX NUT M8-1.25
Price
N/A
806
*DISCD*LOCATE PLATE
Item is no longer available
Price
N/A
807
*DISCD*MICRO ADJUSTING KNOB
Item is no longer available
Price
N/A
808
LOCK WASHER 8MM
Price
N/A
809
HEX NUT M8-1.25
Price
N/A
810
*DISCD*LOCATE BLOCK
Item is no longer available
Price
N/A
811
LOCK NUT M10-1.5
Price
N/A
812
*DISCD*HANDLE M10-1.5 X 12
Price
N/A
813
*DISCD*CAM
Item is no longer available
Price
N/A
814
*DISCD*WAVE WASHER 10 X 15
Item is no longer available
Price
N/A
815
FLANGE SCREW M5-.8 X 12
Price
N/A
816
*DISCD*SPRING PIECE
Item is no longer available
Price
N/A
817
*DISCD*PIN
Item is no longer available
Price
N/A
818
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
819
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
820
FLAT WASHER 6MM
Price
N/A
821
*DISCD*PLATE
Item is no longer available
Price
N/A
822
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
823
*DISCD*CAM
Item is no longer available
Price
N/A
824
CAP SCREW M8-1.25 X 16
Price
N/A
825
SET SCREW M5-.8 X 10
Price
N/A
826
*DISCD*CLAMP PLATE
Item is no longer available
Price
N/A
827
*DISCD*FENCE PLATE
Item is no longer available
Price
N/A
828
*DISCD*BEARING PAD
Price
$1.49
829
*DISCD*ECCENTRIC SHAFT
Item is no longer available
Price
N/A
830
*DISCD*PLASTIC ROLLER
Item is no longer available
Price
N/A
831
FLAT WASHER 6MM
Price
N/A
832
CAP SCREW M6-1 X 16
Price
N/A
833
*DISCD*STUD-FT M8-1.25 X 110
Item is no longer available
Price
N/A

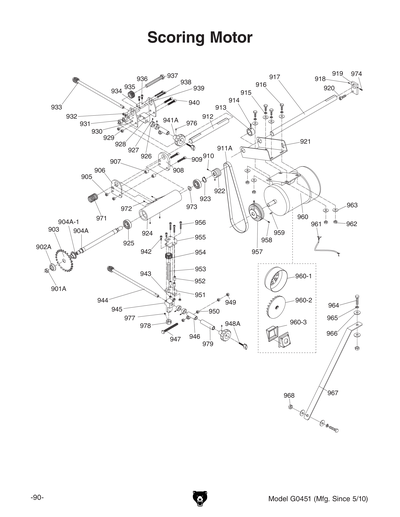

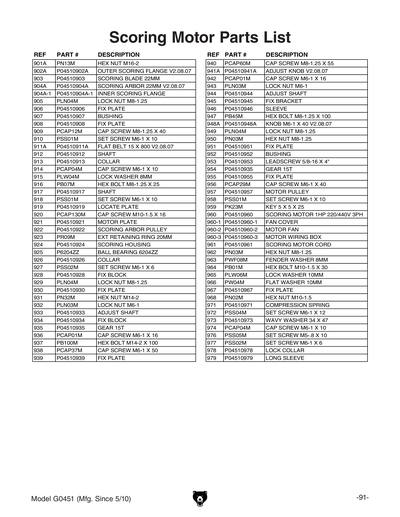

901
HEX NUT M12-1.75
Price
N/A
901A
HEX NUT M16-2
Price
N/A
902
*DISCD*OUTER SCORING FLANGE V1.04.05
Price
$3.75
902A
*DISCD*OUTER SCORING FLANGE V2.08.07
Item is no longer available
Price
N/A
903
*DISCD*SCORING BLADE 22MM
Item is no longer available
Price
N/A
904
*DISCD*SCORING ARBOR 22MM V1.04.05
Price
$35.10
904A
*DISCD*SCORING ARBOR 22MM V2.08.07
Item is no longer available
Price
N/A
904A-1
*DISCD*INNER SCORING FLANGE
Item is no longer available
Price
N/A
905
LOCK NUT M8-1.25
Price
N/A
906
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
907
*DISCD*BUSHING
Item is no longer available
Price
N/A
908
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
909
CAP SCREW M8-1.25 X 40
Price
N/A
910
SET SCREW M6-1 X 10
Price
N/A
911
*DISCD*FLAT BELT 15 X 787 V1.04.05
Item is no longer available
Price
N/A
911A
*DISCD*FLAT BELT 15 X 800 V2.08.07
Item is no longer available
Price
N/A
912
*DISCD*SHAFT
Item is no longer available
Price
N/A
913
*DISCD*COLLAR
Item is no longer available
Price
N/A
914
CAP SCREW M6-1 X 10
Price
N/A
915
LOCK WASHER 8MM
Price
N/A
916
HEX BOLT M8-1.25 X 25
Price
N/A
917
*DISCD*SHAFT
Item is no longer available
Price
N/A
918
SET SCREW M6-1 X 10
Price
N/A
919
*DISCD*LOCATE PLATE
Item is no longer available
Price
N/A
920
CAP SCREW M10-1.5 X 16
Price
N/A
921
*DISCD*MOTOR PLATE
Item is no longer available
Price
N/A
922
*DISCD*SCORING ARBOR PULLEY
Item is no longer available
Price
N/A
923
EXT RETAINING RING 20MM
Price
N/A
924
*DISCD*SCORING HOUSING
Item is no longer available
Price
N/A
925
BALL BEARING 6204ZZ
Price
N/A
926
*DISCD*COLLAR
Item is no longer available
Price
N/A
927
SET SCREW M6-1 X 6
Price
N/A
928
*DISCD*FIX BLOCK
Item is no longer available
Price
N/A
929
LOCK NUT M8-1.25
Price
N/A
930
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
931
HEX NUT M14-2
Price
N/A
932
LOCK NUT M6-1
Price
N/A
933
*DISCD*ADJUST SHAFT
Item is no longer available
Price
N/A
934
*DISCD*FIX BLOCK
Item is no longer available
Price
N/A
935
*DISCD*GEAR 15T
Item is no longer available
Price
N/A
936
CAP SCREW M6-1 X 16
Price
N/A
937
HEX BOLT M14-2 X 100
Price
N/A
938
CAP SCREW M6-1 X 50
Price
N/A
939
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
940
CAP SCREW M8-1.25 X 55
Price
N/A
941
*DISCD*ADJUST KNOB V1.04.05
Item is no longer available
Price
N/A
941A
*DISCD*ADJUST KNOB V2.08.07
Item is no longer available
Price
N/A
942
CAP SCREW M6-1 X 16
Price
N/A
943
LOCK NUT M6-1
Price
N/A
944
*DISCD*ADJUST SHAFT
Item is no longer available
Price
N/A
945
*DISCD*FIX BRACKET
Item is no longer available
Price
N/A
946
*DISCD*SLEEVE
Item is no longer available
Price
N/A
947
HEX BOLT M8-1.25 X 100
Price
N/A
948
*DISCD*KNOB M6-1 X 20 V1.04.05
Item is no longer available
Price
N/A
948A
*DISCD*KNOB M6-1 X 40 V2.08.07
Item is no longer available
Price
N/A
949
LOCK NUT M8-1.25
Price
N/A
950
HEX NUT M8-1.25
Price
N/A
951
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
952
*DISCD*BUSHING
Item is no longer available
Price
N/A
953
*DISCD*LEADSCREW 5/8-16 X 4"
Item is no longer available
Price
N/A
954
*DISCD*GEAR 15T
Price
N/A
955
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
956
CAP SCREW M6-1 X 40
Price
N/A
957
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
958
SET SCREW M6-1 X 10
Price
N/A
959
KEY 5 X 5 X 25
Price
N/A
960
*DISCD*Scoring Motor 1hp 220v/440v 3-ph
Price
$200.10
960-1
*DISCD*FAN COVER
Item is no longer available
Price
N/A
960-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
960-3
*DISCD*MOTOR WIRING BOX
Item is no longer available
Price
N/A
961
*DISCD*SCORING MOTOR CORD
Item is no longer available
Price
N/A
962
HEX NUT M8-1.25
Price
N/A
963
FENDER WASHER 8MM
Price
N/A
964
HEX BOLT M10-1.5 X 30
Price
N/A
965
LOCK WASHER 10MM
Price
N/A
966
FLAT WASHER 10MM
Price
N/A
967
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
968
HEX NUT M10-1.5
Price
N/A
971
*DISCD*SPRING
Item is no longer available
Price
N/A
972
SET SCREW M6-1 X 12
Price
N/A
973
*DISCD*WAVY WASHER 34 X 47
Item is no longer available
Price
N/A
974
CAP SCREW M6-1 X 10
Price
N/A
976
SET SCREW M5-.8 X 10
Price
N/A
977
SET SCREW M6-1 X 6
Price
N/A
978
*DISCD*LOCK NUT
Item is no longer available
Price
N/A
979
*DISCD*LONG SLEEVE
Item is no longer available
Price
N/A
1001
CAP SCREW M6-1 X 12
Price
N/A
1002
*DISCD*UNIVERSAL JOINT
Price
$148.35
1003
CAP SCREW M6-1 X 10
Price
N/A
1004
EXT RETAINING RING 15MM
Price
N/A
1005
CAP SCREW M8-1.25 X 16
Price
N/A
1006
LOCK WASHER 8MM
Price
N/A
1007
*DISCD*LOCATE RING V1.04.05
Price
$14.40
1007A
*DISCD*LOCATE RING V2.04.06
Item is no longer available
Price
N/A
1008
*DISCD*HAND WHEEL SHAFT V1.04.05
Price
$11.80
1008A
*DISCD*HAND WHEEL SHAFT V2.03.07
Price
$14.70
1009
KEY 7 X 7 X 20
Price
N/A
1010
*DISCD*HANDWHEEL 8"
Item is no longer available
Price
N/A
1011
FLAT WASHER 10MM
Price
N/A
1012
*DISCD*KNOB M10-1.5
Item is no longer available
Price
N/A
1013
CAP SCREW M8-1.25 X 35
Price
N/A
1014
LOCK WASHER 8MM
Price
N/A
1015
FENDER WASHER 8MM
Price
N/A
1016
LOCK WASHER 8MM
Price
N/A
1017
*DISCD*LONG SHAFT
Item is no longer available
Price
N/A
1018
CAP SCREW M8-1.25 X 12
Price
N/A
1019
LOCK WASHER 8MM
Price
N/A
1020
*DISCD*LOCATE PLATE
Item is no longer available
Price
N/A
1021
*DISCD*BUSHING
Item is no longer available
Price
N/A
1022
*DISCD*GEAR 30T V1.04.05
Item is no longer available
Price
N/A
1022A
*DISCD*GEAR 24T V2.07.05
Price
$19.85
1022B
*DISCD*GEAR 36T V2.07.05
Item is no longer available
Price
N/A
1023
SET SCREW M6-1 X 10
Price
N/A
1024
*DISCD*UNIVERSAL JOINT BRACKET
Price
$25.90
1025
CAP SCREW M8-1.25 X 20
Price
N/A
1026
LOCK WASHER 8MM
Price
N/A
1027
FENDER WASHER 8MM
Price
N/A
1028
EXT RETAINING RING 15MM
Price
N/A
1029
CAP SCREW M5-.8 X 10
Price
N/A
1030
*DISCD*CONNECTING ROD ASSEMBLY
Price
$147.80
1031
CAP SCREW M6-1 X 10
Price
N/A
1032
*DISCD*SHAFT
Price
$19.85
1033
CAP SCREW M6-1 X 10
Price
N/A
1034
FLAT WASHER 6MM
Price
N/A
1034A
CAP SCREW M6-1 X 20
Price
N/A
1035
*DISCD*SUPPORT PLATE
Item is no longer available
Price
N/A
1036
*DISCD*LOCK COLLAR
Price
$3.75
1037
*DISCD*THRUST BEARING LFW-2015
Item is no longer available
Price
N/A
1038
*DISCD*LOCATE BLOCK
Price
$49.45
1039
*DISCD*BUSHING
Price
$3.75
1040
THRUST BEARING 51104
Price
N/A
1041
*DISCD*WORM SHAFT
Price
$34.50
1042
KEY 7 X 7 X 20
Price
N/A
1043
CAP SCREW M10-1.5 X 35
Price
N/A
1044
SET SCREW M6-1 X 10
Price
N/A
1045
*DISCD*BUSHING
Price
$2.90
1046
BALL BEARING 6902ZZ
Price
N/A
1051
*DISCD*EXPANSION JOINT
Item is no longer available
Price
N/A
1053
*DISCD*SUPPORT PLATE
Item is no longer available
Price
N/A
1054
INT RETAINING RING 42MM
Price
N/A
1055
BALL BEARING 6004ZZ
Price
N/A
1056
INT RETAINING RING 28MM
Price
N/A
1101
*DISCD*NYLON WASHER M10 X 25
Item is no longer available
Price
N/A
1102
*DISCD*SUPPORT SHAFT V1.04.05
Price
$31.35
1102A
*DISCD*SUPPORT SHAFT V2.01.08
Price
$28.20
1103
HEX NUT M16-1.5
Price
N/A
1103A
HEX NUT M20-2.5
Price
N/A
1104
*DISCD*PLUG 100 X 50 V1.04.05
Item is no longer available
Price
N/A
1104A
*DISCD*PLUG 40 X 120 V2.06.07
Item is no longer available
Price
N/A
1105
HEX BOLT M8-1.25 X 30
Price
N/A
1105A
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
1106
*DISCD*MAGNETIC BRACKET V1.04.05
Price
$37.40
1106A
*DISCD*MAGNETIC BRACKET V2.04.07
Item is no longer available
Price
N/A
1106A-1
*DISCD*MAGNET V2.06.07
Item is no longer available
Price
N/A
1107
*DISCD*SLIDING TUBE V1.04.05
Price
$251.00
1107A
*DISCD*SLIDING TUBE V2.06.07
Price
$153.25
1108
HEX BOLT M8-1.25 X 30
Price
N/A
1108A
CAP SCREW M8-1.25 X 16
Price
N/A
1109
HEX NUT M8-1.25
Price
N/A
1110
TAP SCREW #8 X 3/8
Price
N/A
1110A
FLANGE SCREW M4-.7 X 6
Price
N/A
1111
*DISCD*COVER V1.04.05
Item is no longer available
Price
N/A
1111A
*DISCD*COVER V2.06.07
Item is no longer available
Price
N/A
1112
FLAT WASHER 8MM
Price
N/A
1113
*DISCD*ADJUST SHAFT V1.04.05
Item is no longer available
Price
N/A
1113A
*DISCD*SHAFT V2.06.06
Item is no longer available
Price
N/A
1114
EXT RETAINING RING 15MM
Price
N/A
1115
HEX NUT M8-1.25
Price
N/A
1116
SET SCREW M8-1.25 X 30
Price
N/A
1117
*DISCD*ROLLER V1.04.05
Item is no longer available
Price
N/A
1117A
*DISCD*ROLLER V2.11.06
Item is no longer available
Price
N/A
1118
BALL BEARING 6202ZZ
Price
N/A
1119
SET SCREW M8-1.25 X 30
Price
N/A
1119A
SET SCREW M8-1.25 X 25
Price
N/A
1120
INT RETAINING RING 35MM
Price
N/A
1120A
EXT RETAINING RING 15MM
Price
N/A
1121
*DISCD*SWING ARM V1.04.05
Price
$619.30
1121A
*DISCD*SWING ARM V2.10.06
Item is no longer available
Price
N/A
1122
THRUST BEARING 51102
Price
N/A
1123
HEX BOLT M8-1.25 X 80
Price
N/A
1124
FLAT WASHER 8MM
Price
N/A
1125
LOCK WASHER 8MM
Price
N/A
1126
BALL BEARING 6202ZZ
Price
N/A
1127
*DISCD*BRUSH
Item is no longer available
Price
N/A
1128
FLAT WASHER 6MM
Price
N/A
1129
CAP SCREW M6-1 X 20
Price
N/A
1134
LOCK WASHER 8MM
Price
N/A
1145
*DISCD*RING
Item is no longer available
Price
N/A
1146
*DISCD*SHAFT
Item is no longer available
Price
N/A
1148
*DISCD*PLATE
Item is no longer available
Price
N/A
1149
FLAT WASHER 16MM
Price
N/A
1201
*DISCD*DUST PORT
Item is no longer available
Price
N/A
1202
CAP SCREW M8-1.25 X 10
Price
N/A
1203
LOCK WASHER 8MM
Price
N/A
1204
*DISCD*ROTATE PLATE
Item is no longer available
Price
N/A
1205
SET SCREW M6-1 X 10
Price
N/A
1206
*DISCD*SHAFT
Item is no longer available
Price
N/A
1207
*DISCD*LOCATE PLATE
Item is no longer available
Price
N/A
1208
HEX NUT M12-1.75
Price
N/A
1209
HEX BOLT M12-1.75 X 50
Price
N/A
1210
HEX NUT M10-1.5
Price
N/A
1211
*DISCD*SUPPORT PLATE
Item is no longer available
Price
N/A
1212
*DISCD*SPACER
Item is no longer available
Price
N/A
1213
LOCK WASHER 10MM
Price
N/A
1214
CAP SCREW M10-1.5 X 65
Price
N/A
1215
*DISCD*SPACER
Item is no longer available
Price
N/A
1216
*DISCD*GIB PLATE V1.04.05
Item is no longer available
Price
N/A
1216A
*DISCD*GIB PLATE V2.10.05
Item is no longer available
Price
N/A
1217
BUTTON HD CAP SCR M10-1.5 X 25
Price
N/A
1218
*DISCD*LOCATE PLATE
Item is no longer available
Price
N/A
1219
LOCK WASHER 8MM
Price
N/A
1220
CAP SCREW M8-1.25 X 16
Price
N/A
1221
CAP SCREW M10-1.5 X 16
Price
N/A
1222
LOCK WASHER 10MM
Price
N/A
1223
*DISCD*LOCK COLLAR
Item is no longer available
Price
N/A
1224
*DISCD*MAIN MOTOR PLATE
Item is no longer available
Price
N/A
1225
HEX BOLT M10-1.5 X 40
Price
N/A
1226
LOCK WASHER 10MM
Price
N/A
1227
FLAT WASHER 10MM
Price
N/A
1228
*DISCD*Main Motor 10hp 220v/440v 3-ph
Price
$1,207.50
1228-1
*DISCD*FAN COVER
Item is no longer available
Price
N/A
1228-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
1228-3
*DISCD*MOTOR WIRING BOX
Item is no longer available
Price
N/A
1229
HEX NUT M10-1.5
Price
N/A
1230
*DISCD*MAIN MOTOR CORD
Item is no longer available
Price
N/A
1231
*DISCD*LOCK WASHER
Item is no longer available
Price
N/A
1232
*DISCD*ELEVATION SCREW M16-2 X 335
Item is no longer available
Price
N/A
1233
THRUST BEARING 51200
Price
N/A
1234
BALL BEARING 6200ZZ
Price
N/A
1235
EXT RETAINING RING 10MM
Price
N/A
1236
*DISCD*FIX BLOCK
Price
$81.95
1237
LOCK WASHER 10MM
Price
N/A
1238
CAP SCREW M10-1.5 X 45
Price
N/A
1238A
CAP SCREW M10-1.5 X 35
Price
N/A
1239
V-BELT M25 3L250
Price
N/A
1239A
*DISCD*BELT 3R-5MS-670 V2.06.07
Item is no longer available
Price
N/A
1240
*DISCD*MAIN MOTOR PULLEY V1.04.05
Price
$23.30
1240A
*DISCD*MAIN MOTOR PULLEY V2.06.07
Item is no longer available
Price
N/A
1241
SET SCREW M6-1 X 10
Price
N/A
1242
KEY 8 X 7 X 50
Price
N/A
1243
HEX BOLT M10-1.5 X 30
Price
N/A
1244
LOCK WASHER 10MM
Price
N/A
1245
FLAT WASHER 10MM
Price
N/A
1246
*DISCD*FIX PLATE
Price
$19.55
1247
HEX NUT M10-1.5
Price
N/A
1248
*DISCD*SPONGE
Item is no longer available
Price
N/A
1250
FLAT WASHER 6MM
Price
N/A
1251
LOCK WASHER 6MM
Price
N/A
1252
CAP SCREW M6-1 X 20
Price
N/A
1254
LOCK NUT M5-.8
Price
N/A
1255
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
1256
*DISCD*BUSHING
Item is no longer available
Price
N/A
1257
*DISCD*PLATE
Item is no longer available
Price
N/A
1258
*DISCD*FIX PLATE
Item is no longer available
Price
N/A
1259
FLAT WASHER 5MM
Price
N/A
1260
CAP SCREW M5-.8 X 25
Price
N/A
MANUAL
MANUAL FOR G0451 05/11
Item is no longer available
Price
N/A
