Parts for G0452Z - 6" x 46" Jointer w/ Spiral Cutterhead

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

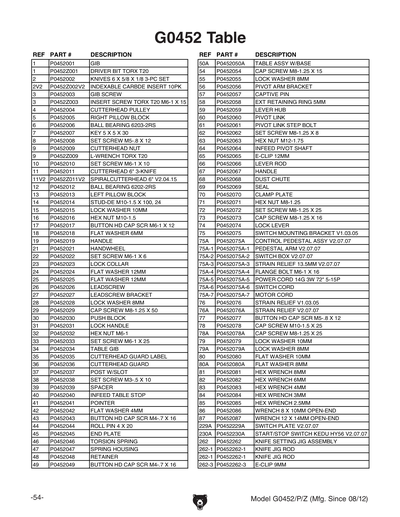

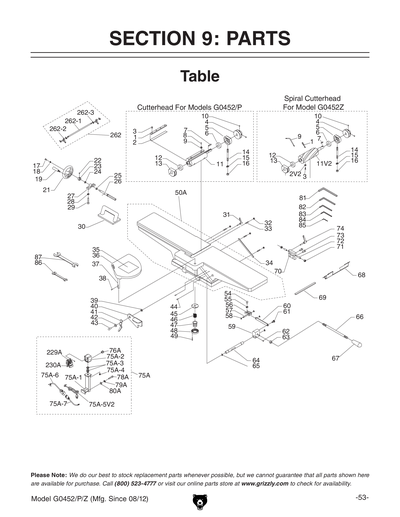

Ref # Part # Description Price Qty
1 P0452Z001 DRIVER BIT TORX T20 $1.00
2 P0452Z002
***SEE EXT. DESCRIPTION***
Item is no longer available
N/A
2V2 P0452Z002V2
Replaced By H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10 Pack
N/A View Replacement
3 P0452Z003 INSERT SCREW TORX T20 M6-1 X 15 $1.00
4 P0452Z004
Replaced By P0452004
CUTTERHEAD PULLEY
N/A View Replacement
5 P0452Z005
Replaced By P0452005
RIGHT PILLOW BLOCK
N/A View Replacement
6 P0452Z006
Replaced By P6203-2RS
BALL BEARING 6203-2RS
N/A View Replacement
7 P0452Z007
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
9 P0452Z009 L-WRENCH TORX T20 $1.10
10 P0452Z010
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
11 P0452Z011 SPIRAL CUTTERHEAD 6" V1 $605.00
11V2 P0452Z011V2
SPIRAL CUTTERHEAD 6" V2.04.15
N/A
12 P0452Z012
Replaced By P6202-2RS
BALL BEARING 6202-2RS
N/A View Replacement
13 P0452Z013
Replaced By P0452013
LEFT PILLOW BLOCK
N/A View Replacement
14 P0452Z014
Replaced By P0452014
STUD-DE M10-1.5 X 100, 24
N/A View Replacement
15 P0452Z015
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
16 P0452Z016
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
17 P0452Z017
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
18 P0452Z018
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
19 P0452Z019
Replaced By P0452019
HANDLE
N/A View Replacement
21 P0452Z021
Replaced By P0452021
HANDWHEEL
N/A View Replacement
22 P0452Z022
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
23 P0452Z023
Replaced By P0452023
LOCK COLLAR
N/A View Replacement
24 P0452Z024
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
25 P0452Z025
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
26 P0452Z026
Replaced By P0452026
SCREW SHAFT
N/A View Replacement
27 P0452Z027
Replaced By P0452027
LEADSCREW BRACKET
N/A View Replacement
28 P0452Z028
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
29 P0452Z029
Replaced By PCAP05M
CAP SCREW M8-1.25 X 50
N/A View Replacement
30 P0452Z030
Replaced By P0452030
***USE W1400***
N/A View Replacement
31 P0452Z031
Replaced By P0452031
LOCK HANDLE
N/A View Replacement
32 P0452Z032
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
33 P0452Z033
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
34 P0452Z034
Replaced By P0452034
TABLE GIB
N/A View Replacement
35 P0452Z035
Replaced By P0452035
CUTTERHEAD GUARD LABEL
N/A View Replacement
36 P0452Z036
Replaced By P0452036
CUTTERHEAD GUARD
N/A View Replacement
37 P0452Z037
Replaced By P0452037
POST W/SLOT
N/A View Replacement
38 P0452Z038
Replaced By PSS47M
SET SCREW M3-.5 X 10
N/A View Replacement
39 P0452Z039
Replaced By P0452039
SPACER
N/A View Replacement
40 P0452Z040
Replaced By P0452040
INFEED TABLE STOP
N/A View Replacement
41 P0452Z041
Replaced By P0452041
POINTER
N/A View Replacement
41-1 P0452Z041-1
Replaced By P0452041-1
DEPTH OF CUT SCALE
N/A View Replacement
41-2 P0452Z041-2
Replaced By PRIV003M
RIVET 2 X 4MM NAMEPLATE, STEEL
N/A View Replacement
42 P0452Z042
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
43 P0452Z043
Replaced By PBHS14M
BUTTON HD CAP SCR M4-.7 X 16
N/A View Replacement
44 P0452Z044
Replaced By PRP39M
ROLL PIN 4 X 20
N/A View Replacement
45 P0452Z045
Replaced By P0452045
END PLATE
N/A View Replacement
46 P0452Z046
Replaced By P0452046
TORSION SPRING
N/A View Replacement
47 P0452Z047
Replaced By P0452047
SPRING HOUSING
N/A View Replacement
48 P0452Z048
Replaced By P0452048
RETAINER
N/A View Replacement
49 P0452Z049
Replaced By PS01M
PHLP HD SCR M4-.7 X 18
N/A View Replacement
51 P0452Z051
Replaced By P0452051
BASE
N/A View Replacement
54 P0452Z054
Replaced By PCAP100M
CAP SCREW M8-1.25 X 15
N/A View Replacement
55 P0452Z055
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
56 P0452Z056
Replaced By P0452056
PIVOT ARM BRACKET
N/A View Replacement
57 P0452Z057
Replaced By P0452057
CAPTIVE PIN
N/A View Replacement
58 P0452Z058
Replaced By PR73M
EXT RETAINING RING 5MM
N/A View Replacement
59 P0452Z059
Replaced By P0452059
LEVER HUB
N/A View Replacement
60 P0452Z060
Replaced By P0452060
PIVOT LINK
N/A View Replacement
61 P0452Z061
Replaced By P0452061
PIVOT LINK STEP BOLT
N/A View Replacement
62 P0452Z062
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
63 P0452Z063
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
64 P0452Z064
Replaced By P0452064
INFEED PIVOT SHAFT
N/A View Replacement
65 P0452Z065
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
66 P0452Z066
Replaced By P0452066
LEVER ROD
N/A View Replacement
67 P0452Z067
Replaced By P0452067
HANDLE
N/A View Replacement
68 P0452Z068
Replaced By P0452068
DUST CHUTE
N/A View Replacement
69 P0452Z069
Replaced By P0452069
SEAL
N/A View Replacement
70 P0452Z070
Replaced By P0452070
CLAMP PLATE
N/A View Replacement
71 P0452Z071
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
72 P0452Z072
Replaced By PSS21M
SET SCREW M8-1.25 X 25
N/A View Replacement
73 P0452Z073
Replaced By PCAP11M
CAP SCREW M8-1.25 X 16
N/A View Replacement
74 P0452Z074
Replaced By P0452074
LOCK LEVER
N/A View Replacement
75 P0452Z075
SWITCH ARM ASSY V1.09.07
N/A
75-1 P0452Z075-1
*DISCD*SWITCH ARM V1.09.07
Item is no longer available
N/A
75-2 P0452Z075-2
*DISCD*SWITCH BOX V1.09.07
Item is no longer available
N/A
75-3 P0452Z075-3 BALL STRAIN RELIEF 13.5MM $1.00
75-4 P0452Z075-4
Replaced By PFB17M
FLANGE BOLT M6-1 X 16
N/A View Replacement
75-5 P0452Z075-5 CORD HOLD DOWN $1.00
75-6 P0452Z075-6
Replaced By P0604ZX140
POWER CORD 14G 3W 72" 5-15P
N/A View Replacement
75V2 P0452Z075V2 SWITCH ARM ASSY V2.08.08 $27.75
75V2-1 P0452Z075V2-1
SWITCH BOX V2.08.08
N/A
75V2-2 P0452Z075V2-2
SWITCH PEDESTAL V2.08.08
N/A
76 P0452Z076
STRAIN RELIEF
N/A
78 P0452Z078
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
79 P0452Z079
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
80 P0452Z080
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
81 P0452Z081
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
82 P0452Z082
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
83 P0452Z083
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
84 P0452Z084
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
85 P0452Z085
Replaced By PAW02.5M
N/A View Replacement
86 P0452Z086
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
87 P0452Z087
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
88 P0452Z088
Replaced By P0452088

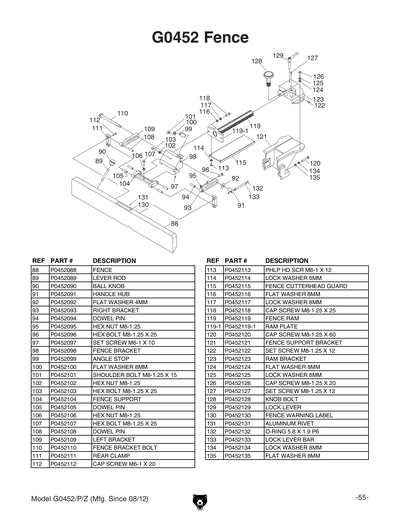

FENCE
N/A View Replacement
89 P0452Z089
Replaced By P0452089
LEVER ROD
N/A View Replacement
90 P0452Z090
Replaced By P0452090
BALL KNOB
N/A View Replacement
91 P0452Z091
Replaced By P0452091
HANDLE HUB
N/A View Replacement
92 P0452Z092
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
93 P0452Z093
RIGHT BRACKET
N/A
94 P0452Z094
Replaced By P0452094
DOWEL PIN
N/A View Replacement
95 P0452Z095
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
96 P0452Z096
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
97 P0452Z097
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
98 P0452Z098 FENCE BRACKET $4.25
99 P0452Z099
Replaced By P0452099
ANGLE STOP
N/A View Replacement
100 P0452Z100
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
101 P0452Z101
Replaced By P0452101
SHOULDER BOLT M8-1.25 X 15
N/A View Replacement
102 P0452Z102
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
103 P0452Z103
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
104 P0452Z104
Replaced By P0452104
FENCE SUPPORT
N/A View Replacement
105 P0452Z105
Replaced By P0452105
DOWEL PIN
N/A View Replacement
106 P0452Z106
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
107 P0452Z107
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
108 P0452Z108
Replaced By P0452108
DOWEL PIN
N/A View Replacement
109 P0452Z109 LEFT BRACKET $2.50
110 P0452Z110
Replaced By P0452110
FENCE BRACKET BOLT
N/A View Replacement
111 P0452Z111
Replaced By P0452111
REAR CLAMP
N/A View Replacement
112 P0452Z112
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
113 P0452Z113
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
114 P0452Z114
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
115 P0452Z115
Replaced By P0452115
FENCE CUTTERHEAD GUARD
N/A View Replacement
116 P0452Z116
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
117 P0452Z117
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
118 P0452Z118
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
119 P0452Z119
Replaced By P0452119
FENCE RAM
N/A View Replacement
120 P0452Z120
Replaced By PCAP35M
CAP SCREW M8-1.25 X 60
N/A View Replacement
121 P0452Z121
BRACKET
N/A
122 P0452Z122
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
123 P0452Z123
BRACKET
N/A
124 P0452Z124
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
125 P0452Z125
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
126 P0452Z126
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
127 P0452Z127
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
128 P0452Z128
Replaced By P0452128
KNOB BOLT
N/A View Replacement
129 P0452Z129
Replaced By P0452129
LOCK LEVER
N/A View Replacement
130 P0452Z130
Replaced By P0452130
FENCE WARNING LABEL
N/A View Replacement
131 P0452Z131
Replaced By PRIV19M
RIVET 2 X 4MM NAMEPLATE, ALUMINUM
N/A View Replacement
132 P0452Z132
Replaced By PORP006
O-RING 5.8 X 1.9 P6
N/A View Replacement
133 P0452Z133
Replaced By P0452133
LOCK LEVER BAR
N/A View Replacement
134 P0452Z134
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
135 P0452Z135
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement

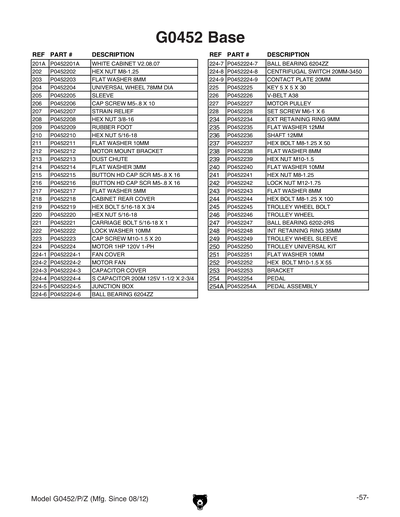

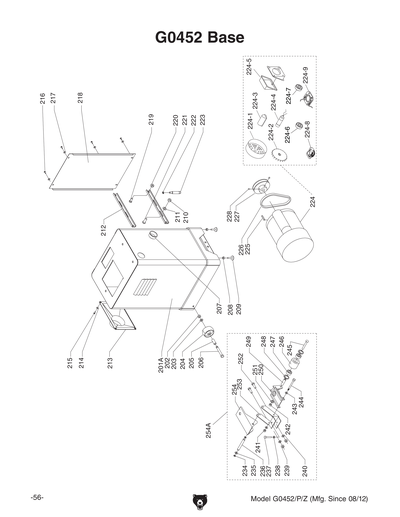

201 P0452Z201
CABINET
N/A
201A P0452Z201A COMPLETE STAND ASSY BOX 2 $570.00
202 P0452Z202
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
203 P0452Z203
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
204 P0452Z204
Replaced By P0453405
UNIVERSAL WHEEL 78MM DIA
N/A View Replacement
205 P0452Z205
Replaced By P0452205
SLEEVE
N/A View Replacement
206 P0452Z206
Replaced By PCAP66M
CAP SCREW M8-1.25 X 65
N/A View Replacement
207 P0452Z207
Replaced By P0490236
GROMMET 50 X 41MM
N/A View Replacement
208 P0452Z208
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
209 P0452Z209
Replaced By P0452209
RUBBER FOOT
N/A View Replacement
210 P0452Z210
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
211 P0452Z211
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
212 P0452Z212
Replaced By P0452212
MOTOR MOUNT BRACKET
N/A View Replacement
213 P0452Z213
Replaced By P0604210
DUST PORT
N/A View Replacement
214 P0452Z214
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
215 P0452Z215
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
216 P0452Z216
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
217 P0452Z217
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
218 P0452Z218 REAR CABINET COVER $13.50
219 P0452Z219
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
220 P0452Z220
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
221 P0452Z221
Replaced By PCB11
CARRIAGE BOLT 5/16-18 X 1
N/A View Replacement
222 P0452Z222
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
223 P0452Z223
Replaced By PCAP61M
CAP SCREW M10-1.5 X 20
N/A View Replacement
224 P0452Z224
Replaced By P0604X228
MOTOR 1.5HP 120V/240V 1-PH
N/A View Replacement
224-1 P0452Z224-1
Replaced By P0604X228-1
FAN COVER
N/A View Replacement
224-10 P0452Z224-10
Replaced By PCP001
CONTACT PLT-TUNGSTEN 5HP OR LESS
N/A View Replacement
224-2 P0452Z224-2
Replaced By P0604X228-2
MOTOR FAN
N/A View Replacement
224-3 P0452Z224-3
Replaced By P0604X228-3
CAPACITOR COVER
N/A View Replacement
224-4 P0452Z224-4
Replaced By P0604X228-4
S CAPACITOR 300M 125V 1-9/16 X 3-9/16
N/A View Replacement
224-5 P0452Z224-5
Replaced By P0604X228-5
R CAPACITOR 40M 250V 1-9/16 X 2-3/4
N/A View Replacement
224-6 P0452Z224-6
Replaced By P0452224-5
JUNCTION BOX
N/A View Replacement
224-7 P0452Z224-7
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
224-8 P0452Z224-8
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
224-9 P0452Z224-9
Replaced By PCS003
CENT SWITCH 5/8-3450
N/A View Replacement
225 P0452Z225
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
226 P0452Z226
Replaced By PVA38
V-BELT A38
N/A View Replacement
227 P0452Z227
Replaced By P0452227
MOTOR PULLEY
N/A View Replacement
228 P0452Z228
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
229 P0452Z229
Replaced By P0452229A
SWITCH PLATE V2.07.07
N/A View Replacement
230 P0452Z230
Replaced By D4151
Paddle Switch 120/230V
N/A View Replacement
231 P0452Z231
Replaced By PHTEK4M
TAP SCREW M4 X 8
N/A View Replacement
234 P0452Z234
Replaced By PR16M
EXT RETAINING RING 9MM
N/A View Replacement
235 P0452Z235
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
236 P0452Z236
Replaced By P0452236
SHAFT 12MM
N/A View Replacement
237 P0452Z237
Replaced By PB22M
HEX BOLT M8-1.25 X 50
N/A View Replacement
238 P0452Z238
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
239 P0452Z239
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
240 P0452Z240
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
241 P0452Z241
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
242 P0452Z242
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
243 P0452Z243
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
244 P0452Z244
Replaced By PB45M
HEX BOLT M8-1.25 X 100
N/A View Replacement
245 P0452Z245
Replaced By P0452245
TROLLEY WHEEL BOLT
N/A View Replacement
246 P0452Z246
Replaced By P0452246
TROLLEY WHEEL
N/A View Replacement
247 P0452Z247
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
248 P0452Z248
Replaced By PR21M
INT RETAINING RING 35MM
N/A View Replacement
249 P0452Z249
Replaced By P0452249
TROLLEY WHEEL SLEEVE
N/A View Replacement
250 P0452Z250
Replaced By P0452250
TROLLEY UNIVERSAL KIT
N/A View Replacement
251 P0452Z251
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
252 P0452Z252
Replaced By PB144M
HEX BOLT M10-1.5 X 55
N/A View Replacement
253 P0452Z253
Replaced By P0452253
BRACKET
N/A View Replacement
254 P0452Z254
Replaced By P0452254
PEDAL
N/A View Replacement
254A P0452Z254A
Replaced By P0656231
PEDAL ASSEMBLY
N/A View Replacement
255 P0452Z255 MACHINE ID LABEL V1 $9.50
255V2 P0452Z255V2
MACHINE ID LABEL CSA V2.08.12
N/A
256 P0452Z256
Replaced By PLABEL-37
RESPIRATOR/GLASSES 2W X 3.3H
N/A View Replacement
257 P0452Z257
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
258 P0452Z258 GRIZZLY.COM LABEL $1.75
259 P0452Z259 MODEL NUMBER LABEL $2.25
260 P0452Z260
Replaced By G8588
Name Plates - Small
N/A View Replacement
261 P0452Z261
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
262 P0452Z262
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
263 P0452Z263
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
264 P0452Z264
CUTTERHEAD GUARD LABEL
N/A
265 P0452Z265
CUTTERHEAD SPACE LABEL
N/A
MAN P0452ZMAN
MANUAL FOR G0452Z 09/07
N/A
