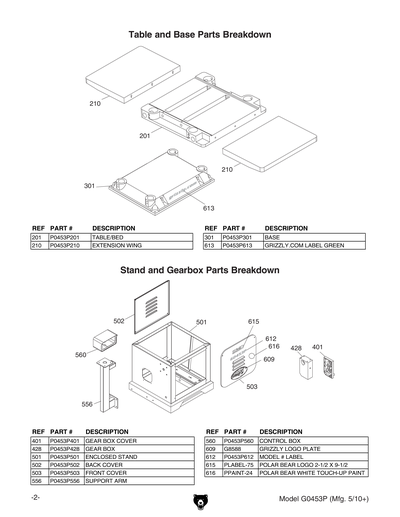

Parts for G0453P - 15" 3 HP 220V Planer, Polar Bear Series

1/9

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

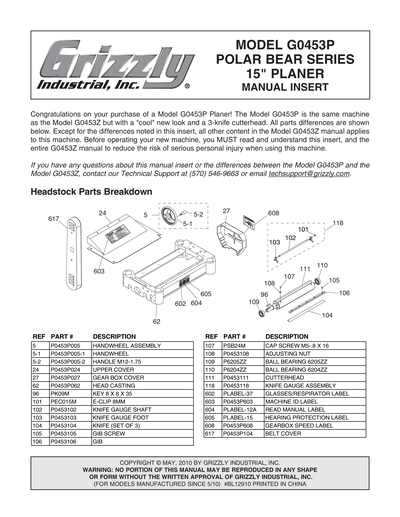

5
HANDWHEEL ASSEMBLY
Price
$40.85
5-1
HANDWHEEL
Price
$20.15
5-2
HANDLE M12-1.75
Price
$19.00
7-4
OL RELAY NHD NTH-17 14-17A
Price
N/A
24
UPPER COVER
Item is no longer available
Price
N/A
27
GEAR BOX COVER
Price
$23.00
62
HEAD CASTING
Item is no longer available
Price
N/A
96
KEY 8 X 8 X 35
Price
N/A
101
E-CLIP 8MM
Price
N/A
102
KNIFE JIG SHAFT
Price
N/A
103
KNIFE JIG FOOT
Price
N/A
104
15" x 1" x 1/8" HSS Planer Knives, Set of 3
Price
N/A
105
GIB SCREW
Price
N/A
106
GIB
Price
N/A
107
CAP SCREW M5-.8 X 16
Price
N/A
108
ADJUSTING NUT
Price
N/A
109
BALL BEARING 6205ZZ
Price
N/A
110
BALL BEARING 6203ZZ
Price
N/A
111
KNIFE CUTTERHEAD 15"
Price
N/A
118
KNIFE SETTING JIG ASSEMBLY
Price
N/A

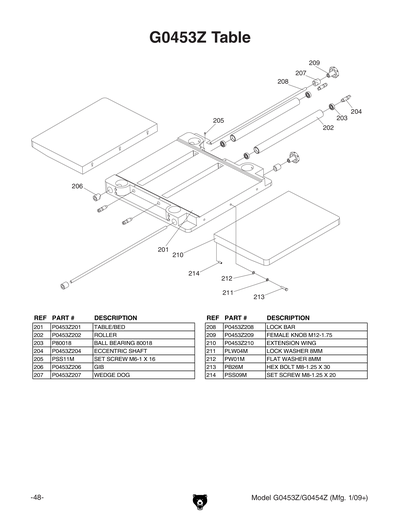

201
TABLE/BED
Item is no longer available
Price
N/A
210
EXTENSION WING
Price
$99.50

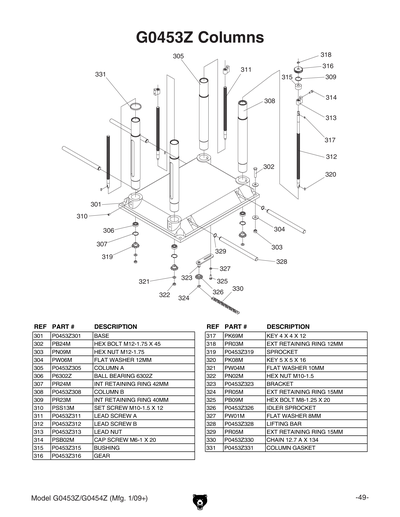

301
BASE
Price
$175.70
401
GEAR BOX COVER
Item is no longer available
Price
N/A

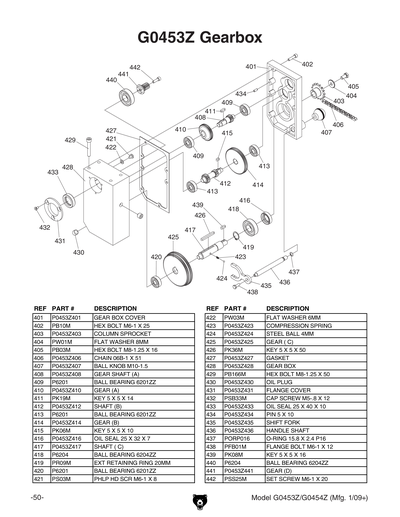

428
GEAR BOX
Item is no longer available
Price
N/A

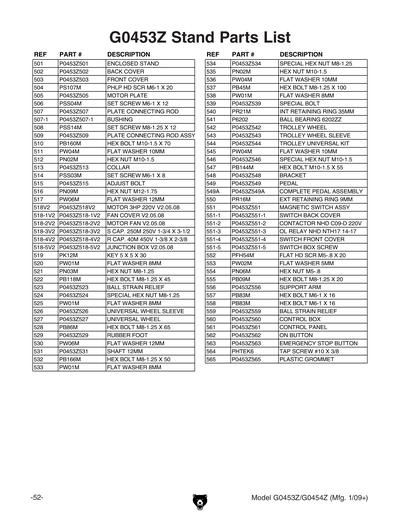

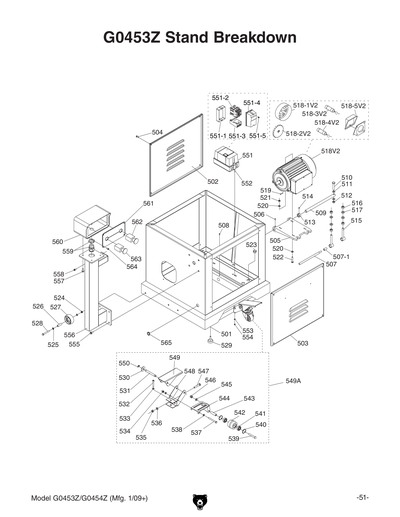

501
ENCLOSED STAND
Price
$224.85
502
BACK COVER
Price
$20.15
503
FRONT COVER
Price
$20.15
551V2
MAGNETIC SWITCH ASSEMBLY V2.01.11
Item is no longer available
Price
N/A
556
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
560
CONTROL BOX
Price
$11.80
560-1
E-STOP BUTTON W/3 ARROW NHD NLB22-R V2
Price
N/A
562V2
START BUTTON CLEAR V2.01.11
Price
$13.55
563V2
E-STOP BUTTON W/3 ARROW NHD NLB22-R V2
Price
$15.25
602
RESPIRATOR/GLASSES 2W X 3.3H
Price
N/A
603
MACHINE ID LABEL NO-CSA V1
Item is no longer available
Price
N/A
603V2
MACHINE ID LABEL CSA V2.08.12
Item is no longer available
Price
N/A
604
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
605
EAR PROTECTION 2W X 3.3H V1
Price
N/A
608
GEARBOX SPEED LABEL
Price
$1.00
609
Name Plates - Small
Price
N/A
612
MODEL NUMBER LABEL
Price
$3.50
613
GRIZZLY.COM LABEL PB WHITE
Price
$2.00
615
POLAR BEAR LOGO 2-1/2 X 9-1/2
Price
N/A
616
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
617
15" x 1" x 1/8" HSS Planer Knives, Set of 3
Price
N/A
MAN
MAN FOR G0453P MFD-05.10-07.12 V1.05.10
Price
$20.00
MANV2
MANUAL G0453Z MFD_08.12+ V3.07.12
Price
N/A
X007-4
OL RELAY NHD NTH-17 14-17A
Price
N/A

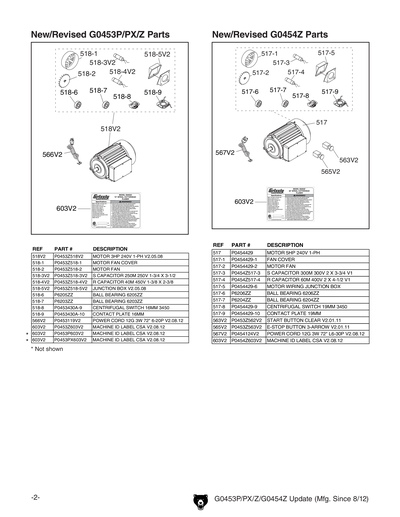

X430A
MOTOR 3HP 240V 1-PH V2.05.08
Price
N/A
X430A-1
MOTOR FAN COVER V1
Price
N/A
X430A-2
MOTOR FAN V1
Price
N/A
X430A-3
S CAPACITOR 250M 250V 1-3/4 X 3-1/2 V2
Price
N/A
X430A-4
R CAP 40M 450V 1-1/2 X 3-1/2 V2.05.08
Price
N/A
X430A-5
JUNCTION BOX V2.05.08
Price
N/A
X430A-6
BALL BEARING 6203ZZ
Price
N/A
X430A-7
BALL BEARING 6202ZZ
Price
N/A
X430A-8
CENT SWITCH 5/8-3450
Price
N/A
X430A-9
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
