Parts for G0453Z - 15" 3 HP Planer w/ Spiral Cutterhead

Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z
Part Diagram for G0453Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

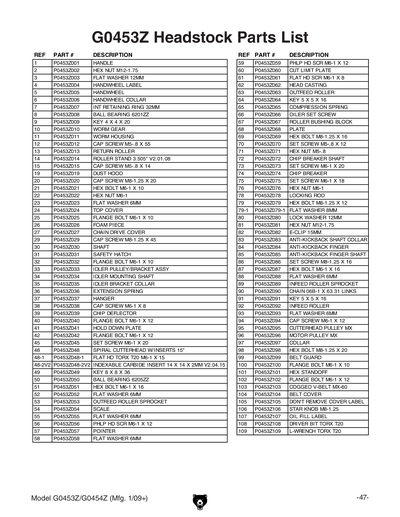

Ref #
Part #
Description

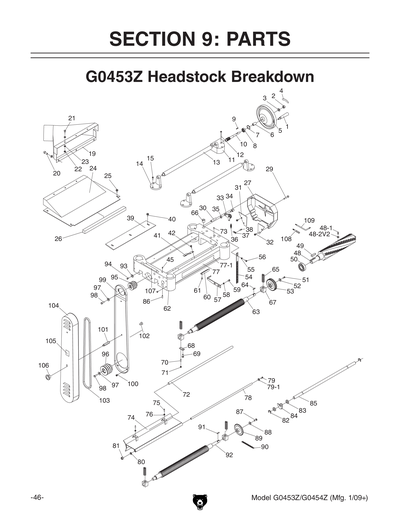

1
HANDWHEEL HANDLE
Price
N/A
2
HEX NUT M12-1.75
Price
N/A
3
FLAT WASHER 12MM
Price
N/A
4
HANDWHEEL LABEL
Price
N/A
5
HANDWHEEL
Price
N/A
6
HANDWHEEL COLLAR
Price
N/A
7
INT RETAINING RING 32MM
Price
N/A
8
BALL BEARING 6201ZZ
Price
N/A
9
KEY 4 X 4 X 20
Price
N/A
10
WORM GEAR
Price
N/A
11
WORM HOUSING
Price
$21.95
12
CAP SCREW M5-.8 X 55
Price
N/A
13
RETURN ROLLER
Price
N/A
14
ROLLER STAND 3.505" V2.01.08
Price
N/A
15
CAP SCREW M5-.8 X 14
Price
N/A
19
DUST HOOD
Price
N/A
20
CAP SCREW M8-1.25 X 20
Price
N/A
21
HEX BOLT M6-1 X 10
Price
N/A
22
HEX NUT M6-1
Price
N/A
23
FLAT WASHER 6MM
Price
N/A
24
TOP COVER
Price
N/A
25
FLANGE BOLT M6-1 X 10
Price
N/A
26
FOAM PIECE
Price
N/A
27
CHAIN DRIVE COVER
Price
N/A
29
CAP SCREW M8-1.25 X 45
Price
N/A
30
SHAFT
Price
N/A
31
SAFETY HATCH
Price
N/A
32
FLANGE BOLT M6-1 X 10
Price
N/A
33
IDLER PULLEY
Price
N/A
34
IDLER MOUNTING SHAFT
Price
$1.90
35
COLLAR
Price
$1.90
36
EXTENSION SPRING
Price
N/A
37
HANGER
Price
N/A
38
CAP SCREW M6-1 X 8
Price
N/A
39
CHIP DEFLECTOR
Price
N/A
40
FLANGE BOLT M6-1 X 12
Price
N/A
41
HOLD DOWN PLATE
Price
N/A
42
FLANGE BOLT M6-1 X 12
Price
N/A
45
SET SCREW M6-1 X 20
Price
N/A
48
SPIRAL CUTTERHEAD ASSY V1
Price
$2,359.35
48-1
INSERT SCREW TORX T20 M6-1 X 15
Price
N/A
48-2
Indexable Carbide Inserts - 14.18 x 14.18 x 2mm, 10-Pk.
Price
N/A
48-2V2
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
48V2
SPIRAL CUTTERHEAD 15" V2.04.15
Price
$2,359.35
49
KEY 8 X 8 X 36
Price
N/A
50
BALL BEARING 6205ZZ
Price
N/A
51
HEX BOLT M6-1 X 16
Price
N/A
52
FLAT WASHER 6MM
Price
N/A
53
OUTFEED ROLLER SPROCKET
Price
N/A
54
SCALE
Price
$6.90
55
FLAT WASHER 6MM
Price
N/A
56
PHLP HD SCR M6-1 X 12
Price
N/A
57
POINTER
Price
N/A
58
FLAT WASHER 6MM
Price
N/A
59
PHLP HD SCR M6-1 X 12
Price
N/A
60
CUT LIMIT PLATE
Price
N/A
61
FLAT HD SCR M6-1 X 8
Price
N/A
62
HEAD CASTING
Price
N/A
63
OUTFEED ROLLER (SERRATED STEEL) V1
Price
N/A
63V2
15" Rubber Outfeed Roller for G0453 Series Planers
Price
N/A
64
KEY 5 X 5 X 16
Price
N/A
65
COMPRESSION SPRING
Price
N/A
66
OILER SET SCREW
Price
N/A
67
ROLLER BUSHING BLOCK
Price
N/A
68
PLATE
Price
N/A
69
HEX BOLT M8-1.25 X 16
Price
N/A
70
SET SCREW M5-.8 X 12
Price
N/A
71
HEX NUT M5-.8
Price
N/A
72
CHIP BREAKER SHAFT
Price
N/A
73
SET SCREW M6-1 X 20
Price
N/A
74
CHIP BREAKER
Price
N/A
75
SET SCREW M6-1 X 18
Price
N/A
76
HEX NUT M6-1
Price
N/A
78
LOCKING ROD
Price
N/A
79
HEX BOLT M8-1.25 X 12
Price
N/A
79-1
FLAT WASHER 8MM
Price
N/A
80
LOCK WASHER 12MM
Price
N/A
81
HEX NUT M12-1.75
Price
N/A
82
E-CLIP 15MM
Price
N/A
83
ANTI-KICKBACK SHAFT COLLAR
Price
N/A
84
ANTI-KICKBACK FINGER
Price
N/A
85
ANTI-KICKBACK FINGER SHAFT
Price
N/A
86
SET SCREW M8-1.25 X 16
Price
N/A
87
HEX BOLT M6-1 X 16
Price
N/A
88
FLAT WASHER 6MM
Price
N/A
89
INFEED ROLLER SPROCKET
Price
N/A
90
CHAIN 06B-1 X 63 31 LINKS
Price
N/A
91
KEY 5 X 5 X 16
Price
N/A
92
INFEED ROLLER
Price
N/A
93
FLAT WASHER 6MM
Price
N/A
94
CAP SCREW M6-1 X 12
Price
N/A
95
CUTTERHEAD PULLEY MX
Price
N/A
96
MOTOR PULLEY MX
Price
N/A
97
COLLAR
Price
N/A
98
HEX BOLT M8-1.25 X 20
Price
N/A
99
BELT GUARD
Price
N/A
100
FLANGE BOLT M6-1 X 10
Price
N/A
101
HEX STANDOFF STUD
Price
N/A
102
FLANGE BOLT M6-1 X 12
Price
N/A
103
V-BELT MX60
Price
N/A
104
BELT COVER
Price
N/A
105
DON'T REMOVE COVER LABEL
Price
$4.40
106
STAR KNOB M8-1.25
Price
N/A
107
OIL FILL LABEL
Price
N/A
108
DRIVER BIT TORX T20
Price
N/A
109
L-WRENCH TORX T20
Price
N/A

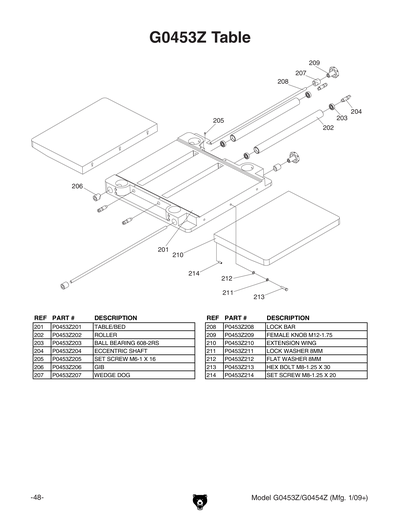

201
TABLE/BED
Price
$213.15
202
ROLLER
Price
$17.25
203
BALL BEARING 608-2RS
Price
N/A
204
ECCENTRIC SHAFT
Price
$1.90
205
SET SCREW M6-1 X 16
Price
N/A
206
GIB
Price
$3.65
207
WEDGE DOG
Price
$2.60
208
LOCK BAR
Price
$3.65
209
FEMALE KNOB M12-1.75
Price
$4.35
210
EXTENSION WING
Price
$106.75
211
LOCK WASHER 8MM
Price
N/A
212
FLAT WASHER 8MM
Price
N/A
213
HEX BOLT M8-1.25 X 30
Price
N/A
214
SET SCREW M8-1.25 X 20
Price
N/A

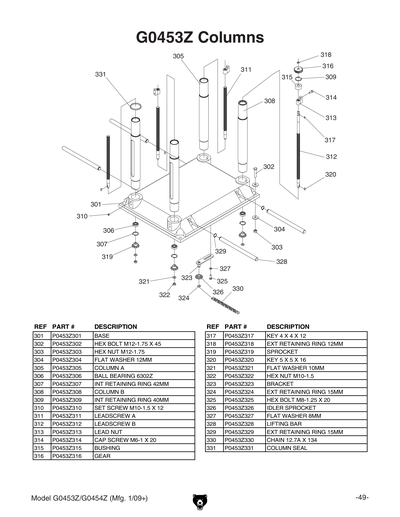

301
BASE
Price
$299.40
302
HEX BOLT M12-1.75 X 45
Price
N/A
303
HEX NUT M12-1.75
Price
N/A
304
FLAT WASHER 12MM
Price
N/A
305
COLUMN A
Price
$54.35
306
BALL BEARING 6302Z
Price
N/A
307
INT RETAINING RING 42MM
Price
N/A
308
COLUMN B
Price
$56.45
309
INT RETAINING RING 40MM
Price
N/A
310
SET SCREW M10-1.5 X 12
Price
N/A
311
LEADSCREW A
Price
$14.75
312
LEADSCREW B
Price
$21.25
313
LEADSCREW NUT
Price
N/A
314
CAP SCREW M6-1 X 20
Price
N/A
315
BUSHING
Price
$1.90
316
GEAR
Price
$11.20
317
KEY 4 X 4 X 12
Price
N/A
318
EXT RETAINING RING 12MM
Price
N/A
319
SPROCKET
Price
$4.70
320
KEY 5 X 5 X 16
Price
N/A
321
FLAT WASHER 10MM
Price
N/A
322
HEX NUT M10-1.5
Price
N/A
323
BRACKET
Price
$10.45
324
EXT RETAINING RING 15MM
Price
N/A
325
HEX BOLT M8-1.25 X 20
Price
N/A
326
IDLER SPROCKET
Price
$4.70
327
FLAT WASHER 8MM
Price
N/A
328
LIFTING BAR
Price
$15.50
329
EXT RETAINING RING 15MM
Price
N/A
330
CHAIN 12.7A X 134
Price
N/A
331
COLUMN SEAL
Price
$1.90

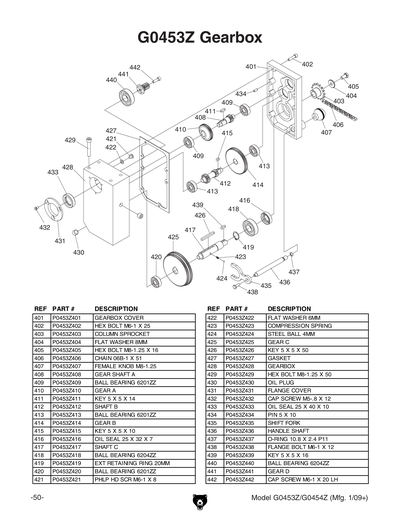

401
GEARBOX COVER
Price
$26.65
402
HEX BOLT M6-1 X 25
Price
N/A
403
COLUMN SPROCKET
Price
$6.90
404
FLAT WASHER 8MM
Price
N/A
405
HEX BOLT M8-1.25 X 16
Price
N/A
406
CHAIN 06B-1 X 49
Price
N/A
407
BALL KNOB M10-1.5
Price
$1.90
408
GEAR SHAFT A
Price
$13.70
409
BALL BEARING 6201ZZ
Price
N/A
410
GEAR A
Price
$13.70
411
KEY 5 X 5 X 14
Price
N/A
412
GEAR SHAFT B 14T/22T
Price
N/A
413
BALL BEARING 6201ZZ
Price
N/A
414
GEAR B
Price
$13.90
415
KEY 5 X 5 X 10
Price
N/A
416
OIL SEAL 25 X 32 X 7
Price
$1.90
417
SHAFT C
Price
$5.10
418
BALL BEARING 6204ZZ
Price
N/A
419
EXT RETAINING RING 20MM
Price
N/A
420
BALL BEARING 6201ZZ
Price
N/A
421
PHLP HD SCR M6-1 X 8
Price
N/A
422
FLAT WASHER 6MM
Price
N/A
423
COMPRESSION SPRING
Price
$1.90
424
STEEL BALL 4MM
Price
N/A
425
COMBO GEAR C 71T/79T
Price
N/A
426
KEY 5 X 5 X 50
Price
N/A
427
GASKET
Price
$1.90
428
GEARBOX
Price
$41.70
429
HEX BOLT M8-1.25 X 50
Price
N/A
430
OIL PLUG
Price
$1.90
431
FLANGE COVER
Price
$2.90
432
CAP SCREW M5-.8 X 12
Price
N/A
433
OIL SEAL 25 X 40 X 10
Price
$1.90
434
PIN 5 X 10
Price
$1.90
435
SHIFT FORK
Price
$1.90
436
HANDLE SHAFT
Price
$2.90
437
O-RING 10.8 X 2.4 P11
Price
N/A
438
FLANGE BOLT M6-1 X 12
Price
N/A
439
KEY 5 X 5 X 16
Price
N/A
440
BALL BEARING 6204ZZ
Price
N/A
441
GEAR D
Price
$14.75
442
CAP SCREW M6-1 X 20 LH
Price
N/A

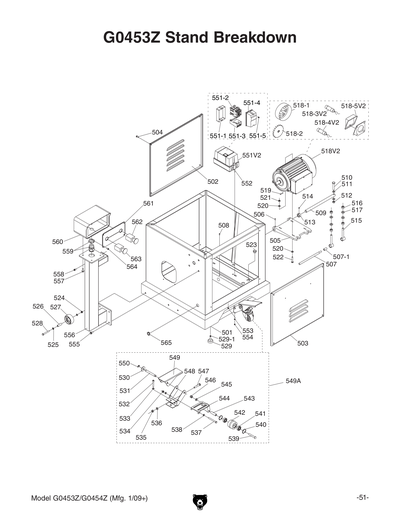

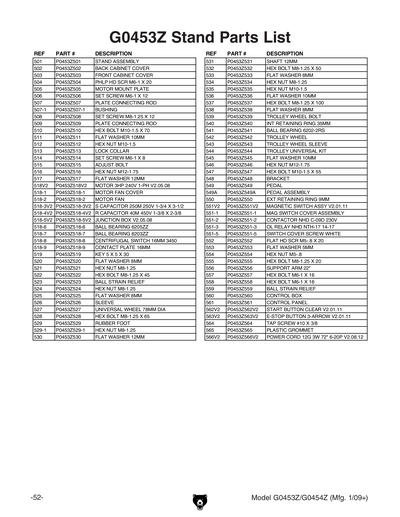

501
STAND ASSEMBLY
Price
$393.20
501-1
STAND BASE
Price
$96.35
501-2
STAND UPPER
Price
$296.50
501-3
FLANGE NUT 5/16-18
Price
N/A
501-4
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
501A
STAND ASSEMBLY W/MOTOR 3HP 220V 1-PH AND
Price
$1,193.15
502
CABINET COVER 2PC
Price
N/A
503
CABINET COVER 2PC
Price
N/A
504
PHLP HD SCR M6-1 X 20
Price
N/A
505
MOTOR MOUNT PLATE
Price
N/A
506
SET SCREW M6-1 X 12
Price
N/A
507
PLATE CONNECTING ROD
Price
N/A
507-1
BUSHING
Price
N/A
508
SET SCREW M8-1.25 X 12
Price
N/A
509
PLATE CONNECTING ROD
Price
$7.20
510
HEX BOLT M10-1.5 X 70
Price
N/A
511
FLAT WASHER 10MM
Price
N/A
512
HEX NUT M10-1.5
Price
N/A
513
LOCK COLLAR
Price
N/A
514
SET SCREW M6-1 X 8
Price
N/A
515
ADJUST BOLT
Price
N/A
516
HEX NUT M12-1.75
Price
N/A
517
FLAT WASHER 12MM
Price
N/A
518
MOTOR 3HP 240V 1-PH V2.05.08
Price
N/A
518-1
MOTOR FAN COVER V1
Price
$9.40
518-1V2
MOTOR FAN COVER V1
Price
N/A
518-2
MOTOR FAN V1
Price
$4.00
518-2V2
MOTOR FAN V1
Price
N/A
518-3
S CAPACITOR 500M 125V 1-3/4 X 3-3/8
Price
N/A
518-3V2
S CAPACITOR 250M 250V 1-3/4 X 3-1/2 V2
Price
$17.65
518-4
R CAPACITOR 20M 250V 1-3/8 X 2
Price
N/A
518-4V2
R CAP 40M 450V 1-1/2 X 3-1/2 V2.05.08
Price
$16.60
518-5
*DISCD*JUNCTION BOX V1.10.07
Item is no longer available
Price
N/A
518-5V2
JUNCTION BOX V2.05.08
Price
$7.20
518-6
BALL BEARING 6205ZZ
Price
N/A
518-7
BALL BEARING 6203ZZ
Price
N/A
518-8
CENT SWITCH 5/8-3450
Price
N/A
518-9
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
518A
MOTOR 3HP 240V 1-PH V2.03.08
Price
N/A
518A-1
MOTOR FAN COVER V2.03.08
Price
N/A
518A-2
MOTOR FAN V2.03.08
Price
N/A
518A-3
S CAPACITOR 200M 250V 1-9/16 X 3-9/16
Price
N/A
518A-4
R CAPACITOR 20M 400V V2.03.08
Price
N/A
518A-5
JUNCTION BOX V2.03.08
Price
N/A
518V2
MOTOR 3HP 240V 1-PH V2.05.08
Price
$415.85
519
KEY 5 X 5 X 30
Price
N/A
520
FLAT WASHER 8MM
Price
N/A
521
HEX NUT M8-1.25
Price
N/A
522
HEX BOLT M8-1.25 X 45
Price
N/A
523
BALL STRAIN RELIEF
Price
$1.90
524
HEX NUT M8-1.25
Price
N/A
525
FLAT WASHER 8MM
Price
N/A
526
SLEEVE
Price
N/A
527
UNIVERSAL WHEEL 78MM DIA
Price
N/A
528
HEX BOLT M8-1.25 X 65
Price
N/A
529
RUBBER FOOT
Price
N/A
529-1
HEX NUT M8-1.25
Price
N/A
530
FLAT WASHER 12MM
Price
N/A
531
SHAFT 12MM
Price
N/A
532
HEX BOLT M8-1.25 X 50
Price
N/A
533
FLAT WASHER 8MM
Price
N/A
534
HEX NUT M8-1.25
Price
N/A
535
HEX NUT M10-1.5
Price
N/A
536
FLAT WASHER 10MM
Price
N/A
537
HEX BOLT M8-1.25 X 100
Price
N/A
538
FLAT WASHER 8MM
Price
N/A
539
TROLLEY WHEEL BOLT
Price
N/A
540
INT RETAINING RING 35MM
Price
N/A
541
BALL BEARING 6202-2RS
Price
N/A
542
TROLLEY WHEEL
Price
N/A
543
TROLLEY WHEEL SLEEVE
Price
N/A
544
TROLLEY UNIVERSAL KIT
Price
N/A
545
FLAT WASHER 10MM
Price
N/A
546
HEX NUT M12-1.75
Price
N/A
547
HEX BOLT M10-1.5 X 55
Price
N/A
548
BRACKET
Price
N/A
549
PEDAL
Price
N/A
549A
PEDAL ASSEMBLY
Price
N/A
550
EXT RETAINING RING 9MM
Price
N/A
551
MAGNETIC SWITCH ASSY V2.01.11
Price
N/A
551-1
MAG SWITCH BACK COVER
Price
$24.45
551-2
CONTACTOR NHD 09D 230V
Price
N/A
551-3
OL RELAY NHD NTH-17 14-17A
Price
N/A
551-4
MAGNETIC SWITCH ASSY V2.01.11
Price
N/A
551-5
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
551V2
MAGNETIC SWITCH ASSY V2.01.11
Price
$142.70
551V2-1
MAG SWITCH BOTTOM COVER
Price
$25.90
551V2-2
CONTACTOR NHD 09D 230V
Price
N/A
551V2-3
OL RELAY NHD NTH-17 14-17A
Price
N/A
551V2-4
MAG SWITCH TOP COVER
Price
$24.15
551V2-5
SWITCH COVER SCREW W/ANCHOR
Price
$2.60
552
FLAT HD SCR M5-.8 X 20
Price
N/A
553
FLAT WASHER 5MM
Price
N/A
554
HEX NUT M5-.8
Price
N/A
555
HEX BOLT M8-1.25 X 20
Price
N/A
556
SUPPORT ARM 22"
Price
$34.90
557
HEX BOLT M6-1 X 16
Price
N/A
558
HEX BOLT M6-1 X 16
Price
N/A
559
BALL STRAIN RELIEF
Price
$1.90
560
CONTROL BOX
Price
$18.70
561
CONTROL PANEL
Price
$9.00
562
*DISCD*START BUTTON SOLID V1
Item is no longer available
Price
N/A
562V2
START BUTTON CLEAR V2.01.11
Price
$16.95
563
*DISCD*EMERGENCY STOP BUTTON 1 ARROW V1
Item is no longer available
Price
N/A
563V2
E-STOP BUTTON W/3 ARROW NHD NLB22-R V2
Price
N/A
564
TAP SCREW #10 X 3/8
Price
N/A
565
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
566
POWER CORD 12G 3W 78" V1
Price
$37.10
566V2
POWER CORD 12G 3W 72" 6-20P V2.08.12
Price
N/A
567
CONTROL PANEL CORD 18G 5W 79"
Price
$9.40

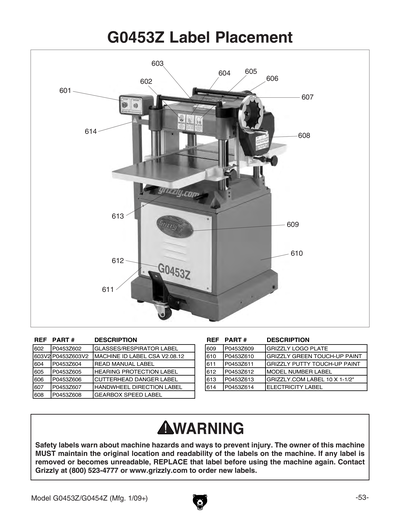

601
CONTROL PANEL
Price
N/A
602
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
603
MACHINE ID LABEL V1
Price
$16.40
603V2
MACHINE ID LABEL CSA V2.08.12
Price
$16.40
604
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
605
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
606
CUTTERHEAD DANGER LABEL
Price
$4.40
607
HANDWHEEL DIRECTION LABEL
Price
$1.25
608
GEARBOX SPEED LABEL
Price
$1.25
609
Nameplate - Small
Price
N/A
610
N/S GRIZZLY GREEN G1023S
Price
N/A
611
GREY PUTTY REF G0504
Price
N/A
612
MODEL NUMBER LABEL
Price
$4.40
613
GRIZZLY.COM LABEL 10 X 1-1/2"
Price
$3.75
614
ELECTRICITY 1.4W X 1.2H
Price
N/A
MAN
MANUAL G0453Z MFD_10.07-12.08 V1.07.08
Price
$14.65
MANV2
MANUAL G0453Z MFD_01.09-07.12 V2.11.12
Price
$19.50
MANV3
MANUAL G0453Z MFD_08.12+ V3.07.12
Price
$20.50
